Cups, brushes, discs and scrapers are spare parts that can be used with older pigs saving cost on purchasing fresh new pigs. These spare parts scrape the pipeline interior while running through the pipe, this loosens up already deposited debris and prevents buildup of new deposits.

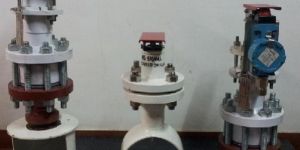

Pig Signals are devices which detect the passage of a pig and then inform the operators about this passage at crucial points of the pipeline. Pig signals are located at the pig launching, pig receiving and other critical points along the pipeline. Majority pipeline owners chose VKVC pig signals for their pigging needs due to the ease of operation and installation along with an uncomplicated design. Moreover the experienced pig locator professionals from VKVC make the pigging operation fast and efficient. Features of intrusive pig signals Can be used with a variety of pigs - Foam pigs, Metal bodied pigs, Polyurethane pigs, Spheres, Mandrel pigs Provided with mechanical and visual indicator, electrical indicator or a combination of both for maximum flexibility Can be fitted to all pipeline sizes over 1" Can be fitted on majority existing signaller bosses for best flexibility Does not use dynamic seals Low maintenance costs and emission controls Fitted on hot tapping systems Bi directional and omni directional trigger mechanisms

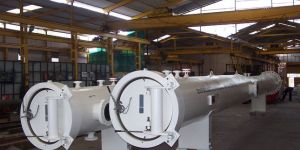

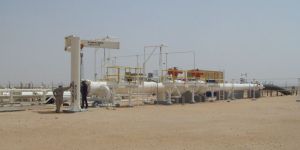

Multiple pig launchers are designed to allow the sequential launching of pigs and spheres. Using our automatic multiple pig launching system a series of pigs can be launched into a pipeline without having to repeatedly depressurise and re-pressurise after each pig launch. The process can also be controlled from a remote location. This is particularly relevant on unmanned platforms such as offshore platforms and sour service applications. Sphere release fingers on sphere launchers are used to control the release of a series of spheres into a pipeline. VKVC will design pig launcher and receiver systems which are 'tailor-made' to meet specific operational requirements.VKVC manufactures extension Pig Barrels to extend major barrel length of Existing Pig Barrels. Extension Pig Barrels consist of one quick opening closure and one adaptor to hook up the extension Barrel to existing Pig Barrel QOEC. VKVC has extended major barrel length of Pig Barrels to enable launch / Receive of multiple pigs and inspection tools.This can include: Multiple valve operation Automatic or manually operated pig and sphere release systems Integrated skid mounted packages   In addition to the supply of newly manufactured pig launchers and pig receivers, VKVC provides an inspection, maintenance and refurbishment service to existing in service pig launchers and receivers.Quick Opening and closures .

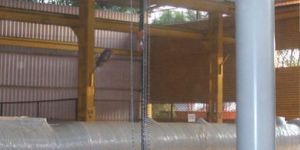

VKVC Jib Cranes are used for loading / unloading pigs near Pig Handling Systems. They are also used for removing filter elements from vertical filters. The cranes have a double bearing swivel to ensure that the jib crane can be rotated easily. Technical Features

VKVC flexi pigs are used for both sealing and cleaning purposes. It is best used for light and medium debris removal from the interior of the pipeline. Light weight, easy handling, efficient cleaning and good sealing are a few advantages why VKVC flexi pigs are highly popular. VKVC flexi pigs are used for batching, separation and displacement.

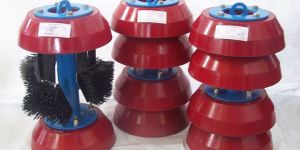

Two cup configurations are available with the VKVC cup pigs – standard and conical. VKVC cup pigs are globally used for various operations including but not limited to dewatering, filling, batching, hydrostatic testing and product removal. Cups are available in the size range of 2” to 52” with standard designs of 2-cup, 3-cup and 4-cup.

VKVC is a trusted manufacturer and supplier of Quick Opening Closures used in the Oil, Gas and Energy Sectors. VKVC offers Quick Opening Closures of the following variety: Y Rotary Self Lock Closure Y Ring / Band Lock Closure Y Clamp Ring Type Closure With over 10,000 units installed and safely in use worldwide with satisfied clients, VKVC is a trusted choice. VKVC is certified by the American Society of Mechanical Engineers to use the ‘U’ and ‘UM’ stamp with its Quick Opening Closures, thus ensuring an industry wide accepted quality standard.

Unavailability or lack of proper dedicated pig/scraper launcher and receiver facilities may cause a pipeline that is traditionally accepted as piggable to be considered non-piggable. Conventional pigging methods and technology are not suitable for such systems.Unavailability or lack of proper dedicated pig/scraper launcher and receiver facilities may cause a pipeline that is traditionally accepted as piggable to be considered non-piggable. Conventional pigging methods and technology are not suitable for such systems. HOW TO PIG NON PIGGABLE LINES? The best or ideal pipeline for pigging is when the following conditions are met A straight pipeline A uniformly round internal diameter without any change in wall thickness and weld penetration Internal surface is polished No valves or offtakes In reality all of these conditions are rarely met and in certain cases none are met. In certain cases if proper considerations are not taken into account then the line can be completely unpiggable.

Sandwich Valves use a variety of design features used to assist the linestop operations.

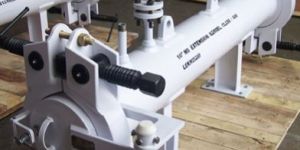

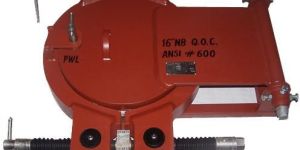

Quick opening closures are pressure retaining structures designed to provide access to pipelines and pressure vessels.Our Quick Closures provide safe and quick access to pipeline and pressure vessels. They are built to meet all required international design codes and can be used in horizontal, vertical, inclined or declined applications. We offer Clamp, Bayonet and Ring lock Closures as required by Clients. Approved Design ASME VIII Div.1.states that "Quick-actuating or quick opening closures are those that permit substantially faster access to the contents space of a pressure vessel than would be expected with a standard bolted flange connection. The requirements of other pressure vessel codes, such as ASME VIII Div. 2 and PD5500 can be complied with as well as ASME U code stamps. This code stamping confirms that the quick opening closure has gone through rigorous shop inspection by an ASME Authorized Inspector. We offer EN 10204 3.1 & EN 10204 3.2 certification as required. Typical applications for the quick opening closure include, Filter vessels, Strainers, Separators. Pig launchers and pig receivers Metering skid systems We offer Inconnel / stainless steel cladding on our Closures. VKVC molds all the QOEC seals In-House upto a diameter of 72”NB, Please do contact us for any specific seal requirement for any Closure.

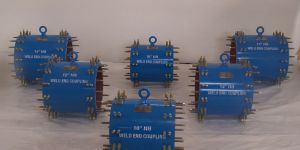

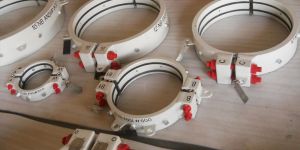

A VKVC pipeline coupling is one of the safest ways to couple pipelines in the oil, energy and gas sector. They allow the pipeline to resume operation immediately so that costly downtime is avoided. VKVC couplings provide a safe and reliable method to join low, medium and high pressure pipelines. Please contact us to find out more.

Size : 2”NB to 36 ” NB

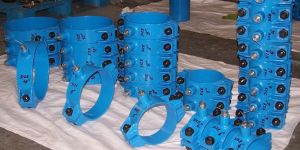

  A Pin-Hole Leak Repair Clamp is a pipeline repair technology that is used when the leakage in the pipeline is of very small or minute size. Installation of these clamps is very simple. VKVC offers installation services for the clamps as well. Pressure and class range of VKVC Pin-Hole Clamps are given in the following table. VKVC provides custom sizes and configurations depending on client need basis.

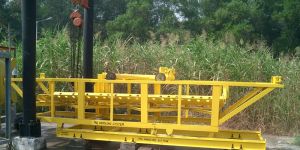

In addition to pigs and launchers and receivers, VKVC also provides pig handling systems and jib cranes. Being equipped with pig handling systems is a must for pig stations and facilities. Loading and unloading the pigs are key points where accidents resulting in danger to manpower and equipment damage can occur. The pig handling system can be manual or hydraulic. A crane alone is not sufficient to handle pigs as it is difficult to maneuver the pig in and out of the pipeline. Also a jib crane alone cannot ensure if the front cup is correctly positioned in the reducer at the pig launcher. VKVC pig handling systems are designed and engineered to ensure safe operation.

O-rings are available is Viton, Buna ‘N’. These O-rings are usable for line stop applications with products: oil, crude oil, diesel, gasoline, GPL, natural gas, hydrocarbons and chemical industrial products.

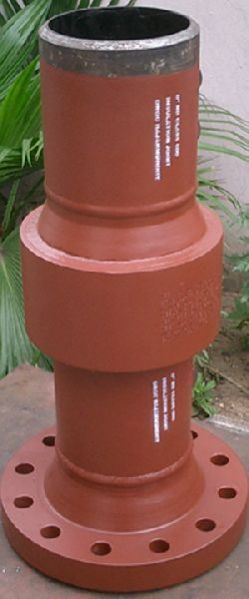

Insulating Joints are used on pipelines to provide electrical isolation to prevent corrosion. They provide current spreading on cathodic protection systems. They provide electrical separation between pipeline section and the adjoining neighboring structures and pipelines. Wherever practical, the VKVC insulating joint is intended to be installed above the ground, or in an inspection pit in dry conditions to limit the possibility of electrical bridging across the joint. It is intended to be girth welded between two pipeline sections. BENEFITS & ADVANTAGES No loss of integrity due to thermal expansion or ground stress as is common with flange isolation gasket kits. In-factory tested hydrostatically and electrically, to 1.5 times their working pressure. Non destructive testing is also available. Maintenance-free, reliable cathodic isolation of equipment in required isolation applications such as compressor stations. No labor intensive, complicated installation procedure required as is the case with isolation gasket kits, No inspection pits, vaults or maintenance needed - weld into place and direct bury - reliable, worry-free cathodic isolation. Non-conductive epoxy coatings help prevent shorts, both internally and externally. Isolation stray currents impressed on the pipe from exterior forces such as electrical transmission systems, earth currents and currents flowing from point to point. Excellent bending and torsional resistance. Earthquake resistant - acts as a thrust block or joint.

Additional Available Features Mechanical Sequential Key Interlock Limit Switch Inconel / Stainless Steel Weld Overlay Hydraulic Operating System Worm Gear Operation Typical applications include but are not limited to Pig Launcher / Receivers Subsea Systems Filters Basket Strainers Sand Blasting Units City Infrastructure Access Points Tanks Reactors Metering Skids Fuel Conditioning Skids Separators Hydrocyclones Decompression Chambers Thermal Processing Equipment

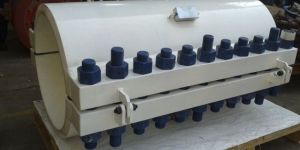

High Pressure Leak Repair Clamps are ideally made for extremely critical applications. VKVC high pressure leak repair clamps are the ideal, cost effective and safe solution for leaking pipelines. They have already been used worldwide with extremely positive results and satisfied customers both onshore and offshore. The clamps are manufactured with strict adherence to industry specifications and quality control program. The clamps are precision machined in the VKVC machine shop. VKVC high pressure leak repair clamps have helped customers avoid costly downtime that reduces their output.

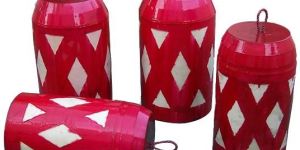

Similar to many other applications, the advantages of using plastic materials for pigs were apparent even before the materials were themselves completely developed. Advantages Low cost Reduced sticking risk Low maintenance High tear and wear resistance Spheres are one of the oldest, most well known and widely used pigs. They are almost exclusively used as sealing pigs. Inflatable spheres are available. A spherical shape is ideal for an automated system because of the ease to roll. Numerous spheres can be loaded and then launched at predetermined intervals. Specially designed flow tees for the spheres are also available on request.

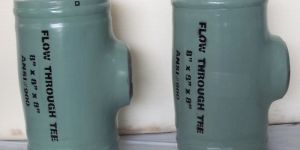

VKVC flow tees are used in pipeline systems at branched connections and pig launcher and receiver systems. The tees can be barred or sphere. Barred tees help the pig to negotiate the branch. Tees are available customized as per customer request.

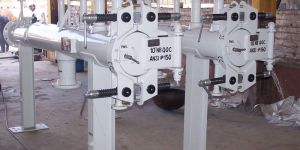

For pipelines having short launcher / receiver barrels, VKVC designs, manufactures, tests, installs and commissions extension barrels for existing pig barrels. These barrels extend the length of the launcher / receiver. Adaptors are custom made to suit any make of quick opening end closure (QOEC) / quick opening closure (QOC) available over extension barrels. VKVC extension barrels enables intelligent pigging to be carried out on the existing barrels. A major advantage is that no hot work is required for installation of the extension barrels. VKVC pig extension barrels are custom designed by the engineering team at VKVC. The entire unit is precision machined in house at the VKVC machine shop and fabrication facility. Please contact us for more information.
