Vertical Lathe Machine Dealers in Ahmedabad

• Voltage: As Per Model
• Automatic Grade: Automatic
• Weight: 17.5 Kg
• Condition: New
• Business Type: Manufacturer
• Type: Vertical
• Packaging Details: Depending on Customer's Requirements.
• Certification: ISO Certified Compnay
• Dimension(L*W*H): 3210 x 2850 x 3910 mm
• Machine Type: Vertical Turning Lathe
• Place of Origin: Gujarat, India
• CNC or Not: CNC

• Type: Vertical Lathe
• Material: Mild Steel
• Shape: Square
• Color: Light Green
• Voltage: 110V
• Condition: New
• Finishing: Powder Coated

The machine is 3000mm x 3000mm x 5000mm in lxbxh. It contains 2 heads on the cross-slide containing a Planning Type Head and a Drilling Head(depends upon customers requirement) The cross slide has a clear travel of 2500mm vertically with a clear distance of 2800mm horizontally between 2 heads mounted on it. The square table shown in the picture can also move horizontally by 1500mm clear travel useful for offset machining of the job. The round table basically acts as a chuck for the machine which has 3000mm O.D. All the movements of the machine is been controlled by individual VFDs viz horizontal movement of the heads, vertical movement of the spindle, vertical movement of the cross-slide, horizontal movement of the table, rotational movement of the chuck giving precise RPM as required. All the gear boxes are Planetary gear boxes with precise ratios as per the requirement. Total weight of the machine is approx 40 tons.

Bhavya Machine Tools provides a wide variety of SPM and heavy machines including vertical turning lathe machines. SPM is a special purpose tool that is made for a specific function; they are available in various models and useful in many industries.

Bhavya Machine Tools provides a wide variety of SPM and heavy machines including vertical turning lathe machines.SPM is a special purpose tool that is made for a specific function; they are available in various models and useful in many industries. Our strong and efficient vertical turning lathe tools are designed for fast and concurrent turning of the work piece.

• Brand/Make: Three dimesnion Engineer
• Capacity: 500 mm to 5000 mm
• Automatic Grade: Automatic
• Features: Noise free working , Long service life , High performance .
• Uses: Used for cutting of the long shaft work piece in various industries .
• Item Code: CM-CC

Product Introduction Main features: Rough and finish machine Hydro-static guideway, head load capacity High precision, low noise High wear-resistance DRO available as optional

used vertical turret lathe machine, used boring machines

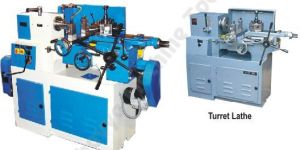

Vertical Turning Lathe Machine, Facing Machine, Drilling Machine

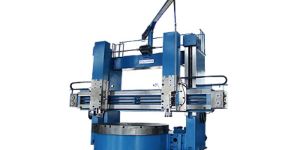

Double Column Vertical Turning Lathe Machine., Internal Bore Grinder

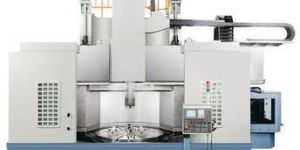

CNC Heavy Duty Vertical Lathe Machine

Vertical Lathe Machine, CNC Turning Machining Job Work

Cnc Vertical Turret Lathe Machine, Heavy Duty CNC Flat Bed Lathe Machine

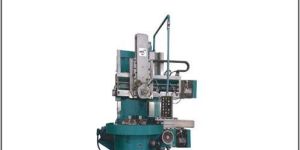

Vertical Turning Lathe Machine, High Precision Radial Drilling Machine
