Vishwaraj Rubber Industries Gota, Ahmedabad, Gujarat

Brand : vishwaraj

Material : Mild Steel

Thickness : 5-10 mm

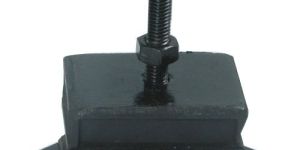

Vishwaraj Sandwich Mounts are rubber to metal bonded anti vibration mounts. Combination of rubber is used, generally loaded in a shear & compression to achieve the most effective levels of vibration isolation and to ensure long life for the mounts and machinery mounted on them.

Unique construction elements are the key to the Vishwaraj FabRub Spring spring’s design flexibility. The basic construction includes a solid rubber core with a hollow center, and several plies of fabric reinforced rubber as an outer cover. These elements may be modified to meet specific load and performance requirements. When a coil spring fails, it will often crack allowing fragments of the coil to damage equipment. This problem is eliminated with the rubber construction of FabRub Spring. Additionally, FabRub Spring exhibit exceptionally high overload characteristics and usually do not fail catastrophically, offering some support even during failure. FabRub Spring have no moving parts.

Length : 44,89

Feature : Greater movement per arch.

Material : Carbon Steel, Stainless Steel

Size : 3000 mm

Color : BLACK

  As Vibration Isolator : Vishwaraj Rubber Bellows are manufactured with indigenous technology and provides complete solution for the vibration isolation and support of machines. The Air Spring gives consistently good isolation even under changing loads. It isolates both low-frequency vibrations and structure borne noise. As Pneumatic Actuator : Vishwaraj Rubber Bellows are ideal for many applications in mechanical engineering and in the construction for machinery and equipments. Air Actuators, like cross ply tyres, are made of a fabric-reinforced rubber bellow completed with connecting parts to form an airtight system. By use of high grade materials and modern manufacturing methods, the safety requirements of the industry are met.   Advantages:   In both above cases, Rubber Bellow is cost saving in a various ways like easy design calculation, easy installation, low space requirement, versatile, longer service life, purchase price, ability to absorb lateral forces, Constant isolation efficiency, accurate height control, wide size range, effective noise reduction, no maintenance and simplified construction, Friction free for immediate response.  Applications : Automotive Alignment Equipment, Paper and Textile Machinery, Material Handling, Expansion Chambers, Test Bed Shakers, Generator Sets, Industrial Machinery, Vibrating Screens, Seat Springs, Vibrating Test Equipment, Shock Absorbers, Inertial Mass Mounting, Vibrating Conveyors and Feeders

Application : Garage

Color : Green , black

Type : Rubber Air Spring

Application : Industrial

Material : Rubber

Color : Black

Vishwaraj Steel Plate type Mounts is designed for use on machinery that does not require fastening to the floor. Installing this mount is easy - simply unscrew and slide the mount under the machine. The reinforced leveling bolt support cup distributes machine loads to the support points within the mount. The leveling element provides direct and reliable machine mounting to suit most installation needs. Vertical as well as horizontal forces are dampened out by the integral nitrile pad, which also provides chemical resistance to most fluids.  Advantages :- 1. High strength machined components 2. Rapid installation & leveling 3. Critical noise reduction 4. Substantial vibration reduction 5. Effective vibration isolation improves production output 6. Easy installation and relocation. No cementing or bolting needed

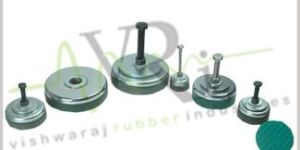

  VISHWARAJ Round leveling Mounts are compact designed and specially moulded in one piece that does not require fastening to the floor. These mounts are modular in design with high steel housing to carry loads. The base mount made from combination of rubber which controls deflection under vibration and shock load with high isolation efficiency. These ready to use mounts provide fast, easy, and precise leveling of all types of machinery and equipment, and are available with a variety of mounting options depending upon the application. The leveling mount is ideal for machines exerting large horizontal and vertical thrust forces. The product absorbs impulses and shocks in high-speed machinery, where damping material is critical.  Advantages :- 1. Excellent horizontal dynamic stability and reduced overall height. 2. Effective vibration isolation improves production output. 3. Easy, fast installation and relocation. No cementing or bolting needed. 4. Allows fine height adjustment under full loads. 5. Ready to use & Cost-effective options.

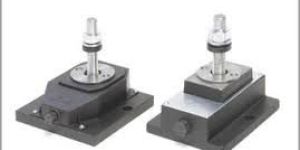

Vishwaraj Precision Wedge Mount is designed for applications requiring passive damping and installation of high load equipment. The design incorporates a high-precision leveling system for easy height adjustment. The large supporting surface of the wedge mounts permit optimum foundation support and rigidity. High solidity and equally high vibration insulation is obtained through the addition of selected insulating plates. The rectangular shape of the Mount is yet another advantage. While providing greater resistance to machine "walking" than circular mounts, the straight leading edge surface on the rectangular mount has proven to be more geometrically stable. This helps eliminate pad roll and entrapment of coolants and oils beneath the pad. In addition, each isolation pad is engineered to possess an exceptionally high coefficient of friction that also prevents machine "walking".   Advantage: 1. Reduced shock and vibration 2. Heavy Duty machinery mount system 3. Two height ranges in one mount 4. Fast, Precise leveling of machine & prevent machine walking 5. Good stability due to non slip character of plates 6. Highly effective insulations in the active and passive range. In particular when used on upper floors. 7. Increased equipment life 8. Simplified machine installation 9. Elimination of anchor bolts 10. Uneven floors accommodated 11. Horizontal impact capabilities

The large supporting surface of the wedge mounts permit optimum foundation support and rigidity. High solidity and equally high vibration insulation is obtained through the addition of selected insulating plates. The rectangular shape of the Mount is yet another advantage. While providing greater resistance to machine "walking" than circular mounts, the straight leading edge surface on the rectangular mount has proven to be more geometrically stable. This helps eliminate pad roll and entrapment of coolants and oils beneath the pad. In addition, each isolation pad is engineered to possess an exceptionally high coefficient of friction that also prevents machine "walking". Highly effective insulations in the active and passive range. In particular when used on upper floors.

Application : Lift jobs of heavy truck and bus

Material : MS and Rubber

Capacity : 2.2 - 5 Ton

VISHWARAJ machine pad are used in many areas of industry to insulate machinery against the adverse effects of impact, vibration, structure-borne noise, or simply to prevent slipping. These pads substantially reduce vibration and noise transmission. There are various types of machine pads to choose from, each with its own specific hardness, natural frequency, and load-bearing characteristics. All Machine Pads are made from an exactly defined high-grade combination material of nitrile rubber, cork particles chemicals with fillers no PVC Clay or Silicon. Major advantages of this new compounded material is its resistance to all types of modern grease, acid, oil, and cooling emulsions and are tolerant to a wide range of ambient temperatures.. Installations are fast, easy and inexpensive.    Advantages :- The service life of these mounting plates is nearly unlimited if the load values are observed. No permanent deformation • Easy design to meet thickness shape and requirements • High resistance to Grease, Acid, Oil, and Cooling Emulsions • Significantly reduces vibration • Easily sized for different configurations • Unique design offsets pad deflection. No permanent deformation. Type Load Kg/Cm2 A V Pads Thickness    in mm Applications A 1 to 6 8,10,12,15, 18, 22 & 25 Hacksaw Machine, Light Duty Lathe, Blowers, Grinders, Compressor, Pharmaceutical Machine, Packing and Textile. B 5 to12 8,10,12,15, 18, 22 & 25 Heavy Duty Machines, CNC Turning Centre, VMC Machine, Boring Machine, Milling Machine, Hobbling, Printing Machine, Spinning, Forming, Drilling Machine, Machine Centre and Extrusion Machine. C 2 to 8 8,10,12,15, 18, 22 & 25 Power Press, Forging Hammer, Shearing, Press Break, Pedestal Grinding, Buffing Machine, Injection Molding, Blow Molding, Plastic Scrap Grinder, Embroidery, Pulverizers, D G Sets, Floor Machinery.

  Material :-               Handle --- Cast Iron, Painted                 Bolt and Nut --- Steel, Zinc Plated                 Housing --- Cast Iron, Painted                 Isolator --- Neoprenen                                                             MODEL LOAD A H I2 D H2 Weight Max. Height Adjust-ment Max. Allow Foot Thickness Spring Rate kgf / mm (lb/in) x 10³ MAX MIN VRLM-1 286(630.5) 143(351.3) 110(4.33) 115(4.53) 85(3.35) M 12 47(1.85) 15(.59) ~45 377.3(21.1) VRLM-2 612(1349.2) 286(630.5) 130(5.12) 141(5.55) 110(4.33) M 16 51(2.00) 20(.79) ~60 754.6(42.3) VRLM-3 1224(2698.5) 612(1349.2) 160(6.3) 151(5.95) 110(4.33) M 16 65(2.56) 24(.95) ~55 1499(83.9) VRLM-4 1835(4045.5) 1224(2698.5) 200(7.87) 177(6.97) 130(5.12) M 20 76(3.00) 27(1.06) ~65 2345.3(131.3)

Isolating Washers are specially designed for Machine Anchoring application. To avoid deformation, it is bonded with M S Washer. These washers are used to isolate machine vibration transferring through bolts to the foundation. Washers are available in different sizes according to the bolt size.

Vishwaraj FabRub Spring fabric and rubber spring provides a new and unique way to make use of the many advantages of rubber as an industrial application fields because of their reliability, corrosion resistance, low cost, and basic simplicity. When a coil spring fails, it will often crack allowing fragments of the coil to damage equipment. This problem is eliminated with the rubber construction of FabRub Spring. Additionally, FabRub Spring exhibit exceptionally high overload characteristics and usually do not fail catastrophically, offering some support even during failure. FabRub Spring have no moving parts. No maintenance or lubrication is required and reduce structurally transmitted noise caused by vibration. The excellent performance has been proven in the damp and corrosive environments of mines and mills where a standard coil spring will fail. Due to the rubber construction, these springs do not bottom-out like coil springs under overload    Construction :- Unique construction elements are the key to the Vishwaraj FabRub Spring spring’s design flexibility. The basic construction includes a solid rubber core with a hollow center, and several plies of fabric reinforced rubber as an outer cover. These elements may be modified to meet specific load and performance requirements.  1. Advantages :- 1. Constant Vibration Isolation with Changing Loads. 2. Does Not Bottom-Out. 3. Eliminates Downtime and Potential Damage to Machinery. 4. High Load Carrying Capacity. 5. Excellent Vibration Isolation. 6. Lateral Vibration Isolation. 7. Compact Overall Size. 8. Corrosion Resistant, Durable & Long Life. 9. Increased Stability at Higher Percentages of Compression. 10. Effective Noise Reduction. 11. Low Cost. 12. Maintenance Fre

Double 'U" Shear Mounts feature a soft, vertical spring rate. These mounts are capable of dampening shock and vibrations in the vertical as well as lateral direction. The design incorporates built in protection against metal to metal bottoming.  Fitting & Installation :- 1. Double U - Shear mounts have threads to accommodate grooves. 2. Avoid non - load dependent offset wof the U-Shaped channel sections relative to each other. 3. Individual components permit adjustments to allow for in-situ planar offset. 4. It is important to ensure full surface contact between the mating faces of the U-shaped channel sections and the frame on the one hand and the supported mass on the other.

Vishwaraj Diamond Base Mounts are designed to provide superior attenuation of medium to high frequency vibration and noise emanating from a wide range of motor driven machines. For most machines that vibrate because of their rotating parts, such as Gen-Sets, Compressors, Combustion Engines, Fans, Generators, Mills, Paper Machines, Pumps, Printing Machines etc. The unique design provides high degree of isolation. Diamond Base Mounts are also suitable as a shock isolator for applications ranging from small equipment to big heavy duty machines for both active and passive vibrations.

Cylindrical mountings are simple & versatile isolators of rugged construction for use in wide variety of application to ease misalignment problems; permit relative movement as in vibratory rollers, shifting & grading machine; as well as a mounting to protect instruments & light equipments and isolate heavy machines from the harmful effects of vibration, shock & noise.

Color : Black

Material : Cast Iron,Rubber

Country of Origin : Made in India

Packaging Type : Box

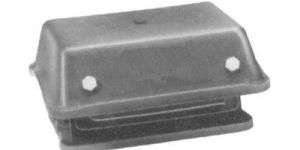

Cushy foot Mounting provides large deflection, high load capacity and long service life. The Cushy foot mounting springs are loaded in shear and compression for optimum load deflection characteristics and protect from physical damage by the robust iron castings in which they are housed. The special combination of rubber can resists any weather condition, grease, oil, acid and higher temperatures, Generators Diesel Engines Compressors Mining Machinery Printing Machinery Pumps Fans and Blowers.

Vishwaraj Bolt-On wedge style mount is more suitable for installation on machines subject to large horizontal or vertical forces. This series is used where mounts can be bolted on and firm mounting with the machine is required. This mount provides a secure and reliable bolt connection between the mount and the machine. Preferably on machines with a high axial thrust such as die-casting machines, injection moulding machines, shock testing machines, and cold extrusion presses etc.

Vishwaraj offers Base Screw Support Mounts, a reliable & economic vibration damping designed for installation of all kinds of machinery. These mounts comprised of an Anti Vibration Rubber Pads at the bottom and a load distribution plate on top with respective mounting hole on it. The Rubber Pad fitted has designed to grip mounting surfaces and has a solid base design. For leveling purposes you can easily use Machine Foundation Bolts.

Vishwaraj Base Mounts are excellent absorbing mounting in shear and compression obtaining good vertical flexibility with the advantage of horizontal stability. Compact, light weight and strong base metal withstands high shock loads without deformation. Special combination of rubber and design gives better isolation against horizontal and vertical vibrations. Strong base material withstands loads without deformation. The durability of rubber mounting is quite high. It is effective vibration isolation for different types of machines with rotating movements.
