Simultaneous control of 2 axes and 1 spindle (work head) through CNC High powered Grinding wheel head with option of Belt driven or Hi-frequency Intenal grinding spindle Swivelling type Work head with precision Anti friction bearings to give high accuracy

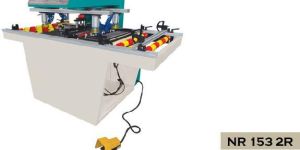

• Brand Name: Nihar
• Model: NR 153 2R
• Maximum Thickness: 80mm
• Maximum Size of Job: 2000mm X 640mm
• Number of Spindle Head: 1 Nos
• Number of Spindles in One Head: 21 Nos
• Total Spindles: 21 Nos (21 x 1)
• Center Distance Between Each Spindle: 32mm
• Center Distance Between First & Last Spindle: 640mm
• Minimum Centre Distance Between Two Vertical Head: -
• Maximum Centre Distance Between Two Vertical Head: -
• Shank diameter of drill: 10mm
• Spindle Rotation Speed: 2800RPM
• Maximum Drilling Diameter: 32mm
• Onlling Depth: 0-50min
• Compressed Air Requirement: 6-8 kg/cm2
• Total Power: 1.5 KW / 415 V / 50 Hz

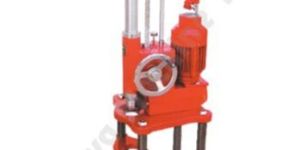

Specifications Bhavya Machine Tools offers: 1. Cylinder Block Boring Machine 2. Block Boring Machine India 3. Honing Machines Block Boring Machine   Bhavya Machine Tools offers a wide range of block boring machines and honing machines that includes cylinder honing machine and cylinder block boring machine. Honing refers to an abrasive machining process to create an accurate surface on a metal work piece. These equipments provide convenience and versatility. Our machines are reliable, economical and durable. They are produced using superior quality material to assure easy operation, low maintenance and high performance. We supply machines that feature lower noise and reduced vibrations. Our machines are built using advanced technology for better efficiency and higher precision. They are designed according to the industry standards and general specifications. Various models are available to meet diverse requirements. These machines are used in the automobile industry.

• Power Consumption: 2 KW per hour (Approx.)
• Boring Capacity: Up to 150 mm
• Boring Head Travel: Up to 550 mm
• Spindle Speed: Up to 350 RPM
• Spindle Feed per Revolution: Up to 0.15 mm
• Working Table Length: Up to 1170 mm
• Working Table Width: Up to 450 mm
• Power Supply: 440 Volts,50 Hz,A.C.,Three phase ( can also be designed as per specific requirement )
• Working Temperature: -10 DegreeC to 40 DegreeC (14 DegreeF to 104 DegreeF )
• Machine Dimensions: 1200 x 800 x 1500 mm ( Lx W x H,Approx. )
• Machine Weight: Up to 1200 kg (Approx.)

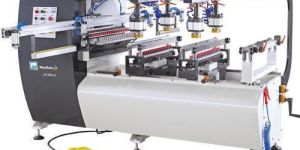

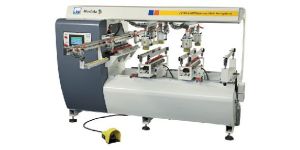

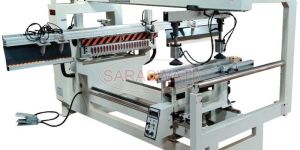

J-2103.in Triple head Multi Boring (Semi Auto)         Offering multiple application, flexibility & high-productivity for knock-down modular furniture industry     Heavy duty frame to hold boring heads with Quick change spindles chucks. Semi automatic boring machine equipped with 1 horizontal & 2 rotating vertical boring heads (0-90°) with 21 spindles for executing holes in a line for the wardrobe - side processing. Elegantly designed, electro-pneumatic control panel. The two vertical heads can slide away on rolling guides from each other. They also rotate by 90° giving more location positioning. Digital counter for adjusting boring depth.         The aluminum fence has 4 reference stops that slide on support rollers for smooth positioning. This makes it easy to feed long workpiece.         Boring depth adjustment can be easy & quick setting of horizontal boring head.         Auxiliary support frame gives better solution for long panels.

• Application: Boring
• Voltage: 230v
• Automatic Grade: Semi Automatic
• Driven Type: Electric
• Feature: Easy To Operate, Good Capacity, High Performance, Low Maintainance
• Frequency: 50/60 Hz
• Material: Mild Steel

• Swing Diameter: 300 415
• Max chuck size: 250 350

Machine is with Internal Grinding spindle suitable for Bore & Face grinding application. Stiff Linear Roller guide-ways for maximum rigidity. Most efficient & cost effective lubrication system with CNC interlocking. Convenient approach to diamond touchSwivel work head available as optional. Lifetime protection of spindle and slides against coolant and fumes with non-wear parts. Machine also offered with TWIN Spindle Hard Turning station as optional.

• Material: Mild Steel
• Voltage: 220 Volt
• Automation Grade: Semi-Automatic
• Machine Type: Cylinder Boring Machine
• Max Boring Depth: 0-50 feet
• Max Bore Size: 0-1 inch

• Brand Name: Bhavya Machine Tools
• Condition: New
• Certification: An ISO 9001 2008 certified company
• Place of Origin: Gujarat, India
• Packaging Details: Depends on Customer's Requirements.
• Model Number: BCB-60 & BCB-80

We are offering cnc boring mill. Why choose cyflex f900? it carries out all boring operations • it carries out grooving • no operator's intervention for worktable tooling • very compact overall dimensions

• Type: Augers, Industrial Augers
• Material: Iron, Metal, Stainless Steel
• Thickness: 0-5mm, 10-15mm, 5-10mm
• Length: 45-60mm, 60-75mm, 75-90mm, 90-105mm
• Application: Metal Drilling, Steel Drilling, Wood Drilling
• Color: Black, Golden, Grey, Grey-Golden, Metallic, Shiny Silver, Silver
• Feature: Accuracy Durable, Auto Reverse, High Quality, High Tensile
• Condition: New, Used
• Surface Finishing: Polished, Power Coated
• Technics: Hot Dip Galvanized, White Zinc Plated, Yellow Zinc Plated

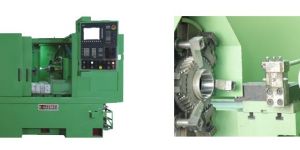

We are distinguished in the global market as one of the most prominent Automatic Hydraulic Bore Grinding Machine Manufacturers in the country. Our technically advanced Hydraulic Bore Grinding Machine is uniquely designed for Pharmaceutical Die, Bearings & Sleebes the various models are available with 100 mm centre height to 400 mm centre height and the speeds are available with 4000 rpm to 55000 rpm which make our Bore Grinding Machine unique in the market. Moreover, we offer Grinding Machines at the most reasonable prices.

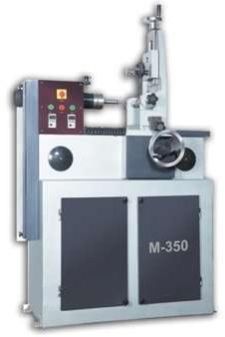

VSimple, easy, fast, economic, this is the best to offer for work, quick clamping easy centering, and best tool setting system. Min & Max. Bore Centre Distance of the Connecting Rod 100 - 350MM, Boring Range 15 to 100MM, Feed 0.6MM, Bottom Part Traverse Crosswise 50MM, Motor Spindle Speed (Dual Speed)0.75-1.0HP.

• Size (LxW): 1170 x 450 mm

High profile strong design for maximum output with quick & easy operation, it comes with VFD control for spindle RPM fast rapid head up, down also it comes with feed per revolution which cuts of the chances of single running system as both things is controlled by single motor.

Boring machine, device for producing smooth and accurate holes in a workpiece by enlarging existing holes with a bore, which may bear a single cutting tip of steel, cemented carbide, or diamond or may be a small grinding wheel. Single-point tools, gripped in a boring head attached to a rotating spindle, are moved ...

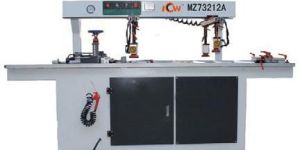

• Brand: ICW
• Capacity: 9 inch
• Model: MZ73213A
• No of Motor: Single
• Max drill diameter: 35mm
• Max Working depth: 60mm
• Vertical Spindle Heads: 2450mm
• Number of Spindle: 21x3
• Spindle Speed: 2840r/min
• Install Power: 1.5kWx3
• Air Pressure: 0.6-0.8 Mpa
• Overall Size: 2600x2500x1530mm

• Features: Hassle-free functionality,Less noise,Longer operational life

J-2100.in (Single Head) Multi Boring is also available Salient Features : Heavy duty frame to hold boring heads with Quick change spindles chucks. Pneumatic cylinder for head tilting of the tiltable head assembly from 0-90 degree. Elegantly designed, electro-pneumatic control panel. Horizontal & vertical Boring   For vertical boring application. Both heads work parallel vertically (In Model J-2102.in)

• MODEL: VCB-1200,VCBM-1200,VCB-1500

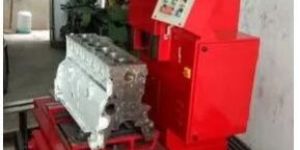

vertical fine boring machine with quick & easy operation it come with vfd control for spindle & feed rapid head fast rpm..

• Model Number: HBMX95-5i
• Maximum Programmable Feedrate: Y,Z,W Axis),Z 299.2 in/min W 157.5 in/min (X,X,Z (7.6 m/min) W (4m/min)) (X
• Rapid Traverse: Y,Z Axis),X,Z (10 m/min) W (4m/min)) (X,Z 393.7 in/min W 157.5 in/min (X
• Brand Name: Hurco
• B And Axis Travel: Continuous
• Tool Type: CAT 50
• X And YAnd Z Axis Travel: 94.5 x 82.7 x 59.1 x 35.4 in (2,400 x 2,100 x 1,500 x 900 mm)
• T Slot Size: 9 x 1.1 in (9 x 28 mm)
• Table Size: 70.9 x 78.7 in (1,800 x 2,000 mm)
• Number of Tools: 60 (90)
• Machine Weight: 57,320 lbs (26,000 kg)
• Maximum Tool Weight: 55.1 lbs (25 kg)
• Boring Bar Diameter: 5.3 in (135 mm)
• Spindle Power: 40.2 hp,383.6 rpm (30 kW,383.6 rpm) (peak)
• Maximum Tool Diameter: 4.7 in (120 mm)
• Spindle Nose to Table: 33.4 in / 92.4 in (848 mm / 2,348 mm) (Min-Max)
• Required Floor Space: 315 x 299.2 inches (8,000 x 7,600 mm)
• Maximum Weight On Table: 22,046 lbs (10,000 kg)
• Spindle Torque: 2,263 ft-lbs (3,202 Nm (low)) (peak)
• Machine Height: 190 in (4,840 mm)
• Maximum Tool Length: 15.7 in (400 mm)
• Power Rating And Full Load KVA: 127 KVA
• Maximum Spindle Speed: 1,500 (high),350 (low) rpm
• Maximum Spindle Motor Torque: 1,106 ft. lbs. (1,500 Nm)
• Programmable Feedrate B And Axis Maximum RPM: 1 rpm

• Automatic Grade: Semi-Automatic
• Drilling depth: 200-300 Meters
• Hole Diameter: 150-200 Mm
• Brand Name: Jia Drilling
• Model Name/Number: TYCOON DTH-1000
• Drilling Rig Type: Land Based Drilling Rigs
• Size: 1000 Feet
• Capacity: 500-1000 feet
• Power Source: Hydraulic
• Model: TYCOON DTH1000
• Automation Grade: Semi Automatic
• Air Compressor: 1000 CFM, 300 psi
• Minimum Order Quantity: 01 Set

1. The machine is complete with Full Electricals & duly equipped with  Panel Board & Pendent Control Switch      Board for the centralized control. 2. Gear Box for Auto-Feed Ram Head both Vertical & Horizontal is provided. 3. Alloy Steel duly hardened Gears are used. 4. Phosphorus Bronze Nuts are used for Lead Screws 5. 2.5mm Thick Turcite-B Lining is used on RAM/SADDLE. 6. Forced Lubrication with a Motorized Lubrication Pump is provided for the main Rotary Table. Independent      Lubrication Pumps are provided for the Ram/Saddle  &  Cross Rail. 7. Precision Bearings and GUNMETAL guideways combination in the Bed/Table is provided to withstand Radial      &  Vertical Loads.

• Automatic Grade: Semi-Automatic
• Material: Mild Steel
• Machine Type: Boring Machine
• Power Source: Electric
• Phase: 3 Phase
• Model: H63
• Length: 1800mm
• Table Size: 800mm x 880mm

• Features: Fine precision boring, Honing eliminated, Completely trouble free, Easy to handle

Bed and Guide ways –Bed is made of close grained graded casting and heavily ribbed for high rigidity.The hand scrapped V-flat table guide ways lined with Turcite ‘B’ linear bearing material to prevent stick slip motion. Workhead – Workhead spindle speed infinetely variable through DC OR AC drive. Work head spindle hardened and ground runs on precision antifriction bearing P4 grade. Shoe centreless arrangement for job holding. Infeed Systems – Comprises of hardened & ground feed screw for high positioning accuracy & nut provided with backlash adjustment. Dressing Device –Dresser is mounted on Main table. Radius dressing device for form grinding. Dressing compensation available in Automatic grinding cycle. Hydraulic and coolant unit – Hydraulic P.P with DC solenoid valves & Coolant unit are housed outside the machine as a seperate unit to facilitate easy maintainance. RANGE OF OTHER MACHINES –External Grinding, Thrust Bearing Grinding Lip Grinding, SPM Grinding Machines
