Zara Valves Pvt Ltd Relief Road, Ahmedabad, Gujarat

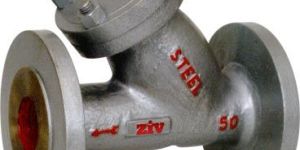

the company is a prominent y-type strainers manufacturer and exporter in gujarat (india). the y-type strainers are used for protecting valves or safety devices in pipelines. provided with proper screen and mesh, our y-type strainers are highly demanded by the worldwide clients. the y-type strainers can be availed from us at the market leading prices. appreciated for : higher efficiencylow maintenancecost effectivepreventing unwanted foreign particles from entering in the pipelines » materials carbon steellow carbon steelhigh temp. steelcorrosion resistant steel bodywcblcb, lc2wc-1, wc-6, wc-9cf8, cf8m, cf3, cn7m screenss.s. 304 / s.s. 316 mesh and hole size as per requirement pressure ratingansi 150# to 1500#

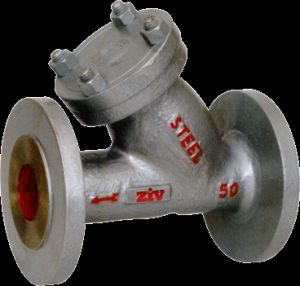

Strainers - an important item in every chemical and petrochemical installation is used to protect a valve or safety device in all pipelines.    Valves require Strainers in order to function at a high level of efficiency while preventing unwanted foreign particles from entering into them and causing extensive damage.   For those reasons a strainers with a proper screen and mesh is absolutely essential.   ZARA has earned a reputation for manufacturing high-quality strainers. The following are the different varieties of strainers designed to meet individuals requirements:

  "ZIV" Cast Iron Sluice Valves have a wide application in the field agriculture, township, water works, sewage disposal, as well as chemical industries, paper mills, sugar factories, thermal power projects and water treatment plants.

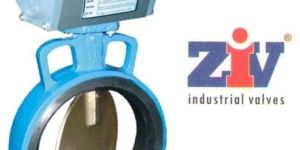

We offer iso 5211 pneumatic rotary actuator operated centric disc butterfly valve with a single piece rubber lined body (integrally moulded or replaceable muffler type).

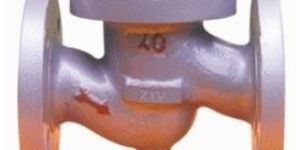

The company is ranked amidst the leading Non Return Valves Manufacturers and Exporters in India. Our Non Return Valves are acclaimed by the global clients for their excellent efficiency and long life. The Non Return Valves, offered by us, are made from the best materials and as per set industrial standards. Known For : Higher gradesSuperb efficiencyExcellent durabilityLow maintenance » MaterialsManufacturing StandardBS 1868 / API 6D Test & InspectionAPI 598 / BS 6755 EndsFlanged to ANSI B 16.5 /BS 4504 / BS 10 End to end dimensionsANSI B 16.10 Pressure ratingANSI 150# - 2500# DIN PN6 - PN 250 » Materials Carbon Steel Low Carbon Steel High Temp. Steel Corrosion Resistant Steel Body WCB LCB, LC2 WC-1, WC-6, WC-9 CF8, CF8M, CF3, CN7M Trims 13%CR 13%CR / SS316 13%CR / Stellite SS304, SS316, H.F. (Stellite) Seats 13%CR 13%CR / SS316 13%CR SS304, SS316, 304L, 316L, Monel, Haste alloy

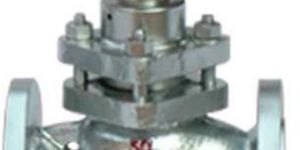

Designed and manufactured to the highest standards of quality, durability, are available in various classes (150, 300, 600, 900, 1500, 2500). Particularly suitable for steam, water, air, gas and other media. "ZIV" Steel Globe Valves conform to BS 1873 and to German (DIN) standard.

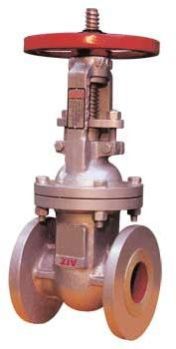

Designed for high-pressure and high-temperature applications for a wide range of fluids excepts slurries and viscous fluids.   These valves are generally used in the wide open or closed position, are not recommended for throttling service because throttling causes disc shattering and vibration which is likely to erode seating surface cause leakage.   When in open position the gate rises allowing the fluid to flow with a minimum pressure drop.   Can be installed a vertical or horizontal position without affecting the direction of the line.

Pressure Rating : Pressure rating

we are a prominent forged steel valves manufacturer and exporter in india. our forged steel valves are especially designed and fabricated as per the standards of bs / api / din. our "ziv" forged steel valves are thoroughly tested at every stage for ensuring their higher efficiency. the forged steel valves, offered by us, are rated to 800#, 1500#, and 2500#. consists of : forgingsbar stocksbolting materialsgaskets » materialsmanufacturing standardapi 602 / bs 5352 test & inspectionsapi 598 endssocket weld to ansi b 16.11 butt weld to ansi b 16.25 flanged to ansi b 16.5 (150# - 2500#) » materials carbon steel low carbon steel high temp. steel corrosion resistant steel body a 105 lf2 f11, f12, f22 f304, f316 trims 13%cr 13%cr / ss316 13%cr / stellite ss304, ss316, 304l, 316l, monel, hastealloy seats 13%cr 13%cr / ss316 13%cr / stellite ss304, ss316, h.f. (stellite)

Wafer style body valves are designed with flange less bodies with relatively short face-to-face dimensions. They are clamped between matching flanges which are connected by studs and nuts.

Pressure Rating : Pressure rating

Diaphragm Valves are mainly used in water treatment plants, fertilizer & petrochemicals industries, chemical industries, refineries, thermal power stations, and other process industries. Equally suited to on and off, or flow control applications, a diaphragm valve will handle positive pressures or high vacuum. Due to the wide range of material options it will handle almost all applications within its temperature and pressure ranges (175°C max. and 16 bar max.) and as such is used in almost every industry on both corrosive and abrasive applications. All working parts are isolated from the line media which enhances its reliability. Maintenance is a simple task with the body remaining in the pipe, the valve thus being field serviceable. It has linear flow characteristics which makes it well suited to throttling or modulating duties. On/off and control automation is possible with the use of modern compact actuators and accessories.

End Connection : End Connection

Material : Body Material

These valves are made as per BS / API / DIN standards. Intensive testing of every part, at every manufacturing stage, is what goes into the making of "ZIV" Forged Steel Valves. Various parts such as forgings, bar stocks, bolting materials and gaskets are all subjected to strict quality control.   The result valves that you can depend on for high performance in the most critical applications. Valves are rated to 800#, 1500# and 2500#.

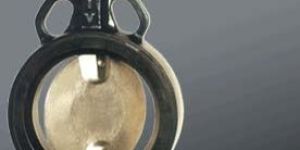

Low Cost / Quick Operation / Light & Compact : offers a complete line of resilient seated Butterfly Valves. ZARA’s "ZIV"brand rugged and reliable valves are built to last.   The body liner which also functions as the soft seat, comes in either a replaceable version or an integrally moulded version and offers 100% bi-directional sealing against vaccum to rated pressure of PN10 or PN16.    One unique feature is the international compability of our valves with most world flange standards hence one valve design can be used in many markets worldwide.

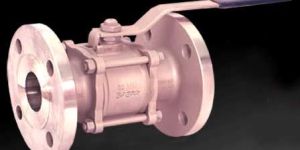

We are offering Ball Valves
