Zealmax Innovations Pvt. Ltd. Navrangpura, Ahmedabad, Gujarat

4 mm x 16 mm thread; available size: 10 mm to 75 mm with 5 mm variation 6.5 mm x 16 mm thread; available size: 25 mm to 120 mm with 5 mm variation 6.5 mm x 32 mm thread; available size: 25 mm to 100 mm with 5 mm variation Drill bit of thread hole: 2.7 mm, 4.5 mm Pitch: 1.75 mm, 2.75 mm Hexagonal Socket: 2.5 mm, 3.5 mm Cannulation: 1.25 mm, 2.2 mm, Guide wire use: 1 mm, 1.8 mm Available in both Stainless Steel and Titanium

Type : Screws

Material : Stainless Steel, Titanium

Length : 10-20cm, 20-30cm, 30-40cm, 40-50cm

Color : Silver

Feature : Fine Finished, Light Weight, Non Breakable

Head Shape : Hexagonal

Packaging Type : Export worthy standard packing as per customer requirement.

2.7 mm; Head Diameter: 5 mm; available size: 6 mm to 36 mm with 2 mm  variation 3.5 mm; Head Diameter: 6 mm; available size: 8 mm to 60 mm with 2 mm variation 4.5 mm; Head Diameter: 8 mm; available size: 12 mm to 60 mm with 2 mm variation Drill bit of thread hole: 2 mm, 2.7 mm, 3.2 mm Pitch: 1.25 mm, 1.75 mm, Hexagonal Socket: 2.5 mm, 3.5 mm Available in both Stainless Steel and Titanium

Type : Cortical Screws

Material : Stainless Steel, Titanium

Length : 10-20cm, 20-30cm, 30-40cm

Color : Silver

Condition : New

Feature : Easy To Fit, Fine Finished, Light Weight

Head Shape : Hexagonal

Brand Name : Zealmax Orthopedic Implants

Certification : ISO 13485:2012 And CE

Size: 16 mm to 30 mm with 2 mm variation Available in both Stainless Steel and Titanium 1.3.0 Herbert screw,orthopedic implant2.Use: bone fracture3.Material: titanium4.Certificate: ISO13485, CE5.Size: 14~40 mm    - the screw is threaded at both ends and can be countersunk beneath articularsurface, obviating the need for removal after the fracture has healed; - it is designed to achieve compression by use of a differential thread-pitchbetween its proximal & distal ends, and it has a guiding jig that maintains reduction & interfragmentary compression during insertion.

Type : Herbert Screw

Material : Stainless Steel, Titanium

Shape : Round

Length : 10-20cm, 20-30cm, 30-40cm, 40-50cm

Application : Fittings Use

Color : Grey, Silver, Yellow

Condition : New

Feature : Light Weight, Non Breakable

Size : 8 mm to 13 mm at 1 mm variation

Height : 8 mm

Length : 23 mm, 28 mm, 33 mm

Size : 7 mm to 11 mm at 1 mm variation

SKU : SPC007

2.7 mm; Head Diameter: 5 mm; available size: 6 mm to 36 mm with 2 mm  variation 3.5 mm; Head Diameter: 6 mm; available size: 8 mm to 60 mm with 2 mm variation 4.5 mm; Head Diameter: 8 mm; available size: 12 mm to 60 mm with 2 mm variation Drill bit of thread hole: 2 mm, 2.7 mm, 3.2 mm Pitch: 1.25 mm, 1.75 mm, Hexagonal Socket: 2.5 mm, 3.5 mm Available in both Stainless Steel and Titanium

Type : Cortical Screws

Material : Stainless Steel, Titanium

Length : 10-20cm, 20-30cm, 30-40cm

Color : Grey, Silver

Condition : New

Feature : Durable, Fine Finished, Light Weight

Head Shape : Hexagonal

Brand Name : Zealmax Orthopedic Implants.

Certification : ISO 13485:2012 And CE

2.7 mm; Head Diameter: 5 mm; available size: 6 mm to 36 mm with 2 mm  variation 3.5 mm; Head Diameter: 6 mm; available size: 8 mm to 60 mm with 2 mm variation 4.5 mm; Head Diameter: 8 mm; available size: 12 mm to 60 mm with 2 mm variation Drill bit of thread hole: 2 mm, 2.7 mm, 3.2 mm Pitch: 1.25 mm, 1.75 mm, Hexagonal Socket: 2.5 mm, 3.5 mm Available in both Stainless Steel and Titanium

Type : Cortical Screws

Material : Stainless Steel, Titanium

Certification : ISO 13485:2012 And CE

Length : 30-40cm

Color : Silver

Brand Name : Zealmax Orthopedic Implants

4 mm x Full Thread; available size: 15 mm to 75 mm with 5 mm variation 6.5 mm x Full Thread; available size: 25 mm to 120 mm with 5 mm variation Drill bit of thread hole: 2.7 mm, 4.5 mm Pitch: 1.75 mm, 2.75 mm Hexagonal Socket: 2.5 mm, 3.5 mm Cannulation: 1.25 mm, 2.2 mm, Guide wire use: 1 mm, 1.8 mm Available in both Stainless Steel and Titanium

Size : Multisizes

Type : Self Tapping Screws

Material : Stainless Steel

Length : 1-10mm, 10-20mm, 20-30mm, 30-40mm

Color : Silver

Brand Name : Zealmax Othopedic Implants

Material : Titanium & Stainless Steel

4 mm x Full Thread; Head Diameter: 6 mm; available size: 15 mm to 80 mm with 5 mm variation 6.5 mm x Full Thread; Head Diameter: 8 mm; available size: 25 mm to 100 mm with 5 mm variation Drill bit of thread hole: 2.7 mm, 4.5 mm Pitch: 1.75 mm, 2.75 mm Hexagonal Socket: 2.5 mm, 3.5 mm Available in both Stainless Steel and Titanium

4 mm x 16 mm thread; available size: 10 mm to 75 mm with 5 mm variation 6.5 mm x 16 mm thread; available size: 25 mm to 120 mm with 5 mm variation 6.5 mm x 32 mm thread; available size: 25 mm to 100 mm with 5 mm variation Drill bit of thread hole: 2.7 mm, 4.5 mm Pitch: 1.75 mm, 2.75 mm Hexagonal Socket: 2.5 mm, 3.5 mm Cannulation: 1.25 mm, 2.2 mm, Guide wire use: 1 mm, 1.8 mm Available in both Stainless Steel and Titanium

4 mm x Full Thread; available size: 15 mm to 75 mm with 5 mm variation 6.5 mm x Full Thread; available size: 25 mm to 120 mm with 5 mm variation Drill bit of thread hole: 2.7 mm, 4.5 mm Pitch: 1.75 mm, 2.75 mm Hexagonal Socket: 2.5 mm, 3.5 mm Cannulation: 1.25 mm, 2.2 mm, Guide wire use: 1 mm, 1.8 mm Available in both Stainless Steel and Titanium

Brand Name : Zealmax Orthopedic Implants

Material : Titanium & Steel

Color : Grey & Silver

Thickness : 4.6 mm

Size : 4 hole to 18 hole fixation with 4.5 mm screw

Size : 4 hole to 20 hole fixation with 4.5 mm screw

Thickness : 2 mm

Size : 3 Hole to 12 Hole

Size : 20 mm x 25 mm, 25 mm x 35 mm at 2 mm variation

Size : 35 mm x 55 mm, 55 mm x 75 mm at 2 mm variation

Hole Space : 16 mm

Thickness : 5.8 mm

Size : 5 Hole to 18 Hole

Thickness : 3 mm

Size : 6 hole to 18 hole fixation with 3.5 mm screw

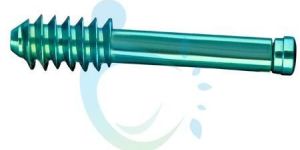

Thread Diameter: 12.5 mm Thread Length: 22 mm Shaft Diameter: 8 mm Pitch: 3 mm Size: 50 mm to 120 mm with 5 mm variation Available in both Stainless Steel and Titanium Dynamic hip screw (DHS) or Sliding Screw Fixation is a type of orthopaedicimplant designed for fixation of certain types of hip fractures which allows controlled dynamic sliding of the femoral head component along the construct. One common use is internal fixation of intertrochanteric fractures of the femur, which are common in older osteoporotic patients. There are 3 components of a dynamic hip screw, including a lag screw (inserted into the neck of the femur), a sideplate and four cortical screws (fixated into the proximal femoral shaft). The idea behind the dynamic compression is that the femoral head component is allowed to move along one plane; since bone responds to dynamic stresses, the native femur may undergo primary healing: cells join along boundaries, resulting in a robust joint requiring no remodeling.

Type : Titanium

Thickness : 5 mm

Size : 6 Hole to 14 Hole

Length : 12 mm, 14 mm, 16 mm
