Bajaj Processpack Limited Kishangarh, Ajmer, Rajasthan

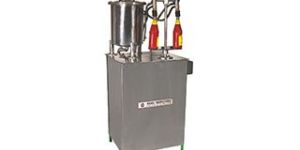

Suitable for filling viscous liquids like juice, ketchup and syrup in glass bottles with narrow necks.Available in 2 to 6 head models in MS or SS finishes. Model Heads Capacity VF 21 2 8-10 bottles/min VF 24 4 15-20 bottles/min VF 27 6 25-30 bottles/min

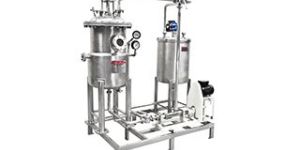

Suitable for cooking and concentrating the products under vacuum. The vessel is interconnected with condensor, suitable vacuum pump/motor. A geared motor ensures slow speed scraping inside the vessel while cooking. Vacuum cooking is done at low temperature which preserves the natural colour, aroma and taste of the product. Available in following capacities 10 gal (45 ltrs) 25 gal (110 ltrs) 50 gal (250 ltrs) 100 gal (450 ltrs) 150 gal (625 ltrs)

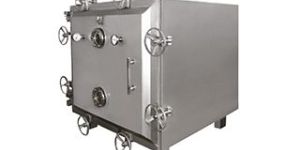

Suitable to dry various fruits and vegetables. The equipment utilizes low temperature drying under vacuum conditions which results in excellent quality dried product without loss of colour, nutritional value or taste. The dehydrator uses steam as the heating medium to dissipate heat evenly in the shelves. The products are spread out in perforated trays and placed on steam heated shelves. The chamber is vacuumised and the product is dried by indirect heat at low temperature.Available in 4,12, 24, 48 and 96 trays capacity models with optional MS or SS outer body.

Suitable to deseed or deskin and extract pulp from fruits & vegetables like mango, litchi and tomato. It consists of two stages of pulping. First stage is for deseeding or deskinning. The pulp extracted from first stage goes into the second stage for refining. All contact parts are made of SS with optional covers in MS or SS. Available in following models / capacities: Model Capacity Power P2-120 1 T/h 7.5 HP P2-123 2 T/h 8 HP

Suitable for production of steam.Technical details: Design: Coil Type, Reverse Flue, Forced Circulation TypeAvailable in 100/200/300/400/500 kg/hr steam output capacity modelsMaximum Working Pressure: 10.5 kg/cm2Steam Temperature: 185°CFuel: Light oil / diesel / wood / coal

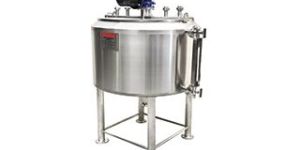

(for Storage / Blending / Dispensing)Suitable to collect, store, dispense and blend products like pulp, juice, beverages, sugar syrup, dairy products and pharmaceutical liquids. These tanks can be fitted with stirrer / blending device, manhole, temperature indicator, liquid level indicator and CIP spraying head. These tanks can be fabricated in SS 304, SS 316 or SS 316 C in single, double or triple layer with or without steam jacket insulation. The tanks are welded with smooth inner walls and are finished up to 150 grit finish and are hydraulic tested.Available in capacities from 100 litre to 30 KL.

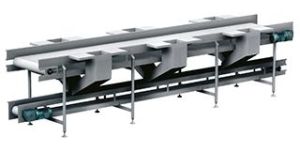

For feeding, inspection, preparation or cutting of fresh fruits and vegetables. Available from 100 to 2000 kg/hr feed capacities.   Two-Tier Inspection / Cutting Conveyor

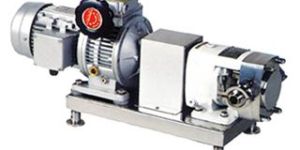

Suitable for pumping viscous liquids with suspended solids/powder or high viscosity product. Available in capacities from 1 to 10 MT/hr.

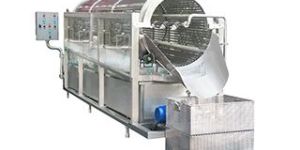

Suitable to wash hard fruits & vegetables. The product is fed into a rotary drum and is sprayed with high pressure jet spray from top. The rotary drum motion ensures tumbling of products thus washing them throughly. Available in 500-2000 kg/hr capacities.

Suitable to peel / clean wash various root vegetables like carrot, potato, raddish, turnip and ginger etc. The machine is equipped with 5 to 9 rotating soft and hard brushes which throughly clean the vegetables while simultaneously peeling it while the jet water spray cleans and washes it. Available in following models: Model Capacity No. of rollers Power RPW 200 100-200 kg/hr 0.7 m x 5 nos 1 HP RPW 500 400-500 kg/hr 1m x 7 nos. 2 HP RPW 1000 750-1000 kg/hr 1.5 m x 9 nos 3 HP

Suitable for extraction of pulp from fruits or vegetables like mango, litchi, guava, tomato, carrot, and apples. Available in following models / capacities: Model Capacity Power P-108 80-100 kg/hr 0.5 HP P-111 300-500 kg/hr 1 HP P-114 500-1000 kg/hr 3 HP P-117 1-1.5 T/hr 5 HP

Country of Origin : India

Type : Fruit Pulper

Certification : CE Certified

Weight : 1000-2000kg, 2000-3000kg

Voltage : 110V

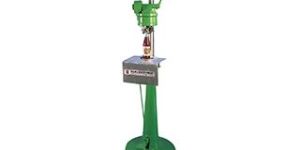

Suitable for sealing bottles with Pilfer Proof Caps.Available in following models: PP3 Table model 6 bottles/min PP6 Pedestal model 10 bottles/min PP9 Pedestal model 20 bottles/min

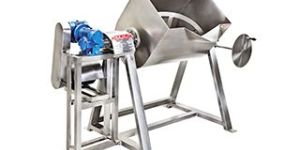

This machine is appropriate for mixing pickle with spices. The main vessel is ‘U’ shaped and is equipped with specially designed heavy duty rotational blades which turns and mixes the product. The drum is tiltable for easy removal of product. Available from 50-200 kg/batch capacity models.

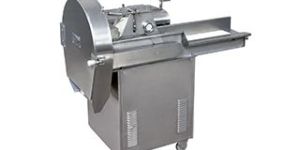

Suitable to slice and chop various vegetables like carrot, potato and ginger etc. The machine can produce variable sized slices which are then conveyed to the chopping section. The intermittent chopping blade action produce slices / chops / cuts / finger-cuts etc. The cut sizes can be controlled by variable infeed conveyor.

Capacity : 350-500 kg/hr

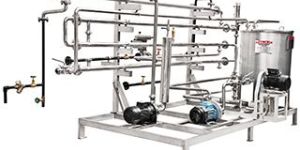

Multi-tube Coaxial Heat Pasteurizer is suitable for continuous pasteurization of products having medium to high viscosity of various fruits and vegetable pulp or puree. It can be designed as monotube, multitube, shell & tube type models depending on the requirements of the product or capacity required. Available from 100-2000 kg/hr capacity models.

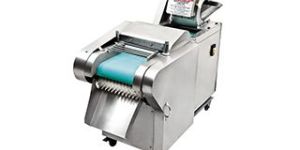

Suitable for slicing or chopping leafy vegetables, beans, tomatoes, chilli etc. Unique design incorporating infeed food grade conveyor controlled by a variable speed drive controller and an adjustable gripping conveyor which feeds the product to the slicing head. The variable infeed controlled conveyor ensures variation in cut / slice thickness. Available in following models: Model Capacity Power BPM 303 350 - 500 kg/hr 1 HP BPM 306 750 - 1000 kg/hr 3 HP   BPM - 306This machine has a larger slicing head. In this model, both the slicing head and infeed conveyor are controlled by a variable speed controller which facilitates precise control on the cut size.

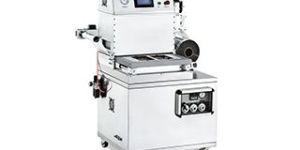

Modified atmosphere packaging is a way of extending the shelf life of fresh food products. The technology substitutes the atmospheric air inside a package with a protective mixed gas (CO2/N2/O2). The gas in the package ensures that the food retains its original taste, color, shape and also prolongs the shelf life. A wide variety of products like fresh meat, processed meat, cheese, vegetables, cooked meals and rice can be packed and stored for longer shelf life.Available from 3-10 trays/min capacity models

Suitable for sealing bottles with Lug Caps. Pneumatically operated.   LCS – 6 (Table model) 8-10 bottles/min LCS – 12 (Pedestal model) 20-25 bottles/min

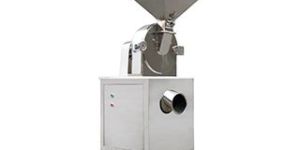

(for fresh paste extraction)Suitable to make paste by pulverising hard fruits and vegetables like ginger, garlic, onion, carrots and tomato etc. Whole or cut pieces are fed into the hopper which pulverises and grinds the same at high rotation of the crushing head. Specially designed pulverising head with removable sieve ensures adaptability to different fruits and vegetables. The pulveriser head is water jacketted and ensures high-end product quality as the pulverising temperature is kept low. Available in 100-1000 kg/hr capacities models.

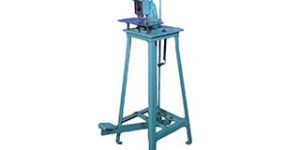

Suitable for embossing batch number, manufacturing date etc. on the lid before seaming.

Speed : 10-15 lids/min.

Inspection–Preparation–Cutting Conveyor For feeding, inspection, preparation or cutting of fresh fruits and vegetables. Available from 100 to 2000 kg/hr feed capacities.

Suitable to extract juice from hard crushed fruits and vegetables like pineapple / apple / ginger / amla etc. in batch process. The crushed fruits are wrapped and stacked between wooden crates and then pressed using hydraulic pressure to yield maximum juice. Available in 200, 500 and1000 kg/hr input capacity models.

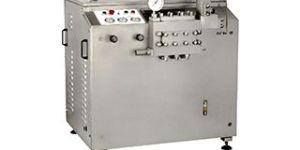

Suitable to homogenize juices, pulps, ketchups or milk to desired consistency. The homogeniser is of rugged design with stainless steel cabinet. The homogenizer chamber is made of single piece forged AISI 316 block, suction / discharge valves of stelite and fitted with diaphragm type pressure gauge. Available in different pressure range models from 20-60 Mpa and capacities from 100-2000 LPH.

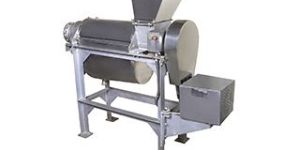

Suitable for continuous extraction of juices from fruits like pineapple, orange, apple and kiwi etc. Unique spiral design of the machine ensures high yield juice recovery without making it bitter. Available in 200, 500, 1000 kg/hr capacity models with MS / SS frame options.
