Temperature Sensors Dealers in Ajmer

For temperature measurement in the range, -200ã�â°c to + 850ã�â°c resistance temperature detector (rtd) is preferred to thermocouple and other sensors because of its higher accuracy, reliability, compact size and faster response. Rtds find use in almost all industries like plastic and rubber processing, food industries, pharmaceuticals, chemical & petrochemical plants, and power plants. It is also used in diesel engines & ships, process control and laboratories for temperature measurement and control. Rtds are available with single or double resistance elements and in 2, 3 or 4 wire circuits. Various types of protection sheaths for protection of the element and screw-in threaded bushes either fixed (welded) or adjustable by screws (for non-pressure application) or by compression fitting (for pressure application) for mounting are available. Features: ã¯ï¿½â· high accuracy and stability ã¯ï¿½â· wide temperature range; -200ã�â°c to +850ã�â°c ã¯ï¿½â· fast response & high insulation resistance ã¯ï¿½â· needs only copper cables for long runs.

• Type: Thermocouple
• Material: Stainless Steel
• Length: 2.5mtr, 3.5mtr
• Color: Metallic
• Application: Industries
• Power Source: Electric
• Feature: Durable, Fine Finished

Ceramic thermocouples have a Wide range, specially ceramic sheath with a protection sheath of SS grade tube material as knowing holding sheath which is used as mounting & protection of ceramic sheath, Ceramic thermocouples are specially manufactured for high temperature as continues temperature measuring this type thermocouple are used in Ceramic & Glass industries.  Detail Type “R” (Pt.Rh.13% - Pt.) and Type “S” (Pt.Rh.10% - Pt.) are used to measure temperature up to 1600°c Maximum. Thermo element pair is protected by two or three ceramic sheaths of various types depending upon working temperature and environmental conditions. Ceramic protection tube type KER 610 –with 60%, 80% Al2O3. Type KER 710 –recrystalised – high alumina tube with 99.9% Al2O3 available in 24 mm, 20 mm, 15 mm, 12 mm, 10 mm dia. Holding tube made of SS304 are used to hold ceramic sheath with head complete with ceramic terminal block with nickel plated terminals.

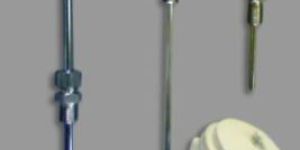

Digvijay Sensors is engaged in manufacturing and supplying highly advanced Mineral Insulated Thermocouples in the international market. MI Thermocouples are used for measuring temperature accurately. The equipment consists of two dissimilar metals joined together. The potential difference between the points of contact is the measure of the temperature difference between the points. We make them available in different ranges and specifications. You can avail them in different configurations of simplex and duplex. They are very effective in performance and have durable life. In addition to this, we are considered as one of the major Mi Cable Thermocouples Exporters from India. Element Size : 1.5, 3, 4.5, 6, 8 (mm)Protection SheathSS 316, 310Inconel 600ConfigurationSimplex/ DuplexConnectionHead/ Omega Connectors

The raytek xr infrared temperature sensors are designed for continuous temperature monitoring in a broad range of manufacturing processes. The xr is a rugged, nema 4 sealed single-piece system with the flexibility to handle nearly any application. Multiple extended temperature ranges, precision temperature resolution, rs-485 output and a flexible electronic platform create a single sensor that solves the most challenging application.

SENSOR INPUT : J, K, R,S,B, RTD [Optional] ♦ DISPLAY : 3-½ Digit, 7 Segment ,Red L.E.D ♦ ACCURACY : ± 2°C. ♦ RESOLUTION : 1 deg. RTD 0.1 deg ♦ SENSOR BREAK PROTECTION : Indication Open ♦ POWER SUPPLY : 180-230V AC [5060 ]Hz ♦ No. OF INPUT CHANNEL : 1 Channel ♦ COLD JUNCTION : Automatic from 0to70°C. ♦ DIMENSIONS : 72*144mm

Resistance temperature detector ( rtds) i.e. Resistance thermometer are invariable used for temperature measuring between – 200°c to +600°c in this temperature range. Rtds are preferred to thermocouples and other sensors because of their accuracy.

MI Thermocouple cables (Type K,J,N) SimplexDuplex in SS316, SS310 or Inconel 600 Sheath in Dia 1 to 8mm is available. Copper Sheathed Compensating MI Cable (for type RS thermocouples) & SS Sheathed MI RTD Cables are also available.

High Temperature Thermocouples, Digital Temperature Indicator

Rtd Temperature Sensor, Sensors, Thermocouple, pyrometer, pid controllers

Online Xr Infrared Temperature Sensors, Microwave Flow Meter

Temperature Sensors, Cast Iron Thermowell, Aluminum Bath Thermocouple
