Cords Dealers in Alwar (3 products available)

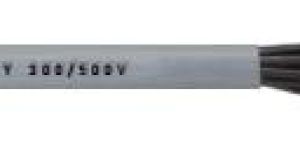

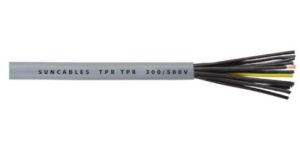

Cable Structure• Class 6 bare copper conductor as per IEC 60228 and IS 8130• TPR Insulation• Cores twisted• TPR outer sheath, grey   Standard References BS EN 50525-2-51 DIN VDE 0285-525-2-51 BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Good oil resistance Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Suitable for areas with oil vapors at room temperature Applications demanding frequent movement Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 20Mohm-km Min. Bending Radius  6 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Standard References BS EN 50525-2-51 DIN VDE 0285-525-2-51 BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Highly flexible cords

Black rubber cord
