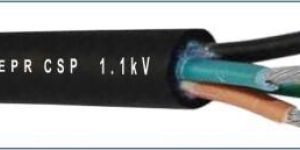

Flexible high temperature Cables
Get Price Quote
Cable Structure Class 5 tinned copper conductor as per IEC 60228 and IS 8130 Polyester taped conductor EPR Insulation Cores twisted CSP outer sheath, black Special Features Low bend diameter Highly flexible Excellent electrical properties Good oil resistance Higher temperature and short circuit temperature rating Low temperature performance Improved thermal ageing life Application Range Industrial machinery and air conditioning systems For general purpose installations in dry or wet environment subjected to low mechanical loads Suitable for areas with oil vapours at room temperature Areas with frequent twists and turns where straight cable laying is not possible
High Temperature Cables
Get Price Quote
Cable Structure Class 5 tinned copper conductor as per IEC 60228 and IS 8130 Polyester taped conductor EPR Insulation Cores twisted CSP outer sheath, black Standard References IS 9968 Special Features Low bend diameter Highly flexible Excellent electrical properties Good oil resistance Higher temperature and short circuit temperature rating Low temperature performance Improved thermal ageing life Application Range Industrial machinery and air conditioning systems For general purpose installations in dry or wet environment subjected to low mechanical loads Suitable for areas with oil vapours at room temperature Areas with frequent twists and turns where straight cable laying is not possible Technical Data Temperature Range : -30°C to +90°C Nominal Voltage : U0/U 1.1KV Test Voltage : 3000 V Insulation Resistance : min. 200 Mohm x km Min. Bending Radius : 6 x cable dia Short circuit temperature : Upto 250°C Flame retardance : As per IEC 60332-1 (self extinguishing) NOTE : G – with GN-YE protective core X – without protective core
Best Deals from High Temperature Cables

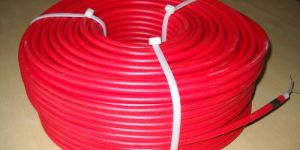

High Temperature Dual Core Snow Melting Cable
Get Price Quote
XLPE insulation provides extra safety and durability. The aluminium foil shielding gives zero EMI and safety of electrical hazards. Dual (XLPE + High Temp. PVC) jacket is provided for extra heat protection. The Heating elements are rated at 30 WM. Available in standard wattage from 300 to 4200 W, with attached single cold tail.
