Hook Up Wire Dealers in Alwar

• Brand Name: White
• Insulation Material: PTFE

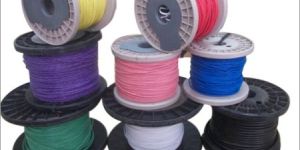

We offer ptfe hook up wires. Ptfe hook up wires: ptfe insulated hook-up equipment wires as per u.s.a mil-w-16878 , jss 51034-92 , bs3g210 are used for internal wiring of high performance electronic electrical avionic equipment. These are smaller in size, lighter weight and offer good mechanical strength with much higher reliability. Conductors offered are silver plated copper (spc) as per astm b-298 or nickel plated copper (npc) as per astm b-355. Size & color : as per customers requirement temperature : -65 degree c to 200 degree c (silver) & -65 degree c to 260 degree c (nickle plated) type : ptfe type et, ptfe type e & ptfe type ee.

• Diameter: 2.99 mm
• Brand: Wipe Hotwire
• UL File No: E-364107

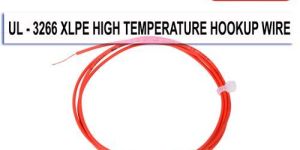

• UL Style Page: UL-3266
• Standard: UL - Std. 758. Complies to CSA No. 22.2 210 and 127
• Nominal Voltage: AC 300 V
• Max. Working Temperature: +125 DegreeC
• Min. Working Temperature: -40 DegreeC
• Conductor Size: AWG 32 to AWG 10
• Conductor: Solid or stranded Annealed Bare Copper (ABC)/Annealed Tinned Copper (TPC)
• Insulation Type: Cross Linked Polyethylene (XLPE)
• Flamability: FT2
• Gauge: AWG 10/65/28
• No of Strands: 65
• CSA: 5.22
• Max. DC Resistance: 3.6 Ohms/km @ 20 DegreeC
• Insulation-XLPE Thickness: 0.38 mm
• Insulation-XLPE Wire Diameter: 3.75 mm
• Ampacity of Wire: 52.2 Amp
• Net Weight: 52.7 kg/km

We are offering ptfe hook up wires. Ptfe insulated hook-up equipment wires as per u.s.a mil-w-16878 or british bs-2g-210, are used for internal wiring of high performance electronic electrical avionic equipment. These are smaller in size, lighter weight and offer good mechanical strength with much higher reliability. Conductors offered are silver plated copper (spc) as per astm b-298 or nickel plated copper (npc) as per astm b-355. we can supply ptfe hook-up wire harnesses with connectors terminal fitted.
