NANGALWALA AUTO MANUFACTURING PRIVATE LIMITED Arya Nagar, Alwar, Rajasthan

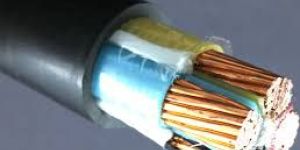

Cable Structure Class : 2 Stranded Copper Wire As Per IS:8130 Insulated : XLPE As per IS:7098/Pt.1/1988 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Red,Yellow,Blue 4 Core : Red,Yellow,Blue,Black 5 Core : Red,Yellow,Blue,Black,Grey 6 Core & above : Two adjacent cores (Counting and direction cores) in each layer,Blue & Yellow,remaining cores Grey. Inner Sheath : PVC (Polyvinyl Chloride) ST2 Grade as Per IS:5831 Armouring : H.D.Aluminium / G.I. Strip as per IS:3975 Outer Sheath : PVC ST2 Grade as per IS:5831   Standard References IS:7098/Pt. 1/1988 Special Features Requires Less Space for Installation Good Thermal Properties than PVC Variant Very Good Physical Strength Than PVC Variant Low Current Leakage than PVC Variant Variants : FR FRLS Application Range General And Industrial Application Plant Wiring Under And Ground Cables Which Require High Physical Strength Technical Data Temperature Range : -15°C to +90°C Test Voltage : a.c.3 KV (rms) Insulation Resistance : 1 x 1014 ohm-CM Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable) Short Circuit Temperature : 250°C Voltage Rated : 650 / 1100 Volts     DIMENSIONAL TABLES,POWER CABLES – COPPER / XLPE / STRIP ARMOURED / PVC, TABLE – 1 SINGLE CORE COPPER CONDUCTOR XLPE INSULATED & PVC SHEATHED H.D.AL.STRIP  ARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988

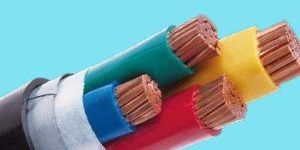

Class : 2 Stranded Copper Wire As Per IS:8130 Insulated : XLPE As per IS:7098/Pt.1/1988 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Red,Yellow,Blue 4 Core : Red,Yellow,Blue,Black 5 Core : Red,Yellow,Blue,Black,Grey 6 Core & above : Two adjacent cores (Counting and direction cores) in each layer,Blue & Yellow,remaining cores Grey. Inner Sheath : PVC (Polyvinyl Chloride) ST2 Grade as Per IS:5831 Outer Sheath : PVC (Polyvinyl Chloride) ST2 Grade as per IS:5831 Special Features : Requires Less Space for Installation Good Thermal Properties than PVC Variant Very Good Physical Strength Than PVC Variant Low Current Leakage than PVC Variant Variants : FR FRLS Application Range General And Industrial Application Plant Wiring Over Group Cables

Cable Structure Class : 2 Stranded Aluminium Wire As Per IS:8130 Insulated : XLPE AS Per IS:7098 Core Identification : 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Black,Yellow,Blue 4 Core : Black,Yellow,Blue & Black Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC ST2 Grade as per IS:5831 Standard References IS:7098/Pt. 1/1988 Special Features Good Thermal Properties Than PVC Variant Light Weight Good Strength than PVC variant Low Current Leakage Than PVC Variant Variants : FR FRLS Application Range General And Industrial Application Plant Wiring Under And Ground Cables Which Require High Physical Strength Technical Data Temperature Range : -15°C to +90°C Test Voltage : a.c.3 KV (rms) Insulation Resistance : 1 x 1014 ohm-CM Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable) Short Circuit Temperature: 250°C Voltage Rated : 650 / 1100 Volts     DIMENSIONAL TABLES,POWER CABLES-ALUMINIUM / XLPE/ STRIP ARMOURED / PVC TABLE – 1 SINGLE CORE ALUMINIUM CONDUCTOR XLPE INSULATED & PVC SHEATHED H.D.AL.STRIP  ARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988

We are providing various types of fastners and other hardware products of brass and MSIn case of bulk order we can also develop customized product. We are having facility of plating of various metal i. E. Copper, Nickle, Zinc etc. . “ Nangalwala Group ” an ISO - 9001/2000 and ISI (Indian Standard) certified Indian based Manufacturers & Exporters of various products. We are having 15 years of experience in field of wiring harness and 25 years of experience in field of auto cables. We are also having expertise for wiring harness design for a vehicle and if needed to develop PVC / Rubber formulation for the bulk requirements. Product Range We are having varied range of electrical products for satisfying customers for various applications. Our main items include Wiring Harness, Battery Leads, PVC Cables & Sleeves, Rubber Cables and Hose Pipes, Automobiles Utility Kits, Auto Electrical Parts, Battery Related Parts etc. Our cables are made from good quality copper properly annealed and bunched in-house for best output.  Our PVC compound is also manufactured in - house with different grades for different applications.

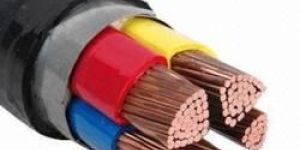

Cable Structure Class : 2 Stranded Copper Wire As Per IS:8130 Insulated : PVC (Polyvinyl Chioride) type A or C As per IS:5831 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Red,Yellow,Blue 4 Core : Red,Yellow,Blue,Black 5 Core : Red,Yellow,Blue, Black, Grey 6 Core & Above : Two adjacent cores(Counting And direction cores) in each Layer,Blue & Yellow,remaining cores Grey. Inner Sheath : PVC (Polyvinyl chioride) ST1 or ST2 Grade as Per IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC (Polyvinyl chioride) ST1 or ST2 Grade as per IS:5831   Standard References IS:1554/Pt. 1/1988 Special Features Very High Physical Strength Requires Less Space for Installation Better Fire Properties than XLPE Variant Better UV Properties than XLPE Variant Variants : FR FRLS HR-85 Degree Application Range General And Industrial Application Plant Wiring Under And Ground Cables Which Require High Physical Strength Technical Data Temperature Range : -15°C to +70°C Test Voltage : a.c.3 KV (rms) Insulation Resistance : 1 x 1013 ohm-CM Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable) Short Circuit Temperature: 160°C Voltage Rated : 650 / 1100 Volts   DIMENSIONAL TABLES,POWER CABLES – COPPER / PVC / STRIP ARMOURED / PVC, TABLE – 1 SINGLE CORE COPPER CONDUCTOR PVC INSULATED & PVC SHEATHED H.D.AL.STRIP  ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988

Class : 2  Stranded Aluminium Wire As Per IS:8130 Insulated : PVC (Polyvinyl Chioride) As per IS:5831 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Black,Yellow,Blue 4 Core : Black,Yellow,Blue & Black Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC ST2 Grade as per IS:5831 Special Features Light Weight Better Fire Properties than XLPE Variant Better UV Properties than XLPE Variant Variants : FR FRLS 85 Degree Application Range General And Industrial Application Plant Wiring Under And Ground Cables Which Require High Physical Strength

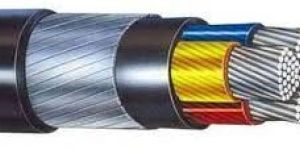

Cable Structure Class : 2  Stranded Aluminium Wire As Per IS:8130 Insulated : PVC (Polyvinyl Chioride) As per IS:5831 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Black,Yellow,Blue 4 Core : Black,Yellow,Blue & Black Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC ST2 Grade as per IS:5831 Standard References IS:1554/Pt. 1/1988 Special Features Light Weight Better Fire Properties than XLPE Variant Better UV Properties than XLPE Variant Variants : FR FRLS 85 Degree Application Range General And Industrial Application Plant Wiring Under And Ground Cables Which Require High Physical Strength Technical Data Temperature Range : -15°C to +70°C Test Voltage : a.c.3 KV (rms) Insulation Resistance : 1 x 1013 ohm-CM Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable) Short Circuit Temperature:/b>  160°C Voltage Rated : 650 / 1100 Volts

Standard References BS EN 50525-2-51 DIN VDE 0285-525-2-51 BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Highly flexible cords

Special Features Low bend diameter Highly flexible Space saving construction Moderate mechanical protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads High mast lights with low loads

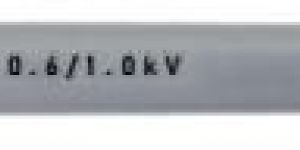

Y(SS)Y 0.6/1.0kV   Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• PVC Insulation• Cores twisted• PVC inner sheath• Fine SS wire braid• PVC outer sheath, grey Standard References IEC 60502 Special Features Low bend diameter Highly flexible Space saving construction Moderate mechanical protection Corrosion free stainless steel wire braiding used for prolonged strength Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads High mast lights with low loads Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  0.6/1.0kV Test Voltage  3000V Insulation Resistance  Min. 20Mohm-km Min. Bending Radius  10 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure– Class 5 ABC– PVC Insulation– Cores Twisted– Almylar and ATC drain wire shielded– PVC Outer Sheathed

We are providing various types of fastners and other hardware products of brass and MSIn case of bulk order we can also develop customized product. We are having facility of plating of various metal i. E. Copper, Nickle, Zinc etc. . “ Nangalwala Group ” an ISO - 9001/2000 and ISI (Indian Standard) certified Indian based Manufacturers & Exporters of various products. We are having 15 years of experience in field of wiring harness and 25 years of experience in field of auto cables. We are also having expertise for wiring harness design for a vehicle and if needed to develop PVC / Rubber formulation for the bulk requirements. Product Range We are having varied range of electrical products for satisfying customers for various applications. Our main items include Wiring Harness, Battery Leads, PVC Cables & Sleeves, Rubber Cables and Hose Pipes, Automobiles Utility Kits, Auto Electrical Parts, Battery Related Parts etc. Our cables are made from good quality copper properly annealed and bunched in-house for best output.  Our PVC compound is also manufactured in - house with different grades for different applications.

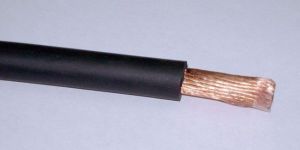

Special Features : Technical Sound With Guaranteed Life Saving of 40% Operating Cost Works at High Temperature Power Efficient Fully Tested Extra Safe & Flexible Heavy Duty in Current   Special Features : Technical Sound With Guaranteed Life Saving of 40% Operating Cost Works at High Temperature Power Efficient Fully Tested Extra Safe & Flexible Heavy Duty in Current   Welding Cable With International Specfication HO1N2-D HO1N2-E 361 TQ TPR / PVC Welding Cable With International Specfication HO1N2-D HO1N2-E 361 TQ TPR / PVC

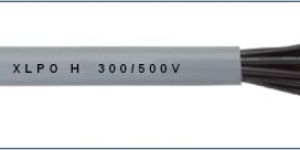

Class 5 bare copper conductor as per IEC 60228 and IS 8130 Special XLPO insulation Cores twisted ZHLS outer sheath, grey Special Features Space saving construction Good fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• ZHLS Insulation• Cores twisted• ZHLS inner sheath, black• ZHLS outer sheath, black Special Features Low bend diameter Flexible Execllent fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Improved mechanical strength and abrasion resistance Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations Suitable for power applications Suitable for direct burial

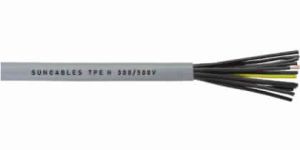

TPE H 300/500V   Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• Special TPE Insulation• Cores twisted• ZHLS outer sheath, grey   Standard References BS EN 50525-3-11 BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Good fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity High dielectric breakdown strength Application Range Industrial machinery and air conditioning systems Critical applications requiring high dielectric strength and low capacitance For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 200Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

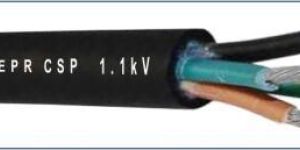

Cable Structure Class 5 tinned copper conductor as per IEC 60228 and IS 8130 Polyester taped conductor EPR Insulation Cores twisted CSP outer sheath, black Special Features Low bend diameter Highly flexible Excellent electrical properties Good oil resistance Higher temperature and short circuit temperature rating Low temperature performance Improved thermal ageing life Application Range Industrial machinery and air conditioning systems For general purpose installations in dry or wet environment subjected to low mechanical loads Suitable for areas with oil vapours at room temperature Areas with frequent twists and turns where straight cable laying is not possible

Cable Structure Class 5 tinned copper conductor as per IEC 60228 and IS 8130 Polyester taped conductor EPR Insulation Cores twisted CSP outer sheath, black Standard References  IS 9968 Special Features Low bend diameter Highly flexible Excellent electrical properties Good oil resistance Higher temperature and short circuit temperature rating Low temperature performance Improved thermal ageing life Application Range Industrial machinery and air conditioning systems For general purpose installations in dry or wet environment subjected to low mechanical loads Suitable for areas with oil vapours at room temperature Areas with frequent twists and turns where straight cable laying is not possible Technical Data Temperature Range : -30°C to +90°C Nominal Voltage : U0/U 1.1KV Test Voltage : 3000 V Insulation Resistance : min. 200 Mohm x km Min. Bending Radius : 6 x cable dia Short circuit temperature : Upto 250°C  Flame retardance : As per IEC 60332-1 (self extinguishing)   NOTE : G – with GN-YE protective core  X – without protective core

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• PVC Insulation• Cores twisted• PVC outer sheath, grey   Standard References BS EN 50525-2-51 DIN VDE 0285-525-2-51 BS EN 50288-7 Special Features Low bend diameter Highly flexible Space saving construction Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• PVC Insulation• Cores twisted• Polyester tape binded• Almylar and ATC drain wire shield• PVC outer sheath, grey   Special Features Low bend diameter Highly flexible Space saving construction Good EMI protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads For installation near electro-magnetic noise – near power cables, medium power consuming machinery and appliances Measurement and control Data processing and signaling

Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• ZHLS Insulation• Cores twisted• Polyester tape binded• Almylar and ATC wire braid screen• ZHLS outer sheath, grey Special Features Low bend diameter Flexible Space saving construction Excellent fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Excellent EMI protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations For installation near electro-magnetic noise – near power cables, heavy power consuming machinery and appliances Measurement and control Data processing and signaling

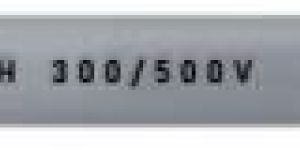

H(St)H 300/500V   Cable Structure• Class 5 bare copper conductor as per IEC 60228 and IS 8130• ZHLS Insulation• Cores twisted• Polyester tape binded• Almylar and ATC drain wire shielded• ZHLS outer sheath, grey   Standard References BS EN 50525-3-11 BS EN 50288-7 Special Features Low bend diameter Flexible Space saving construction Excellent fire retardance Low halogen content Excellent electrical properties Good oil resistance Low smoke and toxicity Good EMI protection Application Range Industrial machinery and air conditioning systems For general purpose installations in dry environment subjected to low mechanical loads Areas where human or animals are present Tunnels and transportation Suitable for outdoor installations For installation near electro-magnetic noise – near power cables, medium power consuming machinery and appliances Measurement and control Data processing and signaling Technical Data Temperature Range  -15°C to +70°C Nominal Voltage  300/500V Test Voltage  1500V Insulation Resistance  Min. 200Mohm-km Min. Bending Radius  8 x cable dia Short Circuit Temperature  Upto 160°C Flame Retardance  As per IEC 60332-1

Cable Structure– Class 5 ABC– EPR Insulation– Cores Twisted– NBR Outer Sheathed, black

We are providing various types of fastners and other hardware products of brass and MSIn case of bulk order we can also develop customized product. We are having facility of plating of various metal i. E. Copper, Nickle, Zinc etc. . “ Nangalwala Group ” an ISO - 9001/2000 and ISI (Indian Standard) certified Indian based Manufacturers & Exporters of various products. We are having 15 years of experience in field of wiring harness and 25 years of experience in field of auto cables. We are also having expertise for wiring harness design for a vehicle and if needed to develop PVC / Rubber formulation for the bulk requirements. Product Range We are having varied range of electrical products for satisfying customers for various applications. Our main items include Wiring Harness, Battery Leads, PVC Cables & Sleeves, Rubber Cables and Hose Pipes, Automobiles Utility Kits, Auto Electrical Parts, Battery Related Parts etc. Our cables are made from good quality copper properly annealed and bunched in-house for best output.  Our PVC compound is also manufactured in - house with different grades for different applications.
