PVC Insulated Cables Dealers in Arya Nagar, Alwar

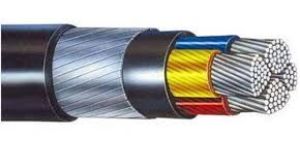

Cable Structure Class : 2 Stranded Copper Wire As Per IS:8130 Insulated : PVC (Polyvinyl Chioride) type A or C As per IS:5831 Core Identification: 1 Core : Black / Red / White 2 Core : Black,Red 3 Core : Red,Yellow,Blue 4 Core : Red,Yellow,Blue,Black 5 Core : Red,Yellow,Blue, Black, Grey 6 Core & Above : Two adjacent cores(Counting And direction cores) in each Layer,Blue & Yellow,remaining cores Grey. Inner Sheath : PVC (Polyvinyl chioride) ST1 or ST2 Grade as Per IS:5831 Armouring : H.D.Aluminium / G.I. wire as per IS:3975 Outer Sheath : PVC (Polyvinyl chioride) ST1 or ST2 Grade as per IS:5831   Standard References IS:1554/Pt. 1/1988 Special Features Very High Physical Strength Requires Less Space for Installation Better Fire Properties than XLPE Variant Better UV Properties than XLPE Variant Variants : FR FRLS HR-85 Degree Application Range General And Industrial Application Plant Wiring Under And Ground Cables Which Require High Physical Strength Technical Data Temperature Range : -15°C to +70°C Test Voltage : a.c.3 KV (rms) Insulation Resistance : 1 x 1013 ohm-CM Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable) Short Circuit Temperature: 160°C Voltage Rated : 650 / 1100 Volts   DIMENSIONAL TABLES,POWER CABLES – COPPER / PVC / STRIP ARMOURED / PVC, TABLE – 1 SINGLE CORE COPPER CONDUCTOR PVC INSULATED & PVC SHEATHED H.D.AL.STRIP  ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988
