Analog Trainer Dealers in Ambala

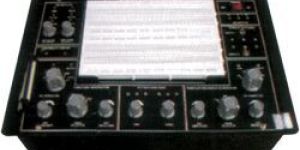

Specifications Aesthetically designed injection moulded electronic desk / Master unit carrying useful experiment resources like variable. Power supplies / Status Switches / Indicator probe / Pulsar / Function Generator DPMs etc. Connection through study 4mm Banana Sockets & patch cords. Built in bread board panel with 1280 tie points and 400 distribution points totalling to 1680 points along with 4mm banana sockets for tapping from the trainer +5V, +/-12V/ GND for the circuits to be assembled on bread board using single stand (#22/24) wire.

Advanced lab trainer for students to perform more than 50 experiments of analog electronics Compatible with optional ready to use experimental modules. Glass Epoxy PCB used as front panel of 300mmx220mm & mounted on light weight shock proof plastic cabinet. On board power supplies, Function generator, and other input signals Bread board provided Supplied with connecting wires

Advanced lab trainer for students to perform more than 50 experiments of analog electronics Compatible with optional ready to use experimental modules Glass Epoxy PCB used as front panel of 300mm x 220mm & mounted on light weight shock proof plastic cabinet On board power supplies, Function generator, and other input signals Bread board provided Supplied with connecting wires

 ANALOG SIGNAL SAMPLING & RECONSTRUCTION KIT ANALOG SIGNAL SAMPLING & RECONSTRUCTION KIT   This kit helps the students to understand the principle of Sampling of Analog signals. By reconstructing the sampled signals and comparing with original signal one can clear his idea about sampling & reconstruction.  Internal sine wave generator of 1KHz (5V P-P). Sampling frequency of 2KHz, 4KHz, 8KHz, 16KHz & 32KHz. Duty ratio of 10%-90% in 10% steps (switchable) Onboard Sample & Hold circuit. Ripple counter generating sampling frequencies of 20Hz to 20KHz. Onboard low pass filters of 2nd order & 4th order. Set of Patch Chord & User Manual. All relevant Tests points are brought out to observe the signals at various points

Specifications Aesthetically designed injection moulded electronic desk / Master unit carrying useful experiment resources like variable. Power supplies / Status Switches / Indicator probe / Pulsar / Function Generator DPMs etc. Connection through study 4mm Banana Sockets & patch cords. Built in bread board panel with 1280 tie points and 400 distribution points totalling to 1680 points along with 4mm banana sockets for tapping from the trainer +5V, +/-12V/ GND for the circuits to be assembled on bread board using single stand (#22/24) wire.

We are offering analog and digital trainer (adt) features: high level, high quality digital-analog trainer combines all essential functions of analog and digital experiment with removable breadboard, includes dc power supply,function generator,two pulse switches, 8 ohm 0.25w speaker etc. Specifications solder-less,breadboard interconnected with tie points nickel plated contact, fitted with all dip sizes and all components with lead and solid wire. It can be changed and replaced for different purposes and can be connected with demonstration panel. Therefore, it is very convenient for both teachers and students dc power supply fixed dc output : ±5v, ±12v @ 500ma variable dc output : dual 0~30v, 0~ -30v @ 500ma ac power supply : 0~5~0 vac,12~0~12vac potentiometers: :1kohm,10kohm function generator frequency range : 1hz ~ 10hz : 10hz ~ 100hz : 100hz ~ 1khz : 1 khz ~ 10 khz : 10 khz ~ 100 khz amplitude sine wave output : 0 ~ 6 vpp variable @ 1hz~1mhz in 5 steps triangle wave output : 0 ~ 6 vpp variable @ 1hz~ 300khz in 5 steps square wave output : 0 ~ 5 vpp variable @ 1hz~400khz in 5 steps ttl mode output : 5v@1hz~1mhz in 5 steps two digits of 7 segment led display two pulse switch: push buttons to generate inverting and non inverting pulses supportedwithde-bounce elimination data switches: toggle switches and corresponding output point. When switch is set at“down”position, the output is lolevel, contrarily it is tobe'high' level while setting at“up”position speaker: 8ohm0.5w to be used for load the two banana sockets and bnc jacks suitable for the trainer to beconnected with peripherals red leds separate input terminals. The led will be lighted up wheninput is at“high level”and it will be turned offwhenit is at“noinput”or at “lowlevel” zif sockets : 40-pin, 28-pin, 20-pin

Code: EEN0004 Analog Lab.  Analog Lab Description The logic trainer is designed for the beginners to enhance the comprehension of analog theory. The design of is easy to operate and easy to understand

We are one of the leading Electrical Equipment manufacturers and exporters. Different types of electronics equipment, electric equipment etc., are available with us which work faultless with the minimum consumption of electric power. Our electronics equipment, electric equipment etc., produce nearly zero level of noise while functioning. We have considerable expertise in the field of electronics equipment, electric equipment etc.

ANALOG BREAD BOARD TRAINER, Masses Set, GE- 68 Rotary Microtome

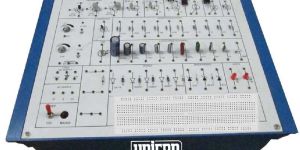

ANALOG COMPONENT TRAINER, Ice Plant Trainer, Sodium Vapor Lamp Transformer

ANALOG LAB TRAINERS, OPERATIONAL AMPLIFIER TRAINERS, Function Generators
