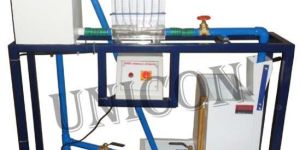

Bernoulli's Theorem Apparatus The Bernoulli’s Theorem Apparatus is designed to experimentally verify the Bernoulli’s Theorem. Set up consists of two constant head tanks made of clear acrylic with a venturi tube fitted in between. The venturi tube made in acrylic has 11 pressure measuring points connected to Piezometers so that Pressure Head at each point can be measured. Arrangements are made to operate the unit under different static heads & at different flow rates.Water is supplied from the sump tank by centrifugal pump & measuring tank is provided to measure the water flow rate. The entire setup is mounted on a strong steel frame. Experimental Capabilities: Verification of Bernoulli’s Theorem. Calculating Pressure Head & Velocity Head of fluid at different points along Venturimeter. To draw Static Head distribution along length of Venturimeter Specifications: Constant Head Tank: 2 Nos. Venrurimeter: Convergent – Divergent type, Made in Acrylic with 11 Pressure points Piezometers: Range: 0 – 300 mm, 11 Nos. Sump Tank: 100 Liters, made in PVC Measuring Tank: 32 Liters, Made in PVC, with level indicator Pump: Self priming, Monobloc Centrifugal Pump, Max. Flow 30 LPM, Max. Head 20 m, 230 V AC Piping: PVC Piping with valves Frame: Made of M.S. Square Tubes & Sheets, Welded & Powder coated.

The total energy or the fluid flowing, through the pipe or changing cross section remains constant. The apparatus enables us to find out the total energy or fluid at different cross sections flowing in a convergent channel. The apparatus consists a test section consisting of an acrylic channel.The water from the sump tank is passed on to the supply tank with the help of a pump, The supply tank supplies to the water to the test section and is col1ectcd in the over head tank. The tube tappings above the channel show the change in potential energy of the fluid. The now can he adjusted with the help of gate valve connected to the discharge tank. A measuring tank is used to measure the flow of water which is mounted on the sump tank.Specifications: Test section consists of an acrylic channel Sump lank, supply lank, discharge tank and measuring tank 1/2 HP Monoblock pump for independent recirculation or water. Features : The equipment will be colored with an attractive and anticorrosive powder coating. A technical manual accompanies the unit. Services Required: Floor surface - 2.5 m x 1.5 m. 230 v, 5 amp supply with earthing connection.

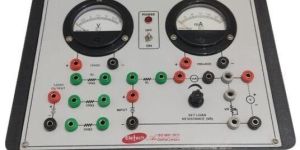

• Brand: Eletech-Eletech Lab Instruments
• Model No: ELI-362A
• Cabinet: Shock Proof ABS Cabinet
• Sockets: 4mm Banana Sockets
• Power Requirements: 230V AC
• Frequency: 50Hz
• Category: Characteristics & Applications
• Tag: Norton's Theorem

We offer Bernoulli's Theorem Apparatus that is designed for experimental verification of the theorem. The Bernoulli's Theorem Apparatus is easy to set up and operate and is manufactured exactly as per the set guidelines. The set up consists of a one piece clear acrylic test section with convergent and divergent part sections, supply thank, measuring tank, inlet water tank and pump for closed loop water circulation. The test section is connected to Piezometer Tubes through pressure tapping at different locations on the section to demonstrate the Bernoulli’s Theorem. The flow rate of water is measured using measuring tank and stop watch provided. Objective To verify Bernoulli's Theorem experimentally Features Acrylic test sectionClosed loop water circulationCompact & stand alone set upStainless Steel tanks and wetted partsSuperb Painted structureSimple to operate & maintain Utilities Required Electric supply : 0.5 kW, 220V AC, Single PhaseWater supply :Tap water connection ½” BSP Distilled water @ 60 liters (optional)Floor Area with Drain facility » Technical Detail Product BERNOULLI'S THEOREM APPARATUS Test Section Material Acrylic, Size 1 dia Inlet Tank Capacity 20 Ltrs. MOC SS Supply Tank Capacity 85 Ltrs. MOC SS Measuring Tank Capacity 40 Ltrs. MOC SS fitted with Piezometer Tube & scale Piezometer Tubes Material P.U. Tubes (9 Nos.) Pump FHP capacity make Tullu / Crompton Greaves Piping GI / PVC Stop Watch Electronic

• Certification: CE Certified, ISO 9001:2008
• Application: Steam Distillation, Water Distillation
• Weight: 10-20kg, 20-30kg, 30-40kg, 40-50kg
• Color: Brown, Grey, Light White, Shiny-silver, Silver, White
• Voltage: 110V, 220V
• Condition: New, Used
• Capacity: 20L/Hr, 40L/Hr, 60L/Hr
• Power: 0-100W, 100-200W, 200-400W, 400-800W
• Driven Type: Electric, Solar
• Temperature Range: 0-5 Deg C, 10-20 Deg C, 5-10 Deg C
• Warranty: 1yrs, 2yrs, 5yrs
• Automation Grade: Automatic, Manual

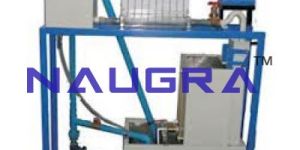

BERNOULLI’S THEOREM APPARATUS DESCRIPTION:- The Set-up is designed to verify Bernoulli’s Theorem experimentally. Set up consists of a one piece clear acrylic test section with convergent and divergent part section, supply tank, measuring tank, inlet water tank and pump for closed loop water circulation. The test section is connected to Piezometer tubes through pressure tapping at different locations on the section to demonstrate the Bernoulli’s Theorem. The flow rate of water is measured using measuring tank and stop watch provided. EXPERIMENTS:- Ø To verify Bernoulli’s Theorem experimentally. FEATURES:- Ø Clear test section Ø Closed loop water circulation Ø Compact & stand alone setup Ø Stainless Steel tanks and wetted parts Ø Superb Painted structure Ø Simple to operate & maintain UTILITIES REQUIRED: - Ø Electricity Supply: Provide 230 +- 10 VAC, 50 Hz, Single Phase electric supply with proper earthing (Neutral – Earth voltage less than 5 VAC) 5 A, three pin socket with switch for pump Ø Water Supply : Tap water connection ½ “ BSP, Distilled water @ 60 Ltrs. (Optional) TECHNICAL SPECIFICATION: - Ø Test Section : Material Acrylic, Size Ø Inlet Tank : Capacity 20 Liters., Stainless Steel Ø Supply Tank : Capacity 70 Liters., Stainless Steel Ø Measuring Tank : Capacity 20 Ltrs. Fitted with Piezometer Tube & Scale Ø Piezometer Tubes : Material P.U. Tubes (9 Nos.) Ø Pump : FHP Capacity make TulluCrompton Graves Ø Piping : GI PVC Size BSP Ø Stop Watch : Electronic Ø The whole Set-up is well designed and arranged in a good quality painted Structure.

• Type: Bernoulli Theorem Apparatus
• Certification: ISO 9001:2008
• Application: Steam Distillation, Water Distillation
• Color: Brown, Grey, Light White, Shiny-silver, Silver, White
• Voltage: 220V
• Condition: New, Used
• Driven Type: Electric, Solar
• Warranty: 1yrs
• Automation Grade: Automatic

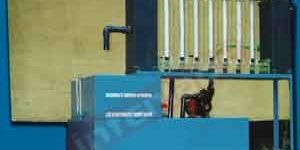

DESCRIPTION -:The apparatus consists of rectangular transparent flow section connecting two tanks, the section can be easily removed or connected to two tanks. It converges for a small length & diverges for the remaining length. Flow can be controlled by a gate valve. Pizometers connected to flow section, make it possible to measure pressure heads & give visual observations of hydraulic gradient Specifications :- 1) Tanks : 2 numbers of suitable size mounted on stand.2) Flow channel of 90 cm length made out of perspex sheets.3) Prizometer tubes equispaced at 5 cm4) Measuring tank of 100 lit. cap.5) Stop clock6) Prizometer tubes equispaced at 5 cm7) Measuring tank of 100 lit. cap.8) Stop clock RANGE OF EXPERIMENTS -: 1) Bernoulli?s theorem for the flow of real liquid can be verified.2) Hydraulic grade line & the total energy line along the flow section can be plotted & can be studied. SERVICE REQUIRED -: 1) Suitable water supply arrangement. 0.5 to 3 L.P.S.2) Suitable drainage arrangement.3) Floor Space : 3m x 1.5m
