Brinell Microscope Dealers in Ambala

Brinell Microscope

Get Price Quote

1 Set(s) (MOQ)

• Brand Name: EROSE
• Place of Origin: india
• Specifications: Laboratory Instruments

Glass agencies erose are manufacturer of brinell microscope . Glass agencies erose are manufacturer and exporter of all type of medical, laboratory, ophthalmic and optometric instruments.

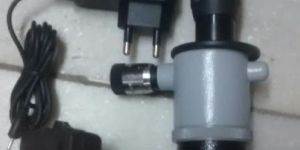

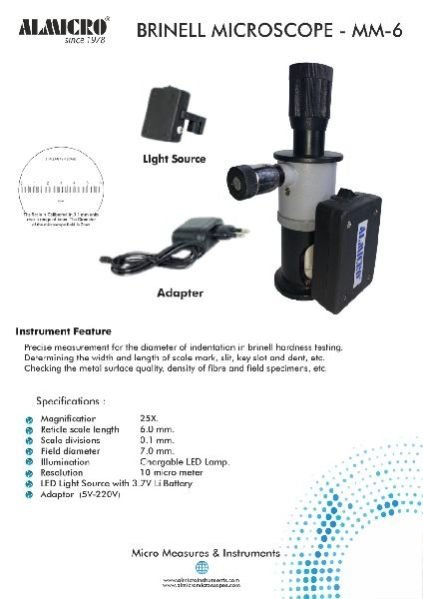

MM-6 Brinell Microscope

Get Price Quote

1 Piece (MOQ)

• Country of Origin: India
• Condition: New
• Brand Name: Almicro
• Magnification: 25X.
• Reticle Scale Length: 6.0 Mm.
• Scale Divisions: 0.1 Mm.
• Field Diameter: 7.0 Mm.
• Illumination: Chargable Led Lamp
• Resolution: 10 Micro Meter
• Light Source: LED Light Source with 3.7V Li Battery
• Adaptor: (5V-220V)
• Model Name/Number: MM-6

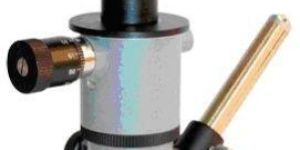

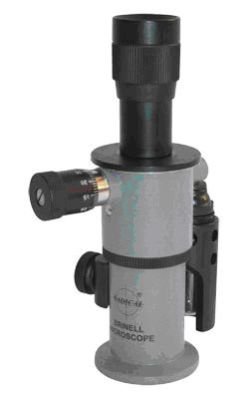

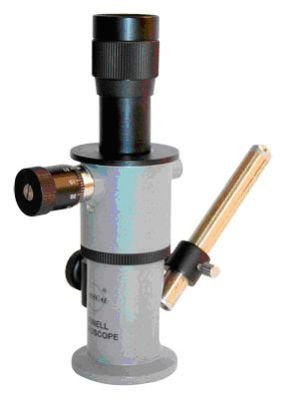

Brinell Microscope

Get Price Quote

• Weight: 1.500 Kg.
• Brand Name: Radical
• Magnification: 20x
• Reticle Scale Length: 7.00mm.
• Least Count: 0.01mm.
• Field Of View: 6.00mm.
• Model: RBM-55

This Instrument Makes Accurate Measurements Of The Indentations For All Brinell Type Hardness Testers. Our Brinell Microscope Rbm-55 Is A Compact, Yet Durable Instrument, Making It Suitable For Both The Shop And Laboratory. The Reticle Is Calibrated In 0.01 Mm. Units Over A Range Of 6mm. And The Field Of View Is 7mm. Measure The Indentation At Its Largest Diameter Against The Reticle Scale. This Microscope Is Designed To Easily Measure The Brinell Hardness Value Of Different Ferrous And Non-Ferrous Metals Including Crude Or Annealed Steel (Non Austenitic Steel Only), Quenched And Tempered Steel (Non Austenitic Steel Only), Cast Iron, Brass Casting, Rolled Brass, Rolled Cooper, Alloy Of Tin And Bronze And Casting Of Aluminium Alloy.It Can Determine The Brinell Hardness By Measuring The Diameters Of The Indentations Left On The Test Piece And The Standard Hardness Test Block. The Indentations Are Obtained By The Steel Ball Of The Tester Located Between The Piece And Test Block With An Instant Load Applied By Hammer. The Brinell Value Can Be Obtained By Referring The Conversion Table After Measuring The Indentations By The Readout Microscope. Widely Used In Shop, Material Supplier, Plant And Quality Control Due To Lightweight, Easy Operation And Convenience.

Brinell Microscope

Get Price Quote

• Weight: 1.500 Kg.

This instrument makes accurate measurements of the indentations for all Brinell type hardness testers. Our Brinell Microscope RBM-55 is a compact, yet durable instrument, making it suitable for both the shop and laboratory. The reticle is calibrated in 0.01 mm. Units over a range of 6mm. and the field of view is 7mm. Measure the indentation at its largest diameter against the reticle scale.

Brinell Microscope

Get Price Quote

We are offering brinell microscope. Advanced technocracy inc. Is manufacturer, exporter & supplier of brinell microscope. Specifications: · graticule scale size: 7 mm · power: 7w · voltage: 230v · magnification: 30x · field of view: 9 mm measuring accuracy: 2-3 microns. For use with bse metal-cum-concrete tester

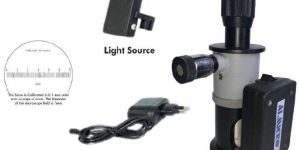

Brinell Microscope - (mm-6)

Get Price Quote

We are offering Brinell Microscope.7mm Graticule Scale Magnification : 30x Field of view : 9Mm Measuring Accuracy : 2-3 microns.

Brinell Microscope

Get Price Quote

Altimeter, Microprocessor Photo Colorimeter, Water & Soil Analysis Kit Deluxe
