Chhabra Engineers & Instruments Ambala Cantt, Haryana

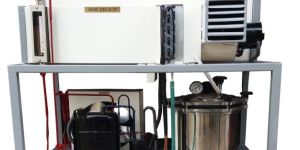

The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit Will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.

Voltage : 220V

Application : Industrial Use

Power : 1-3kw

Driven Type : Electric

Application : Colleges

Driven Type : Electric

Voltage : Single Phase 220 Volts 50Hz. AC Supply

Double wall construction, Inner chamber made of stainless steel sheet Grade 304 . Exterior made out of Stainless Steel sheet Grade 202.Base is made of stainless steel sheet with support of angle iron stand. Inner & Outer thickness is provided with puff insulation.  As per customer demand Heavy Duty wheel Or Steel pipe is also available. Water inlet & Outlet sockets, nipples & ball walls are made of GI . On requirement, Hermetically sealed compressor 4 Nos. as per customer demand & air cooled condenser serves refrigeration unit to maintain temperature range from ambient temperature  to 4°C. Temperature is controlled by electronic digital temperature controller. A control panel is provide with various indicators, on off switch. Supplied with cord and plug etc. To work on 440VAC Hz 3phase

Weight : 100-200kg

Power : To work on 440VAC Hz 3phase

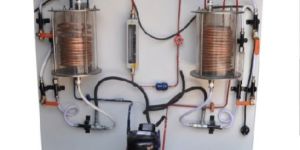

A simple refrigeration circuit is demonstrated with this clearly laid out experimental unit. The evaporation and condensation processes are easily observed through the glass components. The function of the expansion valve (in the form of a float valve) can be seen. The changes in the refrigerant state can also be followed by measuring pressures and temperatures. A special environmentally friendly refrigerant is used at High pressure.

Type : Refrigerated

Voltage : 220V

Application : Laboratory Use

Driven Type : Electric

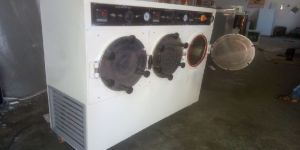

Bottom includes angle iron frame, and for movement castor wheels are installed. Outer body is made thick M.S (Mid-Steel).Front Door is of Stainless Steel Sheet.Inner drum is made of S.S sheet (Grade 304), Outer Body M.S Sheet. Vacuum pump capacity= 150ltrs  The Unit has hermetically sealed compressor to maintain temperature up to minus 40 Degree C. Working         Temp.- 35° C to -40°C. Temperature control by electronic digital cum indicator with electronic vacuum indicator.

Voltage : Single Phase 220 – 240 Volts 50Hz. AC Supply

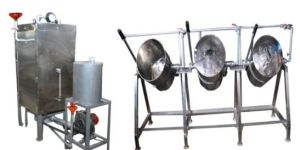

This system is widely used in hotels, restaurants and at homes for cooking steamed food items. Our offered system is designed using high quality stainless steel that is sourced from trusted vendors of the market.  Mounted on heavy duty SS stands with manual tilting arrangement to unload vessel with 3/4" inlet valve and 1" outlet valve. This system is available in various sizes, quantities and specifications that clients can avail as per their needs.

Color : Grey

Voltage : 220V, 380V

Driven : Electric

The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system. Hermetic compressor of 1Ton Forced air condenser 1500 m3 / h Evaporator with 3-speed fan. Capillary-tube refrigerant regulation system & Adjusting the temperature using remote control  operation.   Experimentation : To study the Vapour Compression air conditioning cycle. To Calculate Co-efficient of performance-(COP) by the use of P-H diagram.  Utilities Required : Electric supply Single Phase, 220 V AC, 50 Hz., 10 Amp.

Voltage : 220V

Application : Industrial Use

Power : 0-5 Hp

Driven Type : Electric

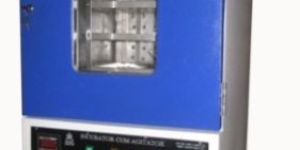

Standard double wall Construction. Outer Body & Inner Double Chamber made of  stainless steel. The door is provided with glass full view window. Interchangeable platform has been provided. Temperature range 5°C above ambient to 90°C  controller with light arrangement. Variable speed control regulator controls the speed up to 200rpm supplied complete to work on 220V AC 50Hz single phase.

Type : Tray Dryer

Material : Stainless Steel

Application : Laboratory Use

Voltage : 220V

Frequency : 50Hz

No of Shelves : 3 Shelves

Application : Seed Grading

Weight : 100-1000kg

Voltage : 220V, 380V

Driven Type : Electric

Production Capacity : 100-500kg/hr

Objective : Study of vapor compression cycle for Refrigeration & air conditioner. To calculate Actual & Theoretical COP of Refrigeration system. To calculate Actual & Theoretical COP of Air Conditioning system. Introduction : Refrigeration : Refrigeration is the branch of science that deals with the process of reducing and maintaining the temperature of a space of material below the temperature of the surrounding. Heat must be removed from the body being refrigerated and transferred to another whose temperature is below that of the refrigerated body. Air conditioning : Air conditioning is the simultaneous control of the temperature, humidity, motion and purity of the atmosphere in a confined space. Air conditioning applies in the heating season as well as in the cooling season. The air conditioning has wide applications in submarine ships, aircrafts and rockets. Air conditioning is associated with the human comfort and controlling the humidity ratio.

Voltage : Single Phase 220 – 240 Volts 50Hz. AC Supply

Material : Mild Steel Sheet

The potato-peeling machine that we manufacture is made of high quality Stainless Steel Sheet & Fitted by Engel iron Stand. The aesthetically designed potato peeler is one of its kinds in the market and finds extensive usage in hotels, restaurants and food processing industries. These peeling machines are priced competitively and are available in different sizes.Emery powder stuck to the bottom disc and side portion of the drum facilitates fast peeling of potatoes.Simple locking mechanism in the door ensures easy discharge of material.Easy removal of peeled skin due to water circulation provision.

Power Source : Electric

Material : Stainless Steel

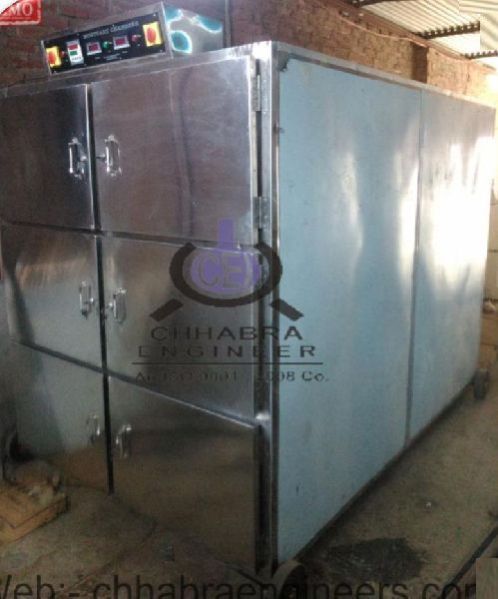

Mortuary storage system is designed for storing cadaverous under cool condition to prevent decomposition. These are latest development in mortuary technology offering vast space saving advantage over the conventional type together With greater hygiene. Useful for hospitals, Railways & Airports etc. Outer Chamber  -  Complete Stainless Steel 202 Grade (22 Gauge) Inner Chamber  -  Complete Stainless Steel 304 Grade (20 Gauge) Doors  -  Front opening, stainless steel insulated doors lined with magnetic gasket, handle and lock arrangement with keys in duplicate for individual dead bodies. Compressor  - Temperature is maintained by hermetically sealed compressor unit and is controlled by an automatic electronic solid state digital temperature controller cum indicator. Hermetically Sealed make Emerson Copland ,Tecumseh India. Inner Tray  -  SS telescopic structure sliding in the fixed M.S channel with the cabinet each to hold 120kgs of weight when it is stretched fully out. Key Points : Double-Walled with SS Sheet/ Pre-fabricated panels for outer surface 202 and stainless steel inner chamber 304 with puff insulation in between. Trays to carry dead bodies With handles at both ends travel on rollers fitted for easy movement. Temperature controller is mounted on front panel, provided on front top, along with pilot lamp, main switch etc. Supplied complete with trays, cord and plug. Suitable to Work on 440V, three phase, 6OHz, Ac supply.

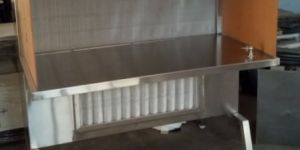

The complete structure is made of stainless steel (Grade-304 20g) sheet all over Environmental air is drawn by a centri-balanced blower unit through pre filters and is thrown to work chamber through high efficiency HEPA filters retaining  99.97% particular and Biological contaminants. Table top is covered with stainless steel sheet . front door is collapsible type & side panels are  fixed and made of clear thick Plexi –glass or transparent polycarbonate. Complete with U.V. Tube, fluorescent Tube Light, Gas cock & manometer. Vertical Same Specification : But the air drawn vertically on the work stage , An exhaust system can be provided(optional) at the bottom of the unit to throw the air outside the work place. To work on 220/230 V AC 50 HZ.

Material : Stainless Steel

Application : In Laboratory

Voltage : 220V

Power Source : Electric

Feature : Easy To Install, Portable

Bottom includes angle iron frame, and for movement castor wheels are installed. Outer body is made thick M.S (Mid-Steel).Top Base is of Stainless Steel Sheet. Double wall construction drum. Inner drum is made of S.S sheet (Grade 304), Outer(Grade 202).  The Unit has hermetically sealed compressor to maintain temperature up to minus 40 Degree C. Temperature control by electronic digital cum indicator with electronic vacuum indicator. It will have secondary chamber for 6 test.

Voltage : Single Phase 220 – 240 Volts 50Hz. AC Supply

1/4 HP open type belt driven compressor with motor, fan cooled condenser, fan-cooled evaporator, two check valves, two capillary tubes, reversing valve switch, filter-drier – dual flow, high pressure control, main circuit breaker, duplex receptacle, compressor switch, pilot light, evaporator fan speed control, hardware kit, cold box and courseware. The unit is supplied with a mobile storage cabinet of code-gauge furniture stock steel with 4-inch swivel rubber-tired casters. The unit is charged with R-134a HFC refrigerant.

Application : Colleges

Driven : Electric

We manufacture dough kneaders of different capacity viz. 10kg, 20 kg and 30kg. The dough kneaders have brake systems, which help in maintaining the speed of the vessel. It has two belts and offers soundless working, easy greasing and oiling for all parts. We provide a comprehensive range of Dough Kneader, which allows homogeneous mixing of water and flour. Manufactured using quality mild steel, it is at par with high quality standards and prevents wastage of energy & time. To ensure faster and effective kneading process, these machines are fitted with a high power motor. Moreover, our range of Dough Kneader is available in different capacities.

Color : Silver

Voltage : 220V, 230 V

Power Source : Electric

Reciprocating egg tray machine is suitable for small capacity egg tray production line, can be dry by  Sun Dry. Power consumption is small, it is a good program for family factory use. need 6-7 workers 2 Machine Sets & Output of tray per hours 1600 Tray’s (Approx).This machine mainly include two parts : Pulping system - Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine. Forming system - Manual egg tray forming machine, Vacuum pump , High pressure washer,Negative pressure tank , mould, Transfer mould, baler . Total Machine Setup Area is Required  30 ft x 40 ft  Shed & Lanterd . 3 Nos Water Tank is Required. Note : Electrical Tray Dryer Available.

Type : Automatic

Certification : CE Certified

Voltage : 380V

Power : 1-3kw

Driven Type : Electric

Warranty : 1 Year

After-Sales Service Provided : Spare Parts

Since incorporation, our company has been acclaimed as a leading manufacturer and supplier of Double  Deck Electric Oven. The provided electric oven is widely used for heating, baking, grilling and roasting various food items. Manufactured by Mild Steel Sheet & Engel Iran Stand With Digital temperature Control & Manually thermostatic temperature Control. this oven is widely appreciated among clients due to its power efficiency. Also, this Double  Deck Electric Oven is available to the patrons at viable prices.Features : High speed baking Safe and convenient to use Designed with temperature controller Non corrosive surface

Material : Stainless Steel

Color : Silver

Application : Baking, Heating

Driven Type : Electric

Installation : Easy Installing

  Domestic Refrigerator Test Rig   Double wall construction. Inner chamber  made of stainless steel sheet. Supplied with  removable perforted shelves. Exterior made out of thick mild steel  sheet duly finished in white stoving enamel/powder coated paint with finished Colour combinations. Outer double wall door is provided with magnetic gasket and lock & key arrangement. Fitted by M.S (Mid-Steel) pipe and sheet stand.

Type : Refrigeration System

Certification : ISO 9001:2008 Certified

Voltage : 220V

All components and instrumentation will be mounted on a Mild Steel Sheet panel  9 Chanel  digital indicator with voltmeter and ammeter -  will allow measurement of motor power or evaporation Transformer with dimmer -  will change the load of the evaporator Float flow meter -  for the flow of the refrigerant and for the flow "of water Bourdon type pressure gauge  -  for the refrigerant pressure at the evaporator and for the condenser Dynamometer and tachometer  -  for measuring the mechanical power of the engine Expansion valve  -  thermostatic Type An evaporator -  equipped with electric resistances.A condenser cooled by water. Safety -  condensing pressure and evaporation temperature protected by automatic disconnector. The Ensemble will be grounded. Differential circuit breaker.

Type : Domestic

Application : Laboratory Use

Driven Type : Electric

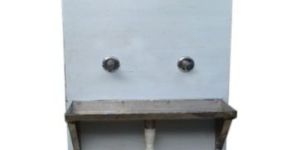

Outer body & inner chamber of stainless steel sheet. We are the prominent Manufacture and Supplier of premium quality Drinking Water Cooler which we supply all over India to cater the needs of our clients. Our Drinking Water Cooler is available at the affordable market price for our customers. The product is specifically made to provide pure, safe and cool drinking water. Water Cooler Inner Chamber 304grade & Outer Body 202 grade of Stainless Steel Sheet. Puff Insulation, 2 Outlet tab of water.   Tank & Cooling Capacity Tank Capacity 40 ltrs. Cooling Capacity 25ltrs. Tank Capacity 60 ltrs. Cooling Capacity 40ltrs. Tank Capacity 80 ltrs. Cooling Capacity 60ltrs. Tank Capacity 100 ltrs. Cooling Capacity 80ltrs. Tank Capacity 120 ltrs. Cooling Capacity 100ltrs. Tank Capacity 170 ltrs. Cooling Capacity 150ltrs. Tank Capacity 220 ltrs. Cooling Capacity 200ltrs. Tank Capacity 325 ltrs. Cooling Capacity 300ltrs.

Usage/Application : Used To Cool Water

Color : Silver

Double wall construction . Inner chamber  made of stainless steel sheet. Supplied with  removable perforted  SS Tankki . Exterior made out of thick Stainless  steel  sheet. Outer double wall door is provided gasket and Goli Lock .control panel is provide with various indicators, on-off switch. Temperature control By Thermostat. Supplied with cord and plug etc. To work on 220VAC Hz single phase.   Note : Available  Temperature Control by digital PID Controller Extra Cost 5kgs. Cooked Rice 10kgs. Cooked Rice 15kgs. Cooked Rice Legs stainless steel pipe & Wheel Extra

Material : Stainless Steel

Shape : Rectangular

Capacity : 5-15 KG

Feature : Moveable, Rustproof, Shiny Look

We offer high quality of Tilting Bulk Rice Boiler, Dal Boiler . We use high quality elements in boiler which are also manufactured by us. There is Drain Valve on Bottom of tank for the outlet of water, Double wall construction. Inner chamber made of stainless steel sheet. Exterior made out of thick Stainless steel sheet. Control panel is provided with various indicators, On-off, Main, Load Switches. Supplied with cord and plug etc. Outer Body is made of Thick Stainless Steel 202 Grade & Inner Tanki made of 304 grade heavy duty steel.

Material : Stainless Steel

Application : Rice Boiling

Color : Silver

Voltage : 220V

Driven Type : Electric

Power : To work on 220VAC Hz single phase

Capacity : 40 Liter, 60 Liter

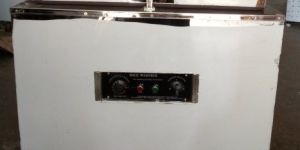

Double wall construction . Inner chamber  made of stainless steel sheet. Exterior made out of thick Stainless  steel  sheet. Heavy Stainless Steel Top.control panel is provide with various indicators, on-off switch. Temperature control By Thermostat. Supplied with cord and plug etc. To work on 220VAC Hz single phase.   Note : Available Temperature Control by digital PID Controller Cost Extra 7 lts.        Each 10lts.       Each 14lts.       Each 18lts.       Each 25lts.       Each 30lts.       Each 35 lts.      Each 40 lts.      Each Legs stainless steel pipe & Wheel Extra Up to 30 ltrs food warmer SS Stand Cost Extra

Type : Food Warmer

Material : Stainless Steel

Shape : Rectangular

Application : Hotel

Feature : Moveable, Rustproof, Shiny Look
