Core Drill Machine Dealers in Ambala

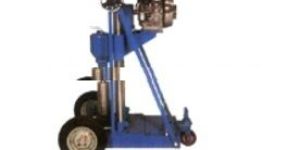

 Core Drilling W/O cutter Electronic : These drilling machines are extremely robust, heavy duty, compact and reliable. The sliding group is rectified so as to assure a very soft and accurate drilling movement. The drilling excursion is 550 mm and the machine can drill cores up to 200 mm dia. Built in water swivel to cool the diamond bit. The robust steel base is equipped with wheels for easy site displacements, together with four levelling and stabilizing feet. All working and moving parts are cadmium plated for rust protection. The machine is supplied complete “except”: diamond bit, expander coupling and spanner which have to be ordered separately. A) Core Drilling W/O cutter electric 100 x 200 (B) Core Drilling W/O cutter electric 150 x 300 (C) Core Drilling W/O Petrol Engine 100 x 200 (D) Core Drilling W/O Petrol Engine 150 x 300 (E) Core Drilling W/O Diesel Engine 150 x 300 5 H.P. (F) Core Drilling W/O Diesel Engine 150 x 300 7 H.P.

• Brand Name: Superb tech
• Supply Ability: 30 Unit/Units per Month
• Product name: Core Cutting Core Drilling Machine (Motorized)
• Place of Origin: Haryana, India
• Lead Time: 10
• Certificate: ISO9001 2008
• Power: Electronic
• Model Number: SBAT-008

NAUGRALABS LABORATORY PRODUCT NAME: CONCRETE CORE DRILL FOR TESTING LAB NaugraLabs Laboratory Product Code: NLE-Export-041008 Description and Specification for Lab Tenders Concrete Core Drill.  Concrete Core Drill - Often, existing concrete structures will need to be examined and tested to ensure the concrete remains of adequate strength and durability. This test is used to determine the compressive strength of a concrete core, which has usually been extracted from an existing structure. The value of compressive strength can then be used in conjunction with other measured properties to assess the condition of the concrete Extraction of concrete cores, achieved by rotary drilling using a diamond tipped hollow barrel, serve as a means of taking a sample of concrete which can then be used to determine various physical properties, but most commonly compressive strength.Cores can generally be extracted from wherever access allows, and would include floor slabs, walls and columns. 10cm diameter cores, generally afford the minimum diameter required for a representative sample and require less reinstatement than larger diameter cores. 15cm diameter cores will generally give more representative samples than smaller diameters but require more reinstatement. civil lab equipments manufacturers  Soil Testing Lab equipment manufacturers,exporters and Soil Testing Lab suppliers

• Certification: CE Certified, ISO 9001:2008
• Weight: 100-1000kg, 1000-2000kg, 2000-4000kg, 4000-6000kg
• Color: Black, Brown, Grey
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Rated Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Warrenty: 1 Year, 2 Years, 5 Years

The Pavement Core Drilling Machine is petrol engine powered. RoadBuilding drill has been designed specifically for the purpose of drilling test cores from or holes in, Roads, Airport Runways, Bridges etc. The Machine comprises of two vertical support columns, which carry the Drill headEngine assembly with the help of screwed spindle.

• Bitumen and asphalt - oil testing equipment: Film Stripping Device
• Bitumen and asphalt - oil testing equipment: Engler Viscometer Apparatus

Product description:suitable to cut drill cores of concrete, rocks, stones, tiles or the similar material. The machine is suitable for core samples of size upto 150mm diameter with the help of thin walled diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack & pinion is provided for adjustment in height and penetration assembly. The levelling screws are provided at the base. For gripping the sample in position suitable grips are provided. A suitable electric motor, standard make is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation. Salient features ã�â¢ã¯â¿â½ã�⢠dimension approx. Are as under : height : 1300mm base : 600 x 1200mm head travel on rack : 350mm drill speeds : 900 rpm for soft samples and 350rpm for hard samples. Water swivel : built in the machines. Suitable for 230 volts ac, single phase accessories : 1. Thin wall diamond bits 2. Core barrel.
