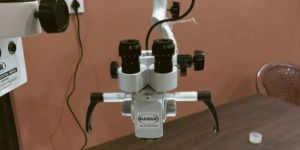

ENT Operating Microscope Dealers in Ambala

• Usage: Hospital
• Brand Name: Jb 01
• Driven Type: Electricity
• Color: Black, Creamy, Dark Grey, Grey, White, Z-Black
• Condition: New
• Power: 100W
• Feature: Actual View Quality, Easy To Use
• Voltage: 220V
• Portable Style: Non Portable
• Type: Ent Operating Microscope
• Weight: 60kg
• Warranty: 1yrs
• Country of Origin: India
• Eyepieces: WF10X
• Focus: 200mm
• Objective: M40x
• Magnification Range: 25x

We are offering ent operating microscopes. optical head : indian zoom optical system zoom ratio: 6:1 binocular tubes : 90deg.straight magnification : 5x to 25x ( step magnifications are also available) eye pieces : 10x / 15x dioptric adjustment objective lens : f=200 mm field of view : 50mm ipd adjustment : 55mm to 75mm fine focusing : by motorized foot control illumination : 15v/150w twin halogen lamps with 100% coaxial through the lenses focused fiber optics light guide 1.5 meter, white bright light more than 80,000 lux when maximum. field of illumination : 70mm filter : cobalt blue, green arm : counter balanced pantographic arm with 320 degree rotation. vertical range of counter balanced arm: 250mm to 300mm floor stand : mobile floor stand on caster wheels for easy handling and absolute stability. base : 600mm x 500mm (approx) height : 1500mm (approx.) weight : 65kg (approx.) power : ac 220v /110v, 50/60hz. spares: dust cover for covering the microscope, set of sterilizable of silicon caps, 15v-150w bulbs, fuses. optional accessories:- 1. Beam splitter with camera mount 2. Ccd camera

• Type: Surgical Microscope
• Working Distance: 200mm, 250mm, 300mm & 400mm of ent microscope
• Packaging Details: Export Worthy Packing
• Instrument classification: Class III
• Model Number: MS 230 PO
• Magnifications: 7.5x, 12.5x & 20x OF ENT Microscope
• Illumination: LED Illumination of ent microscope
• Place of Origin: Haryana, India
• Supply Ability: 100 Unit/Units per Month

• Weight: 50 Kg
• Usage: Hospital, Laboratory
• Power Supply: 220V
• Portable: Yes

• Objective: F=200mm and F=300mm
• Drawtube: Binocular
• Magnification of binocular: 6X
• Fine focusing distance: 10mm
• Interpupillary distance: 50mm-80mm
• Illumination: Coaxial illumination with 10W

Manufacturer and Supplier of ENT Operating Microscope; we are a leading name in this domain. Extensively used by the hospitals and medical institutes, we certified range of Operating Microscope that is highly durable, quality tested and cost effective as well. We are working with a pool of experts and they ensure that the range commensurate to the international standards.

We are listed among the leading ENT Microscope Manufacturers, Suppliers and Exporters from Ambala, Haryana. We offer ENT Microscopes that are engineered to precision by experts and therefore are guaranteed to deliver desired results. Equipped with 320 degrees rotatable counter balanced gas spring loaded arm, the ENT Microscope offered by us has carved niche for itself in the market.

Technical Specifications:- Innovative design, highly versatile with Latest 'Gem' Three Step 90 deg. Inclined Optical system on Floor Stand with Cold light Co-axial illumination Head: Gem Three Step Advance Optical System Magnification : 5x,10x & 20x Eye Pieces : SWF 15x paired super wide field Working Dist : F=200mm Objective Lens Fine Focusing : Manual Fine Focusing Light Source : LED Light Source with bright white LED Light Arm : Counter balanced pantographic arm with 320° rotation Floor Stand:Mobile floor stand on four caster wheels for easy handling and absolute stability Power Supply: AC 220V – 240V 5. Optional Accessories: Beam Splitter with 'C' Mount CCD Digital Camera LED Screen for Live Surgery Motorised with Foot Control Objective lens 250mm, 300mm & 400mm Monocular assistoscope Binocular Assistoscope

We are offering ent operating microscope. we are one of the leading manufacturers and supplier of high quality ent microscopes. Manufactured using premium quality raw material and cutting edge technology, this microscope is highly acknowledged due to its excellent performance. This technically advanced microscope is extensively used for both medical and dental surgical operations. Our offered microscope finds usage in hospitals, nursing homes and health care center. Apart from this, our quality controller conducts a series of tests on this microscope to assure its flawlessness before supplying to clients.

Technical specification OPTICS:a. Apochromatic Optics with five step magnification changer.b. Magnification Range 2.4x-40x or morec. Max Field of view should be more than 180mm.OBJECTIVE:a. Working distance f=250 mm and 400 mm.b. Fine focusing for 300 mm.BINOCULAR TUBE:a. Inclinable binocular tube f=170 mm or higher.b. Inter pupillary distance adjustment from 55 mm to 75 mm.EYEPIECES:a. Pair of wide field push-in eyepieces 10x or 12.5x with rubber sleevesb. diopter setting -5D to +5D. ILLUMINATION:a. Coaxial fiber optic / direct Xenon or LED illumination system.b. In LED equipped systems: single lamp.c. Dual lamp system with quick change over in case of Xenon.d. Continuously lamp intensity adjustment by control knob near to the surgeon.STAND:a. Stable and sturdy floor stand on four lockable castors, column (height: minimum 1.6m).b. Spring-balance articulated arm, carrier arm, power supply unit.OTHERS:a. With lateral Handgrips for all knobs, dust cover.b. integrated full HD (1080p) camera & full HD recording system. Camera should have play back function for videos & photoc. Microscope is CE Marked & ISO Certified

ENT OPERATING MICROSCOPE ITEM CODE: EN-02 Rajas is engaged in manufacturing and supplying an extensive range of ENT Operating Microscope that caters the diverse needs of medical industry. These microscopes are counted as one of the most advanced microscopes and preferred by medical staff. We offer our range at market leading prices and in standard sizes. Our products are highly appreciated for the following Specifications of ENT Operating Microscope: Optical Head eye Pieces 12.5 x wide field diopter Distance Adjustable from 52 mm to 75 mm by knob Working Distance 175 mm or 200 mm Magnification – Manual 5 step 0.4 x, 0.6 x, 1.0 x, 1.6 x, 2.5 x Adjustment From +6 to -6 Inclination to Vertical 450 off Vertical Interplanetary Field of View (With 175mm bjective) 56, 36, 22, 14, 9 mm Diameter (with 200mm Objective) 80, 51, 31, 19, 12 mm Diameter Total Magnification: (With 175 mm Objectives) 5, 7, 11, 18, 28 (with 200 mm Objectives) 3, 5, 8, 13, 20 Fine Focusing 50 mm manually adjustable/ OPTIONAL Motorized foot control Illumination System:Illumination Standard 60 Illumination coupled with -20 Illuminations for bright Red Reflex Maximum Intensity 75,000 Lux Brightness Continuously Variable Filters Built in Heat Absorbing Filter and UV, GREEN & BLUE Filter with Switchable Facility Light Transmission By Fiber Optic Cable Light Source Twin outlet 15V/150W Halogen Lamp with Cold Reflector Microscope Stand: Arms Counterbalanced Spring Arms Horizontal Length of Arms 850 mm Vertical Height Minimum 905 mm Maximum 1465 mm Vertical Height adjustment 560mm Rotation of Arm 320 0 with lock Floor Stand Mobile Floor Stand OPTIONAL Table Mount Model Dimensions of Base: Length 520 mm Breadth 520 mm Mobility On Four Caster Wheels Power Supply AC 220-240 Volts or 110 V on Request Total Weight (Net) 50 Kgs approx Features: Corrosion resistant High performance Durable

Rajas is engaged in manufacturing and supplying an extensive range of ENT Operating Microscope that caters the diverse needs of medical industry. These microscopes are counted as one of the most advanced microscopes and preferred by medical staff. We offer our range at market leading prices and in standard sizes. Our products are highly appreciated for the following Specifications of ENT Operating Microscope: Optical Head eye Pieces 12.5 x wide field diopter Distance Adjustable from 52 mm to 75 mm by knob Working Distance 175 mm or 200 mm Magnification – Manual 5 step 0.4 x, 0.6 x, 1.0 x, 1.6 x, 2.5 x Adjustment From +6 to -6 Inclination to Vertical 450 off Vertical Interplanetary Field of View (With 175mm bjective) 56, 36, 22, 14, 9 mm Diameter (with 200mm Objective) 80, 51, 31, 19, 12 mm Diameter Total Magnification: (With 175 mm Objectives) 5, 7, 11, 18, 28 (with 200 mm Objectives) 3, 5, 8, 13, 20 Fine Focusing 50 mm manually adjustable/ OPTIONAL Motorized foot control Illumination System:Illumination Standard 60 Illumination coupled with -20 Illuminations for bright Red Reflex Maximum Intensity 75,000 Lux Brightness Continuously Variable Filters Built in Heat Absorbing Filter and UV, GREEN & BLUE Filter with Switchable Facility Light Transmission By Fiber Optic Cable Light Source Twin outlet 15V/150W Halogen Lamp with Cold Reflector Microscope Stand: Arms Counterbalanced Spring Arms Horizontal Length of Arms 850 mm Vertical Height Minimum 905 mm Maximum 1465 mm Vertical Height adjustment 560mm Rotation of Arm 320 0 with lock Floor Stand Mobile Floor Stand OPTIONAL Table Mount Model Dimensions of Base: Length 520 mm Breadth 520 mm Mobility On Four Caster Wheels Power Supply AC 220-240 Volts or 110 V on Request Total Weight (Net) 50 Kgs approx Features: Corrosion resistant High performance Durable

Operating Surgical Microscope Science Labs We are identified as one of the major Surgical Microscopes Manufacturers in India. The Endure Medical Surgical Microscopes offered by us are widely demanded in the market for accurate results, easy handling and low maintenance cost. Additionally, we provide ENT Surgical Microscopes (OPY100) that are manufactured meeting the international quality norms. The OPY 100 Ophthalmic System utilizes the new features : 1. Ergonomic design. 2. Enhanced Optical System for superb image quality. 3. Apochromatic 5 Step Magnichanger and Objectives. 4. Straight viewing tube with IPD adjustment knob. 5. Counter Balanced Arm Mechanism. 6. Cold Light co-axial illumination. Operating Surgical Microscope Specification Binocular Tube: Straight, 45. inclined Eyepiece: 12.5x18mm with eye guards Apochromatic Magnichanger: 40.4x,0.63x,1.0x,1.6x 2.5x Objectives: f=250mm manual fine focus Light Source: 15v 150w halogen twin lamp Built-In-Filters: Green Cobalt Blue Vertical Movement Of ARM: 400mm Microscope Carriers: XYZ coupling or Z-axis Ophthalmic carrier Optional Accessories: Assistoscope, DMC 6000 Camera Module ,Double Beam splitter, 0=250° tiltable ergo tube..

We offer Ent Surgery Operating Microscope. 3 Step Magnification Operating Microscope Description : Advance optical system designed exclusively for Easier. Handling and versatility in ENT Head : 3 Step Magnification Optical Straight Head. Eye Pieces : 10x paired wide field Eyepiece. Magnification : Objectives Lens power 6x, 10x and 16x Objectives Power 0.6x, 1.0x and 1.6x Working Dist : F=200mm

• Type: ENT Microscope
• Model Number: POM - 9 E, PEM-D
• Lead Time: 2 to 3 Weeks.
• Instrument classification: Class I
• Packaging Details: Export worthy.
• Port: New Delhi

Ent operating microscope advance 90deg. Straight optical system designed exclusively to easier handling & versatility in ent surgery. Fiber optic cold light source is commonly used by ent surgeon for operating ear, nose & throat surgery to the patient. Specification operating microscope section binocular tube 90deg. Straight eye pieces 15x wf magnification 5x to 25x countinoues zoom magnification field of view 50mm objective lens f=200mm (300mm, 400mm) working distance 200mm (300mm, 400mm) interpupillary distance 55mm to 75mm fine focusing motorized fine focusing foot control system illumination section type fiber optic cable light guide white bright light light source 15volt150watt halogen cold light source illumination control continuous adjustment with low & high intensity field of illumination 70mm stand section type mobile floor stand on four wheel caster easier handling and absolute stability arm vertical height adjustment range of counter balance pantographic arm 320mm to 550mm rotation 320deg. With lock. General information base size : 600mm x 550mm weight : 65kg (approx) electrical power : ac 220v to 240v 5060 hz (11o v on request) spare ….dust cover for covering the microscope, fuses, one blub or sterilized silicon caps

• Brand Name: SCISOL

We offer ent operating microscope. Specification of operating microscope for ent: binocular tubes: straight 45 degree inclined apochoramatic magni changer: 0.4 xs, 0.63 xs, 1.0x, 1.6 xs & 2.5 xs objectives: f=250, manual fine focus light source: 15v150w halogen lamp built in filters : green or yellow vertical movement arm: 600mm steps: fiv.

• Type: Ent Surgical Instruments
• Material: MS/Alluminium/Brass
• Application: Surgical Use
• Weight: 65 kgs
• Color: powder coat/stoving paint colours
• Feature: Eco Friendly
• Finishing: stoving /pu paint finish
• Packaging Type: 7 ply corrugation box with outer wooden cage packing for jerk less transportation
• Country of Origin: India
• Brand Name: LABKRON
• Warranty: 1 YEAR
