Impact Testers Dealers in Ambala

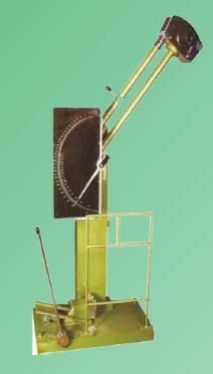

From Haryana (India), we are a distinguished Manufacturer and Supplier of Impact Testing Machine (Izod & Charpy). The Impact Testing Machines that we make available are widely acclaimed in the national market because of their several features like compact design, outstanding performance and longer functional life. With us, feel free to place medium as well as bulk orders of The Pendulum Impact Testers.Details : The impact energy absorbed by the specimen during reputure is measured as the difference between the height of drop before repute and the height of rise after rupture of the test specimen and is read on the dial scale.

• Brand Name: ALPHA CHEM
• Model Number: ALPHA CHEM-1353

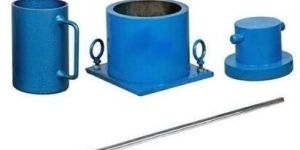

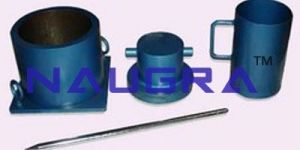

We are offering aggregate crushing value apparatus : consists of m.s. Cylindrical container 150mm +-0.5mm dia x 130mm to 140mm high with base plate 200 to 230mmsqr x 6mm thick. A plunger of 148mm +-0.5mm dia x 100 to 115mm high. Supplied complete with tamping rod, 16mm dia x 600mm long, both ends rounded, 1 no. Metal measure 115+- 0.5mm dia x 180 +- 0.5mm high. On special request aggregate crushing value apparatus having 75mm dia or 300mm dia cylinder size can be supplied.

 Alpha Chem is manufactures,exporter & suppliers Aggregate Impact Tester.  Aggregate Impact Tester : The Aggregate Impact Tester is equipped with a circular base with two vertical guides. Aggregate Impact Tester machine which is available with us is fabricated using high grade raw material and advance technology. Features  Hammer with a locking arrangement Hammer is removable for emptying as it falls freely to the baseFalling height of hammer is adjusted through 380 ± 5mmSupplied complete with metal measures 75mm dia x 50mm high (for specimen preparation) and tamping rod 230mm long x 10mm dia High performance Weight of hammer : 13.75 ±0.25 kg.

• Shape: Round
• Thickness: 10-20mm
• Length: 10-20cm
• Color: Blue
• Pattern: Plain
• Finishing: Polished
• Feature: Crack Resistance, Stain Resistance

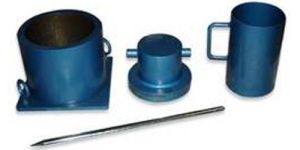

Sizes 75mm,150mm, 300mm cylinder dia, Power Hand Usage Drop Tester,Drop testing Aggregate Crushing Value provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Consists of a steel cylinder, plunger and a base plate.

• Capacity: 300J
• Accuracy: + 0.5 J DRO

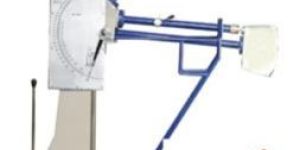

Technical Specifications Maximum capacity : 300J for Charpy Test, 170J for Izod Test Minimum Scale Graduation : 0.5 J Pendulum drop angle for Charpy : 140° Pendulum drop angle for Izop : 90° Pendulum Weight : 22 Kg Striking Velocity : Charpy-5.3 ms, Izod-3.9ms Distance of Pendulum centre to specimen Centre : -815 mm Accuracy : + 0.5 J DRO for energy absorbed by Specimen Printer Facilityndash; To print the energy of specimen after test Selection switch for charpy or Izod Test Accuracy as per ISamp; BS Standards Accessoriesamp; Spares: CharpyIzod Caliper Gauge Self Centering Tong Izod Charpy Sq. Template Depth Notch Gauge `U’ Notch Width Gauge `V’ Notch Angle Gauge `U’ Notch Milling cutter `V’ Notch Milling Cutter. Steel Metal Mechanics Lab equipment manufacturers,exporters and Steel Metal Mechanics Lab suppliers

NAUGRALABS LABORATORY PRODUCT NAME: DIGITAL IMPACT TESTING MACHINE FOR TESTING LAB NaugraLabs Laboratory Product Code: NLE-Export-111009 Description and Specification for Lab Tenders Digital Impact Testing Machine.  Technical Specifications Maximum capacity : 300J for Charpy Test, 170J for Izod Test Minimum Scale Graduation : 0.5 J Pendulum drop angle for Charpy : 140° Pendulum drop angle for Izop : 90° Pendulum Weight : 22 Kg Striking Velocity : Charpy-5.3 m/s, Izod-3.9m/s Distance of Pendulum centre to specimen Centre : -815 mm Accuracy : + 0.5 J DRO for energy absorbed by Specimen Printer Facility – To print the energy of specimen after test Selection switch for charpy or Izod Test Accuracy as per IS & BS Standards Accessories & Spares: Charpy/Izod Caliper Gauge Self Centering Tong Izod Charpy Sq. Template Depth Notch Gauge `U’ Notch Width Gauge `V’ Notch Angle Gauge `U’ Notch Milling cutter `V’ Notch Milling Cutter  Steel & Metal Mechanics Lab equipment manufacturers,exporters and Steel & Metal Mechanics Lab suppliers

• Automation Grade: Manual
• Weight: 375Kg
• Brand: Eletech-Eletech Lab Instruments
• Model No: ELI-1930
• Capacity: 300J/168J
• Packaging: Wooden
• Category: Civil Lab
• Tag: Impact Testing Machine

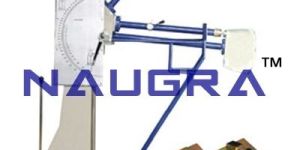

Code: Aggregate0014 Pendulum Impact Tester. Pendulum Impact Tester Pendulum Impact Tester from Civil Mechanical Laboratory India   Pendulum Impact Tester The Pendulum Impact Tester is designed for conduction Izod & Charpy Test. The Pendulum is mounted on anti friction bearings.Pendulum Impact Tester for Civil Engineering from Laboratory Equipment Manufacturers India - It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the Pendulum swing down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after rapture of the test specimen and is read from the maximum pointer on the dial scale. Charpy Test: The Charpy test piece rests on alloy steel supports anvils fitted on the base of the machine rigidly held in position by alien screws. End stopper is provided for quickly & accurately locating the test piece centrally between the supports. Izod Test The Izod test piece is clamped vertically in Izod support anvils, fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & alien screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied. Controls of Pendulum: The Pendulum supported in the starting positions is by a self resetting latch. The release mechanism is operated by lever. The Pendulum release latch is operated only when this lever is operated

  It is for determination the aggregate impact value and has been designed in accordance with BIS-9377-1979. The sturdy construction consists of a base and support columns to form a rigid frame work around the quick release trigger mechanism to ensure and effective free all of the hammer during test. The free all can be adjusted through 380 + 5 mm. The hammer is provided with a locking arrangement.

• Brand Name: Teknik
• Item code: MTS-401

• Brand Name: JLab
• Place of Origin: India

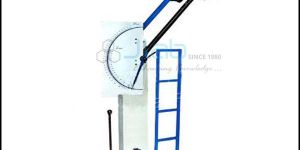

Pendulum Impact Tester The Pendulum Impact Tester is designed for conduction Izod & Charpy Test. The Pendulum is mounted on anti friction bearings. It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the Pendulum swing down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after rapture of the test specimen and is read from the maximum pointer on the dial scale. Charpy Test: The Charpy test piece rests on alloy steel supports anvils fitted on the base of the machine rigidly held in position by alien screws. End stopper is provided for quickly & accurately locating the test piece centrally between the supports. Izod Test The Izod test piece is clamped vertically in Izod support anvils, fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & alien screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied. Controls of Pendulum: The Pendulum supported in the starting positions is by a self resetting latch. The release mechanism is operated by lever. The Pendulum release latch is operated only when this lever is operated.

The impact energy absorbed by the specimen during reputure in measured as the difference between the height of drop before repute and the height of rise after rupture of the test specimen and is read on the dial scale.Technical Specifications:Charpy ..
