Industrial Microscope Dealers in Jagadhri Road, Ambala

• Type: Manual
• Brand Name: RADICAL
• Color: OFF-WHITE
• Model Number: RMT_5
• Place of Origin: HARYANA
• Name: HAND & TABLE MICROTOME

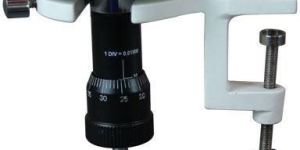

Hand Microtome Model RMT-5 is used to cut thin sections of Microscopic materials, such as specimen parts of plants and animals. It is considered as the basic form of a microtome permitting microtomic cuts by hand in a quick and accurate way. The microtome is suitable for practical courses in microscopy, for field work during excursions, for school education and for a serious amateur of biology. A well constructed hand operated bench microtome can be securely attached to the edge of any bench, table or work surface with the help of fixing clamp. The section platform has a smooth wide flat top and durable glass surface to guide the sectioning razor & to protect the hand. The feed screw has fine and long threads so that the embedded material may be advanced very gradually to cut thin sections easily. The Razor is made of surgical quality steel with 75mm cutting edge. Stage diameter 80mm Nett. Weight 500 gms Vertical lift 20 mm Gross Weight 1 Kg. (in case) Least count 0.01mm Dimensions of the Case 200x220x90mm The instrument is supplied with the following in a storing cabinet : A Plano-Concave Razor, Block Holder, Table Clamping Device and Operating Instructions.

• Stage: Compact ball-bearing centerable rotating stage,140mm diameter,graduated with vernier,lock and two
• Magnification: 40x - 400x
• Is It Portable: Non Portable
• Brand: Radical
• Model Number: ROM-44
• Viewing Head: Trinocular

Monocular inclinable body having coarse and graduated fine motion knobs, Incident light through epi-illuminator with iris diaphragm and slot for filters, equipped with triple revolving nose-piece, special graduated detachable mechanical stage for x-y movement of specimen, solid state variable light conrtol transformer 20 watt for Halogen Bulb. Supplied with a daylight blue filter in mount, a spare bulb, vinyl cover, complete in a plywood storing cabinet with following optical combination: Ach. Objectives : M 10x and M 40x Huy. Eyepieces : 10x and 15x (i) With achromatic objectives. (ii) With Achromatic objectives assembled from imported hard coated lenses for anti-reflection.

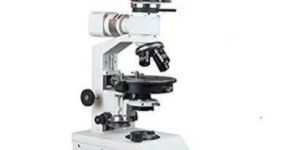

We offer Trinocular Ore Microscope. An advanced Model of Ore Microscope most suitable for photo micrography and CCTV observations. Having precise coarse & fine motion system, circular graduated stage equipped with polariser, analyser and Bertrand lens etc. along with vertical variable light control transformer. Supplied with following optical combination in the wooden cabinet. Objectives : 4x, 10x, 40x. Eye piece : WF 10x and H15x (paired) and H10x Micro & P6x.

We manufacture world class polariscopes for testing and checking strains and quality in diamonds, and other precious stones, equipment cost & running cost is very low, as also working time to get results.

Hand & Table Microtome, Sub Stage Microscope Lamp
