Kelvin Bridges Dealers in Ambala

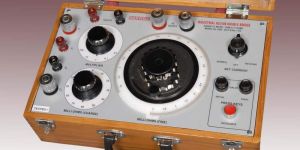

RAI” INDUSTRIAL KELVIN DOUBLE BRIDGE Model: - 55X-IK is important instruments in the measurement of resistance as low as 0.2 Micro ohms to highest value of 11 ohms. Industrial Kelvin Double Bridge employs 10 Standard Resistors drawn from well aged manganin sheet having excellent stability & reproducibility. Manganin has the quality of very low temperature co-efficient which is a critical parameter for resistance standards manufacturing. Four standard decade dials, ratio selector & plug keys facilitate accurate null detection. Features : Precision measurement range from 0.2 microhm to 11 ohm. Four terminals for accurate results. Manganin wire having exceptionally low temperature co-efficient. Remarkably long lasting resistance values with excellent stability. Reproducible measurements. Perfectly aged Manganin coils / strips employed in Kelvin Bridges. Click type hard silver plated self-cleaning switches. Wonderful elastic limits of MANGANIN. Solid brass blocks for positive plug contacts Excellent calibration stability.   Accessories for Industrial Kelvin Double Bridge :Following accessories are required with the Industrial Kelvin Double Bridge as support accessories to complete the measurement system. The Bridge becomes the complete measurement system in conjunction with the following accessories : Conductivity Attachment High Amperage DC Source ( 0 to 50 Amp. suitable for bridge) Spot Reflecting Galvanometer Analogue Galvanometer with selector switch for protection of Spot Reflecting Galvanometer.

• Application: Industrial
• Driven: Electrical
• Main Components: Dry Battery,, Galvanometer, Coils, Extra galvanometer for High Source Voltage
• Testing Bridge Range: 0.001 Ohms to 11.11 Mega-Ohms,
• Accuracy: ± 0.1%.
• Colour: White

Kartar Scientific Industries pecializes in world class Kelvin Bridge that is designed perfection by expert designers to offer precise measurement of resistance. Available in best technical specifications, our Bridge has made us the best Kelvin Bridge manufacturers and supplier from Ambala Cantt, HAryana. Use To Provide accurate measurement of resistance and locating faults in cables by adopting the Murry or valley loop circuit for tests

We offer precision kelvin double bridge. Usage : it is a precision bridge for the measurement of low resistance. Basic structure : a bakelite panel enclosed in a teak wood box is used. Separate current and potential terminals, push buttons for battery and galvanometer terminals range of measurement : 1.1 to 0.00002 ohms. Maximum current : 2 amperes. Accuracy : + 0.1%. Multiplying ratios : a single rotary switch furnishes 3 multiplying ratios of x1, x0.1 and x0.01. Standard resistance : 10 coils of 0.1 ohm each are arranged on a rotary dial and a circular slide wire of total resistance 0.1 ohm and of 500 sub-divisions is equal to 0.0002 ohm on the normal range

The offered Kelvin Double Bridge is used as standard testing instrument for accurate measurement of very low resistances such as shunts, copper & aluminum conductors/ wire and specific resistance determinations of heavy distribution transformers. With the help of our state-of-the-art infrastructure unit, we have become able to manufacture and supply superlative quality Kelvin Bridge. Provided bridge is manufactured under the supervision of talented professionals in order to meet set quality standards. Moreover, this Kelvin Double Bridge is available to clients at discounted prices.   Features:   Corrosion resistance Easy to use Provides accurate results Low maintenance   Details: (Range  0.2 micro ohm to 11 ohms, Acc. 0.05 %) ACCESSORIES   Spot Reflecting Galvanometer. Model No.RG-321    DC Source 10 Amps. Model No. DC-341. Provided with one analog current meter.   Attachment of 1 meter length.Model No. CA-391  Brass clamp with terminals for zero setting.

This Kelvin Bridge has been designed for use of cable and wire manufactures whose products are called upon to meet very close specification in resistance per unit length. It is compact robust and simple in operation, yet enable measurements to be carried out with highest attainable precision Standard resistance and side wire are made of covered wire and properly aged. The maximum permissible current 10 amps. All coils are calibrated on Imported Testing Bridge.

• Accuracy: ±0.1% or ±0.2%
• range: 10-4 to 1 ohm

Kelvin Bridge For precision measurement of low resistances, range 10-4 to 1 ohm. With a rotary dial having ten coils of 0.1 ohm each and a circular slide wire resistance reading in steps of 0.001 ohm. A multiplier of 0.1 enables readings upto 0.0001 ohm. Separate current & potential terminals are provided. Properly aged manganin coils are used. Accuracy ±0.1% or ±0.2% of the slide wire length whichever is greater.

• Brand Name: VAISESHIKA

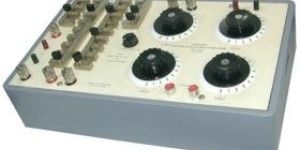

We are offering vaiseshika senior kelvin double bridge. We are offering vaiseshika senior kelvin double bridge. Description "vaiseshika" senior kelvin double bridge type 9403 is an ideal resistance measuring instrument. Applications include cable, transformer and wire manufacturing industries. This instrument is also suitable for the quality control and maintenance of transformers in heavy electrical engineering and power transmission projects. The instrument features a versatile range of 0.02 micro-ohm to 1.1 ohm. This is the only instrument which provides measurement techniques of high precision for extremely low resistances. Ten standard resistors drawn from manganin sheet, each having a value of 0.001 ohm are provided in the bridge. The slide wire is divided into 500 divisions to provide a resolution of 0.02 micro-ohm. This slide wire is totally immersed in oil to ensure total stability of resistance in the bridge. Features precision measurement range from 0.02 microhm to 1.1 ohm. Oil-immersed slide wire. Four terminals for accurate results. Manganin wire having exceptionally low temperature co-efficient. Remarkably long lasting resistance values with excellent stability. Reproducible measurements. Perfectly aged manganin coils strips employed in kelvin bridges. Click type hard silver plated self-cleaning switches. Wonderful elastic limits of manganin. Oil immersed slide wire in kelvin double bridge. Solid brass blocks for positive plug contacts excellent calibration stability. Specification range of measurement : 0.02 micro-ohm to 1.1 ohm accuracy :below 0.0001 ohm :0.0001 ohm to 0.01ohm :above 0.01 ohm +- 0.2% +- 0.1% +- 0.05% or +- 1 slide wire division slide wire : 0.001 ohm divided in 500 equal divisions. (immersed in oil) variable standard resistance : 10 steps of 0.001 ohm multiplying ratio : 0.01, 0.1, 1, 10 and 100 for our complete product range please visit our

• Features: Compact design,Easy to operate,High performance
• specification: Kelvin double bridge for precise measurement of low resistance capable of measuring resistance from 0.1 micro – ohm to 1.1 ohms.Ten standard resistance of Manganin are provided in step of 0.1 ohm each in dial from with five multiple ratios of .001, 1, 1

• Accuracy: +0.1% or +0.2%

KELVIN BRIDGE Fitted in elegantly polished wooden case for precision measurement of low resistance, range 10 to 1 ohm. With a rotary dial having ten coils of 0.1 ohm each and a circular slide wire resistance reading in steps of 0.001 ohm. A multiplier of 0.1 enables readings upto 0.0001 ohm. Separate current and potential terminals are provided. Properly aged manganin coils are used. Accuracy +0.1% or +0.2% of the slide wire length whichever is greater.

• Type: Kelvin Bridges
• Material: Plastic
• Application: Educational Institutes, Industrial, Laboratory
• Weight: 4-6 Kg
• Color: Black, Gree, White
• Feature: Durable, High Quality, Long Life, Smooth Finish
• Voltage: 110 V, 220 V
• Packaging Type: BoxCarton
• Phase: Three Phase
• Driven: Electrical
