Labovision Microscopes Ambala Cantt, Haryana

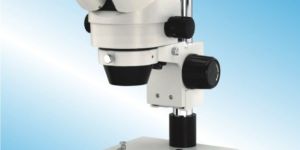

We are offering zoom stereo microscope (industrial/medical). ks z2000, dual light stable stand with ball bearing focusing controls binocular tube, 45° inclined, 360° rotatable, ipd 54-75 mm, with dioptric adjustment on both oculars wide field eyepiece wf 10x/20mm paired with eye guards continuous zoom ratio: 1: 6.4 magnification: 7x - 45x (with 10x eyepieces) built-in illumination system 12v-15w halogen reflector type incident light and sub-stage 12v-7w fluorescent transmitted light. power supply (110v or 220v input) iso 9001, ce approved

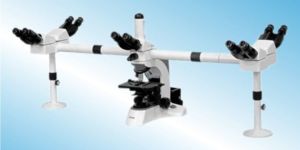

We are offering axr 51 trinocular compound microscope with pentahead attachment with infinity optical system. compensation free trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm, 1 unit compensation free binocular head, inclined at 30°, 360° rotatable, interpupillary distance48-75mm, 4 units wide field eyepiece wf 10x/20mm paired with eye guards, anti fungus treated, 10 units quintuple reverse angle nosepiece (ball bearing type) ip series infinity corrected din plan achromatic objectives, anti fungus treated 4x/ na 0.10, 10x/ na 0.25, 40x/ na 0.65 (sl), 100x/ na 1.25 (sl, oil) double layer graduated mechanical rectangular stage size 185 x 142mm cross travel 75 x 55 mm on ball bearing co-axial controls green led pointer ,brightness adjustable swing condenser n.a.0.9/0.25 with aspheric lens iris diaphragm special day light blue filter in holder low position co-axial coarse and fine focusing mechanism with tension control and refocusing lock koehler illumination system, external illumination, halogen lamp 12v-50w. universal power supply (ac input 100v-240v, 50/60hz)

We are offering ks f2000 stereo microscope (educational). Ks f2000, dual light stable pole stand with ball bearing focusing controls binocular tube, 45° inclined, 360° rotatable, ipd 55-75 mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x/20mm paired revolving turret with objectives 2x - 4x fluorescent transmitted light. Magnification: 20x /40x working distance 100 mm built-in illumination system 12v-15w halogen reflector type incident light and sub-stage 12v-7w power supply 220v input iso 9001, ce approved

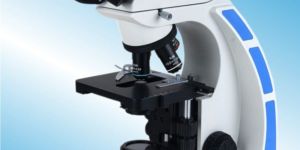

We are offering sense i2000 compound microscope (research infinity corrected), sense i2000 , c shaped sturdy stand, infinity optical system (ios) siedentopf binocular tube, 30° inclined, 360° rotatable, ipd 54-75mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x20mm paired with dipoter adjusment & eye guards quadruple reverse angle nosepiece (ball bearing type) ip series din infinity plan achromatic objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) stage rectangular 140 x 132mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. Iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control koehler illumination system super bright white led with intensity control. Universal power supply (100v-240v) iso 9001, ce approved.

We are offering monocular tube, straight, with body inclinable through 90° horse shoe base stand huygenian eyepiece 6x, 10x & 15x (any two)quadruple revolving nosepiece a1 series achromatic objectives 10x, 40x (sl) and 100x (sl, oil) fixed stage size 120 x 120mm with mechanical stage for x and y movement of slide up to 25 x 75mm with graduated scale and verniers, sub-stage iris diaphragm with moving up and down through rack and pinion, condenser na 1.25 plano concave reflector mirror mounted on gimbal mount.

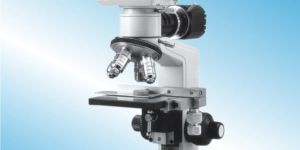

We are offering fe 20m metallurgical upright compound microscope. Fe20m, ergonomically designed sturdy stand of anti rust material trinocular, 45° inclined, 360° rotatable, ipd 55-75mm. Wide field eyepiece hkw 10x18mm paired wide field eyepiece wf 15x16mm paired nosepiece (ball bearing type) mwd series, true color, din semi plan achromatic objectives 10x, 20x, 40x and 60x. Magnification:100x – 900x coaxial focusing system, with slides traveling on ball bearing guide ways, for frictionless motion. Compact size mechanical stage, for convenient specimen scanning. Epi- illumination system 6v-20w halogen with intensity control. Solid state transformer power supply 220v ac

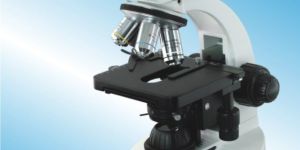

We are offering kx i2000 laboratory microscope. Kx i2000, c shaped sturdy stand , infinity optical system (ios) siedentopf binocular tube, 30° inclined, 360° rotatable, ipd 48-75 mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x18mm paired with eye guards quadruple nosepiece (ball bearing type) is series infinity din plan achromatic objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) stage rectangular size 142 x 133mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. Iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control koehler illumination system 6v-20w halogen with intensity control. Power input 220v ac

We are offering kx 2000 binocular compound microscope. Kx 2000, c shaped sturdy stand siedentopf binocular tube, 30° inclined, 360° rotatable, ipd 48-75 mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x18mm paired with eye guards quintuple nosepiece (ball bearing type) fp series din plan achromatic objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) stage rectangular size 142 x 133mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. Iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control illumination system 6v-20w halogen with intensity control. Power input 220v ac

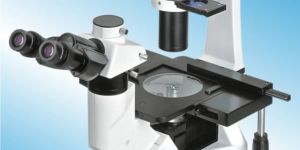

We are offering IXL 20 Inverted Trinocular Microscope. Ergonomically designed sturdy stand of anti rust material Siedentopf Trinocular, 30° inclined, 360° rotatable, IPD 48-75mm, with Dioptric adjustment on left ocular Wide Field eyepiece WF 10x22mm paired with Eye Level Riser Quintuple Reverse angle nosepiece (Ball bearing type). IX Series LWD DIN INFINITY PLAN Achromatic Objectives 4x NA 0.1 WD18mm, 40xNA 0.60 WD2.6mm IX Series LWD DIN INFINITY PLAN Achromatic Phase Objectives 10x NA 0.25 WD2.6mm, 20xNA 0.40 WD5.1mm Fixed plain stage 160x250mm with attachable mechanical stage X-Y Coaxial Control, Moving Range 120x78mm Long working distance condenser NA0.3, LWD72mm suitable for phase contastBF with 10x-20x, 40x phase Annulus Plate and centering Telescope. . Glass Insert, Auxiliary Stages 70x180mm, Terasaki Holder, ф 38mm Petri dish holder, ф 54mm Slide Glass holder Transmitted Illumination system 6V-30W Halogen with intensity control. Power supply (220V) as per ISO 9001, CE standards.

We are offering fe pro 900 inverted metallurgical microscopes. Fe pro 900 , ergonomically designed sturdy stand of anti rust material trinocular 45° inclined, 360° rotatable, ipd 55-75mm with interpupillary & dioptric adjustments. wide field eyepiece hkw 10x18mm paired wide field eyepiece wf 15x16mm paired nosepiece (ball bearing type) mwd series, true color, long working distance din semi plan achromatic objectives 10x, 20x, 40x and 80x. Magnification:100x – 1200x coaxial focusing system, with slides traveling on ball bearing guide ways, for frictionless motion. Large size mechanical stage with low drive co-axial movement controls, for convenient specimen scanning. Epi- illumination system 6v-20w halogen with intensity control. Solid state transformer power supply 220v ac

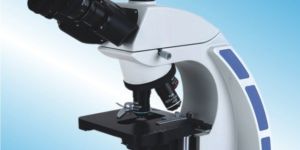

We are offering dg sense i5000 digital microscope. Dg sense i5000 c shaped stand , infinity optical system (ios) siedentopf trinocular tube, 30° inclined, 360° rotatable, ipd 54-75mm with in-built 5 mega pixel digital wide field eyepiece wf 10x20mm paired with dipoter adjusment & eye guards quadruple reverse angle nosepiece (ball bearing type) ip series din infinity plan achromatic objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) stage rectangular 140 x 132mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. Iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control koehler illumination system super bright white led with intensity control. Universal power supply (100v-240v) iso 9001, ce approved camera specifications image sensor : 12.5″cmos valid pixel : 2592×1944 digital output : 24–bit (color) image format : 2592×1944 2.5 fs, 1024×768 10 fs frame rate sensitivity : 0.53 v@550umluxs exposure : automanualexposure white balance : automanual white balance snr : 40db dynamic range : 66.5db image output : usb2.0, directshow and twain working temperature: -30°c ~ 70°c windows system : windows 2000xpvistawin 7 32bit or 64bit image capturing software image analysis & measurement software

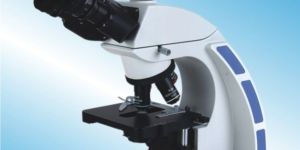

We are offering Dg Sense I3000 Digital Microscope. DG SENSE i3000 C shaped stand , Infinity Optical System (IOS) Siedentopf Trinocular tube, 30° inclined, 360° rotatable, IPD 54-75mm with in-built 3 Mega Pixel Digital Wide Field eyepiece WF 10x20mm paired with Dipoter Adjusment & eye guards Quadruple Reverse angle nosepiece (Ball bearing type) IP series DIN Infinity Plan Achromatic objectives 4x, 10x, 40x (Spring loaded) and 100x (Spring loaded, Oil immersion) Stage rectangular 140 x 132mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control, Spring clip Double Slide Holder Sub-stage ABBE condenser NA 1.25 with aspheric lens. Iris diaphragm and special day light blue filter Co-axial coarse and fine focusing mechanism with tension control Koehler Illumination system Super Bright White LED with intensity control. Universal power supply (100V-240V) ISO 9001, CE approved Camera Specifications Image Sensor : 12.5″CMOS Valid Pixel : 2048×1536 Digital Output : 24–bit (color) Image Format : 2048×1536 4 fs, 1024×768 10 fs frame rate Sensitivity : 0.53 v@550umluxs Exposure : AutoManualExposure White Balance : AutoManual WhiteBalance SNR : 40dB Dynamic Range : 66.5dB Image Output : USB2.0, Directshow and Twain Working Temperature: -30°C ~ 70°C Windows System : Windows 2000XPVistaWin 7 32bit or 64bit Image Capturing Software Image Analysis & Measurement Software

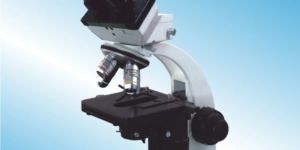

We are offering Dg Lab Digital Compound Microscope. DG LAB, C shaped stand Trinocular tube, 45° inclined, 360° rotatable, IPD 55-75mm with in-built 1.3 Mega Pixel Digital Wide Field eyepiece WF 10x18mm paired Quadruple Nosepiece (Ball bearing type) BJ series DIN Semi Plan Achromatic objectives 4x, 10x, 40x (SL) and 100x (Spring loaded, oil immersion) Stage rectangular size 142 x 133mm with double plate mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control Sub-stage ABBE condenser NA 1.25 with aspheric lens. Iris diaphragm and special day light blue filter Co-axial coarse and fine focusing mechanism with tension control illumination system 6V-20W Halogen with intensity control. Power Input 220V AC Camera Specifications Image Sensor : 13.2″CMOS Valid Pixel : 1280×1024(1.3M Pixel) Digital Output: 24–bit (color) Image Format frame rate 1280×1024 7.5fs , 800×600 30fs, 600×480 30fs Sensitivity : 1.8v@550umluxs Exposure : ManualAuto Exposure Process, Exposure Time Adjustable（1～500ms） SNR : 42.3dB Dynamic Range :71dB Image Output : USB2.0, Directshow and Twain Working Temperature : -30°C ~ 70°C Windows System : Windows 2000XPVistaWin 7 32bit or 64bit Image Capturing Software Image Analysis & Measurement Software

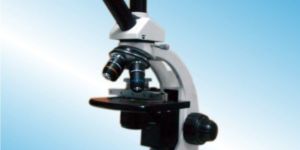

We are offering dg edu lab digital compound microscope. Dg edu lab, c shaped stand dual monocular head with inbuilt 1.3 mp colour digital camera , valid pixel : 1280×1024 and necessary capturing software. Usb connectivity for camera, with operating system 98xpvista. Image file format : bmp, jpeg. Wide field eyepiece wf 10x18mm paired quadruple nosepiece (ball bearing type) bj series din semi plan achromatic objectives 4x, 10x, 40x (spring loaded) fixed stage size 120 x 120 mm with attachable mechanical stage sub-stage abbe condenser centerable na 1.25 with aspheric lens. iris diaphragm and special day light blue filter coaxial coarse & fine focusing mechanism, with tension control ring illumination system super bright white led lighting with intensity control. Power supply (100v-240v) iso 9001, ce approved.

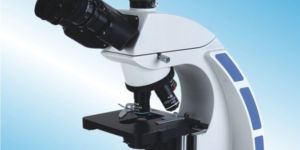

We are offering dg cam i1300 digital microscope. Dg sense i1300 c shaped stand, infinity optical system (ios) siedentopf trinocular tube, 30° inclined, 360° rotatable, ipd 54-75mm with in-built 1.3 mega pixel digital wide field eyepiece wf 10x20mm paired with dipoter adjusment & eye guards quadruple reverse angle nosepiece (ball bearing type) ip series din infinity plan achromatic objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) stage rectangular 140 x 132mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. Iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control koehler illumination system super bright white led with intensity control. Universal power supply (100v-240v) iso 9001, ce approved camera specifications image sensor : 13.2″cmos valid pixel : 1280×1024(1.3m pixel) digital output: 24–bit (color) image format frame rate 1280×1024 7.5fs , 800×600 30fs, 600×480 30fs sensitivity : 1.8v@550umluxs exposure : manualauto exposure process, exposure time adjustable（1～500ms） snr : 42.3db dynamic range :71db image output : usb2.0, directshow and twain working temperature : -30°c ~ 70°c windows system : windows 2000xpvistawin 7 32bit or 64bit image capturing software image analysis & measurement software

We are offering compound microscope, kxr 20, c shaped sturdy stand siedentopf binocular tube, 30° inclined, 360° rotatable, ipd 55-75mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x/20mm paired with eye guards quintuple reverse angle nosepiece (ball bearing type) fp series din plan achromatic objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) stage rectangular 180 x 148mm double plate with mechanical stage cross travel 76 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. Iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control and unique auto focus lock koehler illumination system 6v-20w halogen with intensity control. Universal power supply (100v-240v) iso 9001, ce approved

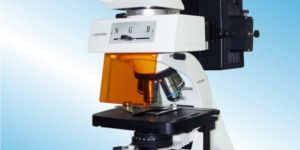

We are offering kfl 30 binocular fluorescent microscope. c shaped , infinity optical system (ios) siedentopf binocular tube, 30° inclined, 360° rotatable, ipd 55-75 mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x22mm paired with eye guards infinity fluorescent objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) quintuple reverse angle nosepiece (ball bearing type) stage rectangular 180 x 148mm double plate with mechanical stage cross travel 76 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. iris diaphragm and special day light blue filter, mounted co-axial coarse and fine focusing mechanism with tension control and unique auto focus lock illumination system 6v-20w halogen with intensity control. Universal power supply (100v-240v) iso 9001, ce approved. epi fluorescent attachment the epi-illumination is through 100 watt high pressure mercury lamp in a lamp house attached to the fluorescence filter block. The exciting light spectrum range is 350mm – 580mm. The fluorescent light spectrum range 420mm – 650mm technical features two exciting light waves b (blue light) and g (green light) comprising of : exciting filter (ex) comprising of - blue light (ex-490), green light (ex-545) color separation prism (dm) comprising of - blue light (ba530), green light (ba590) position of ordinary transmission light (central) illumination box with power supply unit 220 volt & hbo, super high – pressured spherical mercury vapor lamp 100w. Orange coloured plastic screen to safeguard the operator from uv light.

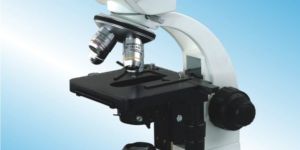

We are offering axl binocular microscope. axl c shaped sturdy stand monocular tube, 45° inclined, 360° rotatable wide field eyepiece wf 10x18mm quadruple nosepiece (ball bearing type) bj series din semi plan achromatic objectives 4x, 10x, 40x (sl) and 100x (spring loaded, oil immersion) stage rectangular size 142 x 133mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control sub-stage abbe condenser na 1.25 with aspheric lens.iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control detachable illumination system 6v-20w halogen with intensity control. Power input 220v ac
