MICRON INSTRUMENT INDUSTRIES Saha, Ambala, Haryana

Model No .: Prime     Binocular Tube inclined at 45o for combinations viewing and rotatable through 360o. STANDARD FEATURES 1. Zoom Ratio:1:5. 2 Working distance 80mm regardless of magnification. 3. Rack and pinion focussing system. 4. Image remains clear and sharp throughout the whole zoom range. 5. Interpupillary distance adjustable from 55mm to 75mm. 5. Packed in plywood cabinet.

1. Straight Binocular Head for viewing, Adjustable interpupillary distance from 55 to75mm. 2. One side Eye piece tube is fixed and other side with adjustable ocular. 3. Coarse focussing by rack and pinion. 4. Having plane base equipped with a black & white disc. STEREOSCOPIC MICROSCOPE OBJECTIVES 10x or 15x Wide field(One pair) 2x or 4x

Model No .: Trinocular Microscopes-TRINO MINI     The microscope fulfils the complete features for general laboratory. Trinocular with the following features: STANDARD FEATURES 1. Viewing tube: Trinocular head 45degree inclined. 2 Head Rotatable at 360 degree. 3. Quadruple nose piece with positive click stops. 4. Coarse & Fine focusing Graduated to 1Div=.002mm, with mechanical stage for X&Y movement of slide. 5. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder. 6. Built in Illumination LED with intensity control. (Battery backup optional) 7. Complete with day light reflector and dust cover. 8. Duly packed in styrofom packing.

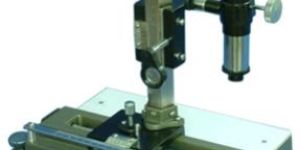

Model No .: KG 069A Travelling Microscopes     2 Axis Movement. Having movement horizontally and vertically Vernier reading precise to 0.01 mm       Model No .: KG 069B Travelling Microscopes     3 Axis Movement. Horizontal, vertical and right ang3W LED transverse motion. Rack and pinion mechanism Micrometer. Resolution 10 micron.

1. Fixed square stage. 2. Dust proof triple revolving nose piece 3. Focussing by coarse and fine adjustment without scale. 4. Fixed type sub-stage Abbe type N.A. 1.25 condenser with iris. diaphragm & swing out filter holder. 5. Illumination by plano concave mirror i Model No .: KG-2S     STANDARD FEATURES 1. Sturdy and well balanced monocular body, inclined to horizontal level of 90 degree 2 Fixed square stage 110 mm x 110 mm 3. Dust proff triple revolving nose piece with positive click stops 4. Focusing by coarse and fine adjustment without scale. 5. Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder. 6. Illumination by plano concave mirror in fork mount. 7. Steple Grey, chemical resistant, back-on finish. 8. With dust cover dully packed in styofoam case. n fork mount.

Model No .: Stereoscopic Microscope - STB-I     This microscope consist of the following features: STANDARD FEATURES 1. Straight Binocular Head for viewing( height adjustable on a metal chrome plated piller.) Adjustable interpupillary distance from 55 to75mm. 2 One side Eye piece tube is fixed and other side with adjustable occular. 3. Coarse focussing by rack and pinion. 4. Having plane base equipped with a black & white disc. 5. Duly packed in wooden cabinet.

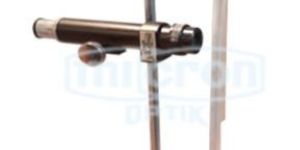

Model No .: Standard Reading Telescope     Mounted on specially designed carriage with support rings. Fitted with 2 adjustable screws for precise vertical and horizontal positioning. Fitted on cast iron base with leveling screws. A scale holder is provided with scale.

Model No .: KG 0588 Spectrometer Microscopes     Spectrometer 6" Circle. 1 minute of an arc. Vernier readable by two opposite verniers. Complete in plywood cabinet. Minimum thickness 1 µm.       Model No .: KG 0588 Spectrometer Microscopes     Spectrometer 6" Circle. 30 seconds of an arc. Vernier readable by two opposite verniers. Complete in plywood cabinet. Minimum thickness 1 µm.

A single nose microscope, designed to meet the need of science teaching at school level. It is an ideal aid and scientific gift for beginers.Body of Microscope fixed on a square base with coarse motion knob on rack and pinion. With 100X magnification in combination of 10X objective and 10x eyepieces.Packed in a corrugated box with carrying handle.

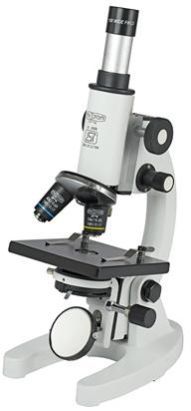

model no .: kg-3     standard features 1. sturdy and well balanced monocular body, inclined to horizontal level of 90 degree 2. mechanical tube length of 160 ± 1mm 3. fixed square stage 110 mm x 110 mm 4. dust proff triple revolving nose piece with positive click stops 5. focusing by coarse and fine adjustment without scale. 6. substage abbe type n.a. 1.25 condenser with iris diaphragm & swing out filter holder focusable by rack & pinon. 7. illumination by plano concave mirror in fork mount. 8. steple grey, chemical resistant, back-on finish. 9. with dust cover in plywood carrying cabinet with lock and keys or in styofoam case. 10. complete parts of the microscope are pressure die-casted.

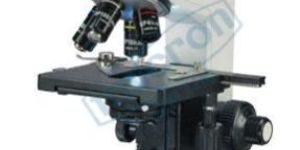

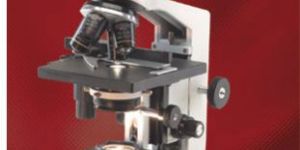

Model No .: Senior Research Biological Microscope - BMC-220     Micron BMC-220 is newly introduced series of education Microscope which extends top quality optics and uncompromising performance for educational and routine research work. STANDARD FEATURES 1. 45º inclined with 360 degree rotatable binocular tube. 2 Co-axial built in Mechnical stage 125 X 150 mm with convenient coaxial adjustment on ball bearing guide ways for smooth slide manipulation throught 50 X 70 mm. 3. Qquadruple/quintruple ball bearing revolving nose piece with positive click stops. 4. Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm. 5. Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder. 6. Built in Illumination LED with intensity control. (Battery backup optional) 7. Steple Grey, chemical resistant, back-on finish 8. Exclusive preset focus lock prevents damage to valuable slides and objectives. 9. With dust cover packed in styrofoam packing.

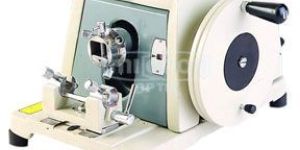

Model No .: KG 2392 Microtomes     With three object holders. One razor 120mm and honing stone. Automatic Feed Release Device. Graduated in microns for feed setting. Feed adjustments 1-50 µm. Minimum thickness 1 µm. With Spare Accessories.

Model No .: Binocular Microscope Bino Mini     The microscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features: STANDARD FEATURES 1. Viewing tube: Binocular head 45degree inclined. 2 Head Rotatable at 360 degree. 3. Quadruple nose piece with positive click stops. 4. Coarse & Fine focusing Graduated to 1Div=.002mm./td> 5. With mechanical stage for X&Y movement of slide. 6. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder. 7. Built in Illumination LED with intensity control. (Battery backup optional) 8. Steple Grey, chemical resistant, back-on finish. 9. Complete with day light reflector and dust cover. 10. Duly packed in styrofom packing.

Binocular head 45o inclined 2. 360 degree rotatable head 3. QuadrupleQuintruple Ball bearing Nose piece. 4. Co-axial Coarse & Fine focussing with focussing lock graduated to 1Div=.002mm 5. Low Drive Co-axial control, Ball Bearing type mechanical stage with fine vernier graduations, having X & Y movement 6. Movable Abbe Condenser N.A. 1.25, with iris Diaphragm 7. Built in Illumination 3W LED with intensity control. (Battery backup optional) SR. RESEARCH BINOCULAR MICROSCOPE (Excel Super) OBJECTIVES (DIN) WF 10X 4x, 10x, 40x sl & 100x sl

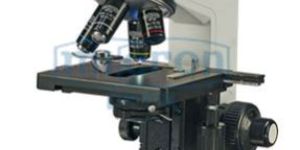

Model No .: Research Binocular Microscope - BI-KG-7A     Micron Pathological Binocular Microscope Model BI-KG-7A Excel Economy is the newly introduced design for Medical colleges, Professionals & Laboratory use with the full features of the advanced research type Pathological Microscope. It has a very modern look & yet at a very afforable price that will surprise the most demanding users. STANDARD FEATURES 1. 45º inclined with 360 degree rotatable binocular tube. 2 Co-axial built in Mechnical stage with fine vernier graduation, designed with convenient coaxial adjustment forJerkfree smooth slide manipulation throught 50 X 75 mm. 3. Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops. 4. Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm. 5. Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder. 6. Built in Illumination LED with intensity control. (Battery backup optional) 7. Steple Grey, chemical resistant, back-on finish 8. Exclusive preset focus lock prevents damage to valuable slides and objectives. 9. With dust cover packed in styrofoam packing.

Model No .: Monocular Microscopes Model: MONO MINI     This microscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features: STANDARD FEATURES 1. Viewing tube: Monocular head 45degree inclined. 2 Head Rotatable at 360 degree. 3. Quadruple nose piece with positive click stops. 4. Coarse & Fine focusing Graduated to 1Div=.002mm. 5. With mechanical stage for X&Y movement of slide. 6. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder. 7. Built in Illumination 6V-20W halogen lamp.with intensity control. 8. Complete with day light reflector and dust cover. 9. Duly packed in styrofom packing./td>

Model No .: Inclined Monocular Microscopes-KG-7A     Micron Pathological Monocular Microscope Model KG-7A Excel Economy is the newly introduced for Medical colleges, Professionals & Laboratory use with the full features of the advanced research type Pathological Microscope. It has a very modern look & yet at a very afforable price that will surprise the most demanding users. STANDARD FEATURES 1. 45º inclined with 360 degree rotatable monocular tube. 2 Co-axial built in Mechnical stage with fine vernier graduation, designed with convenient coaxial adjustment for Jerkfree smooth slide manipulation throught 50 X 75 mm. 3. Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops. 4. Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm. 5. Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder. 6. Built in Illumination LED with intensity control. (Battery backup optional) 7. Steple Grey, chemical resistant, back-on finish 8. Exclusive preset focus lock prevents damage to valuable slides and objectives. 9. With dust cover packed in styrofoam packing.

Model No .: KG 2391 Microtomes     With three object holders. One razor 120mm and honing stone. Graduated in microns for feed setting. Feed adjustments 1-25 µm. Minimum thickness 1 µm. With Spare Accessories.

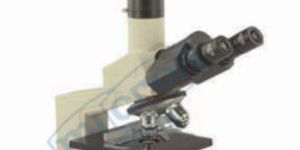

Model No .: Microphotographic Equipment-TMC-I     Micron offers TMC-220 series, comprises top quality DIN standard optics, latest in techniques to achive the uncompromising performance in comparison with any of the imported Microscope at affordable price. STANDARD FEATURES 1. 45º inclined with 360 degree rotatable trinocular tube. 2 Co-axial built in Mechnical stage with fine vernier graduation, designed with convenient coaxial adjustment forJerkfree smooth slide manipulation throught 50 X 75 mm. 3. Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops. 4. Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm. 5. Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder. 6. Built in Illumination LED with intensity control. (Battery backup optional) 7. Steple Grey, chemical resistant, back-on finish 8. Exclusive preset focus lock prevents damage to valuable slides and objectives. 9. With dust cover packed in styrofoam packing.
