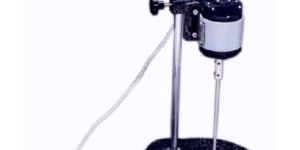

Laboratory Stirrer Heavy and stable cast iron base duly painted with mild steel chrome plated upright rod AC/DC motor with stainless steel stirring shaft and blades,variable speed control unit provided.1/20 HP motor provided for smooth longtime stirring. Height of stirrer and stirring space adjustable. To work on 220 V AC 50Hz single phase

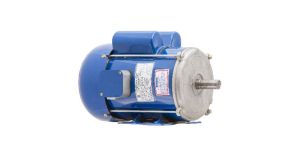

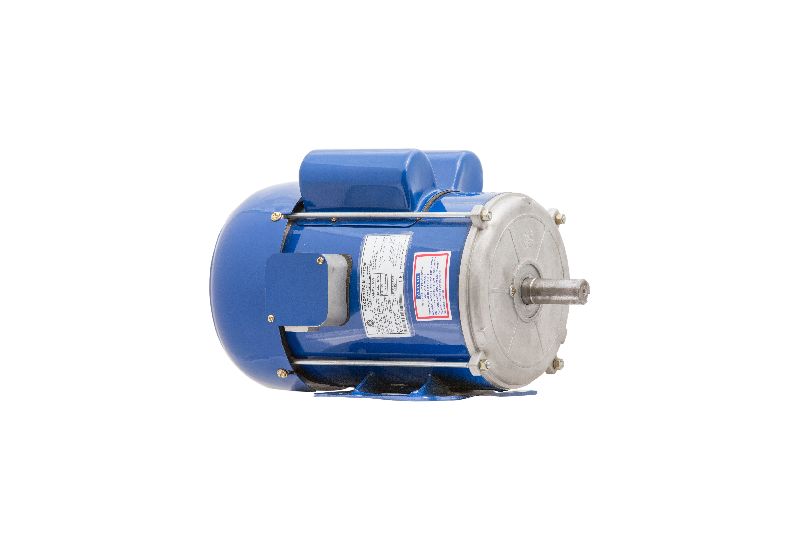

• Phase: 1
• Power: 0.75 Kw/1HP
• Frequency: 50 Hz
• AMP: 7.5
• Volts: 220V
• RPM: 1440
• Class: B Insulation
• Temperature: 40 Degree

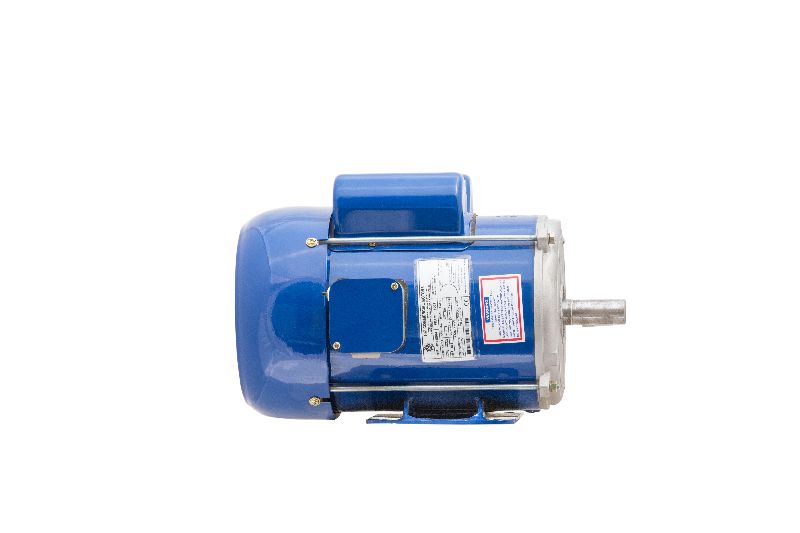

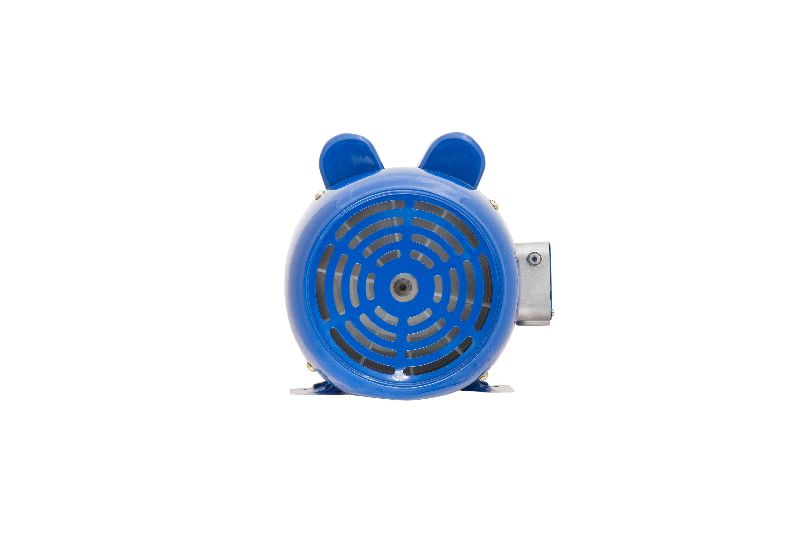

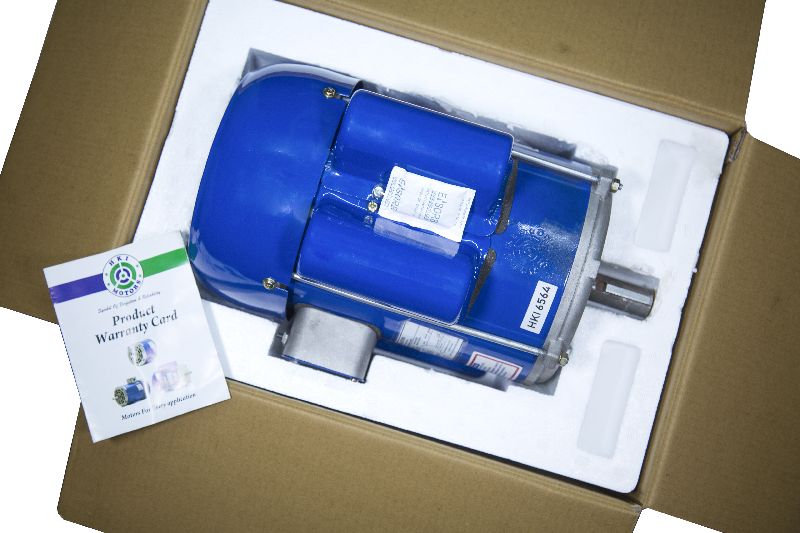

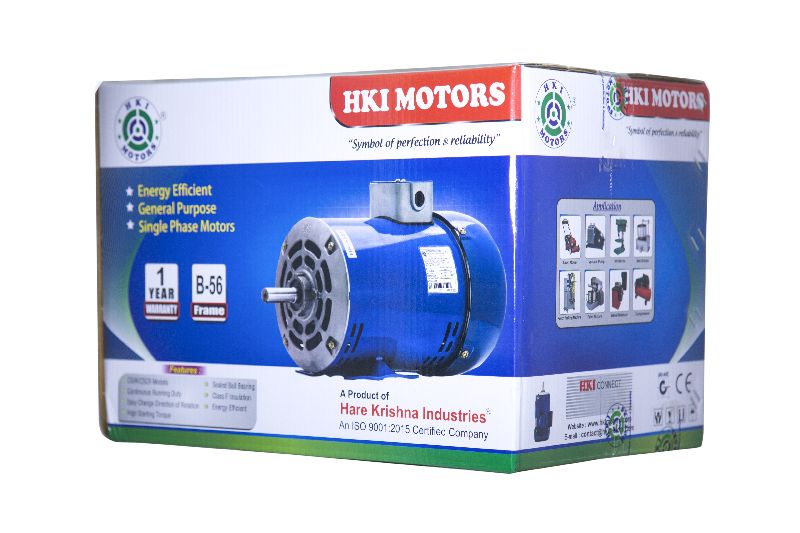

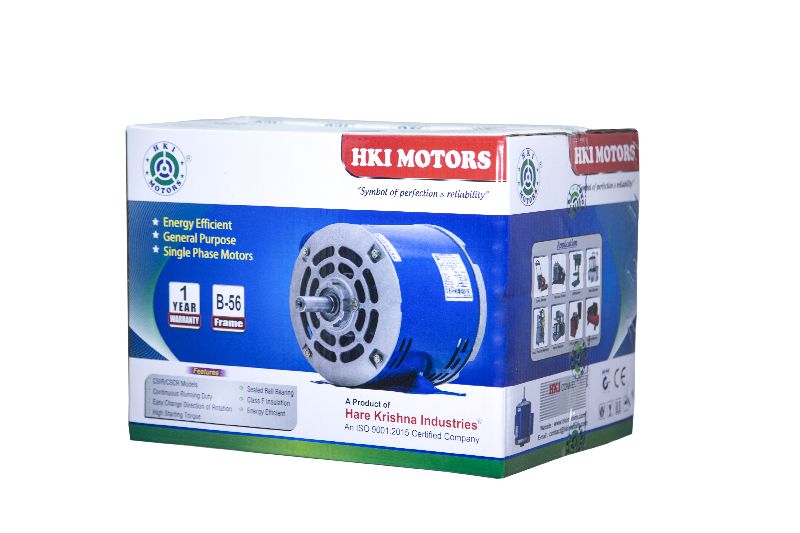

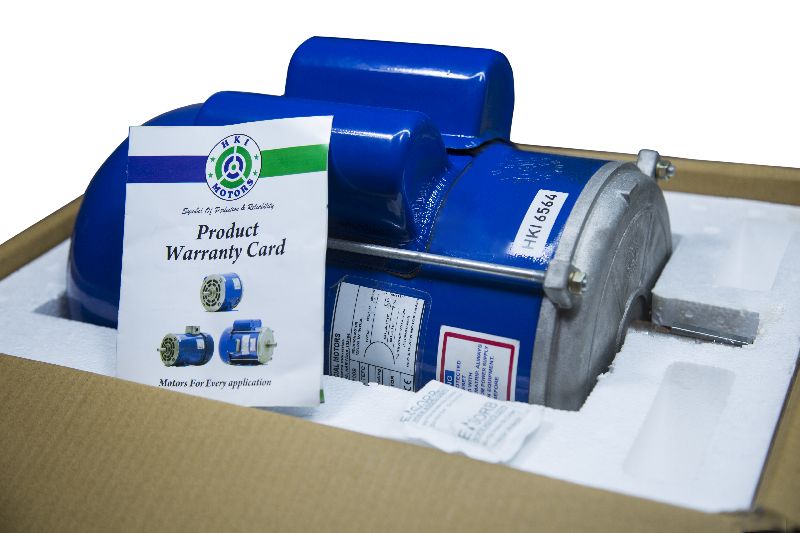

Features: Single Phase Motors are used in a variety of applications in households and small industrial sectors, where a three-phase power supply is not available. Single Phase motors are classified based on the type of starting mechanism. B56 frame motors are for general purpose applications in MS Rolled powder coated body construction. These are available in foot and flange mounting arrangements. Thermal protection is optional. 100% Copper Winding Every single Piece is Lab Testes Compact and reliable designs suited for various applications Powder-coated rolled sheet metal body for corrosion resistance DP enclosure Foot Mounting Energy-efficient design Sealed Ball Bearings Continuous duty designs Easy reversibility

This is a DC motor with the above specifications. The shaft of this motor is coupled mechanically to a break drum. A belt moving over this break drum provides necessary torque to the shaft of the motor, and in turn loads the shaft with a finite torque. Two calibrated spring balances are connected to either side of the belt, which is moving over the break drum. This is a method to load the shaft of the motor with a loading arrangement. By taking reading on these spring balance readings, the loading value may be calculated.

• Warranty: 1 Year
• Driven Type: Electric
• Housing Material: Copper

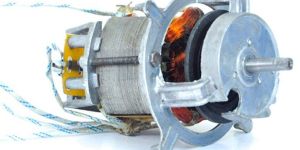

We have different varieties of mixer, juicer, handy, chopper. Depend on the quality rate is different . Photo is just for reference.

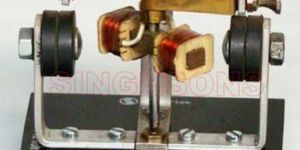

A model of the simplest form of D.C. electric motor, having 2-pole armature wound with enamelled copper wire, and a permanent magnetic field provided by a removable bar magnet. A disc-type commutator is incorporated and external connection to the phosphor-bronze bushes is by means of a pair of 4 mm. sockets. The motor will operates on 6-8 Volts D.C.

• latex tubing: 2 mm bore.

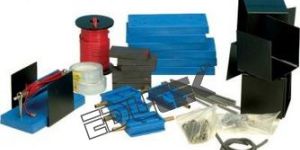

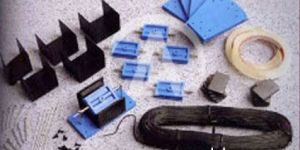

Motor Construction Kit To build 3 motor models as in Westminster electromagnetic kit consisting of 6 magnets,3armatures, 3 mild steel yokes, 3 support bases, 3 shafts,12 rivets, 6 split pins, 1 reel pvc tinned copper wire 26 swg, 1 reel sellotape, and 150 mm latex tubing 2 mm bore.

»   Drawing & Dimensions »   Specifications »   Features »   Part Numbering System

• Brand Name: UNICON
• Model Number: UI-393

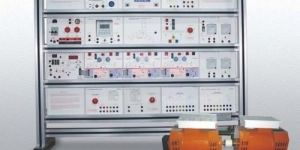

We are offering load test on dc shunt motor specifications: 1. dc shunt motor with loading arrangement 1hp, 230v, dc & 1500 rpm. 2. motor is copper wound with class b insulation. 3. it is supplied with one ms powder coated electrical panel fitted with high insulation bakelite sheet. 4. analog ammeter and voltmeter are provided on the front panel sheet. 5. on board dc power supply to operate the dc shunt motor. 6. short circuit protection with the mcb. 7. 3 point starter to records the reading of armature resistance. 8. 2 nos. Rheostats to control the speed of dc shunt motor. 9. 4mm terminals to make connections 10. supplied with complete operating instruction manual. Experiments: â�¢ load test on dc shunt motor. Â�¢ speed control on dc shunt motor.

Microprocessor Based premium model with maintenance free brushless induction motor. Modular design as per International standards, stainless steel protection bowl. Fitted with Microprocessor based LCD pannel for 0-99 minutes countdown timer, digital rpm meter and programmable speed controler. Also featured with dynamic brake, Electronic lid lock, imbalance detector 10 programme memory. 3 accelerations and 3 decelerations.

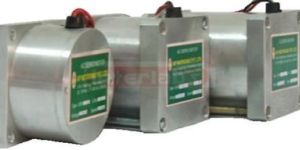

Type IBL-GSM-60 Series AC Geared Servo Motors are permanent split capacitor induction motors. No brushes or starting switches are employed. The low inertia servo-type motor is specifically designed for servo applications requiring relatively fast response. Its two windings are referred to as the fixed or reference phase (red leads) and the control phase (black leads). In the normal mode of operation a fixed voltage is impressed on the reference phase and a variable voltage, in quadrature to reference voltage is given to the control phase. The speed and direction of rotation then depend on the magnitude and phase (?900) of control voltage. However, by using a phase splitting capacitor it is also possible to operate the motor (reversibly) from single phase supply.     Special Features:   Compact size Low output speeds Quick reversibility High starting torque Dynamic braking Easy speed control Ability to withstand for continuous stalled rotor condition

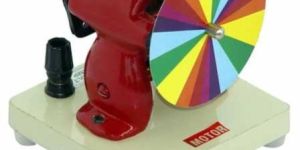

We are few of the only Newton color disc manufacturers in India. Our Physics Laboratory Equipment is capable of measuring each and every reading accurately. Our products are used by many of our national clients for their research, analytical and educational purposes. Physics lab equipments are manufactured under strictly checked conditions, so that they do not fluctuate while conducting an experiment.

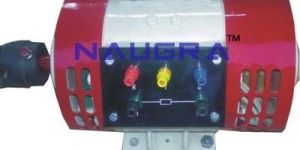

Code: EEC0001 Phase Synchronous Motor.  We are one of the leading manufacturers and suppliers, engaged in offering the wide range of Phase Synchronous Motors as per client’s requirements. These motors are manufactured using dynaflux by various components like base stand, cooling fan, body frame, rotating field pole, field coil, shaft, slipring, armature winding, and bearing and connection box. Our extensive ranges of these motors are reliable, sturdy, durable, and highly efficient in features. We offer these motors in various sizes, shapes, dimensions, and capacities. Features: Sturdy construction Long lasting Corrosion resistance

A model of the simplest form of DC motor; having 3 armatures - 2 pole, 3 pole, & 4 pole, wound with enameled copper wire, & a permanent magnetic field provided by a removable bar magnet. The construction is completely open & all components are readily observable. A disc type commutator is incorporated & external connection to the phosphor - bronze bushes is by means of a pair of 4mm sockets. The motor shall operate on 4.5 to 9 volts DC.

• sockets size: 4 mm

DEMONSTRATION ELECTRIC MOTOR Simplest form of open construction d.c. motor model with 2 pole armature wound with insulated copper wire and a permanent magnetic field provided by a removable bar magnet, with a commutator and phosphor bronze brushes connected to 4 mm sockets.

General Purpose Laboratory Centrifuge Machine Microprocessor based   Heavy duty C.R.C construction finished with powder coating   Fitted with brushless automatic balanced motor   Digital timer of range 0-99minutes   Digital Speed Indicator   Programmable speed regulator   Electronic Safety lid lock   Imbalance detector   Technical Specification :-   Max. Speed                         :               5000 r/min   Max.RCF                              :               4390xg   Motor                                   :               Brushless Motor   Noise                                    :               ≤65dB   Power                                  :               AC 220V 50 Hz 15A   Weight                                 :               30 kg approx   Dimensions                       :               530 x 420 x 350 (LxWxH) Machines comes without rotor because individual customer require rotor as per his specific requirement hence price of rotors is quoted seperately (At extra cost)

• Model: HV-EXP2263

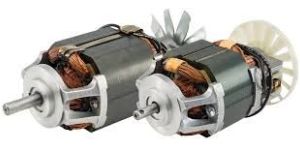

Universal motors- as the name suggests are universal because theycan run on AC Supply as well as DC Supply, they belong to the familyof Single phase motors with the difference that they have woundrotor, commutator & brush as used in dc motors. These motors are forintermittent duty cycles as their RPM is very high and find applicationin domestic mixer grinders & home appliances, industrial use is switch yards in power sub stations for spring charging of circuit breakers.This Model is the industrialeducational model suitable fordemonstrating to students the complete know of the basics, components, starting methods, speed-torque, wear & tear & maintenance of these motors packaged in small rating.Students can make connections of their own with the help of theterminations provided for study of features viz Starting methods, speed-torque, effect of reduced voltage.

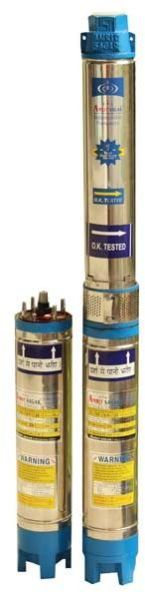

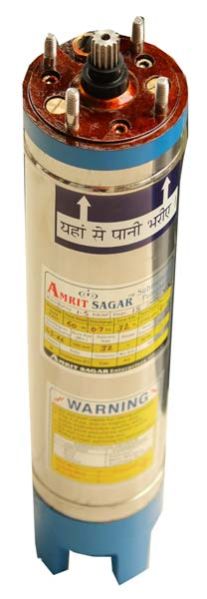

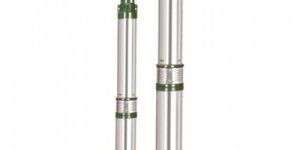

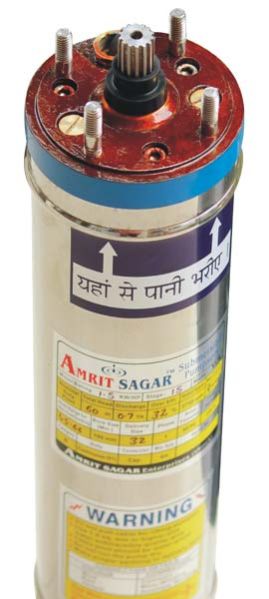

We offer highly efficient Stainless Steel Submersible Motor in the market. The Stainless Steel Submersible Motor supplied by us is fabricated using the best quality stainless steel. The compact design and structure of the Stainless Steel Submersible Motor is widely appreciated all across the country. Additionally, theses Stainless Steel Submersible Motor offers low power consumption and winding temperature.   Features : Stainless steel Maintenance free lubricated bush bearings Rotation : Counter clock wise Vertical & inclined mounting position NEMA Standard Coupling Easy Rewindable High efficiency electrical design. Cooling & lubrication by non-toxic fluid Continuous duty Specifications : Degree of protection : IP 68. Ambient temp. : 45oC. Water PH : 6.5 - 8.0. Maximum submerged depth : 450 mts. Rotation : CCW and CW Ratings : Single phase 0.37 KW – 5 KW & Three Phase 0.37 KW – 100 KW Voltages : Single phase 230V 50Hz and Three Phase 415V 50Hz Applications : Agricultural Sector Pharmaceutical Water Treatment Plants Irrigation System

• Motor Horse Power: 1 - 3 HP
• Motor Phase: Single Phase
• Power Source: Electric
• Maximum Discharge Flow: > 5000 LPM
• Warranty: 12 Months
• Discharge Outlet Size: 25 to 50 mm
• Model Number: Oswal 1.50 HP. 12 Stage
• Number Of Stages: 12
• Maximum Head: 51 to 100 m
• Capacity (lpm): 6000 (lpm)
• Borewell Size (Millimeter): 100 Millimeter
• Pipe Size (Millimeter): 110 Millimeter
• Pump Size (Millimeter): 32 Millimeter
• Voltage (Volt): 220 V
• Condition: New
