Navyug Udyog Ambala Cantt, Haryana

Heavy cast-iron base with sturdy construction with two side arms for holding flaks. A heavy-duty fractional motor with variable speed through continuously variable speed controller is provided. The holders can hold flasks of capacity 100 to 1000ml. Supplied complete with cord & plug etc. to work on 220V AC 50 Hz single phase. Speed 80-280 oscillations per minute.

Heavy cast-iron base with sturdy construction with two side arms for holding flask. A heavy-duty fractional motor with variable speed through continuously variable speed controller is provided. The holders can hold flasks of capacity 100 to 1000 ml. Supplied complete with cord & plug etc. to work on 220V AC 50 Hz single phase. Speed 80-280 oscillations per minute.

Water Still Table Model Double wall construction having both made out of highly polished stainless steel sheet. The gap between the two is filled with glass wool for heat insulation. It is easy to handle table model working on 220 V AC 50 Hz single phase.

Casted stainless Steel vessel is electrically operated for getting pyrogen-free distilled water automatically. Wall hanging space saving arrangement is provided. The condenser is seamless. Fitted with automatically ejection device which operates automatically when water vessel gets dried. The baffle cup and condenser are made of stainless steel sheet.

Type : Automatic

Material : Metal

Certification : CE Certified

Power : 5-10Kw

Power Source : Electric

Voltage : 320V

Warranty : 1 Year

Water Bath Tissue Flotation a quality assured range of Water Bath Tissue Flotation. These machines are used in pharmaceutical and biomedical laboratories for testing tissue samples. these baths using quality grade materials, sourced from the most reliable vendors. We check the Water Bath Tissue Flotation on construction and efficiency parameters before dealing with the clients.

Body made out of thick stainless steel, top made out of chrome plated sheet concentric rings to cover 3" dia holes are provided. Heating elements have an automatic cut-off device which operates when the bath gets dried. Equipment working on 220V AC 50Hz single phase.

Type : Single Wall

Material : Stainless Steel

Shape : Rectangular

Certification : CE Certified

Voltage : 220V

Power : 1-3kw

Driven Type : Electric

Warranty : 1 Year

Water Bath Rectangular Single Wall (Single wall) Body made out of thick stainless steel, top made out of chrome plated sheet concentric rings to cover 3" dia holes are provided. Heating elements have an automatic cut-off device which operates when the bath gets dried. Equipment working on 220V AC 50Hz single phase.

Standard double wall construction, inner being of stainless steel outer of m.s. duly stoving paint finish and gap filled for temp. insulation with glass wool. Top cover with 75 mm (3") holes with concentric rings. Temp. range 5oC above ambient to 95oC type element with accuracy of + 1oC. Supplied complete with plug & cord. Panel provided with pilot lamps, thermostat control knob etc.

Type : Double Wall

Material : Stainless Steel

Shape : Rectangular

Certification : CE Certified

Voltage : 220V

Power : 1-3kw

Driven Type : Electric

Warranty : 1 Year

Water Bath Rectangular inner being of stainless steel outer of m.s. duly stoving paint finish and gap filled for temp. insulation with glass wool.Top cover with 75 mm (3") holes with concentric rings. Temp. range 5oC above ambient to 95oC type element with accuracy of + 1oC. Supplied complete with plug & cord. Panel provided with pilot lamps, thermostat control knob etc.

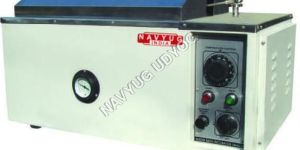

WATER BATH INCUBATOR SHAKER (Metabolic Shaking Incubator) Useful for studies on tissue metabolism, enzymes and protein coagulation and other experiments demanding shaking at constant speed under controlled temperature conditions. Double walled construction, inner chamber made out of thick highly polished stainless steel sheet and outer made out of thick mild steelduly finished in stoving enamel paint. The lid is made of stainless steel. The gap between the two chambers filled with glass wool to prevent loss of heat. The temperature is achieved by superior immersion heater and is controlled by capillary type thermostat from ambient to 90oC+ 0.5oC.The shaking mechanism is fitted with variable speed motor couple to shaking tray working on rollers.

Double wall construction, inner being made out of highly polished thick stainless steel and outer made out of thick mild steel sheet finished in stoving white enamel paint or staple mat colour combinations. The gap is filled with special glass wool for temp. insulation.The bath is provided with the drain cock to easily drainout the water and clean the chamber when required. A pyramidal shaped cover is provided.Immersion type heating elements are fitted at bottom. Temp. range 5o C above ambient to 80o C with accuracy + 0.5oC to 1oC is controlled by capillary thermostat regulated by a graduated knob on the panel, which is also provided with pilot lamp etc.The equipment is workable on 220V AC 50Hz single phase. The baths are supplied without racks, thermometer and stirring arrangement.

Vortex Shaker - Cyclo Mixer - Test Tube Shaker Useful for accelerated mixing of solutions in test tubes, small flasks or centrifugal tubes etc. The housing is 150x150 mm. The speed is regulated by a speed control device. Short eccentric stroke motor imparts vigorous agitation to the tubes or flasks. Body is strong and finished in stoving enamel paint. The equipment is workable on 220V AC 50Hz single phase.

Size : 150x150 mm

Useful for accelerated mixing of solutions in test tubes, small flasks or centrifugal tubes etc. The housing is 150x150 mm. The speed is regulated by a speed control device. Short eccentric stroke motor imparts vigorous agitation to the tubes or flasks. Body is strong and finished in stoving enamel paint. The equipment is workable on 220V AC 50Hz single phase.

To provide high end range of scientific equipment to the clients, we are engaged in manufacturing and supplying a quality grade Deep Freezer Vertical Upright. These equipments are used for quick freezing and storing of vaccines, biological & medical specimens & blood samples. To manufacture the equipments, we use finest quality materials sourced from the most reliable vendors. The clients can avail our Deep Freezer Vertical Upright in different customized models and specifications as per requirements.

Features : Less power consumption,Highly efficient

A versatile, electrically heated sterilizer under saturated steam of Adjustable pressure of 10 to 20 psi. double walled construction with boiler & steam jacket made of thick stainless steel and gap is filled with high grade glass wool to bring the temp. loss to a minimal level.The outer chamber is made out of thick mild steel.The lid is made of thick stainless steel plate (joint less) or gunmetal plate and can be sealed by a jointless neoprene rubber gasket by wing nuts through hinged bolts by engaging slotted lugs on rim of the cover. Provided with dial pressure gauge, air/ steam release cock, spring loaded safety valve adjustable to any required point from 10 psi to 20 psi with accuracy + 3 psi. A drain cock has also been provided. A double safety valve has also been provided along with inlet. Supplied complete but without dressing bins.

Type : Vertical

Material : Metal

Shape : Round

Thickness : 10-15mm

Certification : CE Certified

Usage : Laboratory Use

Weight : 20-30kg

Voltage : 240V

Power : 1-3kw

Operating Mode : Semi Automatic

We have the speciality in the manufacturing of high vacuum pumps, The material and technology used in such pumps is latest and gives high performance in all types of laboratory use with special high quality motor for hours of service,properly coupled withand on base, Capacity Single stage ,Double stage 32 lt/mm. 15000.00 21600.00 50 lt/mm 18000.00 26400.00 There are many capacities OPTIONAL:- 1.Vacuum Gauge with regulator 2000.00 2. Moisture Trap. 2500.00 3.Non return value 1/2" 1300.00 4.Non return value 1" 1700.00 5. Air blast. 1000.00 There are many vacuum pump is OIL FREE. 15 liter 9000.00 25 liter 12000.00 45 liter 17000.00 75 liter 20000.00

Motor driven, oil sealed pump mounted on heavy base. It is driven by V belt at speed upto 400 RPM. Choice of single and double stage available creating Ultimate vacuum of 0.01 mm of Hg column and .0 mm of Hg column respectively. The pump is to work on 220V AC 50 Hz single phase.

Type : Automatic

Certification : CE Certified

Overall Weight : 20-300kg

Power : 3-6kw

Pressure : High Pressure, Low Pressure

Warranty : 1 Year

Driven Type : Electric

Vacuum Pump Oil Free, Vacuum Pump (Oil Free) Capacity Motor 15 Liter 116 hp 25 Liter 18 hp 45 Liter 14 hp.

Ultrasonic Water Bath We are a CE and GMP certified company, engaged in manufacturing and supplying a quality range of Ultrasonic Water Bath. These baths are extensively used in pharmaceutical and biomedical applications. To comply with the set industrial norms we use optimum quality materials to manufacture these baths. To provide a defect free range to the clients, we check the Ultrasonic Water Bath on functioning and efficiency parameters. We offer the batch at cost effective prices.

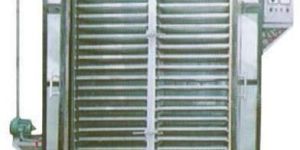

Double walled and double door. Temperature controlled by thermostat with dial type thermometer , Forced air blower. Chamber Size Tray Inner S.S. Inner M.S 430x840x650 8 Tray 46200.00 42000.00 430x840x910 12 Tray 56600.00 50400.00 910"x840x910 24 Tray 81800.00 68000.00 There are Many Sizes OPTIONAL: 1. TImer0-24 hours. 2800.00 2. Digital Temp. Indicator cum controller 6600.00 3. Tray 16"x32"x1/4" Size AL 800.00 4. Tray 16"x32"x1/4" Size SS 1500.00

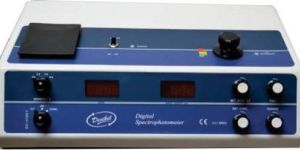

Range : 340 to 960 Resolution: 0.1%T,Abs .0001, Conc.1 Output : %T:0to 100% Abs: 0to1.99,Conc: 0to 1999 Detecor: Sillicon Photodiode Light Source: Tungsten halogen lamp Gratings : High Performance holographic grating system Sample holder: 10 mm path length,10&50mm path length Special brand width: 5nm Wavelength Resolution: 1nm Wavelength Accuracy : +_2.5 nm Repeatability : +_2 nm Display :3 1/2 digit ,3 digit (Wavelength) LED display Power supply : 230V , 10%AC , 50 HZ Glass part is available & Charges are extra.

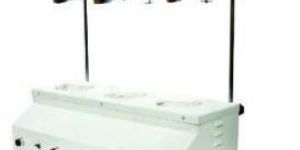

Standard mild steel body and upright fittings. Body finished in stove heating paint and other parts duly chrome plated. Housing provided with heating mantels for surface temp. upto 300oC. Provided individual on-off switches & pilot lamps.

Type : Automatic

Certification : CE Certified

Grade : Superior

Power Source : Electric

Voltage : 220 VAC

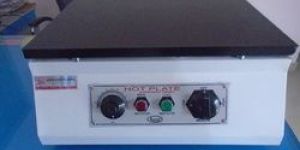

A versatile equipment to heat slides with just microtomed sections to attain maximum flatness before Staining. Temperature range ambient temperature is thermostatically controlled. The body is made out of thick mild steel duly finished in stoving enamel and top is made of highly polished copper or stainless steel sheet. Complete with thermostatic control knob, indicator lamp, plug & cord etc. to work on 220 V AC 50 Hz single phase.

Shaking Machine Wrist Action Heavy cast-iron base with sturdy construction with two side arms for holding flask. A heavy-duty fractional motor with variable speed through continuously variable speed controller is provided. The holders can hold flasks of capacity 100 to 1000 ml. Supplied complete with cord & plug etc. to work on 220V AC 50 Hz single phase. Speed 80-280 oscillations per minute.
