Optical Microscopes Dealers in Saha, Ambala

• Brand Name: ALPHA CHEM
• Model Number: ALPHA CHEM-1025

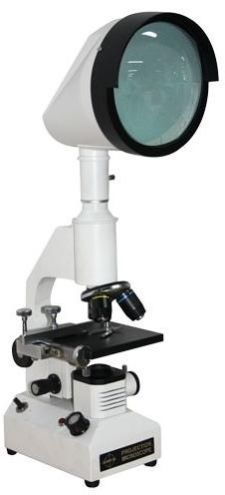

Advance projection microscope : this microscope is very useful for routine observation and complex type measurements of specimen magnified on screen, group observations, discussions and teaching. Specifications:- equipped with a 195 mm diameter special material graduated screen built-in base illuminator & diaphragm which is directed to the condenser which again is reflected through a mirror to the objective and compensating eyepiece for projection on to the screen again by a reflector graduated mechanical stage is also provided on the large stage for backward and forward movements within 30mm& 40mm scales read by verniers to 0.1mm screen-head is rotatable through 360o with cross scales vertically and horizontally within 140mm a quadruple nose-piece carries has four objectives : 5x, 10x, 20x & 40x giving magnification from 125x to 1000x. A: magnification from 125x to 1500x. B : incorporated with binocular head. C : screen of 150 mm diameter.

1.fixed square stage with detachable or built in graduated mechanical stage. 2. Dust proof triple revolving nose piece 3. Focusing by coarse and fine adjustment with scale. 4. Movable abbe type n.a. 1.25 condenser with iris diaphragm & swing out filter holder 5.illumination by plano concave mirror in fork mount. Laboratory & medical microscope (inclined) objectives 5x & 10x [huygenian] x10 & 40 sl & 100 oil [achromatic]

ALPHA CHEM- 1025 Advance Projection Microscope This Microscope is very useful for routine observation and complex type measurements of specimen magnified on screen, group observations, discussions and teaching.   Specifications:-   Equipped with a 195 mm diameter   Special material graduated screen   Built-in base illuminator & diaphragm which is directed to the condenser which again is reflected through a mirror to the objective and compensating eyepiece for projection on to the screen again by a reflector   Graduated Mechanical stage is also provided on the large stage for backward and forward movements within 30mm& 40mm scales read by verniers to 0.1mm   Screen-head is rotatable through 360o with cross scales vertically and horizontally within 140mm    A quadruple nose-piece carries has four objectives : 5X, 10X, 20X & 40X giving magnification from 125X to 1000X.   A: Magnification from 125X to 1500X.   B : Incorporated with Binocular Head. C : Screen of 150 mm diameter.

The structure of microscopic specimens becomes visible to the naked eye by taking the projection on the screen, during observation and demonstration to a group of students. The microscopes are compact in design and can easily contrast and distortion free magnified images on a fine ground glass screen. Body - Monocular Fixed Straight Tube, length 160mm.Nosepiece - Triple revolving nosepiece with accurate centering and positive click stopsStage - Detachable Mechanical stage for X-Y cross movement 50X75mm, fully graduated vernier scale.Illumination - 20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator.Objectives - Achromatic 4X - 10X- 40XSL.Eyepieces - Huygenian 10X and 15XScreen - 150mm diameter Glass Projection Screen is provided, can be rotated over 360° on Microscope tube.Model PRM-11 - All specifications are as per PRM-11A but has only 2 Objectives 10X & 40X. Screen size 100mm and without mechanical stage.Packing - The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.

We are offering laboratory microscope.

With 200mm dia graduated screen 360 degree rotatable, quadruple revolving nose piece. Total magnification ranging 100x to 800x or 125x to 1000x, workable on 220volts AC mains optional stage micrometer slide for measuring, optical combination. Objectives : 5x, 10x, 20x, 40x/45x

Only qualitative raw material can result top-notch product range. Thus, we procure it from dependable names in the industry and that too after complete quality confirmation. Our team of experts is capable of entertaining the voluminous orders in shortest time possible.

• Type: By Optical Light Guide System
• Light Source: 15V/150W Halogen Lamp
• Illumination Control: Continuous Adjustment
• Field of Illumination: 70mm
• Filter: Cobalt Blue, Red-Free, Heat Absorbing Filter

microscope section 45 degree inclined binocular tubeseye pieces : 12.5x / 16mm dioptric adjustmentmagnification changes : 3 step (7.5x, 12.5x, 20x)objective : f=200working distance : 200mminterpupillary distance : 55mm to 75mmfocusing system : manual   illumination section type : by optical light guide systemlight source : 15v/150w halogen lampillumination control : continuous adjustmentfield of illumination : 70mmfilter : cobalt blue, red-free, heat absorbing filter   general information electrical power : ac 220v, 240v, 50/60hz or 110 vpower consumption : 220va or 110 v .

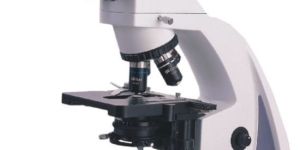

• Main Body: Optical System
• Plan optical system - Optionally Infinity Corrected.: Design
• A most durable, sturdy & elegant designed body for utmost convenience and to accept several optional accessories as a multipurpose system microscope.: Focussing
• Co-axial coarse and fine focusing system supported on ball bearings with tension control and pre focus stopper. Coarse focus range 30mm and fine focussing reading to 0.002mm: Nose Piece
• Reverse Revolving quadruple/quintuple nose piece with ball bearings for perfect alignment: Stage
• Super Hard coated rectangular graduated mechanical stage with low position co-axial X-Y motion controls on right hand side. X-Y Movement 75 x 50mm.: Illuminator
• Halogen illumination system having 6V-30W Halogen lamp and SMPS variable light control - Optionally Koehler’s illumination system: Observation Head
• High transmission sidentopf observation head, multilayer coated (compensation free) Binocular/Trinocular.: Optics
• High resolution, Anti Fungus, Hard coated, DIN standard Plan Optics - Optionally semi plan optics offered.: Eyepiecees
• High eye point wide field eye piece WF 10x Paired (Field number 18): Plan Objectives
• PL4x, PL10x, PL40x & PL100x oil immersion. Other magnifications on request.:
•  : Models
• Microplan-BR: Binocular Model supplied with sidentopf Binocular head high Transmission, Anti Fungus Optical system , Compensation free
• Microplan-TR: Trinocular Model supplied with sidentopf Trinocular head high Transmission, Anti Fungus Optical system, Compensation free.

• Size: 150mmx200mm, 200mmx250mm, 250mmx300mm

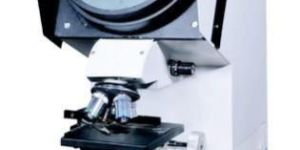

• Type: Projection Microscope
• Application: Forensic Lab, Science Lab
• Weight: 0-500gm, 1-3kg
• Color: Black, White
• Voltage: 220V
• Power: 100W, 10W, 1Kv, 200W, 20W, 500W
• Driven Type: Electricity
• Projection Eye Piece: 10x (Huy)
• Objectives: Achromatic 10x & 20x/40x (SL)

• Brand Name: Slisco
• Country of Origin: India
• Microscopes: Student Microscopes

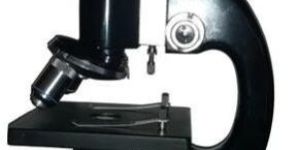

Our company has created niche in the field of offering compound microscopes to the clients. Offered range is widely used in various health-care clinics, hospitals and laboratories. These products are known for various attributes like high strength, optimum performance and dimensional accuracy. Compound microscopes are manufactured in well-equipped infrastructure facility so that the final range meets with the quality standards. These products are reckoned for showing accurate results that is widely appreciated by patrons. Features: less maintenance lightweight ensures accurate examinations

• Brand Name: Krishana Enterprises
• Weight: 13.5-18 Kgs
• Focusing Range: 25 mm
• Power Supply: 100-240 V

Microscope frame for transmission and reflection mode polarization microscopy with built-in filter holders, High Power LED Light with power supply, High Power LED light with power supply Built in Transmitted light filters, Minimum 4 position centrable & detachable nosepiece , Stroke: Min 22mm. Fine Stroke: Min 100µm Minimum.

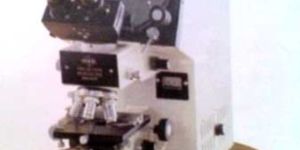

Medical Projection Microscope – IT is an advanced versatile projection equipment for measurement of specimen, equipped with bright halogen bulb 12 volts, 100 watts solid state variable light control arrangement workable on 200 volts AC mains inter locked with electronic fuse system, Quadruple revolving nose piece, 125mm dia graduated screen rotatable through 360o built in fresnel lens, mechanical stage. Built in adjustable compensating eye piece connected with magnification correction knob to provide magnification from 125x to 1000x with following optical combination supplied with one stage micrometer for measuring one spare fuse and cover in sturdy card board box objectives: 5x, 10x, 20x and 40x.

Medical Projection Microscope – IT is an advanced versatile projection equipment for measurement of specimen, equipped with bright halogen bulb 12 volts, 100 watts solid state variable light control arrangement workable on 200 volts AC mains inter locked with electronic fuse system, Quadruple revolving nose piece, 125mm dia graduated screen rotatable through 360o built in fresnel lens, mechanical stage. Built in adjustable compensating eye piece connected with magnification correction knob to provide magnification from 125x to 1000x with following optical combination supplied with one stage micrometer for measuring one spare fuse and cover in sturdy card board box objectives: 5x, 10x, 20x and 40x.
