Oscilloscope Dealers in Ambala

• Max Input Voltage: 500 V (d.c.+ peak a.c.)
• Accuracy: ±3%

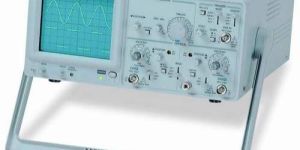

Oscilloscope Dual Trace Time Base : 18 calibrated steps 0.5 μscm to 0.2scm,with magnifier x5 to 100 nscm with variable control to 40 nscm, 2mV per cm sensitivity A high performance oscilloscope with wide vertical bandwidth and time-base speed range.

• Type: Oscilloscopes
• Application: Hospital Use
• Color: Creamy, Light White, Off White, Sky Blue, White
• Voltage: 110V, 220V, 3-6VDC
• Condition: New, Used
• Driven Type: Battery, Electric
• Measurement Range: 20-280mmHg, 20-285mmHg
• Feature: Accuracy, Battery Indicator, Digital Display, Easy To Carry, Highly Competitive, Light Weight, Low Battery Consumption, Mercury-free
• Tube Length: 0-100mm, 100-200mm
• Automation Grade: Automatic, Manual, Semi Automatic
• FREQUENCY RESPONCE: 0-1kg, 1-2kg, 2-3kg, 3-4kg

• Operating Mode: : MONO (CH1) Dual (Alt or Chop) ADD & X-Y
• Band Width: : DC to 20 MHz (-3db)
• Rise Time: : 18 nSec Approx.
• Accuracy: : 3% in vertical deflection system
• Deflection Coefficient: : 5mV/Div to 20V/Div in 1,2,4 Sequence
• Input Impedance: : 1 Mega Ohms / 40 PF Approx
• Input Coupling: : AC / DC / Ground
• Maximum Input Voltage: : 400V (DC + AC Peak)
• Time Coefficient: : 0.2 Sec/Div to 0.2mSec/Div in 1, 2, 5 sequence in 19 calibrated steps with 5% accurac

• Oscilloscopes: Digital storage

    Auto scale function •  FFT function •  25MHz～100MHz Bandwidth •Up to 500MS/s real time sample rate •Max.6000 record length for each channel •Dual channels plus External trigger •20 auto measurements •8 inch color LCD display for large view •PC communication through the USB or RS232 port for real-time data transmission •Advanced trigger: Edge trigger, Video trigger and Alternate trigger • Add new function of Trigger Hold off

DC-20 MHz DUAL TRACE OSCILLOSCOPE FEATURES: 20MHz/40MHz High sensitivity 1mV/div. Expanded vertical sensitivity to 10V ALT Triggering Function. Z-axis input, Ch1 output. Encoder for sweep & vertical sensitivity switch. 10 times sweep magnification. TV synchronization, X-Y mode. Triggering level lock function, automatic synchronize function. Build-in 6 digit frequency counter.(BF Model)

DC-60MHz Dual channel/Dual tracing, X-Y mode 6" display, high brightness cathode ray tube with scale illumination control. High sensitivity triggering, up to 1mV/division CH1 channel incremental amplification function for clearer display. TV synchronous separation circuit to observe stable TV signal. X-x10/Y-x5 Polarity reversal, CH 1 Sync output.

Salient Features DC-10/20/30 MHz Bandwidth. Single/Dual Trace And X-Y Mode Sweep Magnification x10. 2 Level Calibrator. Max. Input Voltage 400V(DC + peak AC). DC - 40 / 60 MHz Bandwidth. Dual Trace & X - Y Mode. Sweep Magnification x10 Max. Input voltage 500V (DC + peak AC)   Add ons   Transistor Curve Tracer/Multi Channel Tracer. Function Generator. Differential Input Powerscope Module. Can be used as regular CRO when not in use as Powerscope. Transistor Curve Tracer. Function Generator. Multi Channel Tracer.

• Model: TAMI001

We provide dual channel,(10MHz-100MHz) bandwidth ,Single as well as double trace analog oscilloscope with built-in 1 MHz function generator.It has high sensitivity of 1mvdiv with alternating trigger function.

We use quality-approved components and high advanced technology in the manufacturing of our Single Trace Oscilloscope. We share glorious credentials in the list of top Manufacturers, Suppliers and Exporters of Single Trace Oscilloscope from Haryana, India. Our 10 MHz Single Trace Oscilloscope is highly demanded by the customers due to its light weight and rugged design. We make available Single Trace Oscilloscope in both standard and customized sizes.

The clients can avail from us the advanced Digital Storage Oscilloscope. We are the prominent Digital Storage Oscilloscope Manufacturer, Exporter, and Supplier in India. Details DC Regulated Power Supplies Single Channel/Dual ChannelMultimeters/Clamp Meter/Analog Meter/WattmetersDecade Capacitance BoxDecade Inductance BoxDecade Resistance Box

Features: Two Simultaneous Sampling Channels At 20 Ms/ S. 2 Kilo Words Of Memory Storage/Channel . Combination Of A True Dso And An Analog Oscilloscope One Touch Change Over. Crt Readout And Cursors For Voltage Time And Frequency Measurement . Direct Print Out Of Screen Display Using Hpgl Commands With Rs-232 Interface. Ruggedised Environment Endurance. 1mv/Div Sensitivity. Two Input Channels, Algebraic Add And Subtract With Ch2 Invt. A Sweep . B Sweep ( Delayed Sweep ), Triggered. X-Y Operation . Read Out / Cursor . Menu Selection ,Data Acquisition For Probe Factor, Smooth On/Off Pre-Trigger Observation . Single Sweep Operation ( Storage Band Width 5 Mhz ). X2 To X10 Horizontal Expansion In Digital Mode . Temporary Holding Wave Forms Displayed . Storing And Recalling A Reference Memory . Scale Illumination . Continuous Variable Hold-Off . Z- Axis Input . Large Inch Crt With Internal Graticule . Tv-V,Tv-H Triggering . Calibrator Out Put For Probe Adjustment .   Also Available : 10 Mhz Single Trace Oscilloscope. 25 Mhz Dual Trace Oscilloscope. 30 Mhz Dual Trace Oscilloscope. 60 Mhz Dual Trace Oscilloscope. 40 Mhz Dual Trace Triggered Oscilloscope. 60 Mhz Dual Trace Triggered Oscilloscope. 100 Mhz 2 Channel , 6 Trace Oscilloscope. 100 Mhz 4 Channel , 8 Trace Oscilloscope.

Cathode ray oscilloscope mhz single trace mhz. Dual trace dual trace, 25 mhz dual trace, 30 mhz aplab dso 25mhz ( lcd display) digital storage oscilloscope 40mhz digital storage oscilloscope 100mhz dso 60mhz (mono lcd display) dso 60 mhz (color lcd display) accuracy : +- 0.2%e-1343f

• Deflection Factor: 5 mV/div-10V x div x5
• Sweep Mode: Auto, Trigger,Single Time

OSCILLOSCOPE DUAL TRACE It is a 20 MHz Dual Channel Oscilloscope ideal for proffectionals as well as students undergoing technical studies. It is rugged,light weight instrument that features a bright, sharply defined trace on a 80 by 100 mm cathode ray tube.The internal trigger signal is ac coupled. An external triggering signal or an external Z-axis modulation signal can be applied via a front panel or rear panel connector and the source selector switch. The horizontal system provides calibration sweep speeds from 0.2s to 0.1 Micro S division. for greater measurement accuracy a x5 magnifier circuit extends the maximum sweep speed to 20 ns per division.SPECIAL FEATURES Syncronisation of the signals from the two channels can be identified by a red LED marked as READY present on the right hand side top on the front panel

Features : * Two Simultaneous Sampling Channels At 20 Ms/ S * Combination Of A True Dso And An Analog Oscilloscope One Touch Change Over. * 2 Kilo Words Of Memory Storage/Channel * Crt Readout And Cursors For Voltage Time And Frequency Measurement * Direct Print Out Of Screen Display Using Hpgl Commands With Rs-232 Interface. * Ruggedised Environment Endurance. * 1mv/Div Sensitivity. * Two Input Channels, Algebraic Add And Subtract With Ch2 Invt. * A Sweep * B Sweep ( Delayed Sweep ), Triggered. * X-Y Operation * Read Out / Cursor * Menu Selection , Data Acquisition For Probe Factor, Smooth On/Off * Pre-Trigger Observation * Single Sweep Operation ( Storage Band Width 5 Mhz ) * X2 To X10 Horizontal Expansion In Digital Mode * Temporary Holding Wave Forms Displayed * Storing And Recalling A Reference Memory * Scale Illumination * Continuous Variable Hold-Off * Z- Axis Input * Large Inch Crt With Internal Graticule * Tv-V,Tv-H Triggering * Calibrator Out Put For Probe Adjustment Also Available : 10 Mhz Single Trace Oscilloscope. 25 Mhz Dual Trace Oscilloscope. 30 Mhz Dual Trace Oscilloscope. 60 Mhz Dual Trace Oscilloscope. 40 Mhz Dual Trace Triggered Oscilloscope. 60 Mhz Dual Trace Triggered Oscilloscope. 100 Mhz 2 Channel , 6 Trace Oscilloscope. 100 Mhz 4 Channel , 8 Trace Oscilloscope. .

We offer 20mhz dual channel oscilloscope that is manufactured using precision-engineered components. The sweep rate in the 20mhz dual channel oscilloscope ranges from 0.2us/division to 0.5s/division and can be magnified to 10 x to enable a maximum sweep of 20ns/division. The dual channel feature allows you to view two separate input signals and display them either individually, alternately, chopped or added together. The cro has a number of trigger modes and will easily synchronize with tv sync pulses etc. It is housed in a pressed steel cabinet that incorporates a folding stand, carry handle, and handy mains cable storage on the rear feet. The control panel is uncluttered and neatly laid out and the 135mm screen has an integrated 10mm square graticule. specifications vertical system sensitivity : 5mv/div to 5v/div +/- 5%rise time :

• Brand: Eletech Lab Instruments
• Model No: ELI-1252A
• Bandwidth: 50Mhz
• Type of input Channel: Analog
• Channel: Dual Channel
• Display: Colored LCD
• Display Size: 7″ inch
