OT Table Dealers in Ambala

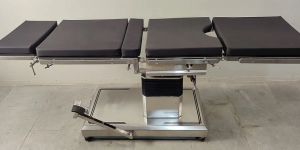

Rat Operating Table (Tilting)

• Length: 2450 mm
• Power Source: Electrical
• Table Type: Hydraulic
• Size: 1364x784x993 mm
• Voltage (V): 220 V
• Table Top: X-Ray

Dimension 1880 mm x 500 mm +10 mm Adjustable Height 790 mm to 1040 mm + 10mm Trendelenburg 30° + 3° Reverse Trendelenburg 30° + 3° Lateral Tilting Position 20° both side + 2° Lifting Position 250 mm + 10mm Flex Position 90° Reflex Position 220° Head Plate 20° up 90° down

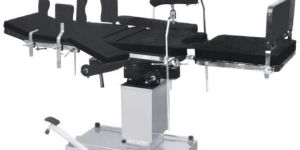

• Type: Hydraulic
• Application: Clinics, Hospital
• Weight: 0-100kg
• Feature: Auto-folding, Auto-reversible, Comfortable,Auto-folding, Comfortable
• Width: 24inch, 26inch
• Brand Name: Libra

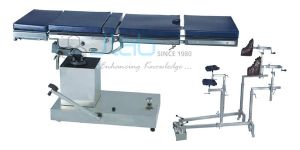

S.S five sectional top with large cut of perineal drainage tray, built kidney bridge. Both side controls. hydraulic operation tables. Heavy duty mild steel base with nylon wheels for easy mobility or stability with single action foot actuated floor locking. Smooth gear mechanism to avail all operating positions. 50, thick electrically sealed mattress. Provided with all spoting accessories. Durable heavy duty leak proof hydraulic pump with double cylinder U a concealed in central chamber. Provided with all standard accessories.

• size: 51" x 18" x 40" high.

Operation Table Large Size made entirely from stainless steel, in two halves slopping towards the centre a small wedge over the whole length separates the two halves, under the wedge provided a brass drain pipe. Removable and replaceable by sliding IN or OUT blood and other fluids flow towards the centre of the table, from where these drip into the drain pipe and carried through an end drain tube to the recepatable after operation the whole top can be washed clean the drain pipe removed, cleared and replaced the S.S. top is heated, a set of electric lamps placed to effect balanced heat distribution dog holder with its SS upright slide along slot in the top useful for fixing accessories. A S.S. swing tray is fitted on a upright in one corner of the top useful for placing dissecting instruments accessories etc. Steep pipe frame handle and wheels for conscience in moving. Table top size 51" x 18" x 40" high.

• Material: Stainless Steel
• Color: Silver
• Variety: Double Edge
• Finishing: Polished
• Specific Use: Hospital

• Brand Name: LABGO

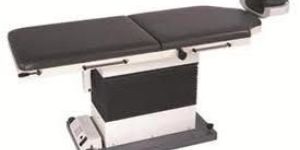

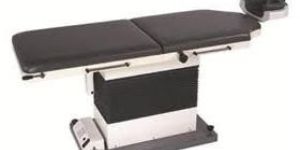

The operation table features a motorised vertical height adjustment, adjustable and detachable surgeon's armrest p u (polyurethane) removable headrest. Operation table offers the best solution for saving time and effort in the modern well equipped operation theatre designed and manufactured, to ensure comfort for both the surgeon and patient. The head rest assures relief and restraint during operation. It provides the eye surgeon a convenient access to the patient while permitting considerable legroom and space for equipment pedals. The wrist support is fairly adjustable, providing more comfort and stability during surgery. Movement is controlled by electronic system operated by foot switch to achieve smooth and efficient movement, without the slightest jerk at start and end. Unique, spring control leveling for tilt positions. Specification maximum height : 890 mm. Minimum height : 580 mm. Stroke length : 310mm. Total length : 1880mm total width : 690 mm. Base size : 915mm. X 540mm. Tilting (forward & reverse) back rest section : 30 degrees leg section : 20 degrees power source : 230 v a/c- 50 hz. Power consumption : 340 va weight capacity : 125 kg. Gross weight : 120kg.

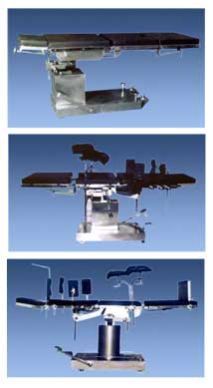

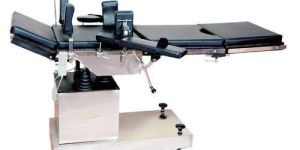

We manufacture qualitative range of Hospital Operation Table that is designed for Operation Theaters. These Hospital Operation Tables are available in various standard sizes. The Hospital Operation Tables are accurately designed and put through several quality control measures to ensure optimum quality products. Range Of Hospital Operation Tables IncludesGynecology � ObstetricsUrologyCardio ThoracisOpthalmic Salient FeaturesOptimum qualityLong functional lifeAnti-corrosiveRobust construction

• Type: Ot Table
• Material: Steel
• Application: Operating Room Use
• Color: black
• Feature: Easy To Place, Good Quality
• Pattern: Plain
• Appearance: Common
• Finishing: Polished
• Country of Origin: India
• Usage: hospital

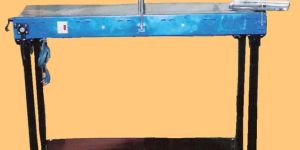

We are offering operation tables, made entirely from stainless steel, in two halves slopping towards the centre a small wedge over the whole length separates the two halves, under the wedge provided a brass drain pipe. Removable and replaceable by sliding in or out blood and other fluids flow towards the centre of the table, from where these drip into the drain pipe and carried through an end drain tube to the receptacle after operation the whole top can be washed clean the drain pipe removed, cleared and replaced the s.s. Top is heated a set of electric lamp, placed to effect balanced heat distribution, dog holder with its s.s. Upright slide along slot in the top useful for fixing accessories a.s.s. Swing tray is fitted on a upright in one corner of the top useful for placing dissecting instruments accessories etc. Steel pipe frame handle and wheel for conscience in moving. Table top size 51”×18”×40” high. (b) –do—small type for frog, rabbit guinea pigs etc.

• Application: Operating theater room
• Warranty: One year
• Certificate: CE & ISO
• Power Source: Electricity
• Material: Stainless steel
• Measure: 1400*770*960mm

We have carved a niche in the market as a prominent Manufacturer and Supplier offering the best in class and experts certified Operation Theater Table. We are a trustworthy name in this filed and with absolute help of our team members, we bring forth impeccably designed Operation Theater Table. We make sure that the Table is as per the international Standards and is affordable as well.

• Brand Name: Teknik
• Condition: New
• Model No.: KA-160
• Portable: Yes
• Wheel: Yes

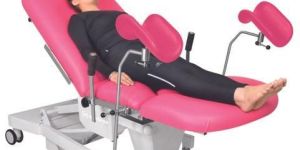

Beb labour and delivery mainly made of mild steel. Bed top of two section, Body section mounted on rubber stumps and legs section on two castors with brake. Legs section can be completely recessed under the body section. Mattress 60 mm thick foam covered with water proof synthetic material. Table consisting of pair lithotomy poles with strip or knee pad & stainless steel bowl arrangement underneath of leg section. Finish in epoxy powder coated. Size body section app. 1000(L) x 770(W) x 760(H) mm. And leg section app. 930(L) x 640(W) mm.

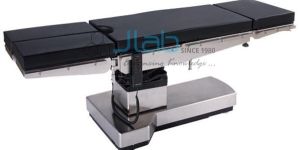

• Top Dimension: L 1890x 510 mm
• Height Adjustment: 760 mm-990 mm
• Trandelenburg / Reverse: 30° / 30°
• Lateral Tilt: 20° / 20°
• Kidney Elevator: 150 mm
• Back Rest (up / Down): 80° / 25°
• Leg Rest (up / Down): 15° / 90°
• Head Rest (up / Down): 20° / 90°

• Brand Name: SCIENTICO
• Instrument classification: Class III, Class I, Class II
• Supply Ability: 1000 Piece/Pieces per Month
• Port: ICD,TKD

• Brand Name: SCISOL

We are offering operation table. The operation table features a motorized vertical height adjustment, adjustable and detachable surgeon's armrest p u (polyurethane) removable headrest. Operation table offers the best solution for saving time and effort in the modern well equipped operation theater designed and manufactured, to ensure comfort for both the surgeon and patient. The head rest assures relief and restraint during operation. It provides the eye surgeon a convenient access to the patient while permitting considerable legroom and space for equipment pedals. The wrist support is fairly adjustable, providing more comfort and stability during surgery. Movement is controlled by electronic system operated by foot switch to achieve smooth and efficient movement, without the slightest jerk at start and end. Unique, spring control leveling for tilt positions. Specification maximum height : 890 mm. Minimum height : 580 mm. Stroke length : 310mm. Total length : 1880mm total width : 690 mm. Base size : 915mm. X 540mm. Tilting (forward & reverse) back rest section : 30 degrees leg section : 20 degrees power source : 230 v ac- 50 hz. Power consumption : 340 va weight capacity : 125 kg. Gross weight : 120kg.

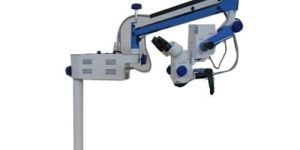

OPERATING MICROSCOPE TABLE MODEL Operating microscope Table Model with Optical Head Eye Pieces 12.5 x wide field Diopter Adjustment From +6 to -6 Inclination to Vertical 450 off Vertical Interpupillary Distance Adjustable from 52 mm to 75 mm by knob Working Distance 175mm or 200mm Magnification – Zoom head 0.4x 0.6x, 1.0x,1.6x, 2.5x Feild of View (with 175mm Objective) 56, 36, 22, 14, 9 mm Diameter (with 200mm Objective) 80, 51, 31, 19, 12 mm Diameter Total Magnification: (with 175mm Objectives) 5, 7, 11, 18, 28 (with 200mm Objectives) 3, 5, 8, 13, 20 Fine Focusing 50 mm Manually adjustable Illumination System Illumination Standard 60 Illumination coupled with -20 Illumination for bright Red Reflex Maximum Intensity 75,000 Lux Brightness Continuously Variable Filters Built in Heat Absorbing Filter and UV, GREEN & BLUE Filter with Switchable Facility Light Transmission By Fiber Optic Cable Light Source Twin outlet 15V/ 150W Halogen Lamp with Cold Reflector Microscope Stand Arms Counter balanced Spring Arms Horizontal Length of Arms 850 mm Vertical Height Minimum 905 mm Maximum 1465 mm Vertical Height adjustment 560 mm Rotation of Arm 320 degree, table stand which allow the fixing with the arrangment of table clamp.

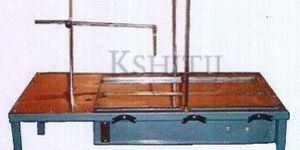

We are offering operation table as per the standard brodie design; top 51"x18"x40" high, fitted all round with cleats; copper hot plate 24x12 with heating chamber ,heated with two electric bulbs; removable 11"x 9" head piece; two stainless steel upright rods sliding in slots; dog holder with its upright and universal joint; controlling switches. Two partition shelves are provided for accessories etc. Wheels and handles are fitted. The brodie’s anaesthetic bottle and air warmer is an optional accessory.

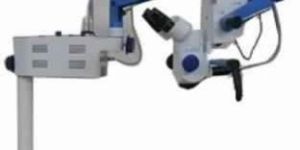

operating microscope table model with optical head eye pieces 12.5 x wide field diopter adjustment from +6 to -6 inclination to vertical 450 off vertical interpupillary distance adjustable from 52 mm to 75 mm by knob working distance 175mm or 200mm magnification – zoom head 0.4x 0.6x, 1.0x,1.6x, 2.5x feild of view (with 175mm objective) 56, 36, 22, 14, 9 mm diameter (with 200mm objective) 80, 51, 31, 19, 12 mm diameter total magnification: (with 175mm objectives) 5, 7, 11, 18, 28 (with 200mm objectives) 3, 5, 8, 13, 20 fine focusing 50 mm manually adjustable illumination system illumination standard 60 illumination coupled with -20 illumination for bright red reflex maximum intensity 75,000 lux brightness continuously variable filters built in heat absorbing filter and uv, green & blue filter with switchable facility light transmission by fiber optic cable light source twin outlet 15v/ 150w halogen lamp with cold reflector microscope stand arms counter balanced spring arms horizontal length of arms 850 mm vertical height minimum 905 mm maximum 1465 mm vertical height adjustment 560 mm rotation of arm 320 degree, table stand which allow the fixing with the arrangment of table clamp..

• Application: Operation Theatre
• Country of Origin: Made In India

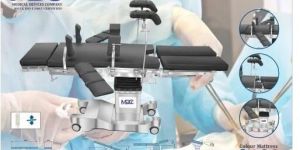

• FEATURES: Interchangeable head and leg sections (manually)., All positions operated through cable remote., In-built Kidney Bridge
• Brand: MDC
• Model Name: MEDVIC-6800 PLUS
• Features: Height Adjustable
• Type of Surgery: General Surgery
• Table Type: Fully Electric
