Power Cables Dealers in Ambala

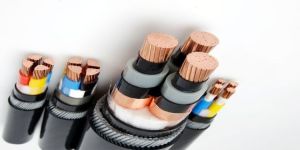

We offer Power - Control Cables. Highly compacted conductors to reduce AC losses which are due to skin and proximity effect.

• Certification: ISI Certified
• Application: Home
• Feature: Crack Free, High Ductility
• Outer Material: Neoprene Rubber
• Internal Material: Aluminium
• Thcikness: 2.5-3mm

Made of brass on an insulated handle. Cone 100x50mm (Length x Max. Diameter) Cylinder 125x50mm (Length x Diameter) Sphere 50mm (Diameter)

• Brand Name: UNICON
• Model Number: UI-396

Distribution and transmission line trainer: specifications: • electrical control panel with 1 nos. 3 phase 3kva transformer.(1kva per phase) • panel size 42”x24 and 36x26” • distribution protection with 3 phase over voltage, under voltage combined and over-current 1 phase relay • transformer provided will be high quality copper wound • primary of transformer of 440v and secondary will be 220v. • transformer will be differently housed in a ms powder cabinet for easy carrying and other general use. • transmission line made of rlc component for 400 meter. Line simulation. • electrical panel fitted with front panel of high class insulated bakelite sheet 6mm of thickness. • it is fitted with digital voltmeter, ammeter to record the readings. • short circuit protection with the help of mcb. • 1 nos. 5a variable ac supply is provided separately through variac for short circuit test. • 3 types load system will be provided resistive (internally), inductive (externally) and capacitive (internally). • lamp loads are of star connected (2 nos.) and delta (1nos.) connected on the front panel. • connections through 4mm highly shockproof safety sockets • supplied with instruction manual • digital voltmeter ammeter are connected on the front panel to measurement the electrical voltage current system. • load distribution connected with 4 mm education terminals with 4 pole mcb 4 nos. Experiments: 1. study of 3 phase transmission line parameters 2. study of different loads in ring and radial distribution system 3. voltage and current measurement under 3 phase balanced unbalanced load at distribution transformer 4. transmission line loss measurement 5. operation of relays distribution protection system with overvoltage , over current , under voltage relay.
