Power Turbines Dealers in Ambala

Our Pelton Wheel Turbine is only impulse water turbine now in common use named in honor of Sir L.A. Pelton (1829-1908) of California, USA. It is a tangential flow impulse turbine. The water strikes the buckets along the tangent of the runner. The energy available at the inlet of the turbine is only kinetic energy. The Pressure at the inlet and outlet is atmospheric. This turbine is used for high heads. The Present Set-up consists of a runner and the buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Row of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel the runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is providing with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure Gauge is fitted at the Inlet of the turbine to measure the total supply head to the turbine. ExperimentTo study the operation of a Pelton Wheel TurbineTo determine the Output Power of Pelton Wheel TurbineTo determine the Turbine Efficiency

• Brand Name: ALPHA CHEM
• Model Number: ALPHA CHEM-431

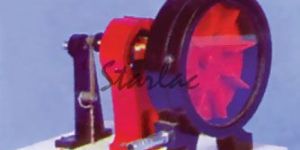

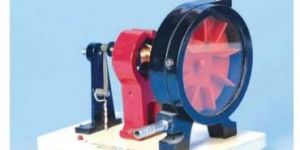

Water turbine with dynamo model : water turbine with dynamo model :to show the conversion of mechanical energy into electrical energy by using it as a water turbine to drive a dynamo for producing electricity the plastic impeller housed in a cast metal casing with a clear perspex front that allows viewing of its functioning the inlet tube provided at the top and outlet tube on the side, both tubes riffled for tubing connectors a dynamo mounted along the impeller shaft glows the led indicating the conversion of mechanical energy to electrical energy.

To show conversion of mechanical energy into electrical energy. Turbine with transparent cover, inlet and outlet tubes, direct! connected to a dynamo. Fitted on base.

A unit complete with two poles of magnets with armature and L E D fitted on wooden base . A fan fitted in house of metal when the water Air will be passed with pressure then the fan rotates with armature then LED will glow in red colour.

• Brand Name: Edutek
• Country of Origin: Ambala
• Model Number: EDPT-13

We offer demonstration pelton turbine we are able to offer a wide range of pelton wheel test rig. It is manufactured using high grade raw material and innovative technology in compliance with globally accepted norms of quality. The offered range is widely acclaimed in the market, owing to its specific attributes like high efficiency and fine finishing. Our clients can avail the pelton wheel test rig from us within stipulated time period. features of demonstration pelton turbine easy to functionality sturdy construction negligible maintenance descriptions of demonstration pelton turbine the unit is designed to show students how an impulse turbine works and test its performancethe turbine power is adjusted by means of the nozzle cross-section .the experimental unit consists of the pelton wheel, a needle nozzle used as control device (control flow rate), a rope brake dynamometer for loading the turbine and a housing with a transparent front panel .the transparent cover enables you to observe the water flow, the wheel movement during operation.the pressure at the turbine inlet is recorded with a pressure gaugea spring balance to measure brake power and a digital rpm indicator are attached to wheel shaft.thus, the mechanical power output of the turbine can be determined. Flow rate measurement are provided by orifice meter

To show conversion of mechanical energy into electrical energy. Turbine with transparent cover, inlet and outlet tubes, directly connected to a dynamo. Fitted on base.

Our stern examination in the raw materials and other inputs help us presenting quality assortment of products. With complete inspection on all materials, we ensure premium quality of products. Place orders with us, timely deliveries of the same are our prime responsibility! Features Precision engineered Smooth operation User-friendly

• Type: Francis Turbines
• Application: Industrial, Power Station
• Color: Black, Grey, Metallic, Silver
• Fuel: Coal-fired, Gasoline, Oil
• Condition: New, Old
• Automatic Grade: Automatic, Manual, Semi Automatic
• Blade Material: GFRRP, Glass-Fibre, Metal, Reinforced Resin, Stainless Steel
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Speed: 0-200rpm, 200-400rpm, 400-600rpm

• Product Code: FM-HBA-18
• Speed range: 0 to 1000 r.p.m
• Diameter of Francis runner: 60 mm
• Number of blades on runner: 12
• Number of guide vanes: 6, adjustable from fully open to fully closed
• Range of spring balances: 0 to 10 N x 0.1 N
• Range of Bourdon gauge: 0 to 2 bar

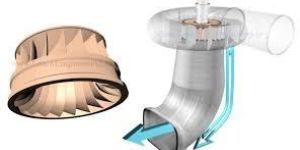

This demonstration turbine provides a simple low cost introduction to the Francis inward flow reaction turbine showing its construction, operation and performance. A tapering, spiral shaped volute conveys water to the runner via a ring of guide vanes that are adjustable in angle to vary the flow through the turbine. Water enters the runner tangentially at the periphery, flows radially inwards through the blades towards the hub then exits axially via a draft tube. Power generated by the turbine is absorbed by a Prony friction brake consisting of a pair of spring balances attached to a brake belt that is wrapped around a pulley wheel driven by the runner. The load on the turbine is varied by tensioning both spring balances which increases the friction on the pulley wheel. Brake force is determined from the difference in the readings on the two spring balances and the torque calculated from the product of this force and the pulley radius. The head of water entering the turbine is indicated on a Bourdon gauge and the speed of rotation is measured using a non-contacting tachometer (not supplied). The volute of the Francis turbine incorporates a transparent front cover for clear visualisation of the runner and guide vanes. RANGE OF EXPERIMENTS   Determining the operating characteristics, i.e. power, efficiency and torque, of a Francis Turbine at various speeds and guide vane opening UTILITIES REQUIRED   Hydraulic Bench

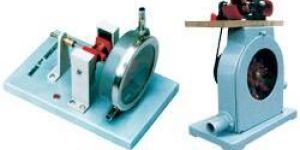

WATER TURBINE WITH DYNAMO Showing conversion of mechanical energy into electrical energy. Turbine with transparent cover, inlet and outlet tubes directly connected to a dynamo. Mounted on base.

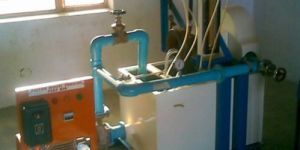

INTRODUCTION :-Engines & Turbines are widely used as Prime Movers.The Pelton Wheel Turbine using kinetic energy of water is used widely where high head & ample water is available. SPECIFICATION a) Sump Tank :- 1200  600  600Specific Speed :- Approx. 19 rpm.Net Head :- 45m Approx.Discharge :- Approx. 820 LPH.Normal Speed :- 750rpm.Power :- 3.75kw ( 5HP )Runner Diameter :- 250 mm.Number Of Buckets :- 18Brake Drum Diameter :- 450mm.b) Centrifugal Pump set suitable for supply of water of size 3?x 2. ?? size 820 lpm at 48 M coupled to 15 HP induction motor 3 phase 400/400 V.A.C. supply.c) Flowing Measuring Unit : a 65 mm ventury meter of Gunmetel with two pressure gauges on a Panel board to measure the differences of pressure.d) Starterv switch, piping, foot valve, gate valve. ERIMENTATION 1) Demonstrating the operating characteristics i.e. power efficiency and torque of a Pelton Wheel at various speeds.2) Determining the performance characteristics and effect of discharge and velocity of impinging water on Turbine operation.

The Demonstration Pelton Turbine provides a simple low cost introduction to turbine performance.This accessory comprises a miniature Pelton wheel with spear valve arrangement mounted on a support frame which locates on the Hydraulics Bench top channel. Mechanical output from the turbine is absorbed using a simple friction dynamometer. Pressure at the spear valve is indicated on a remote gauge. A non-contacting tachometer (not supplied) may be used to determine the speed of the Pelton wheel.Basic principles of the Pelton turbine may be demonstrated and, with appropriate measurements, power produced and efficiency may be determined.

• Color: Any
• Conversation: mechanical energy into electrical energy
• With Stand: Yes
• Subject: Physics
• Size: Many
• Brand Name: esel

To show conversion of mechanical energy into electrical energy. Turbine with transparent cover, inlet and outlet tubes, directly connected to a dynamo. Fitted on base.

• Certification: ISO 9001:2008
• Application: Power Generation
• Color: Black, Grey, Metallic, Silver
• Condition: New
• Automatic Grade: Automatic, Manual, Semi Automatic
• Driven Type: Water
• Blade Material: GFRRP, Glass-Fibre, Metal, Reinforced Resin, Stainless Steel
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Structure: Water Tube
• Height: 0-10mtr, 10-20mtr, 20-30mtr, 30-40mt
• Production Power: 1-5Mw, 10-15Mw, 15-20Mw, 20-25Mw

• Material: Mild Steel
• Voltage: 220 V
• Frequency: 50/60Hz
• Coated: Paint Coated
• Thickness: 1-10mm
• Usage: Laboratory

• Model: HV-EXP323

An all metallic working model, comprising of a single jethorizontal shaft turbine. A 20 cm diameter disc provided withdouble hemispherical cups mounted in a housing with a transpatent window on one side. The model ordinarily works by use with tap water connectedto over head laboratory tank. The inlet jet is provided with Iiscrew type regulator to control smooth inflow of water
