Rana Machines India Private Limited Baldev Nagar, Ambala, Haryana

we provide complete solution for Sorting , Grading and washing for Vegetable. Salient Features: The capacity range from 500kgHr. to 40000 kgHr. Flexibility in Grading Sizes and Numbers of Grades. Line Available Both in Galvanized and SS Material. Low Grading Cost and Maintain-es Cost.

Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section; extracting section; concentrating section; pasteurizing or sterilizing section; aseptic filling section. It is mainly composed of discharge system, hydraulic convey system, bucket elevating, washing and sorting system, crushing system, pre-heating system, pulping and refining system, evaporating& concentrating system, sterilizing system, aseptic filling system. Tomato paste in aseptic drum can be further processed to ketchup, sauces, juices in tin canbottlepouch, etc.

We are designing and manufacturing tomato ketchup plants that are used for preparing and packing of tomato ketchup. These plants are provided with a series of assembly line machines for blanching, pulping, processing of tomatoes for their puree and their final treatment for making ketchups.Tomato paste or juice is mixed with salt, sugar, vinegar, spices and aromas according to customer's requirements through dilution, mixing and blending at first, then through pre-heating, deaeration, homogenizing, filling& seaming, post-pasteurization and packaging system.

Available in Modular Belt, PU Belt and Slat conveyor variations, our elevator solutions can be manufactured to suit a wide range of products and applications. Simple incline or decline solutions can be manufactured with a selection of belt types available to ensure the products are conveyed correctly. Swan neck conveyors with hopper in feeds, incline feed of product into hoppers for large bag filling or routing of flour, grain, wheat, fruit and fresh produce to their required destinations.Side gripping elevator designs lend themselves reliably to pack or carton handling where overhead conveying is required to transfer packed products to central packing or palletizing

Usage : » Low maintenance » Hygienic design » Belt widths and lengths to suit application

The IMPINGEMENT POLYBELT TUNNEL FREEZER utilizes a solid flat top polyethylene belt, which allows for gentle handling of the product and leaves no surface marks. High efficiency evaporators and fans, with a combination of concentrated air jets, are used to achieve fast freezing time with minimum dehydration of the product. The entire system is enclosed with a stainless steel finish high efficiency insulated enclosure

The Company's products and production process are bench marked with the best of global quality standards and meet the most rigorous international specifications. A special Quality Management Division spearheads the concept of Total Quality Management, on integration of all process, system and functions with built-in-quality. we listen to our customers and provide them with quality products in a safe and responsible way. we have been accredited with the prestigious ISO 9001-2000 certificate

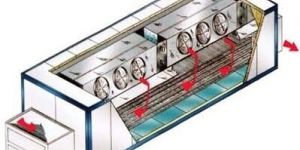

The freezer is a continuous in-line-belt freezer designed to minimize product weight loss and assure quality gentle handling during freezing. Completely factory assembled and designed to minimize site installation time. The freezer is a continuous in-line-belt freezer designed to minimize product weight loss and assure quality gentle handling during the freezing process. Completely factory assembled and designed to minimize site installation time. Products are evenly fed from the production line directly onto the loading freezer belt. It quickly transports the product into the low temperature-freezing zone. The product goes through the Multipass of belts before it is discharged at the same end or opposite end.

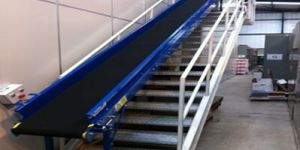

Many companies need to optimize floor space by installing mezzanine floor conveyors in order to create more storage, essential for the modern factory.Once the floor has been created your goods still need to be conveyed to the upper levels.Each Conveyor is built according to your products size and weights achieving the optimum solution we can also provide a stainless steel system if required.

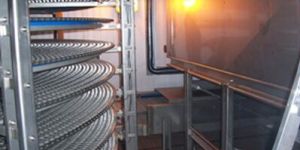

Spiral freezers feature a conveyor system that consists of a continuous stainless steel belt wrapped around a rotating drum, moving in a refrigerated environment. IQF Spiral freezers are able to utilize the most vertical space. This makes IQF Spiral freezers an ideal candidate for applications with limited floor space. The freezer is a continuous in-line-belt freezer designed to minimize product weight loss and assure quality gentle handling during the freezing process. Completely factory assembled, tested, and disassembled into components to be easily shipped to plant for re-assembly. Frame & Belt supports can be constructed with economical Hot Dipped Galv. Steel or fully Stainless Steel version. Freezers are built to USDA, UL, CFIA, CSA standards.

The CASCADE belt is a twin belt incline freezer providing positive conveying of products. The product is mechanically agitated in a thin layer on the first belt. . The packaged freezer is pre-assembled and tested at our plant ready to be placed at your plant site.

The Company is Specialized in undertaking Fruit Juice Processing Plant in the market. The fruit juice processing plant bought forth by us is available with (A) Processing Line for Fruit Pulp Juice, (B) Pulping section, (C) Processing Section, (D) Packaging Section. This includes Complete Process of Inspection, Sorting , Washing, Peeling, Cutting, Pulping (Pulper), Pasteurization, Blanching, Filling and Packing. These Processing Plants are easy to handle and have long durable Life. In addition to this, we are one of the most reputed fruit and Juice Processing Machine Manufactures in India.

Automatic Grade : Automatic

ADVANCED CONTACT BELT TUNNEL FREEZER consists of cold rolled stainless steel band, aluminum air units (evaporators), insulated enclosure, control panel and supporting frames. Completely assembled and pre-wired in modular sections, for easy installation and for future expansion in freezing capacity. The product is loaded manually or by spreader shaker onto the stainless steel band belt from one end, then the product travels into the tunnel sections, where the high velocity, -35 F air blasts horizontally across the top of product surface and under the belt. The horizontal air direction alternates from one section to the next so as to achieve even freezing. The frozen product then exits the tunnel sections, sliding off the belt smoothly without any marks. The product is frozen into the same form as it was when loaded in the inlet end.

Chain drive Roller Conveyors are used for Unitized handling of products mostly for heavy duty. The conveyors can be Powered, Accumulating, Curved Different materials of construction based on the application and usage Like in MS / SS 304 / PVC / PP/ SS 316L acid resistant.

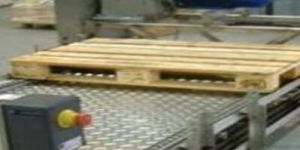

The chain conveyors are used for heavy duty loads like pallets and in assembly line operations of various products.The chain conveyors also come in conventional slat chain conveyors available in widths of 83 mm 114 mm 150 mm etc in single multi row with SS 304 Delrin materials. Standard designs available for flexible and modular needs of the industry both for the Chain and the Slat Chain Conveyor Systems.The system can be engineer with different features to make the Chain Conveyor an Ideal system for Assembly Line Operations with complete Automation of the process.

Usage : Testing and Packing Lines for White Goods, Bottling Line Systems

BELT drive Roller Conveyors are used for Unitized handling of products mostly food industry etc. The conveyors can be Powered, Accumulating, Chain driven, Curved. Different materials of construction based on the application and usage Like in MS / SS 304 / PVC / PP/ SS 316L acid resistant.

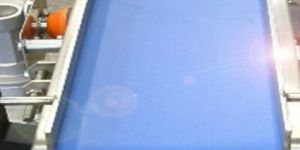

Belt conveyors have got the widest application and are the most popular type of conveying. The systems have evolved over the years and now they have been engineered to perfection at RMIPL The systems are engineered with different materials of construction like PU / PVC / Rough Top for inclined applications.The material of construction is MS / SS 304 for food / non food Applications.All products from cartons to bags are conveyed on the belts conveyors.The systems are for light duty and can be used for medium duty applications by using special features like roller beds instead of slider beds.
