Resistors Dealers in Ambala

• Material: MANGANIN
• Model Name/Number: 55X-SR
• Temperature: 25C
• Power Range: 1 WATT OR AS PER CUSTOMER REQUIREMENT
• Range: 0.000001 OHM TO 1TERA
• Brand Name: RAI
• I Deal In: New and Second Hand
• Calibrated For: Customer Requirement
• Calibration Interval: Yearly

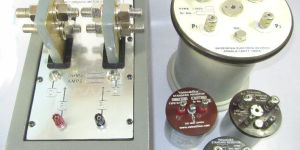

"Vaiseshika" DC STANDARD RESISTOR 9409 has been designed and fabricated to meet the standard calibration requirements. These Standard Resistors can be used for calibration. To ensure stringent accuracy, high degree of stability and utmost reliability, the Manganin wire and strips have been used to construct Standard resistors. These Standards incorporates the  manganin coils which have been subjected to prolonged ageing and heat treatment, to improve stability and to reduce temperature coefficient. Joints are silver soldered with copper being used for connection to terminals. Resistance elements are sealed in aluminium container having moisture free oil. Use of oil improves cooling effect which in turn imparts greater stability to resistance.

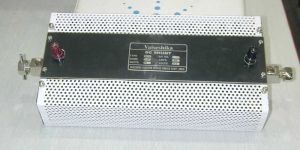

We are offering air cooled dc shunt. The air-cooled dc shunt type 9410 covers a wide range of current from 1.5 ampere to 3000 ampere. The shunts are constructed from high grade manganin. The manganin strips are mounted on all the current terminals with the help of high quality silver brazing solder wire. The entire dc shunt is mounted on a strong base and whenever required is fitted with a protecting cover to enable the convection currents to keep the dc shunt cooled to the ambient temperature.

• Brand Name: VAISESHIKA

we are offering vaiseshika standarda resistor. description "vaiseshika" dc standard resistor type : 9409 has been designed and fabricated to meet the precision calibration requirements. these standard resistors can serve the purpose of precision resistance calibration standards in components manufacturing industries to compare the accuracy of components manufactured (like capacitors, resistors, potentiometers and trim pots), in quality control and instrumentation laboratories for calibration of process control instruments, in various type of thermocouples like j, k, r, s & t, rtds and in engineering laboratories for resistance simulation and instrument calibrations. features four terminal method employed for resistance measurement to compensate lead resistance. resistance unaffected by variation in temperature due to very low temperature co-efficient. resistance corresponds to german standards din 17471 & tolerance standards conforms to din 46461 of federal physical laboratory, germany. exceptional accuracy coupled with excellent reliability. oil immersed resistance to provide excellent cooling. resistance housed in very strong & light weight metal container. excellent reproducibility of resistance value. good engineering characteristics. non - inductive winding to minimise inductance effect. construction weight : 1.5 kg dimensions : 150mm (h) x 115mm (dia) element : strain free, manganin coilwire immersed in oil container : light weight aluminum construction terminals (current & potential) :
