Sohag Laboratory Equipments Ambala Cantt, Haryana

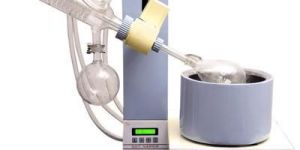

Smooth start with assured speed regulation from 15 to 250rpm precisely controlled by analogue knob Digital Display and control of RPM Digital Temperature and Timer with microprocessor controlled PID Motorised lift with jerk free operation Over heat temperature cut off facility Auto cut off of the bath as the water level goes down below the heater Ergonomic Body with use of ROHS grade epoxy paint

Brand Name : SET

Application : Distillation

After-Sales Service Provided : Yes

Features: %T, Abs, Conc. K Factor 1 ml Sample Volume Auto Zeroing Facility Highly Stable & Accurate Range 400 to 700 n+m Soft Touch Membrane Keys Technical Specifications: Wavelength Range: 400 - 700 nm Filter System: In-built filter disc with 8 standard filters Sample Size: 1 ml Sample System: 10 mm path-length matched glass test tubes Detector: Silicon Photodiode Display: 3 Digit 7»Segrnent Red LED Display Keyboard: Soft Touch Membrane Keys Data Storage: Upto 100 Samples (0 - 99) Light Sources: 5.8 V, 250 mA, Tungsten Filament Lamp Readout: Percent T: 0-100, Abs: 0 - 1.99, Conc: 1.0 - 999, KFactor: 1.0-999 Power: 230 V + 10% AC, SOHZ Dimensions (L x B x H): 192 x 238 x103 mrn (Approx.) .- Weight: 2.5 Kg (Approx.)

Brand Name : SET

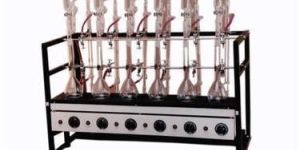

Description: Ceramic Heating Plates to provide efficient heating Body made of duly powder coated MS sheet Temperature regulation by energy regulator Auto Cut off as desired temperature is reached Sturdy MS stand for distillation and combined units Supplied with complete set of accessories and glass parts Technical Data: Exterior Body: Duly Coated Mild Steel Maximum temperature: 350 degrees Temperature regulation: Energy Regulator Heating Plates: Ceramic Models: 3 test , 6test Power Supply : 220230V,AC,50hz

Brand Name : SET

Power : 1800 watt

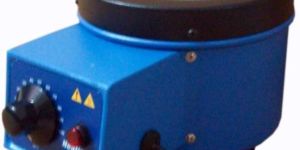

Description : Used for uniform heatingboiling of glass flasks Auto cut off as the desired temperature is reached Heat resistant aluminium body and powder coated paint Suitable for heating flasks as per DIN 12347 Provision of fuse and buffers for safe and smooth operation Available in capacities of 50-50000ml Technical Data: Heating temperature range: upto 350 degree Heating output: 60-1800W (according to the capacity) Exterior Body: Aluminium Alloy Spare Mantle: Glass fibre yarn Heating Element: Kanthal Wire Temperature Control: Energy Regulator Voltage Supply: 220-230V110V Frequency: 50Hz

Brand Name : SET

Material : Aluminium

Voltage : 220V

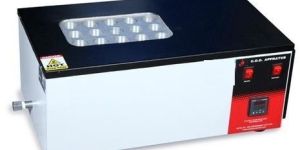

Description : Thermo reactor for Determination of Chemical Oxygen Demand Uniform heating without water circulation Solid block heated type Auto time control unit & digital temperature controller for better results Compact construction and ergonomic design Standard APHA method Technical Data: Capacity: 15 samples Sample capacity : 20ml Reaction Vessel Dia : 38mm Temperature range : Ambient to 350 degrees Timer Range : 99 hours , Auto shut off and buzzer Display : LCD timer and temperature Dimension : (410X290X255) mm Outer Body : MS duly coated Top Cover : SS 316 Power : 230V, Single Phase AC, 50hz

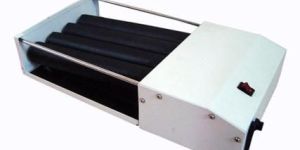

Description : For thorough mixing of samples and cell suspensions Keeps the contents of closed tubes in gentle motion by rocking while rolling Compact and ergonomic design 4 rolls of PVC rods for smooth operation Technical Data : Rolling Speed: 10-30rpm Rocking Frequency: 5 cycles per minute at 35 degree angl Number of rollers: 4or6 Dimensions: 455X265X120mm Exterior body: MS coated Rolling rods material: PVC , each of 320mm Maximum Load: 5kg Supply: 220230V, AC 50 Hz

Color : White
