Test Rig Dealers in Hsidc Industrial Estate, Ambala

• Voltage: 220 V
• Automation Grade: Semi-Automatic
• Color: white and blue
• Usage/Application: Laboratory equipment
• Material: mild steel
• Brand: Superb Technologies
• Phase: Single Phase
• Power Source: Electric
• Frequency: 50 Hz
• Features: Tensile strength, High efficiency, Compact design

• Application: Colleges
• Driven Type: Electric
• Voltage: Single Phase 220 Volts 50Hz. AC Supply
• Voltmeter Digital type: 1 Nos.
• Amp. Meter Digital type: 1 Nos.
• Digital Temperature Indicator: 1Nos.
• Temperature Sensor (Thermocouple): 4 Nos.
• Features: Energy Meter for Compressor Input, Switches Indication Lights Etc.

• Brand Name: KRISHNA
• K: K
• K: K

We are offering Hydraulic Ram Test Setup. Description:- the set-up is designed to study the hydraulic ram. Hydraulic ram is used for pump little quantity of water to high head from a large quantity of water available at low head. It works on a principle of water hammer stating that “when flowing water is suddenly stopped in a long pipe a pressure wave travels along the pipe creating an effect of water hammer”. The set-up consists of a pipe section fitted with a pulse valve and non-return valve, a supply reservoir on a stand which is connected to an overhead tank, an air vessel above the valve chamber smoothes cyclic fluctuations from the ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic. The flow rate of useful and waste water is measured using measuring tank and stop watch provided. Pressure and vacuum gauge are connected on delivery and suction side for the purpose of measurement. experiment:-  to find out discharge of useful water and waste water.  to find out the efficiency of the hydraulic ram features:-  closed loop water circulation  compact & stand alone set-up  ms excel sample calculation program on demand  stainless steel tanks and wetted parts  superb painted structure  simple to operate & maintain utilities required:- electric supply: - provide 230 +/- 10 vac, 50 hz, single phase electric supply with proper earthing. (neutral – earth voltage less than 5 vac) 5 a, three pin socket with switch for pump. water supply: tap water connection ½ “ bsp distilled water @ 90 ltrs. (optional)

KAPLAN TURBINE IS AN AXIAL FLOW REACTION TURBINE NAMED IN THE HONOUR OF DR. B KAPLAN AN GERMAN ENGINEER. THIS TURBINE IS SUITABLE FOR LOW HEAD

• Motor: 3 hp, 3 Phase 415 V AC.
• temperature: 0-199.9 °C

Air Compressor Test Rig The test rig consists of a reciprocating air compressor driven by an electric motor. The compressor is two stage compressor with intercooler. Intake air flow rate is measured by using an air box with orifice plate & differential manometer. Pressure gauges are provided to measure pressure after 1st stage, 2nd stage & tank pressure. Temperature sensors are used to measure the air temperature at Inlet, after 1st Stage, Intercooler & 2nd stage. Compressor Speed & Power Consumption are displayed on panel meters mounted at the front. In order to study compressor performance at different speeds Variable Speed Motor with VFD can also be supplied on request. Experimental Capabilities: To investigate performance of Reciprocating Air Compressor. To study effect of delivery pressure on Power Consumption & Compressor Efficiency. To determine mechanical efficiency of reciprocating compressor. To determine Free Air Delivery (FAD) for Air Compressor.

The test rig provides the study of a Diesel engine performance. The rig comprises of a four stroke 4 cylinder Diesel engine coupled to a rope brake dynamometer / electrical dynamometer or Eddy Current Dynamometer. In rope brake dynamometer a water-cooled brake drum along with spring ba1ances, comprises rope brake. For Electrical dynamometer rheostat/load bank is used as loading arrangement. With the help of various measurements provided the test ring can determine BHP, IHP mechanical and thermal efficiencies, air fuel ratio, specific, fuel consumption and heat balance sheet at various loads.Specifications : Engine -  Four stroke 4 cylinder petrol engine, Water cooled, variable speed petrol engine of jeepsy, car or equavailent. Dynamometer Rope brake - Rope wound around water-cooled brake drum and spring balance. Electrical - Suitable capacity Generator and water rheostat/load bank with load measurement. Air intake measurement arrangement. Fuel intake measurement arrangement. Multichannel Digital Temperature Indicator and rpm meter for rpm measurement.. Water circulated exhaust gas calorimeter. The whole unit is mounted on a sturdy frame. A technical manual accompanies the unit.Service Required : Water supply about 10 lit/min. 230 V, 5A. AC, supply with earthing connection. A hand tachometer.

We bring forth a qualitative range of ICE Plant Tutor Test Rig for our esteemed customers. Our test rig is preferred by professionals for its compact design, smooth operation and dependable result. Our company is a renowned Manufacturer and Supplier of ICE Plant Tutor Test Rig from Ambala, Haryana and known for our fair pricing policy. Used for : To study vapour compression Refrigeration cycle. To find the C.O.P. of the unit. To determine the ICE formatting capacity of the unit. To study the effect of Agitator motor in the unit. To study pump down the gas.   Details : Technical Specifications of the Equipment :- The Ice plant is consisting with following controls and components. Compressor :-  ISI Hermetically sealed kirloskar compressor. Condenser :- Fins and copper tube type air cooled condenser of capacity 1 H.P. size 14” x 14” x 4 row deep has been provided in the unit. Condenser Fan Motor :- One no. forced draft fan motor of capacity 1/10 FHP along with suitable capacity of fan blade has been provided to draft the air on the condenser. Receiver :- One no. heavy duty sheet type receiver along with valve fittings has been provided to store the liquid refrigerant to R-12 gas. Rotameter :- To measure the flow rate of R-12 in unit. Brine Tank :- The inner brine tank has been fabricated out of 22 SWG stainless steel. The outer tank is also made by the same sheet. There has been provided with 4” thick high density thermocoal insulation has provided between inner and outer tanks. Cooling Coil :- Copper tube type cooling coil of size ¾” O/D has been fixed inside the inner S.S. tank. Control panel Board :- The following controls have been provided on 3/4“ thick dull sunmica. Main Switch, Voltmeter, Amp. Meter, Energy meter, Indication lights, Digital Temp Indicator, Suction gauge, Discharge gauge, LP/HP cut out, Expansion valve, capillary tube, Solenoid value, Filter dryer, Thermostat, Liquid line indicator. Agitator with Elect. Motor :- One no. suitable capacity of agitator along with agitator motor has been fitted in the unit. Ice Cans :- 2 lot on Ice cans has been provided in unit. Base :- Heavy duty angle iron base has been provided in the unit to accommodate the condensing unit, sunmica board and brine tank.

The unit of Ice Plant Test Rig consists of a hermetically sealed compressor with air cooled condenser. A capillary is provided next to the condensers followed by medium temperature evaporators. Electrical energy supplied to the compressor can be measured by energy meter. The evaporator is immersed in the SS tank with PUF insulation. The equipment is mounted on a MS Powder Coated base plate with control panel. ExperimentTo calculate the co-efficient of performance of unit Technical SpecificationsCompressor : Tecumseh India Hermetically sealed compressor shall be provided with its standardized electrical accessoriesCondenser : Fins and Tube type air cooled condenserCondenser Fan Motor : Best Indian makeCabinet : The Inner and Outer brink tank shall be fabricated out of Stainless Steel SheetCooling Coil : Water Immersed Type.ICE Cans : G.I. Sheets Ice CansRefrigerant-Freon : 404a Refrigerant GasMeasuring ControlGlass Tube Rotameter to measure the flow liquid refrigerant gas Freon � 404asuction pressure gauge for low pressure measurementDischarge pressure gauge for high pressure measurementDrier, Gas charging valve, Expansions devices � Capillary tube typeElectrical Control Panel : MCB, Voltmeter Digital type, Amp. Meter Digital type, Energy Meter for Compressor input, Switches & Indication LightsDigital Temperature : 1 Nos. Digital Temperature Indicator provided Indicator with Temperature Sensor.Electrical Characteristic : Current AC Single Phase, 50 Hz 220 Volts.Manual : Operation and maintenances manual should be provided along with the supplied equipment.

• Capacity: 1/3 Ton
• Evaporator: Made of Stainless Steel,Insulated with ceramic wool/P.U.F.
• Expansion Device: Capillary Tube,Compatible Capacity.
• Electric Supply: 5A-220 V,AC
• Floor area: 1.5 m x 1 m
• Compressor: Hermitically sealed compressor.
• Agitator: Compatible capacity.
• Rotameter: Range 6 to 60 LPH
• Digital Voltmeter: 0-300 V
• Pressure Gauges: 2 Nos. Safety Control overload and over current protectors for compressor and Time delay circuit.
• Temperature Sensor: RTD PT-100 Type.
• Condenser: Air cooled compatible to 1/3 Ton compressor
• Condenser Cooling fan: Compatible capacity with permanent lubricated motor.

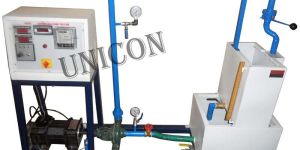

Centrifugal Pump Test Rig Closed Circuit Type With S.S. Tanks, ISI Mark Pumps & Motors, Powder coated The closed circuit test rig consists of a "kirloskar make" monoblock centrifugal pump. The pump is provided with a vacuum gauge on suction pipe and a pressure gauge on discharge pipe. The gate valve is used to adjust the head on the pump. The discharge is measured by measuring tank water flow meter. The input power is measured by energy meter. Specifications: l. Centrifugal monoblock- 1 h.p. 2. Pressure gauge and vacuum gauge for measuring the head. 3. Measuring tank of 400x400 x400 mm OR Water flow energy meter for measuring the discharge. 4. Stop watch. 5. Sump tank of sufficient capacity. 6. Energymeter to measure input power. A technical manual accompanies the equipment. Features­: 1. The equipment is coated with an attractive and anticorrosive powder coating. 2. The equipment consists of ISI standard­ (i) Monoblock ------------------------- Kirloskar make (ii) Energymeter ------------------------- Maxwell Jaipur make (iii) Water flow meter ------------------------- KrantiAnand make. Services required :­ i) 440 v, 15 A, stabilized three phase A.C. supply. ii) Floor area-2 mx2mxl.5m height iii) Tachometer for speed measurement (can be supplied at extra cost)

• Refrigeration and air conditioning lab: Ductable Air Conditioner Test Rig
• Refrigeration and air conditioning lab: Electrolux Refrigerator Test Rig
• Refrigeration and air conditioning lab: Water Cooler Test Rig
• Refrigeration and air conditioning lab: Ice Plant Test Rig

Description :the set up demonstrates the students about the basic principal of a refrigeration cycle. The test rig is designed for the study of thermodynamics of vapor compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation. Experimentation: to calculate refrigerant capacity. to study the vapour compression refrigerator cycle. to calculate co-efficient of performance and draw p-h diagram. Utilities required : electric supply 5a-220 v ac water supply and drainage floor area : 1.5 m x 1m technical details : compressor : hermitically sealed compressor. capacity 13 ton, kirloskar make. agitator : compatible capacity. condenser : air cooled compatible to 13 ton compressor condenser cooling fan : compatible capacity with permanent lubricated motor. evaporator : made of stainless steel, insulated with ceramic woolp.u.f. rotameter : range 6 to 60 lph expansion device : capillary tube, compatible capacity. pressure gauges : 2 nos. Safety control : overload and over current protectors for compressor and time delay circuit. Temperature sensor : rtd pt-100 type. control panel comprises of : digital voltmeter : 0-300 v

• Type: Hydraulic Test Rig
• Weight: 100-400kg, 400-600kg, 600-800kgm
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Application: Industrial Use
• Power: 1-3kw, 3-5kw, 5-7kw
• Driven Type: Hydraulic
• Motor Power: 10hp, 2hp, 4hp, 6hp
• Automation Grade: Automatic, Fully Automatic, Manual, Semi Automatic

We are the main supplier of this product.

Advanced technocracy inc. Is manufacturer, exporter & supplier of francis turbine test rig. francis turbine test rig these reaction turbines are made available to the clients at highly competitive prices and in varied specifications. Moreover, our clients can avail these products from us in customized forms that are designed as per the exact details provided by the clients. details: - water enters the turbine though outer periphery of the runner in and leaves the runner in axial direction - when water flows to the the runner, a part of pressure energy changes to kinetic energy - water is completely enclosed in an air tight casing - the casing & runner is always full of water - present set-up has a runner - water is fed to the turbine by centrifugal pump, radially to the runner - the runner is mounted on one end of a central ss shaft & other end is connected to a break arrangement - circular window of the turbine casing has a transparent acrylic sheet - runner assembly is supported by thick cast iron pedestal - load is applied to the turbine by the brake arrangement and the efficiency of the turbine can be calculated - draught tube is fitted on the outlet of the turbine - set-up is complete with guide mechanism - pressure & vacuum gauge are fitted at the inlet & outlet of the turbine for measuring the total supply head to the turbine.

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

Apparatus consists of a close circuit through which water is circulated continuously by means of a centrifugal pump of 25 mm x 25 mm with 0.5 H.P. motor to make the supply from sump tank. A sump tank 125 cm long, 80 cm wide and 40 cm high fabricated on MS. angle frame with 3 mm thick M.S. sheet is provided. Inside of the tank is lined with FRP. A drain valve of 15 mm size is provided in the bottom of the tank. A supply tank 50 cm x 50 cm and 100 cm high fabricated with SS. sheet with over flow arrangement, gauge glass tube and 15 mm size drain valve is provided. Inside of the tank is lined with FRP. The tank has the provision for fixing the supply pipe of 50 mm dia of which other end is connected to the ram. The tank is supported on a stand fabricated from MS. angle.

To, visualise the operation and estimate B. H. P. & W. H. P. and various efficiencies of pelton turbine. Pelton wheel connected to a rope brake. Water supplied by centrifugal pump & flow measured by venturimenter & mercury manometer. Water jet is directed over the buckets by a nozzle & a spare operating inside the nozzle controls the water flow.

• Material: Mild Steel
• Application: Laboratory
• Voltage: 220-240V
• Automation Grade: Semi-Automatic
• Pump Capacity: 1 HP
• Vacuum Gauge: 0 to -760 mm of Hg

• Voltage: 220 V
• Brand: Ether
• Material: Stainless Steel
• Power Source: Electric
• Item Code: 1598

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

• Type: Centrifugal Pump Test Rigs
• Voltage: 230 V
• Condition: New
• Application: Industrial Use
• Driven Type: Electric
• Motor Power: 0-10 Hp
• Automation Grade: Automatic

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

• Voltage: 230
• Automation Grade: Automatic
• Power Supply: AC
• Phase: Single
• Compressor Type: Hermeticaly Sealed
• Condenser Type: Air Cooled
• Space Required: 2 m x 1 m
• Evaporator Type: Electric
• I Deal In: New Only

• Brand Name: Scientico
• Material: Stainless Steel
• Voltage: 230 V
• Automation Grade: Automatic
• Phase: Single Phase
• Current: 5-10 Amp
• Current Type: AC

Reciprocating Pump Test Rig, 5.0 Megapixel Research Microscope Camera

Offered engine is manufactured with utmost perfection by making use of optimum quality components and contemporary technology in tune with set market norms.

Centrifugal Pump Test Rig, Floating Carriage Diameter Micrometer

1 Cylinder 4 Stroke Petrol Engine Test Rig, Student Spectrometer

Water Cooler Test Rig, Ice Plant Trainer

Reciprocating Pump Test Rig, Cam Analysis Apparatus, car ignition system
