Zoom Microscope Dealers in Jagadhri Road, Ambala

• Type: Table Top Manual Model
• Brand Name: Radical
• Color: White
• Name: Binocular Stereo Zoom Microscope

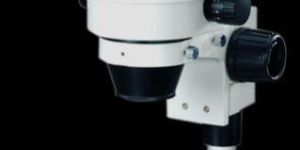

Binocular Stereo Zoom Microscope RSM-8 Binocular tube with an inclination of 45° for greater ease of observation . Magnification 7x to 45x Microscope Zooming ratio 6.4:1 Rack-Pinion focussing stroke 50 mm. Wide field eyepiece 10x (paired). objective 0.7x to 4.5x. Crisp,erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification. Field of view 28.6-4.4 mm. Interpupillary distance from 54 to 75 mm. Dioptic adjustment with a range of + 5 diopters is possible with both oculars. Binocular body can be rotated a full 360° and locked in any position desried. Once brought in focus, image remains clear and sharp throughout the whole zoom range. Dual illumination system having circular fluorescent incident light and transmitted light through solid state built-in tranformer halogen bulb 6volts 20watts. Packed in carboard box withopration manual, vinyl cover etc.

We are engaged in providing Zoom Stereoscopic Microscope to clients. Our Zoom Stereoscopic Microscope has a robust construction and consumes low power with internal illumination. The binocular head of Zoom Stereoscopic Microscope has a twin converging lens and prism system, giving upright deep focus images and large field eyepieces. It is provided with an intraocular distance adjustment.   Specificaions : zoom ration 1x to 5x (or 0.6x to 4x) eye pieces paired swf 10x base with dual light 6v, 20w halogen bulb. swf 15x or swf 20x eye pieces paired. 2x or 0.5x auxiliary objectives.

The special characterstic of zoom Microscope is that one can observe the object in three dimensions within the field of view. It is ideally suited for Industrial as well as for Biological Research where high precision, maximum working distance and large field coverage is required. The flat field parfocal zoom objectives provide continuously variable magnification from 3.5x to 180x depending upon the eyepiece and auxiliary lenses used. The model RSM-9 series offer superior quality optics and releable mechanical components. This exceptional optical quality allows users to perform tasks efficiently and maintaining high productivity. A wide variety of stands and illuminators are available to suit many different applications. JEWEL MICROSCOPE is used to distinguish between genuine and imitation gems, to inspect surface inclusions, to judge production of origin and to inspect polishing. The Microscope is provided with transmitted and incident light system, darkfield attachment and a gem clamp.

We Offer Digital Zoom Stereo Microscope. Specification:- optical System par Focal Flat Field Continuous Zoom. Observatin Head binocular 45° Inclined Ipd 52-75mm with Anti Mould. Eyepieces focusable Wf 10x/22mm, Wf15x/16mm, High Point Design. Objectives flat Field 1:4 Zoom with Continuous Zoom imaging Device built-in 1/3" Color Ccd High Resolution Camera magnification 10x to 60x with Wf 10x and Wf 15x working Distance 100mm with Pay Load of 2 Kgs. Approx. Resolution 720x576 Pixels (pal), 720x480 Pixels (ntsc) focussing rack and Pinion with Tension Knobs On Rigid Stand light Sensitivity >= 0.8 Lux F 1.2 5600 ° K. Incident Illumination 12v/20w. Transmitted Illumination 12v/10w. Power Source 110v/220v with Ce Standards.
