Warehouse Stacker Dealers in Amritsar

• Material: Mild Steel
• Country of Origin: Made in India
• Work speed: 150m/min
• Working width: 1400-2200mm
• Maximum splicing length: 2500-4000mm
• Maximum stacker height: 1700mm
• Operating direction: Left or right

• Type: Automatic
• Certification: CE Certified
• Feature: Easy to Use
• Warranty: 1 Year
• Voltage: 320 V
• Power: 5-10 Kw

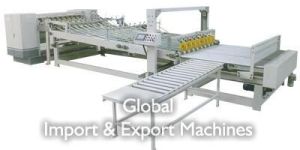

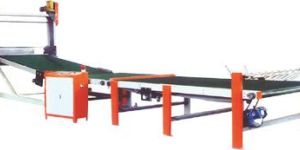

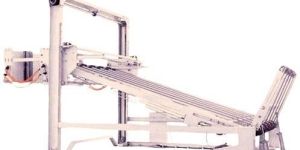

We are listed at the apex in the list of the prominent Chas Automatic Stacker Manufacturers in India. The CHAS Automatic Stacker is manufactured using optimum quality materials that ensure high durability, tensile strength and resistivity to adverse conditions. Additionally, customers are eased with the availability of the Semi-Automatic Stacker confirming to the international standards. Specification : Two Segment conveyor belts keep synchronous with production line speed.Pneumatic barrier can lift automatically and separate sheets automatically at stack change and order change.Elevator Deck lifts automatically, quick and neat stacking.Automatic transverse expulsion at fixed stacking height.Automatic adjustment of back stop positioning realize easy and reliable order change.Color touch screen monitor simplifies operation and supervision.

SPECIFICATIONS · Working Speed 80-120 MIN · Width : 1400-2000

Effective width: 1400mm-2500mm, Design Speed: 80m/min-120m/min Mechanical configuration: Slitter and N.C helical knife and stacker Min. cutting length: 300mm Max. cutting length: 9999mm Cutting accuracy: ± 1 mm (uniform speed) ± 1.5mm (non-uniform speed) Five group ¢ 160 round knife. Memory of 200 orders, man-machine interface, the screen displays information available, easy for machine operator modify or cancel order at any time. Adopt Germany KEB servo system and high-performance synchronous servo motor. Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, to keep the knives long life Host base and machine frame adopt grey cast iron, to keep machine strong and stable

Max. sheet length: 2800mm.Automatic stack and collect cardboard.With electromotion transmit horizontally.Vertical meet cardboard adopt wide conveyer belt to transmit.The sheets or height of cardboard will be moved out by switch control when reaching request.
