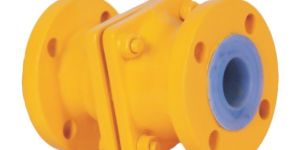

Non Return Valves Dealers in Ankleshwar

BODY MATERIAL OPTIONS   Ductile Iron ASTM A395. Cast Steel ASTM A216 Gr.WCB. ASTM A351 Gr. CF8/AISI S.S. 304. ASTM A351 Gr. CF8M/AISI S.S. 316. LINING MATERIAL OPTIONS   Teflon® PFA – ASTM D 3307, Type II. Teflon® FEP – ASTM D 2116, Type IV. PTFE Solid Type Ball – D 1457. TECHNICAL SPECIFICATIONS   Design Standard : BS EN ISO 17292 : 2004 (Formerly BS 5351) Drilling : ASA 150# DIN 2632/2633/BS 10 Table D, E or F are also available on request. Face to Face : ANSI B 16.10 / DIN 3202/BS EN 558-1/2. Lining Thickness : 3 mm to 5 mm TEST & INSPECTION DATA   Hydraulic Test – Body (Shell) : 20 Kg/Cm².– Seat : 10 Kg/Cm². Pneumatic Test – Seat : 6 Kg/Cm². Spark Test : 15 K.V D.C.

Features: Swing check type design Rigid and sturdy design with minimum head loss Long service life and leak-tightness of high order Suitable for clear water having turibidity upto 3000 o ppm and temperature of 65 Centigrade (rubber to o bronze / stainless steel seating) and upto 95 Centigrade (Bronze/ bronze, stainless steel / stainless steel seating Applications: Used in waterworks piplines to reduce water hammer effect Preventing back flow of water to the pump Specifications: Manufacturing Standard BS 5153 (EN 12334) / IS 5312 Part 1 & 2 Size Range 40 to 1500 mm Pressure Ratings PN6, PN10, PN16 End Connection Flanged​
