Pharmaceutical Machines Dealers in Ankleshwar

• Product Name: Vibrosifter
• Size: 8 Inch to 72 Inch
• Usage: Sieveing
• Sieve: 4 Micron to 300 Micron

The vibro sifters / Vacuum Vibrosifter are self-contained, compact machines that make precise mechanical separation according to particle size through efficient use of vibration. Minimum blinding, longer screen life, no transmitted vibration, special design with multiple screens available for grinding. Easy cleaning & Maintenance, contact part can be easily removed in secs. Vibro sifter consists of a screen placed on the base plate attached centrally to gyratory motor. The material fed through the inlet located on the top is dropped on the screen. The particles smaller than the mesh size passes from the screen and the larger sized particles are released through an outlet. The combination of vibratory motor and the weights placed on top and bottom of screen gives the desired filtration or separation of the material. Total assembly is mounted on suitable springs so that it becomes an independent body which vibrates without parting any vibrations to the foundations. Vibro Sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base by means of specially designed rugged springs. Gyro-motor is fitted with top & bottom eccentric weights designed as per required centrifugal force. This whole assembly is covered by SS plate. The deck hopper is fabricated from SS 316 sheet. To collect the discharge tangential, discharge port is provided on the hopper. Conical shape top lid is provided with charging port. Screen is fitted between the hopper & top lid. The machine inner & outer surfaces are mirror polished. Salient Features: Design is cGMP - Current Good Manufacturing Practices compliance. Designed for continuous operation All contact parts AISI 316 & non contact parts AISI 304. Powerful vibration by gyratory motion by special Vibro motor. Castors provided for mobility Noise less and maintenance free operation Lead free and Silicon seal sieve. Inline loading/Milling process and transfer to bin/Blender by Vacuum transfer system. Wide range of screen mesh 4 - 300 mesh. Modular Design Of Decks With Easily Fitted Clamps Double or triple deck sifting system can be provided as per requirement. Magnetic grill at outlet to arrest foreign metal particle can be provided as per requirement Flame Proof construction can be provided upon request

The filled ampoules are loaded in to the infeed chute from where they are transferred in batches by an index wheel onto a linear transfer rack. The rack transfers the ampoules onto the inspection station, where spinners spin the ampoules at a predetermined RPM so that a vortex is formed. Illumination from behind the ampoules assists in light refraction of particles/fibers . An operator views six ampoules through a magnifying glass Salient features: •All contact parts in stainless steel.and approved engineering plastics. •Spinning of ampoule/vial.Magnifyed view with back lighting •Clear view of six ampoule/vial. •Modular and compact ejection system. •Rotation of spinners can be adjusted to give desired vortex on liquid •Easy access for cleaning and maintenance. •Large inspection to transport time ratio.. •Facility of repeat cycle. •PLC assisted failsafe rejection. •Counters for good and reject products. Technical Specifications: Output(Ampoules) : 60-72/minute Output(Vials) 48-56/minute Electrical Ratings : 3ph. 415V. 50 cps. (4 wire) 0-75 HP main motor 0-25 HP spinner motor Net Weight : Approx. -450 Kg. Handling Range (in mm) : Diameter Min. 9 Max. 15 mm Height Min. 60 Max. 116 mm

Our Multi mills is a self contained portable unit helpful for the great speed granulating, mixing, pulverizing as well as chopping so on a broad of wet and also dry materials without special attachments. We manufacture high quality multi mills as per our customer needs and requirements. When compared to the 4 general principles of the size reduction, this machine make use of the principle of variable force swing hammer blades which is having both knife as well as impact edges rotating along with a carefully choose to control reduction. We provide high quality manufacturing multi mill products

Vibro Shifters are circular gyratory screens used to separate solids from solids and liquid from solid. Vibro Shifter consists of Specially Designed Motor mounted vertically at the center of the base plate of the Screen. The Screen is in between feeding hopper and bowl. The material is fed on to the centre of top screen. The undersize material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet. This is achieved by specially designed Vibratory Motor along with eccentric Top and Bottom Weights.

Fully automatic untouched process for liquid oral manufacturing plant. cGMP compliance with CIP SIP facility. Capacities available from 100 ltrs. to 20000 ltrs. batch capacity Fully automatic plant consisting of Sugar syrup vessel, syrup manufacturing vesse and storage vessel with interconnecting pipe lines, transfer pumps and integrated control panel. Working platform for 1000 ltrs. and above capacity plants. Entire plant can be operated through integrated control panel, by 01 skilled & 01 semi skilled operator. Sugar charging by means of vacuum transfer or mechanical charging can be provided optionally.

We manufacture and supply a rich assortment of Double Cone Blenders, which comprise A-shaped frames. These products are used for cross mixing as well as good rolling of materials and we manufacture these products using qualitative stainless steel procured from the certified vendors. Our products are used for food, chemical, pharmaceutical and cosmetic products. We are offering Double Cone Blender that are manufactured with great precision and expertise. These have a complex rugged structure and are highly efficient and durable. These are demanded in diverse industries for their high performance, no maintenance and high out put. All these blenders are manufactured keeping in mind the variegated requirements of customers. Furthermore, we customize these blenders as per the requirements of our clients. We are one of leading manufacturer of Double Cone Blender in Ankleshwar, Gujarat, India. Supplier ofDouble Cone Blender in Ankleshwar, Gujarat, India.

We are leading manufacturer and supplier of Rapid Mixer Granulation in Ankleshwar, Gujarat, India. Homogenous mixing of dry & wet powders, deaglomeration of wet mass and fast dispersion of binding agent. Dust free, high free flowing dosing particles, high uniformity of granule size. AC frequency control for bottom driven Impeller Mixer with 3 or 4 blades with exclusive scrape side design and Chopper positioned to make granules. Default Pneumatic discharge assembly and pneumatic bowl lifting makes ease the operation. We supplies RMG of capacities 5Ltrs to 2000Ltrs. Our manufacturing Capacity of Rapid Mixer Granulation is as per below list. Lab Model: 5L with 10L Interchangeable Bowl Production model: 100Ltrs. To 2000Ltrs.

We are leading manufacturer, supplier & exporter of Strip Packing Machine in Ankleshwar, Gujarat, India. To pack Pharmaceutical products, tablets, capsules, lozenges etc. Salient features of Strip Packing Machine: Heat sealable flexible packing web, cellulose films, Aluminium foils, poly supported packing material, BOPP etc Packing Material core diameter Max 75mm Min 65mm, Maximum Web diametter 250mm Durable Easy to operate Air tight sealing Vibration less 01 Type: Centre Electromagnetic Vibrator Feeding. M.S. fabricated body with adequate inspection windows; SS Hopper mounted on telescopic adjustable stand made of SS. SS Cladding all over the body of the machine of SS 304 and all contact parts of SS 316only. 02 Drive: 0.50/0.75 H.P. 3 ph. 440 V. 1440 R.P.M./TEFC Electrical motor. Oil immersed Reduction Gear Box ,Universal Mounting Type. 03 Variable Frequency Drive (VFD) for speed variation. “MITSUBISHI”: Cam operated cutter assembly with spring loaded brake belt. Set of draw brushes to draw out sealed strip from rollers with vertical slitters to slit sealed strip. 04 S. S. Packing Material Holder Assembly: 2 sets of front adjustable type of friction brake system with foil running tube. Heater : Cartridge Heaters for heating sealing rollers as per our catalogue specifications. Temperature is controlled by 2 sets of Digital Electronic Temperature Controller to control both sealing rollers. 05 Special Electrical Control Panel of S.S. consisting of : “ON”, “OFF”, “INCH” controls and extra “INCH” control near Clutch handle. DOL Air Brake contactor for heater, Amp Meter for heater, Indication lamps Digital Counter cum speed indicator, MCB etc. 06 Batch Coding Unit: Felt type ink roller, nylon stereo rings mounted on bracket.

Surface Engineering is recognized amid successful Manufacturers, Exporters & Suppliers of IPC Bins. Our IPC Bins are manufactured to curtail the amount of handling during a manufacturing process. We offer IPC Bins of different capacities, especially from 25 liters to 1500 liters. Automation capability and dust free product transfer are some of the chief benefits of our IPC Bins. Salient Features Provided with butterfly valve for dischargeHelps to control containment and cross contaminationEffective process & unit operation feedReduction in segregation....

Vibro Sifters are used to ensure the correct product quality of powders or liquids is achieved by removing oversize contamination. DRE sifters are incredibly versatile and can be used for size based separation of almost any material. These vibrating sifters fit neatly into production lines.   Our manufacturing Capacity of Multimill is as per below list.  ​ Lab Model: 12 inch to 18 inch Production model: 20 inch to 60 Inch Vacuum Vibratory sifter Product Output Ratio is also depending on the Sieves size. Spares of the Sifter I.e. (Sieves, Gasket in single piece, spring, and clamp) are also available.

• Features: Compact design, covered with Stainless steel 304, acrylic doors with micro switches,Speed & other setting can set on Touch screen HMI.

The efficient way for Pharma Cartoning. IPEC 70 is a compact fully automatic capsule filling machine that can fill powder pellets into hard gelatin capsules. The machine works on Tamping principal. The powder is formed into a slug and is delivered to the body of capsule. The auto capsule filling machine is designed to give output of 70,000 capsules per hour with high filling accuracy and can fill capsule sizes 00,0,1,2,3 & 4 The actual production depends on the quality of capsules, characteristics of the filling powder pellets and humidity condition. The capsule filling machine is made as per GMP standards. Contact parts are Stainless Steel 316 & other parts are covered with Stainless Steel 304. We are leading manufacturer, supplier & exporter of capsule filling machine in Gujarat, India.

• Brand Name: SEW 1
• Place of Origin: Gujarat, India

We are the main supplier of this product.

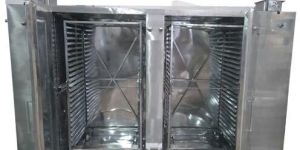

Pharmaceutical tray dryer trays provided one by one and placed inside the racks provided. Tray Dryers are used for the top drying results in conventional method. Drying oven is specially planned for Bulk Drug, Pharmaceuticals, Chemicals.

GMP Reactor, Chemical Plant, blenders, Reaction Vessels, Pressure Vessels

Our organization is leading manufacturer of Pharmaceutical Machinery & Pharmaceutical Equipments. These machines are designed and developed by our highly skilled professional team with using of top grade raw materials and modern manufacturing techniques. Offered machines are avail in various models, designs and specifications. We also customized our machines as per the clients requirements. According to various demands of plastic, textile, petrochemical, steel industry and laboratories, our Pharmaceutical Equipments are fabricated using quality raw material procured from trusted vendors. These Pharmaceutical Equipment are highly appreciated for the features like durability, dimensional accuracy, excellent efficiency, corrosion resistance and leak proofing. Various tests are done to check strength and efficacy of these Pharmaceutical Machinery to provide best quality products to our customers.
