Pressure Filter Dealers in Ankleshwar

• Material: Mild Steel/Stainless Steel
• Temperature: 0 to 250 Degree C
• Efficiency: 99.99%
• Maximum flow rate: 720000 m3/Hr

We have substantial warehouse that is well-equipped with the cutting-edge technologies and upgraded machines; thus, we are capable of entertaining the voluminous requirements with super ease. Rely on us! We pay utmost attention while transaction, be it online or offline, the financial operations are carried out only under the supervision of experts and professionals.

• Type: Candle Filter
• Material: Stainless Steel
• Shape: Round
• Color: Silver
• Condition: New
• Finishing: Polished

• Certification: ISO 9001:2008
• Application: Liquid Solid Separation
• Automatic Grade: Automatic,Fully Automatic,Manual,Semi Automatic
• Condition: New
• Material: Stainless Steel

Agitated Nutsche Filter & Dryer  Capacity : 100 Ltrs from 10000 Ltrs Monoblock Type ANFD Bottom Detachable ANFD with J Bolts Bottom Detachable ANFD with Bayonet Type Clamp through Hydraulic Cylinder

• Brand Name: National Card Board
• Material: SS 316 L, SS 316 & SS 304
• Place Of Origin: Ankleshwar
• Features & Benefits: High flow rates,Low pressure drop,High dirt holding capacity,Low down time etc.
• Sizes: Ø 4" x 10" ,Ø 4" x 20",Ø 7" x 17",Ø 7" x 32" Long Filter Bag
• Usage: For filtering large volumes of high viscosity liquids
• Product Type: Bag Filter Housings

Stainless Steel Bag Filter Housings are designed for optimum filtration performance. The range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal supports ensure bags will not burst as high differential pressures build up during operation. Operation Unfiltered fluid enters the housing and is distributed evenly around the filter bags. Filtration takes place from inside to outside. Solids are collected on the inside of filter bag for easy removal. The filtered fluid then exits through the outlet pipe. Features & Benefits High flow ratesLow pressure dropHigh dirt holding capacityPositive sealing arrangement to avoid bypassingSuitable for PP Collar, Rigid Ring & Snap Band BagsQuick opening Tri Clovers & Fly nut designEasy to operate & low maintenanceLow down timeFlow rate up to 2000 m3/hrCustom design servicesLarge-area, heavy-duty basketsHousings are permanently pipedCovers are O-Ring sealedASME code stamp available All housings made from SS 316 L, SS 316 & SS 304 are mirror polished to resist adhesion of dirt and scale Carbon steel housings are sand blasted, epoxy coated & finally painted with two coats of synthetic enamel Multiple bag filter / Duplex bag filter / Jacketed bag filter unit designs are available High temperature & High pressure design are available Special option include filter bag hold-down devices, sanitary, construction different outlet connections, higher pressure ratings, extra-length legs, heat jacketing and adapters for holding filter bags. Sizes � 4" x 10" Long Filter Bag� 4" x 20" Long Filter Bag� 7" x 17" Long Filter Bag� 7" x 32" Long Filter Bag Multiple bag filter system suitable for 2 Nos. Of � 7� x 32� Long Filter Bag3 Nos. Of � 7� x 32� Long Filter Bag4 Nos. Of � 7� x 32� Long Filter Bag5 Nos. Of � 7� x 32� Long Filter Bag6 Nos. Of � 7� x 32� Long Filter Bag7 Nos. Of � 7� x 32� Long Filter Bag8 Nos. Of � 7� x 32� Long Filter Bag9 Nos. Of � 7� x 32� Long Filter Bag

We are considered as prominent names of Leaf Filter in this industry. To meet with the quality standards and norms of this industry, we engineer these leaf filters by using superior quality raw materials and state-of-art technologies under the supervision of our experienced and skilled manpower. We offer these leaf filters in various capacities to cater the specific demands of our highly valuable patrons. Leaf Filter is incorporated with a vibrator and a butterfly valve with leaves made of stainless steel. Available in horizontal and vertical cylindrical vessels, these filters are of great use in oil mills for filtration of liquids and especially edible oil. This is best suited for the applications where there is a risk of environmental hazard due to flammable, toxic or volatile cakes. Other than this, from this leak filter the cake may be discharged either dry or as a thickened slurry. Features: Precisely designed Effective filtration Dimensionally stable Long functional life Reliable

The vacuum nutsche filter is the one in which the substance is forced into the filter using vacuum. Every vacuum nutsche filter is manufactured in a completely leak proof model to get accurate control of the substance and the vacuum that forces it. The use of our nutsche filter reduces the exposure of the substance during the process, improves the quality of product, decrease the production time and number of workforce required to carry out the processes. As a manufacturer, we make sure that each of the nutsche filters is made with the latest fabrication techniques and best grade of raw material to completely satisfy the customer in the type of quality that they want.

Agitated Nutsche Filter Dryer is a cylindrical, vertical closed vessel made as per pressure vessel code. The vessel is fitted with plane filter media, either metallic or synthetic at the lower end of the vessel. Specially designed, slow speed, robust agitator assembly is mounted on vessel. The agitator design adopted is advanced and unique to this system. The "S" type self centering blades are made from heavy sections to handle liquid as well as solids. It has four movements; each movement, either single or in combination is designed to carry out specific operations.

Chemicals and API are frequently processed as powders, so that a crystallization of the solution after the reaction takes place and subsequently separation of solid and liquid materials becomes necessary.

We are the leading manufacturer and supplier of a wide range of Nutsche Filter that are widely appreciated for salient features like robust performance, easy operation, reliability and durability. We do complete quality and performance measures inspection of these Nutsche Filters before delivering to our valuable clients in several production industries. These filters are consist of a vessel which is divided into two compartments by means of a perforated plate. This plate is made up of suitable filter cloth or porous tiles. The Nutsche Filters are the filters with conical bottom that are used for the filtration of solutions, slurry and other such materials. Attached with filter bags and cloths, the filters can also withstand vacuum conditions. Features: Cleanable non-fiber releasing filter disc Robust design High demand The product cake can be recovered cleanly

Chemical and Active Pharmaceutical Ingredients are frequently processed as powders so that, after the reaction crystallisation of the solution and separation of solid and liquid materials becomes necessary. Sigma has developed Agitated Glass Nutsche Filter made from Borosilicate Glass for application in Herbal products, Chemical product development, kilo lab operation, pharmaceutical manufacturing, agrochemical and the food industry. The contact parts being Borosilicate Glass and PTFE and can easily handle corrosive materials. The base with the filter cloth can be lowered for filter cloth change. Dissipative PTFE can be used to ensure that no static charge accumulation takes place. Conforms to GMP regulation and FDA certification standards Glass Nutsche Filter Application: Acidic Media Filtration and Light Sensitive Products Vacuum Filtration Mobile/skid Mounted Advantages of Glass Nutsche Filter: Vacuum filtration possible. Very high solvent recovery. The glass is being transparent, offers visibility of processes. Minimal contamination of the cake. The inert gas atmosphere can be maintained. Solvents are in closed systems, so no toxic vapours are let off in the atmosphere. Personal safety is maintained and heat transfer surfaces can be provided to maintain filtration temperature.

We offer a different range of Nutch Filter, and manufacture as per party requirement. Our organization is a reputed manufacturer & supplier of Nutch Filters, that are widely utilized for filtering various, slurry, solutions and other liquids. The offered gamut is created to withstand low vacuum and we can customize the assortment as per the demand of our client. Our firm also provide filter bags and cloths in different sizes. Customers adore these Nutch Filters for exquisite performance, durability, easy maintenance and cost effectiveness.

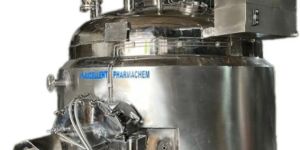

Agitated Nutsche Filter Dryer is a cylindrical, vertical closed vessel made as per pressure vessel code. The vessel is fitted with plane filter media, either metallic or synthetic at the lower end of the vessel. Specially designed, slow speed, robust agitator assembly is mounted on vessel. The agitator design adopted is advanced and unique to this system. The "S" type self centering blades are made from heavy sections to handle liquid as well as solids. It has four movements; each movement, either single or in combination is designed to carry out specific operations. THE MOVEMENTS OF AGITATOR ARE: 1. Clockwise rotationFor smoothening cake surface and compacting it during filtration. 2. Anticlockwise rotationFor stirring near filter media to keep it clear of sedimentation and automated discharging. 3.Upward movementOperated by hydraulic cylinders at constant speed to assist mixing. 4.Downward movementOperated by hydraulic cylinders with variable speed to assist squeezing and discharging. HYDRAULIC POWER PACK IS A PART OF THE SYSTEM.IT HAS MULTIPLE FUNCTIONS VIZ: 1.Discharge valve operation for labour-free cake removal. 2.Lowering and lifting the Agitator 3.Lowering the detachable bottom when provided. The above features along with precision in manufacturing give excellent process control viz filtering,spreading, compacting,reslurring,discharging and drying DISCHARGE VALVE : Plug type side discharge valve is provided near the filter plate.Designed as per customer requirements: - Metal to Metal sealing. - Quick open-able doors. Cake Discharging Valve is circular-plug type,welded on the shell just above the filter plate,When closed,it takes exact shape of the vessel.A control panel is ergonomically placed on the machine,housing all controls.One person can effectively monitor and control entire process.Mechanical,electrical and hydraulic safety features are incorporated to operate the machine safely. DETACHABLE BOTTOM - Filter Dryer when supplied with detachable bottom can be lifted/lowered by hydraulic cylinders.Unique quick descending/ascending arrangement is also available where the bottom is held is position by hydraulic during pressure filtration.This arrangement can assist in quick changing of filter cloth and product change. - We provide external heating from bottom by inlet and outlet nozzles. JACKET Jacket can be of SS/MS material as per customer requirement for providing external heating INTERNAL HEATING - We provide internal heating through shaft and blade. - It is fully leak proof arrangement,which can never interfere in the process of filtration and drying. FILTER MEDIA:FILTER CLOTH - Filter media is selected as per specific 'process requirements. They are textile cloth from natural or synthetic fibers. Alternately sintered plate material or wedge wire Screens can also be provided instead of filter cloth.

We are manufacturer and supplier of Agitated Nutsche Filter Dryer in Ankleshwar, Gujarat, India. Agitated Filter is a closed vessel designed to separate solid and liquid by filtration under pressure or vacuum. The closed operation ensures odourless, contamination free and non-polluting working conditions maintaining product purity and hygiene. The advanced technology of agitation and hydraulics used in the equipment makes it versatile and user friendly. The resulting wet cake can be reslurried and washed thoroughly with water or solvents unlike in" NUTSCHE" type filters or centrifuges. Wash liquid quantity can be controlled and recycled, reducing effluent load. The discharge of wet cake is automatic. If the process demands filtration in chilled or hot condition, it is also possible. Drying of wet cake is also possible when drying features are incorporated. The Agitated Nutsche Filter Dryer is functionally safe and easy to operate. It can carry out various phase of process operations, viz: Crystallization, filtration, extraction, Discoloration, Washing and drying.     The number of conventional machines employed for filtration process is also reduced. It has multi- functional utility, saves on power, labour, floor space, material wastage and time. The filter/filter dryer has wide field of applications in chemical, pharmaceutical, Agro chemicals, fine chemicals, and food industries. Sterilizable pharmacy versions are available for aseptic requirements.tion with each other in order to effectively achieve the goal of the company.
