s b enterprises GIDC Industrial Estate, Ankleshwar, Gujarat

A U Tube Manometer is a Pressure measuring instrument usually limited to measuring pressure near to atmosphere. Commonly used Liquids in Manometer are Water and Mercury.

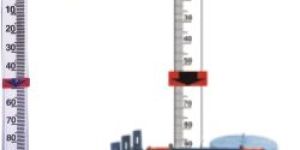

Suitable for direct reading in atmospheric, batch tanks mounted parallel along with side of tank. As the level increases in side the tank, the level in the glass tube changes accordingly & gives local liquid level indication.

As the liquid level rises in the tank, the float is lifted up due to buoyancy. The float moves inside a SS float chamber. External to this float chamber is a glass tube(MLI 2200)/indicating PVC magnetic ball assembly (RBMLI 2200) which carries the magnetic follower. Due to magnetic attraction, the magnet on the float and the magnetic follower are coupled and move in union. So as the float moves along with the liquid, the follower capsule also moves inside the glass tube(MLI 2200) and PVC magnetic ball changes its colour (RBMLI 2200), and the position of the follower capsule/magnetic ball can be read against the scale.

Simple principle of mechanics and magnetism harnessed to offer an absolutely safe, reliable and trustworthy level indicator for dangerous and toxic liquids under high pressure and temperature.Due to magnetic attraction, the magnet on the float stem and the magnetic follower are coupled and move in union. As the float moves along with the liquid, the follower also moves inside the glass tube, and the position of the follower can be read against the scale.

Capacitance Level Indicator, Switch and Transmitter is ideally suitable for level measurement and control of liquids and some slurries of homogenous composition having a stable dielectric constant. The performance of these instruments is not affected by the properties of the liquid such as conductivity, corrosiveness and viscosity.

Strainers is safety devices used to prevent external fire entering in to the tank or inside the pipe line & ducts & to prevent flame  spreading from in to or out of plant & equipments flame arresters are normally installed on the end of the line or above the vessel, where hazardous gases are normally vented out. The internal element or flame bank is made of metal sheet, the gas is allowed to pass along with the element which prevent fire entering in process on the event of external fire sizing / designing can be done with reference to API - 2000. Flame bank is so designed that the pressure drop is negligible . In any process or plant which us flammable gas, or vapour that could conceivably ignite flame, flame arresters must be used. To assist yours requirement the details such as the fluid, gas & vapour contains & tank size, apacity in ltr. pumping rates in & out from storage tank be specified, where the flame arresters are required.

A U Tube Manometer is a Pressure measuring instrument usually limited to measuring pressure near to atmosphere. Commonly used Liquids in Manometer are Water and Mercury.

Sight Flow Indicators are Suitable for transparent/ slightly opaque solution & gases window type sight flow indicator is suitable for safe indicator of liquid/ gases under vacuum temp & press also.

Suitable where maximum visibility is required & mechanical strains in the pipe line not present. It consist simply of heavy wall buttress glass tube set in to soft gasket in both end. Investment casting flange along with minimum four studs provides a frame work to protect the buttress borosilicate tube & the fluid can therefore be observed from all four sides.

Suitable for level control tanks, vessels, boiler drums, can be used to get audio / visual alarm to operate valves pump. It consist of a fixed stem to which a cylindrical float is hinged & the float up & down along the liquid level. A permanent magnet hosed in the float actuates & de-actuates & hermetically sealed reed switches located in the stem opens as the liquid level rising or to close on falling liquid level depending on the mounting position.

Suitable for SAFE, positive visual indication of liquid level in vessel & tanks under vacuum, high press & temp.

We are one of the leading Manufacturer & Supplier of Metal Tube Rotameter. Metal Tube Rotameter is Suitable for measurement of flow rate of liquid, gases using tapered borosilicate glass tube having press rating of 10Kg / Cm2 temp at 180c

Side Mounted Magnetic Level Indicator & Top Mounted Magnetic Level Indicator Suitable for continuous level indication of highly corrosive, hazardous & fuming liquids under high press & temp float is equipped with alnico magnets moves up or down along with level increase or decrease this float magnets movement will be magnetically coupled to the follower outside the chamber which is enclosed in a glass tube one or two or four limit switches may be provided externally to the indicator these switches will change over their contacts as soon as the level sensed by the float increases or decreases above the set point.

Suitable for measurement of pressures in the range of 10 mm to 10² mm or 10³ mm of Hg. This convenient gauge is a modification of Macleod Gauge. This gauge eliminates the use of a movable reservoir of mercury, and also requires only about 12 cc of mercury for filling. The total size of this gauge is about 9”x6”.

We are one of the leading Manufacturer & Supplier of Low flow Rotameter. Low Flow Rotameter is Suitable for measurement of flow rate of translucent opaque liquid, gases under high temp & pressure.

Suitable for automatic pump control & alarm Single & multi level float switches provide high, low & intermediate point level sensing in all types of storage tanks & receiver. Magnetic float switches are equipped with hermetically sealed reed switches, the reed switches are actuated by the magnetic field of magnet inside the float. The only moving parts of float is the float which will be reliable floating on the liquid surface.

We are one of the leading Manufacturer & Supplier of Glass Tube Rotameter. Glass Tube Rotameter is Suitable for measurement of GLASS TUBE rate of liquid gases. Designed to give maximum accuracy, visibility & ruggedness, for accurate control precision needle valves provided

Orifice Flange Assemblies are supplied ready to install in pipelines complete with Studs, Nuts, Jack Bolts, Gaskets and Drain Plugs. Orifice Flanges are manufactured in broad variety of materials to ASTM Standards viz.

Flame Arrester are safety devices used to prevent external fire entering in to the tank or inside the pipe line & ducts & to prevent flame spreading from in to or out of plant & equipments flame arresters are normally installed on the end of the line or above the vessel, where hazardous gases are normally vented out. The internal element or flame bank is made of metal sheet, the gas is allowed to pass along with the element which prevent fire entering in process on the event of external fire sizing / designing can be done with reference to API - 2000. Flame bank is so designed that the pressure drop is negligible . In any process or plant which us flammable gas, or vapour that could conceivably ignite flame, flame arresters must be used. To assist yours requirement the details such as the fluid, gas & vapour contains & tank size, apacity in ltr. pumping rates in & out from storage tank be specified, where the flame arresters are required.

Suitable for measuring flow rates in 50 NB & above pipeline. Available in a variety of materials, carrier rings, impulse piping and rotameter as flow indicator. Design Standard confirms to ISO 5167/BS 1042. This is basically an online

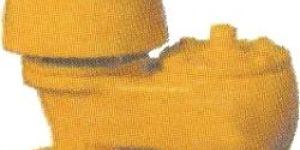

The breather valves are extensively used for automatic venting  and for conservation of losses due to evaporation.Breather valves minimizes the risk of fire,explosion and collapsing of tank by relieving automatically the dangerous pressure and vaccum in the tank due to any reason.

It is an instrument used to measure instant flow rate of Liquids and Gases and are commonly used for flow measurement.

The Single Tube Well type Acrylic Body Manometers are applicable to measure vacuum in terms of mm Hg. abs. / torr. at last stage available with catch pot and isolation value.
