Separating Machines Dealers in Ankleshwar

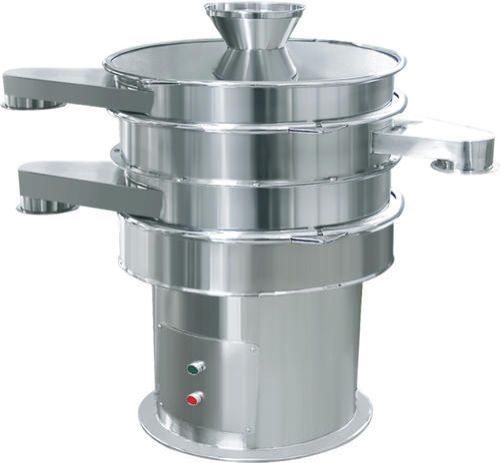

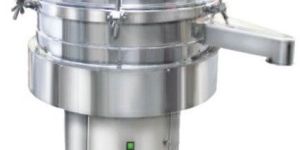

• Product Name: Vibrosifter
• Size: 8 Inch to 72 Inch
• Usage: Sieveing
• Sieve: 4 Micron to 300 Micron

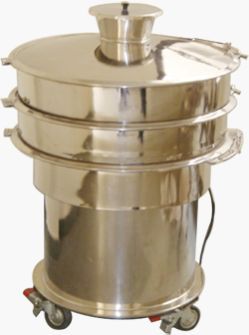

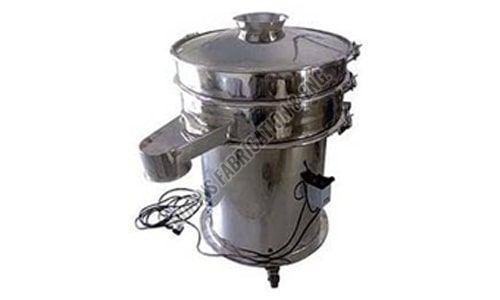

The vibro sifters / Vacuum Vibrosifter are self-contained, compact machines that make precise mechanical separation according to particle size through efficient use of vibration. Minimum blinding, longer screen life, no transmitted vibration, special design with multiple screens available for grinding. Easy cleaning & Maintenance, contact part can be easily removed in secs. Vibro sifter consists of a screen placed on the base plate attached centrally to gyratory motor. The material fed through the inlet located on the top is dropped on the screen. The particles smaller than the mesh size passes from the screen and the larger sized particles are released through an outlet. The combination of vibratory motor and the weights placed on top and bottom of screen gives the desired filtration or separation of the material. Total assembly is mounted on suitable springs so that it becomes an independent body which vibrates without parting any vibrations to the foundations. Vibro Sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base by means of specially designed rugged springs. Gyro-motor is fitted with top & bottom eccentric weights designed as per required centrifugal force. This whole assembly is covered by SS plate. The deck hopper is fabricated from SS 316 sheet. To collect the discharge tangential, discharge port is provided on the hopper. Conical shape top lid is provided with charging port. Screen is fitted between the hopper & top lid. The machine inner & outer surfaces are mirror polished. Salient Features: Design is cGMP - Current Good Manufacturing Practices compliance. Designed for continuous operation All contact parts AISI 316 & non contact parts AISI 304. Powerful vibration by gyratory motion by special Vibro motor. Castors provided for mobility Noise less and maintenance free operation Lead free and Silicon seal sieve. Inline loading/Milling process and transfer to bin/Blender by Vacuum transfer system. Wide range of screen mesh 4 - 300 mesh. Modular Design Of Decks With Easily Fitted Clamps Double or triple deck sifting system can be provided as per requirement. Magnetic grill at outlet to arrest foreign metal particle can be provided as per requirement Flame Proof construction can be provided upon request

Vibro sifter is circular gyratory screens used to separate mass composition of solids, liquid from solid and for gradation of materials as per particle sizes Vibration is generated in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft.

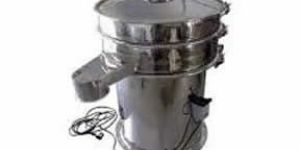

Vibro Shifters are circular gyratory screens used to separate solids from solids and liquid from solid. Vibro Shifter consists of Specially Designed Motor mounted vertically at the center of the base plate of the Screen. The Screen is in between feeding hopper and bowl. The material is fed on to the centre of top screen. The undersize material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet. This is achieved by specially designed Vibratory Motor along with eccentric Top and Bottom Weights.

• Brand Name: SEW 1
• Place of Origin: Gujarat, India

We are the main supplier of this product.

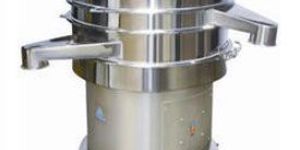

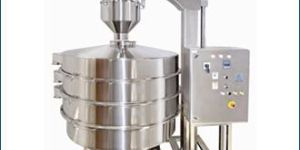

Vibro Sifter is multi layer screening unit to separate mass composition of solids from solids, liquid from solid and gradation of materials in accordance with their shapes & sizes. Mostly found useful for the applications in pharmaceutical, chemical, food, drug, detergent, etc. Vibro Energy Separator is a rigid screening device that vibrates about its centre of mass. The central vertical axis being the same, vibration is accomplished by placing eccentric weights on the upper and lower ends of the motor shaft. Adjustment of the quantum and relative position of the top and bottom weight permits control of amplitude and material flow patterns. Vibro Sifter is ideal equipment having multi deck facility to segregate up to three different size of granules as per process requirement. It is used for screening, sieving, grading for solid-liquid separation, process to separate the desired elements and the undesired elements from the combination of solid to solid (where two solids are generally having different properties) and solid to liquid material. It used in various industries such as Pharmaceutical, Chemicals, Cosmetics, plastics, paints, plastic, minerals, rubber compounds, metal powders, detergents, pesticides and fertilizers, dyestuff and pigments. We are one of leading manufacturer of Vibro Sifter in Ankleshwar, Gujarat, India. Supplier of Vibro Sifter in Ankleshwar, Gujarat, India.

• Features: Noise less and maintenance free operation, Dust Free operation, Cylindrical screen for higher output, Castors provided for mobility
• Application: Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastic and Resins Industries
• Used for: Dry granulation or powders in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colours, Dyestuff etc

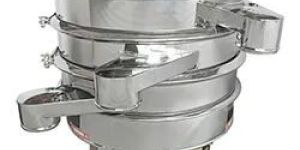

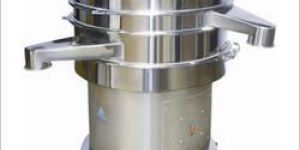

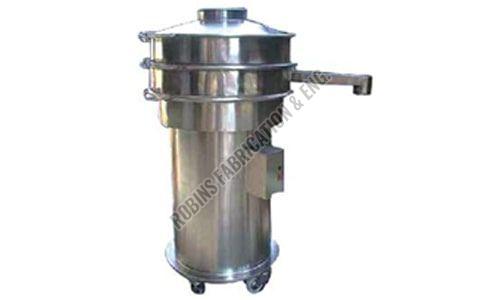

Vibro sifter is circular gyratory screens used to separate mass composition of solids, liquid from solid and for gradation of materials as per particle sizes Vibration is generated in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft. The angle of lead of the lower weight to the upper weight provides variable screening pattern & output.   Salient Features of Vibro Sifter: Vibro Sifter is Available in standard and GMP models with contact parts in stainless steel 304 or 316 quality. Portable unit with higher output. Double and triple deck unit with different screens can be provided Easy to dismantle for cleaning screens. Noiseless, maintenance free unit.

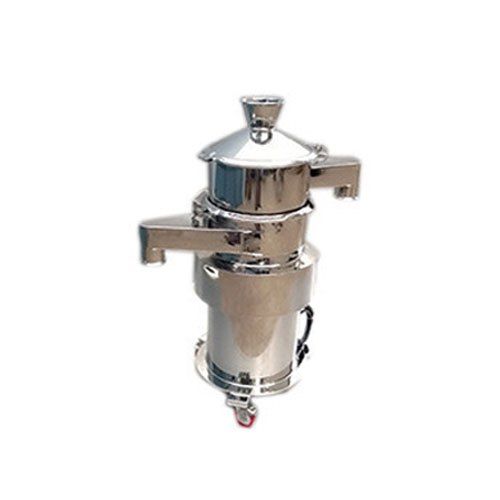

Vibro Sifters are used to ensure the correct product quality of powders or liquids is achieved by removing oversize contamination. DRE sifters are incredibly versatile and can be used for size based separation of almost any material. These vibrating sifters fit neatly into production lines.   Our manufacturing Capacity of Multimill is as per below list.  ​ Lab Model: 12 inch to 18 inch Production model: 20 inch to 60 Inch Vacuum Vibratory sifter Product Output Ratio is also depending on the Sieves size. Spares of the Sifter I.e. (Sieves, Gasket in single piece, spring, and clamp) are also available.

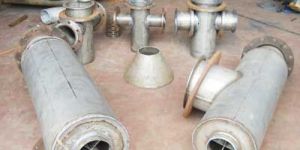

liquid separators, Woven Fabrics, Cotton Woven Fabrics, Industrial Fabrics
