Spiral PP Chemical Reaction Vessel Dealers in Ankleshwar

• Material: Mild Steel
• Thickness: 0.6 - 0.8 mm
• Condition: New
• Automatic Grade: Fully Automatic

We are engaged in manufacturing, supplying and exporting Pressure Vessel. The Pressure Vessel, which we make available, ensures smooth transfer of low-velocity material. The Pressure Vessel is widely acclaimed for relocating fragile and abrasive products. Our Pressure Vessel is made from quality components and materials. They are made available at discounted rates. Why Our Pressure Vessel? High-performance Best components and parts used Durable Best price

• Material: Frp
• Surface Finishing: Chemical Coated
• Shape: Cylinder Shape, Round
• Color: As per requirement
• Condition: New
• Pressure: As per requirement
• Feature: Anti Corrosive, Durable, Eco-Friendly, High Quality, Rust Proof, Shiny Look, Stable Performance
• Type: Frp Reaction Vessels
• Weight: As per model
• Warranty: 1year
• Country of Origin: India
• Working Temp: 50-100 Deg C

• Storage Capacity: 1-100 cubic meter
• Tank Volume: 50m3
• Nominal pressure: 2.5Mpa

• Country of Origin: India

PTFE lined piping technology was developed to meet serve operating conditions in the chemical handling industry to solve the problems of Corrosion, Erosion & maintenance free operation for many years. This product is the substitute for MS / SS piping & PP / HDPE plastic piping which causes Corrosion and maintenance problems frequently

• Material: PP FRP
• Capacity: 250, 500, 1000 Ltrs
• Shape: Cylindrical
• Storage Material: Chemicals/Oils, Waste
• Usage: Industrial
• Resistivity: Resistant to all Chemicals & Acids, Abrasion resistant

• Application: Industrial

• Capacity: 10 Ltrs. To 1000 Ltrs.
• Material: SS 316
• Suitable for: Preparing Coating solution for Sugar Coating as well as Film Coating

• Country of Origin: India
• Type: Reactor Vessel
• Brand Name: YASH
• Condition: New
• Name: Jacketted Reactor
• Usage: They are used in a diverse range of applications from pharmaceuticals to engine oil.

Jacketted Reactor Jacketted reactors are similar to glass lined reactors with provision for heating by steam/thermic fluid through the jacket. Transparency permits to visibility.Features like thermometer pocket, motor-driven stirrer, gas sparger etc. are incorporated as per requirement. A baffle battery consisting of 4 baffles can be mounted inside. Assemblies like Simple Distillation Unit, Reaction Distillation Unit, Fractional Distillation Unit etc.can be installed above these reactors if required. UnitCat. Ref. ReactorCapacity DN JacketHTA M2 VapourNozzle JR5 5 L 150 0.15 0.35 JR10 10 L 225 0.20 0.50 JR25 25 L 300 0.30 1.50 JR50 50 L 400 0.60 1.50

We are offering reactor vessel. surface engineering is proud to present premium quality reactor vessels that are widely used in several industries for mixing, blending, dissolution chemical reactions and other application. The premium quality reactors offered by us made from premium quality materials and with use of advanced technology that ensures its high capacity to bear pressure and temperature. These corrosion and abrasion resistant agitator vessels have made us one of the most eminent chemical reactor vessels manufacturers and suppliers from ankleshwar gujarat... cooling mechanisms external limpet type jacket type variants anchor turbine widely used for mixing of chemicals blending of ingredients dissolution of solutes chemical reactions technical specifications pressure 10 kg/sq cm temperatures 200 degrees capacity 100 to 15000 liters standard astm-d.

• Certification: CE Certified
• Application: Chemical
• Weight: 100-200kg
• Automatic Grade: Automatic
• Warranty: 1 Year
• Surface: Polished

reactor - chemical reactor: prakash is one of the leading manufacturer, supplier & exporter of reactor, chemical reactor, pharmaceutical reactor in india. reactor, unlike mixing tanks, are totally sealed from the atmosphere. Mixing tanks are designed to disperse two or more chemicals together. reactor on the other hand, allow the chemicals inside to go through a reaction phase which ultimately produces new and different chemical properties. limpet jacketed reactors : half-pipe jacketing provides very good heat transfer by allowing high flow rates. It is best suited for high temperatures and pressure applications utilizing hot oil or other high temperature media. Half-pipe is formed from a continuous coil and is "wrapped" around the vessel exterior in single or multiple zones to provide greater latitude for process capabilities. We use a 180 - degree half-pipe configuration that minimizes pressure and increases fluid velocity. jacketed reactors : also known as open jacket, conventional jacketing is a secondary external shell wrapped around the primary vessel to provide a space for heat transfer fluids. We add a spiral formed internal baffle to direct the heating media around the vessel form the inlet to the out. Conventional jacketing is best used on smaller diameter vessels. limpet jacketed reactors - jacketed reactors - reactors - chemical reactors - reactor - pharmaceutical reactor.

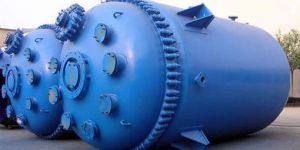

We deal in a wide variety of Reaction Vessels that includes Steel Reaction Vessels that are suitable for varied industry verticals for containing a liquid, gas or vapor at different temperatures. These Reaction Vessels are made up of Carbon steel & stainless steel and are available for our clients in different styles, shapes and sizes. Our reaction vessels extensively used in petroleum refining, petrochemical industries, water treatment systems of boilers & steam generation equipment. Features: Easy installation Corrosion resistant Sturdy construction Can sustain heavy load Minimal maintenance cost High performance

• Material: Stainless Steel
• Shape: Cylinder Shape
• Certification: CE Certified
• Color: Metallic
• Pressure: 15-30bar
• Surface Finishing: Chemical Coated
• Feature: Anti Corrosive, High Quality

We manufacture highly efficient Reaction vessels in MOC—SS & CS used in chemicals,agrochemicals,pharma,paints,inks,industries,etc.We also mfr high pressure Hydrogenation vessels with hollow shaft design.We have manufactured special double agitator eqpts with high speed agitators upto 1200rpm also.

Our Reactors Frequently used for the term relates specifically to catalytic reaction systems where either a homogeneous or heterogeneous catalyst is present in the reactor. Sometimes a reactor per se is not present by itself, but rather is integrated into a process, for example in reactive separations vessels, retorts, certain fuel cells, and photocatalytic surfaces.  Our manufacturing Capacity of Multimill is as per below list.  ​ ​500 To 10KL

We are leading manufacturer and supplier of Pressure Vessel in Ankleshwar, Gujarat, India. Our pressure vessels for any application is renowned in the industry. We have designed and manufactured vessels in Carbon steel, Alloy steels, Stainless steel and can also manufacture in any other special material on demand. We have supplied vessels up to 12 meters long and 6 meters in diameter, weighing up to 100 tons from design to fabrication. Quality and testing is assured as per TEMA, ASME Sec VIII and MSME/API etc. Our manufacturing Capacity of Pressure Vessel is as per below list.

Minimum ID 100mm to Maximum ID 3500mm Minimum Ht 500mm to Maximum Ht 6000mm Capacity up to 40 KL Limpet Coil – Single Turn & Double Turn Inside Heating or Cooling Coil Support Type – Skirt, Bracket & Leg. Material of Construction : MS, SS316, SS316L & SS304. Joint Efficiency : 0.85 / 1.0 Surface finish Internal & External : Buffing up to 300 Grit. Finishing : External Surface Painting, Send Blasting & Painting. Assembly with Hollow & Solid Shaft. Offer Agitator viz. Anchor, Turbine, Propeller, Mig, Hydrofoil, Helical etc. Providing Single & Double Mech. Seal with heavy duty Lantern Supports Design Code : ASME Section VIII for Vessel Fabrication & Section IX for Welding qualification.

Steel Reactors are widely used in Pharmaceutical, Chemical, Food & Dairy and several other industries for carrying out various processes. We design Steel Reactor using the best quality Stainless Steel ensuring rigid construction and innovative structure. Besides, we offer Steel Reactor in various grades and specifications to meet the specific applications. Details : MOC : MS & SSCapacity : Upto 100KLSupply With : Stirrer, Gear box and Motor

We have in store a comprehensive range of Industrial Reactors that are used in various industrial applications such as food, pharmaceutical, and chemical.We manufacture these reactors using optimum quality raw material and advance machineries in accordance to international quality standards. Owing to their features such as longer shelf life, leak proof and durability, these reactors are highly demanded by the customers. Further, we also provide these reactors in customized form as per the requirements of the customers. To append and respond to the emerging demands of honorable clients, we are offering an unmatched range of Process Reactors. Having capacity ranging from 100 liters to 20,000 liters, these reactors are manufactured using quality-approved stainless steel and mild steel that are sourced from reliable vendors of the industry. Provided with a rubber lining, brick lining and the lead bond, our offered reactors are manufactured in compliance with the industry set guidelines. We are one of leading manufacturer of reactors in Ankleshwar, Gujarat, India. Supplier of reactors in Ankleshwar, Gujarat, India.

Half-pipe jacketing provides very good heat transfer by allowing high flow rates. It is best suited for high temperatures and pressure applications utilizing hot oil or other high temperature media. Half-pipe is formed from a continuous coil and is "wrapped" around the vessel exterior in single or multiple zones to provide greater latitude for process capabilities. We use a 180 - degree half-pipe configuration that minimizes pressure and increases fluid velocity

SS 316L MIXING VESSEL MADE FROM 6MM THICK PLATE AND 8MM TOP / BOTTOM DISHEND TURBIN TYPE STURRER SHAFT 90MM DIA , BOTTOM GUIDE BUSH WITH DOUBLE BEARING HOUSING STUFFING BOX GEAR BOX , MOTOR COMPLETE ASSEMBLE

We are instrumental in manufacturing and supplying Spiral Reaction Vessel, which is appreciated for their high quality and longer service life. The offered Spiral Reaction Vessels are in compliance with the international quality standards. Designed under the guidance of skilled engineers with vast experience in this domain, our provided reactor vessel is manufactured using premium quality raw material and modish technology.

SIGFOLDI – JACKATED® ( First time in world’s glass ind.) is manufactured with 100% folding design up to a nominal capacity of 200 Ltr. Which is registered under Patents Registration No.: 207576. It is a system of two concentric vessels held together by flange and seal arrangement. The end flexible seals absorb the different expansion levels and prevent high stresses of the inner component and the jacket by allowing the movement flexibility between two due to thermal expansion. Fused Jacketed Glass Reactors are at a huge disadvantage in case of damage to the system due to mechanical impact are not repairable and have to be discarded. While in our system, if per chance the inner vessel or outer vessel get damaged either is replaceable adding to the longevity of the equipment. All our reactor systems are designed to keep L/D ratio within standard limits. Because of being a two component i.e. Vessel and Top cover agitators can be designed for the maximum sweep for better mixing & turbulence with no vortex formation by very effective second stage pitched blade agitator.
