Diamond are selected in accordance to shape and crystal quality and "A", "AA", "AAA" Oriented setting of these diamonds by sintering process enables greater bonding efficiency of even small diamonds and consequent reduction in the use of bigger diamonds.

The contact between diamond point and wheel face reduces the unit pressure on each point resulting in a longer tool life with full utilization. Multi Point Diamond Dressers are used for large wide grinding wheels and has the following advantages: • No resetting • No re-lapping • Maintenance free • Higher output • Longer service life

The Single Point Diamond Dresser is more versatile which is used for truing and dressing purpose of grinding wheel. The diamond for the single point dressing tools are selected for their structural strength, degree of sharpness & lack of detrimental flaws. The proper selection of single point diamond dresser depends on the dimension of grind hardness, grit size and abrasive type.Single Point Diamond Dressing Tools Grade:'A', 'B', 'C': These Stones are Bruted Type Commercial Quality diamonds.'AA' Class: These Stones are natural polished stones.'AAA' Class: These are premium grade Gem quality natural diamonds with 2-3 workable points.Diamond Carat Selection Formula:1 Carat = 0.2g(r+R)x0.004 = Carat Size Of Diamond (Radius+Grinding Wheel Depth)x0.004 = Carat Size Of Diamond Application tips :  The diamond point should contact the grinding wheel slightly below its center and at an inclination of   10-15�.  In feed increments of up to approx. 0.01-0.03 mm per dressing operation are possible.  Cooling improves the dressing results considerably and is mandatory for exacting dressing requirements.   A strong and continuous flow of cooling medium must be fed to the contact zone prior to the beginning   of the dressing process.  Shock-like cooling may destroy the diamond.  There must be a perfect fit between the holder of the diamond dressing tool and the dressing   device. Otherwise dimensionally stable dressing with a ture profile is not possible. There is also a risk   of the diamond being damaged.  Carefully place the diamond on the grinding wheel.

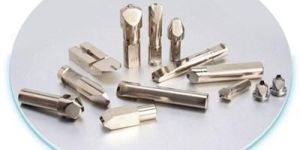

For the accurate profiling of grinding wheel only chisel tools are preferred for these operation. These Chisel Type Diamond Dressers are manufactured with specially selected higher quality natural diamonds, which are used on Diaform, Akuform & similar machine.Always select the larger profile angle, Theses diamonds are sensitive to shock and impact, It May be fractured or broken by striking any hard substance, Protect and store the tool properly when not in use, Theses diamonds are sensitive to shock and impact, Protect and store the tool properly when not in use.

The Single Layer Cluster Diamond Dresser, which we offer, is suited for replacing large single points. In this Single Layer Cluster Diamond Dresser more than a single diamond is in contact with wheel, hence dividing the work load. These Single Layer Cluster Diamond Dressers are less expensive than per carat large stones. We can also cater to the specific drawings of clients while making these Single Layer Cluster Diamond Dressers. Details : The clusters consist of 3, 5, 9, 13 or 17 small diamond set in a variety of patterns for dressing larger or coarser and harder wheels.

• Size: 3/8''x2.3/4''x0.50 x 24UNF, ALL size Available
• Application: Precision Dressing Application Grinding Wheel
• Material: Coated Diamond + Metal
• USD Prices: USD 1.00 - USD 10.00

• Material: Mild Steel
• Color: Metalic
• Application: They can be used for profile Generation Side Dressing, Angular Dressing, and OD Straight Dressing.
• Size: 28x10x5,28x10x5
• Feature: Strong Structure, Finished, Fine
• Type: New
• Country of Origin: India,India

Blade-type dressers are ideal for applications where consistent surface finish and longer life are important. They can be used for profile Generation Side Dressing, Angular Dressing, and OD Stright Dressing.

In crown type diamond dresser tool diamond are set in a circular crown at right angle to the operating plane. This dresser is used in cylindrical grinders two or more diamonds come in contact with the wheel the work load on the diamonds is divided.we are manufacturer of crown type diamond dresser tools.
