Pressure Gauges Dealers in Aurangabad

1.Carbide Plug Gauges are normally supplied with GO in Carbide & NOGO in Stabilised Steel. 2.Both can be supplied in carbide as per requirement. 3.MGPL gauges have excellent wall thickness to give desired results. Range 0.5 to 8 mm Reversible type design 8 to 40 mm Taper shank design 40 to 60 mm Trilock Design 60 400 mm Plate tyhpe Plug Gauge 4.Extra lenght up to 100 mm can be supplied as per requirement.

Air snaps are designed for those difficult to reach or “between centers” diameter measurements. Often, air snaps gage a part while it is engaged in the machine tool. Also Snap gages are ideal for production settings where specific diametrical or thickness measurements must be repeated frequently with precision and accuracy. Product Information:- Range available from 10 mm to 150 mm with carbide resting pads. Provided with Master Setting Plug (higher & lower). Also offered to suit different makes, as per requirement.

• Brand Name: mitutoyo
• Material: Stainless steel
• Accuracy: +/- 0.018 mm
• Resolution: 0.01 mm
• Range (mm): 50-160 mm
• Bore Depth in mm: 141 mm
• Indicator Code: 2308-10 FA
• Dial Reading: 10 mm
• Repeatability: 0.003 mm

We bring to you highly advanced Digital Pressure Gauge for a wide range of industrial applications. Robust, precise digital indicator and proven sensor technology are the highlights of our Digital Pressure Gauge. This device features a compact LCD display and is an exceptional offering when rated on design, software, pressure sensor connection, pressure range, battery contacts and accuracy. Digital pressure gauge features : 4 digit LCD display Accuracy : ± 0.25% or ± 1% Range : vacuum to 600 bar Can display max and min value Different pressure units selectable Different thread size options

• Material: Carbide
• Range: L/L1

Bore gauge, Ring Gauges are ideal for measuring outside diameter of work pieces. A ring gauge is also effective to check out of roundness on the higher side. A master setting ring is used as a standard to set bore gauges, which can then be used to determine deviation from the master size.

• Size: As Per Component Drg
• Type: Relation Gauge
• Material: Alloy Steel
• Shape: As Per Requirement
• Grade: EN353
• Feature: Robust Design,Unmatched Quality,Fine Finish,High Durability,Perfect Design
• Condition: New
• Frequency: NA
• Power: NA
• Country of Origin: India
• Surface: Coated

Offered Tungsten Carbide Ring Gauges with GO member in Carbide and NOGO member in Steel.     NOGO member can be supplied in Carbide as per requirement.     Undertakes manufacturing of special length Ring Gauges as per customer requirement.     Manufactures in Carbide for 6-60mm range & in Steel 6-100mm range.     Supplied with proper marking of GO and NOGO sizes, NOGO identification.

• Type: Digital Air Gauge
• Application: Measuring dimensions
• Color: Black, White
• Feature: Easy To Fit, Perfect Strength, Robust Construction
• Display Type: Digital
• Measuring Range: 10MM to 100MM
• Least Count: 0.0005 mm

• Production Capacity: 200nos/Month

With the assistance of skilled associates and brilliant packaging system, we are able to provide damage-free products to the clients as we wrap them using the high-quality material. As a trusted name, we strictly follow all quality measures and cross-check every product at different stages. We deal in Steel Snap Gauges which are made of the finest quality metal and are available in different sizes.

Owing to our experience, we have been successful in catering the requirements of our esteem clients by offering a wide range of Diaphragm Gauges. This wide range of Diaphragm gauges are offered by us in variegated custom-designed models to meet the variegated requirements of our clients. Salient Features :   -   Durability  -   Efficiency and accurate dimension  -   Reliable performance  -   Requires low maintenance  -   Compact designs

• Country of Origin: Made in India
• Brand Name: Baumer
• Dial Size: 4 to 6 inch
• Operating Pressure: 15 kg/cm2 (without thermowell)
• Over Range Limit: 110 % of full scale
• Stem Diameter: 8 mm
• Process Connection: 1/2 BSP (M) fixed
• IP Rating: IP65
• Measuring Range: 10 to 290 Degree Celsius
• Stem Length: 200-350 mm

We are offering pressure & temperature gauges are in high demand for its utility in automobile, pharmaceuticals, sugar, packaging, distillery industries. The sourcing process of the pressure & temperature gauge, are supervised by a team of highly skilled experts. The pressure & temperature gauges are known for high strength, durability and easy fabrication properties. Clients can obtain from us pressure & temperature gauges at rock bottom prices.

we are offering gauge.

"Mikronix" introducing Angle Slip Gauges as per IS : 6231 - 1971 , designed for the inspection and calibration of angle, tapers, indexing plates, rotary scales, clinometers, dividing heads, rotary tables etc. Materials Angle Gauge Blocks are made from High Carbon High Chromium Steel which has the properties of aging stability in dimensions and wear resistance. The working surfaces are hardened to 800HV. Also Angle Gauge Blocks available in Tungsten Carbide. Scope These angle gauges together with the square block used to obtain any angle between 0 and 360 degrees in steps of 6 seconds. Special Features • Accuracy measurement of any angle • No cumulative errors of division. • Wringing property similar to slip gauges. • High degree of reflectivity which enables them to be used with an autocollimator.

• Features: Dimensional accuracy, Supreme finish, Excellent strength

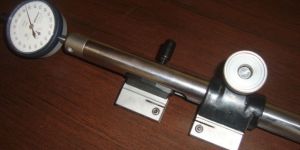

FINE ADUJSTIBALE OD CHECKING GAUGE, MULTI GAUGE RANGE 30 MM TO 1200 MM
