Storage Drawer Dealers in Aurangabad

• Type: Roller Dresser
• Application: Whole Range of Wheel Dressing Operation
• USD Prices: USD 15.00 - USD 25.00

These are recommended for use on applications preferably where single point diamonds are exposed to operational risks and also where frequent heavy stock removal is contemplated. these tools are intended for total use and no resetting is necessary.

• Material: Steel
• Color: Multi Color
• Appearance: Modern
• Use in: Home, Office etc.
• Surface: Polished

By keeping in mind quality as the topmost concern, we procure raw materials only from the well-known sources present in the market. Thus, we ensure high-grade products to the clients. Well documented, secure, and practical, our payment procedures are client friendly. We offer our clients with different online and traditional options to make payments and ensure they are convenient.

• Material: Mild Steel
• Color: Metalic
• Application: Industrial Use
• Feature: Strong Structure
• Country of Origin: India,India

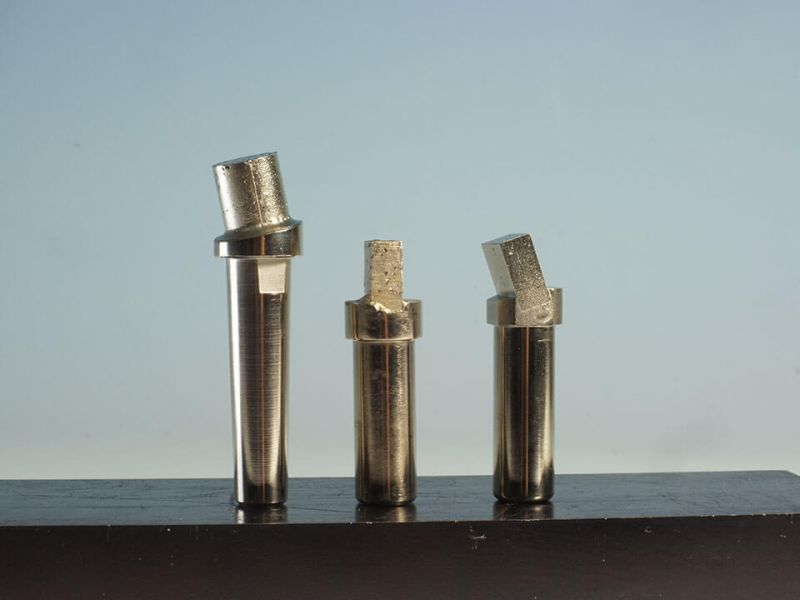

Instructions for Use : Normal dressing speeds are used. A plentiful supply of coolant should be provided both before and during dressing to prolong dresser life. The diamond grit impregnated cutting face of the dresser should be set at an angle of 90° to the grinding wheel to be dressed, so that all the cutting edges of the diamonds grit are able to make contact with the wheel face.

• Depth: 0.01-0.04 mm.

Multipoint Diamond Dressers consist of number of natural diamonds of a good crystal character fixed into a special wear resistant bond. The diamonds can be arranged in different pattern in single layer or multiple layers depending upon the field of operation. Several diamond points in contact with the wheel face, reduce the unit pressure on each point resulting in a longer tool life with full utilization. Multipoint dressers are used for large wide grinding wheels

The Single Layer Cluster Diamond Dresser, which we offer, is suited for replacing large single points. In this Single Layer Cluster Diamond Dresser more than a single diamond is in contact with wheel, hence dividing the work load. These Single Layer Cluster Diamond Dressers are less expensive than per carat large stones. We can also cater to the specific drawings of clients while making these Single Layer Cluster Diamond Dressers. Details : The clusters consist of 3, 5, 9, 13 or 17 small diamond set in a variety of patterns for dressing larger or coarser and harder wheels.

The original and the most basic dressing is the single point process, performed by a Single Point Diamond Dresser. Single Point Diamond Dresser, that we offer, can provide a very accurate profiling of the wheel, and is the simplest system, not requiring any special device. In this type, dressers with a selected diamond crystal mounted on a shank. The point of the set diamond is concentric with the shank. In wheel dressing by means of Single Point Diamond Dresser, normally a depth of cut of about 0.02-0.05 mm and a rapid traverse is applied till the wheel becomes true. For finishing, the depth of cut is reduced to 0.01-0.02 mm and the traverse is reduced to about 0.1 m/min. For dressing diamonds, normal working speed of grinding wheel is applied. The Single Point Diamond Dresser should be attached at an angle of 10°~15° from the horizontal axis of the grinding wheel. Single Point Diamond Dresser is highly suitable to fine-grain grinding wheels and small diameter grinding wheels, also suitable for larger diameter grind wheels with small widths. Single Point Diamond Dresser, available with us, is nowadays used mostly in very cheap, simple, general purpose machines or to obtain complex profiles in low to medium production applications. The selection of the diamond dresser (Carat) depends on the grit grade and the type of abrasive contained in the grinding wheel. Hence, while dressing the wheel of larger grain size, the size (Carat) of the diamond is correspondingly increased. Our re-settable tools have two or more usable points and can be sent back to us for expert resetting. Grades Available Commercial (C)Four Facetted (FF)Natural Point (NP)

JPT Produces Blade Type diamond dressers in Grit Type and Needle Type Diamonds. Blade type diamond dressers can be a combination of single point diamond dressers and multipoint diamond dressers. It is used in straight dressing and profile dressing.

We are offering Multi Point Diamond Dressing tools.

Specifications: * material: natural & synthetic diamond * length: 30 mm, 40 mm, 45 mm, 50 mm, 60 mm * size: 12*100 mm 12*150 mm * diamond size: 0.15 ct â?? 6 ct.

jpt produces blade type diamond dressers in grit type and needle type diamonds. Blade type diamond dressers can be a combination of single point diamond dressers and multipoint diamond dressers. It is used in straight dressing and profile dressing. importance of thickness (t) of plate:the bigger the volume to be removed the bigger is the blade dressers t (in mm) should be chosen. types: needle type blade dresser (nbd)in this blade type diamond dressers, needle shaped diamonds are carefully selected and set manually in an appropriate pattern in several layer's. It is equipped with high quality of diamond needles and set in proper scheme. Use for larger window and longer dressing. grit type blade dresser (gbd)in this blade type diamond dressers, grit type block diamonds are set according in proper scheme. It's a manual process of setting the diamonds. This blade is made for extremely long service life and used in a high precision dressing application. blade type dresser with mcd and cvd diamonds as mcd and cvd diamonds are manmade diamonds, jpt produces the same as per the customer enquiry and specifications.   there must be a perfect fit between the holder of the diamond dressing tool and the dressing    device. Otherwise dimensionally stable dressing with a true profile is not possible.  cooling improves the dressing results considerably and is mandatory for exacting dressing requirements.    a strong and continuous flow of cooling medium must be fed to the contact zone prior to the begining    of the dressing process.  dressing is performed at a normal or reduced grinding wheel speed.  infeed increments of up to 0.03 mm per dressing operation are possible.

Additionally, our specialized engineers and technical crew can fabricate our range to dress specific forms into aluminum oxide and silicon carbide grinding wheels, which in turn allows for very high precision grinding. For guaranteeing maximum customer satisfaction, we also design our array of Rotary Dressers in different technical configurations and specifications, and also suitably manufacture them in congruence with desired application requirements of the end-user.

• Color: Red
• Material: HEAVY STEEL
• Item Code: KEN5945705K
• Usage/Application: TOOL ROLLER CABINET
• Size: 1067X458X1007 mm

For the accurate profiling of grinding wheel only chisel tools are preferred for these operation. These Chisel Type Diamond Dressers are manufactured with specially selected higher quality natural diamonds, which are used on Diaform, Akuform & similar machine.
