Zawar Tools Bansilal Nagar, AURANGABAD, Maharashtra

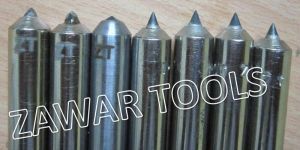

We are offering single point diamond dressers. The original & most basic dressing is the single point process, performed by a single diamond tip. It can provide a very accurate profiling of the wheel, and is the simplest system, not requiring any special device. In this type, dressers with a selected diamond crystal mounted on a shank. The point of the set diamond is concentric with the shank. in wheel dressing by means of single point dresser, normally a depth of cut of about 0.02-0.05 mm and a rapid traverse is applied till the wheel becomes true. For finishing, the depth of cut is reduced to 0.01-0.02 mm and the traverse is reduced to about 0.1 m/min. For dressing diamonds, normal working speed of grinding wheel is applied. The diamond dresser should be attached at an angle of 10~15 degrees from the horizontal axis of the grinding wheel. on the negative side the dresser has short life due to the small size of the tip. A single point diamond should not be allowed to become dull, as it will produce a closed surface on the grinding wheel, which affects the grinding wheel performance. these dressers are highly suitable to fine-grain grinding wheels and small diameter grinding wheels, also suitable for larger diameter grind wheels with small widths. Single point dressers are nowadays used mostly in very cheap, simple, general purpose machines or to obtain complex profiles in low to medium production applications. the selection of the diamond dresser(carat), depends on the grit grade & the type of abrasive contained in the grinding wheel. Hence, while dressing the wheel of larger grain size, the size(carat) of the diamond is correspondingly increased. we offer single point diamond dressers in various weights with three grades. Commercial(c), four facetted(ff), natural point(np). Our re-settable tools have 2 or more usable points and can be sent back to us for expert resetting.

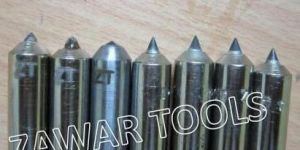

The original and the most basic dressing is the single point process, performed by a Single Point Diamond Dresser. Single Point Diamond Dresser, that we offer, can provide a very accurate profiling of the wheel, and is the simplest system, not requiring any special device. In this type, dressers with a selected diamond crystal mounted on a shank. The point of the set diamond is concentric with the shank. In wheel dressing by means of Single Point Diamond Dresser, normally a depth of cut of about 0.02-0.05 mm and a rapid traverse is applied till the wheel becomes true. For finishing, the depth of cut is reduced to 0.01-0.02 mm and the traverse is reduced to about 0.1 m/min. For dressing diamonds, normal working speed of grinding wheel is applied. The Single Point Diamond Dresser should be attached at an angle of 10°~15° from the horizontal axis of the grinding wheel. Single Point Diamond Dresser is highly suitable to fine-grain grinding wheels and small diameter grinding wheels, also suitable for larger diameter grind wheels with small widths. Single Point Diamond Dresser, available with us, is nowadays used mostly in very cheap, simple, general purpose machines or to obtain complex profiles in low to medium production applications. The selection of the diamond dresser (Carat) depends on the grit grade and the type of abrasive contained in the grinding wheel. Hence, while dressing the wheel of larger grain size, the size (Carat) of the diamond is correspondingly increased. Our re-settable tools have two or more usable points and can be sent back to us for expert resetting. Grades Available Commercial (C)Four Facetted (FF)Natural Point (NP)

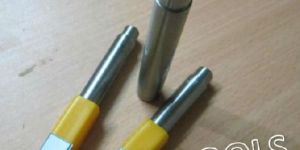

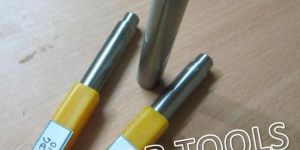

We are offering multipoint impregnated bond diamond dressers. in these dressers fine diamond grains fixed into the required shape and dimensions using a metallic bonding material, and attached to a shank. Soft bond dresser is for adjusting the surface and the form of the abrasive grinding wheel for cylindrical applications and it can cleanly adjust the grinding wheels with sharp shapes. Hard bond dresser is suited to center-less grinding of large size grinding wheels and works evenly on the grinding wheel with great cost-performance. These dressers are more convenient than others as there is no need to rotate these dressers periodically. as the diamond powder is spread evenly throughout a supper hard alloy. This powerful dresser is applied for center less grinding wheels and other large size grinding wheels in surface and cylindrical grinding machines, as compared with traditional single point diamond dressers.

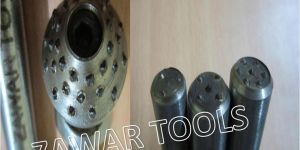

We are offering multipoint cluster type diamond dresser. In this variety, dressers with several comparatively small and uniform diamonds mounted in one shank. Dressing force is spread across multiple diamond points, achieving longer tool life, avoiding early tool failure and allowing fast dressing. These dressers are resistant to shock & impact. as the size/grain size of the wheel increases, diamond dressers with big stone size required. Smaller stones cost much less than the larger ones, hence the smaller stones features extensively in multipoint dressing tools. The cluster arrangement has several stones on the face of the tools which gives circular pattern. these dressers are particularly suit to use in rough finishes such as conical grinding, inner surface grinding, center-less grinding, dressing of larger, coarser, harder wheels and the side of grinding wheels. With wide wheels, such as those on the center-less grinding machines, the multi-diamond arrangement having five or more diamonds in particular arrangement, ensures the long life to the dresser also gives first class treatment to the wheel itself and increases the production efficiency of the wheel.

Brand Name : ZT

Type : Grinding wheel dresser

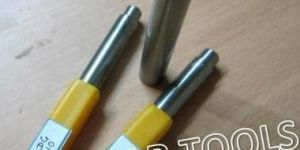

In Impregnated Diamond Dressers, fine diamond grains are fixed into the required shape and dimensions using a metallic bonding material, and attached to a shank. Soft bond dresser is for adjusting the surface and the form of the abrasive grinding wheel for cylindrical applications and it can cleanly adjust the grinding wheels with sharp shapes. Hard bond dresser is suited to center-less grinding of large size grinding wheels and works evenly on the grinding wheel with great cost-performance. These dressers are more convenient than others as there is no need to rotate these dressers periodically. As the diamond powder is spread evenly throughout a supper hard alloy, powerful Impregnated Diamond Dresser is applied for center less grinding wheels and other large size grinding wheels in surface & cylindrical grinding machines, as compared with traditional single point diamond dressers. Customized Impregnated Diamond Dresser as per customer specifications are also manufactured by us.

We are offering electroplated diamond, cbn points, pins etc. we at zawar tools manufacture precision electroplated grinding pins. Featuring hardened steel shanks, our pins utilize specially selected diamond and cbn abrasives as well as superior bonding technology for exceptional cutting action and life. popular sizes of both electroplated and metal bonded pins are carried in stock, ensuring fast delivery.

Brand Name : ZT

The Diamond Needle Files are available as individual files in different shapes, such as flat, triangle, knife, square, round, half round, etc. and in handy assortments. Normally, we have three grades for Diamond Needle Files̢۪ quality (as per grit size), as fine, medium and coarse. For best results, Diamond Needle Files should be used with light contact pressure. The protrusion and uniformly high concentration of the diamond grit on the surface of Diamond Needle Files ensures smooth, free-cutting action and high depth of cut. The Diamond Needle Files are cleaned with a soft toothbrush after use. Diamond Needle Files, that we offer, are used virtually for any precision filing job.

We are offering diamond needle files.the diamond files are available as individual files in different shapes such as flat, triangle, knife, square, round, half round etc. Sizes and handy assortments. Normally we have three grades for file quality (as per grit size) as fine, medium & coarse. for best results use these files with light contact pressure. The protrusion and uniformly high concentration of the diamond grit on the file surface ensures smooth, free-cutting action and high depth of cut. The files are cleaned with a soft toothbrush after use. these files are used virtually for any precision filing job.

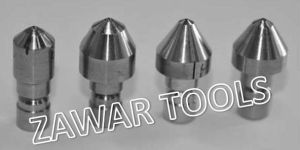

We are offering diamond indenters. Diamond indenters have vickers rockwell and standard models. It is applied to standard metrological service and appraisal of material hardness and sclerometer. These indenters have an octahedron diamond mounted at an angle of 120 degrees, so as to deliver accurate results without any errors. diamond indenters are primarily used for conducting hardness testing of various metals and metallic equipments.

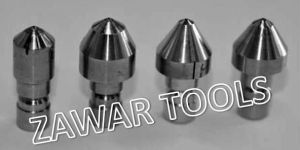

Diamond Hardness Indenters have Vickers Rockwell and Standard models. Diamond Hardness Indenters are applied to standard metrological service and appraisal of material hardness & sclerometer. Diamond Hardness Indenters, that we offer, have an octahedron diamond mounted at an angle of 120°, so as to deliver accurate results without any errors. The Diamond Hardness Indenters are primarily used for conducting hardness testing of various metals and metallic equipments.

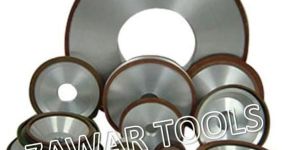

We manufacture a full range of Diamond Grinding Wheels and CBN Wheels for ultrafine finish of some exotic materials. Diamond Grinding Wheels, that we offer, are suitable for tungsten carbide, ceramic oxides, mixed carbide ferrites, graphite cast iron, non-ferrous and non-metallic materials. We make available customized Diamond Grinding Wheels as well.

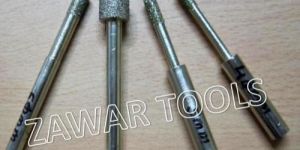

We manufacture precision electroplated Diamond Grinding Pins. Featuring hardened steel shanks, the Diamond Grinding Pins utilize specially selected diamond and CBN abrasives, as well as superior bonding technology for exceptional cutting action and life. Popular sizes of both, electroplated and metal bonded Diamond Grinding Pins are carried in stock, ensuring fast delivery. Customized Diamond Grinding Pins as per customer specifications are also manufactured by us.

We are manufactures a full range of diamond & cbn wheels. diamond, cbn wheels for ultrafine finish of some exotic materials. Diamond wheels are suitable for tungsten carbide, ceramic oxides, mixed carbide ferrites, graphite cast iron, other non-ferrous, non-metallic materials.

Brand : ZT

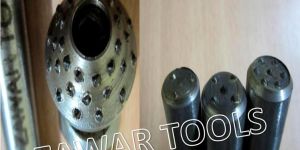

In this variety, dressers with several comparatively small and uniform diamonds are mounted in one shank. Dressing force is spread across multiple diamond points, achieving longer tool life, avoiding early tool failure and allowing fast dressing. Cluster Type Diamond Dressers are resistant to shock and impact. As the size/grain size of the wheel increases, diamond dressers with big stone size are required. Smaller stones cost much less than the larger ones, hence the smaller stones features extensively in Cluster Type Diamond Dressers. The cluster arrangement has several stones on the face of the tools which gives circular pattern. The Cluster Type Diamond Dressers are particularly suited to use in rough finishes, such as conical grinding, inner surface grinding, center-less grinding, dressing of larger, coarser, harder wheels and the side of grinding wheels. With wide wheels, such as those on the center-less grinding machines, the multi-diamond arrangement having five or more diamonds in particular arrangement, ensures the long life to the dresser also gives first class treatment to the wheel itself and increases the production efficiency of the wheel. Clients can avail Cluster Type Diamond Dresser from us in customized dimensions as well.

We are offering circlips, retaining rings. This circlip often used in assemblies subjected to strong centrifugal forces, is also secure against high rotational speeds. They are either fitted through bores or over the shaft grooves. Lugs with holes are provided for rapid fitting or removal with circlip pliers.

We are offering chisel type diamond dressers.in these dressers, a single high quality diamond that has been polished to the required shape and dimensions to dress specific forms into conventional abrasive grinding wheels quickly and accurately. Forming dressers have a wedge shape with certain angle to ensure that the corner of the diamond does not touch the grinding wheel. chisel diamond tools are made with an included angle & a specific radius. The included angle begins with 15 degree and up to 105 degree. The main included angles are 40 & 60 deg. The diamond chisel is normally not made sharp or a flat on its face, it should have radial surface e.g. 0.125, 0.25, 0.5 mm. chisel diamond tools are usually selected for dressing small concave radii. Chisel dressing tools are not recommended for superabrasive wheel dressing. There the superabrasive & their bond don’t lend themselves for this chisel tool truing, dressing & forming procedure.

Type : grinding wheel dresser

Brand Name : ZT

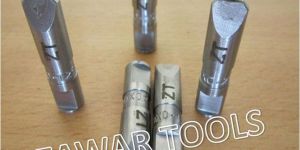

In Chisel Type Diamond Dressers, a single high quality diamond that has been polished to the required shape and dimensions to dress specific forms into conventional abrasive grinding wheels quickly and accurately. Chisel Type Diamond Dressers have a wedge shape with certain angle to ensure that the corner of the diamond does not touch the grinding wheel. Chisel Type Diamond Dressers are made with an included angle and a specific radius. The included angle begins with 15° and up to 105°. The main included angles are 40° and 60°. The Chisel Type Diamond Dressers are normally not made sharp or a flat on its face. Chisel Type Diamond Dressers should have radial surface, e.g. 0.125, 0.25, 0.5 mm. Chisel Type Diamond Dressers, that we offer, are usually selected for dressing small concave radii. The Chisel Type Diamond Dressers are not recommended for super-abrasive wheel dressing. The super-abrasive and their bond don’t lend themselves for Chisel Type Diamond Dresser truing, dressing & forming procedure.

We are offering blade diamond dressers.in these dressers, there is use of small rice grain shaped diamonds mounted in a narrow width, which provides far better forming capabilities. The number of rows of diamonds can be changed as per requirement. blade type multi-point diamond dressers are designed for using in line, step, radius and profile adjustment in cnc grinding. Blade type multi-point diamond dressers can be used till the end of their life without any repairs, making them very economical.

In Blade Type Diamond Dressers, there is use of small rice grain shaped diamonds mounted in a narrow width, which provides far better forming capabilities. The number of rows of diamonds can be changed as per requirement. Blade Type Multi-Point Diamond Dressers are designed for using in line, step, radius and profile adjustment in CNC grinding. Blade Type Diamond Dressers can be used till the end of their life without any repairs, making them very economical. We can offer customized Blade Type Diamond Dressers as well.

We are offernig dowel pins. Used in machineries for alignment and also to prevent motion or slippage. They are extremely used in industries like automobile, textiles, paper mills, pumps, etc.
