Agharia Electricals Pvt. Ltd. Kanodar, Banaskantha, Gujarat

Product Advantages and Specification LEADER 4” multistage pumps with new hydraulic design offers high level of performance, mechanically build to last long and provide un-interrupted service. Suction and discharge outlets are made of Cast Iron with nickel coating. Also available in Stainless Steel on request. Carefully designed impeller and bowl are made of resin impregnated thermoplastic. This material ensures high performance and longer life cycle of pump. Pump casing in SS202 /SS304. Pump shaft in SS410. Hex rubber bush and Stainless Steel Sleeve with hard chrome increase the wear resistance of this pump against sand. Efficiently designed check valve guarantees trouble free service. even in most critical application. Cable guard and strainer in stainless steel. Pumps available in radial and mixed flow designs. Pump-Motor connection according to NEMA standard.Available Operating range: Head range : 6 mtr. to 280 mtr. Flow rate : l0 lpm to 500 lpm. Immersion : 1 mtr. Minimum. Minimum level sand content: 50gm/m3. Application: These pumps are for domestic, agriculture & industrial usage 4 " Submersible Motors (WATERFIELD) 4” LEADER motors are excellence in engineering & high efficiency electrical design ensures maintenance free long life in most critical applications and are available in single and three phase models. 4” LEADER Water Lubricated Motors are rewindable Upper / Lower bracket and motor base are cast iron/SS 410 Motor shaft is of SS 420 grade or above Stator shell is of SS 202 /304 Winding wire poly propylene with insulation Class-B Flange and shaft protrusion as per NEMA standard AVAILABLE Degree of protection: lP 68 Max water temperature: 50°C Start/H: Max 30 Allowable voltage variation: +6%/-10% Max depth immersion: 250m Mounting : vertical / horizontal Single phase motors are capacitor start capacitor run Motor cable length: 3m / 3 core Versions Single Phase 0.25 kW to 2.2 kW, 220-230 Volt / 50Hz Three Phase 0.55 kW to 5.5 kW, 380-400 Volt /50 Hz Other voltage and frequencies are also available on demand

We are Offering Submersible Pump Motor Set.

We are Offering Submersible Pump,S S Pumps Motors.

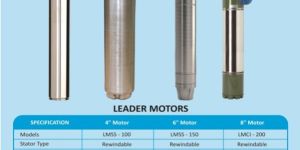

stainlesssteel submersible pump& motor

OUR PRODUCT RANGE IN SUBMERSIBLE MOTORS AND PUMP SETS 1. 4 Inch Submersible Motor Water Lubricate Rewindable with Cast Iron or Stainless steel Parts. a. 1 Phase 220110 Volts, 60 Hz, 1 HP to 5 HP. b. 1 Phase 220 Volts, 50 Hz, 1 HP to 5 HP. c. 3 Phase 220380 Volts, 60 Hz, 1 HP to 7.5 HP. d. 3 Phase 380415 Volts, 50 Hz, 1 HP to 7.5 HP. 2. 6 Inch Submersible Motor Water Lubricate Rewindable with Cast Iron or Stainless Steel Parts, Like Franklin, Subtek, KSB and Other International type. a. 3 Phase 220380 Volts, 60 Hz, 4 HP to 50 HP. b. 3 Phase 380415 Volts, 50 Hz, 4 HP to 50 HP. 3. 8 Inch Submersible Motor Water Lubricate Rewindable with Cast Iron or Stainless Steel Parts, Like Franklin, Subtek, KSB and Other International type. a. 3 Phase 220380 Volts, 60 Hz, 10 HP to 125 HP. b. 3 Phase 380415 Volts, 50 Hz, 10 HP to 125 HP. 4. 4 Inch Pump with S.S. Casing and Cast Iron Top Bottom, Noryl Glass field, poly carbonate Impeller and Diffuser SP 2,4,5,7,10,12,18. 5. 6 Inch Pump with S.S. Casting Impeller and cast iron Bowl, Top Bottom Accessories Mix Flow and Redial flow. 6. 6 Inch Pump With S.S.304 Foundry Casting Bowl Impeller and Top Bottom Accessories, Mix Flow and Radial Flow. 7. 8 Inch Pump with S.S. Impeller and Cast Iron Bowl, top bottom Accessories. 8. 8 Inch Pump with S.S. 304 Foundry Casting Bowl Impeller and top Bottom Accessories, Mix Flow and radial flow. 9. Portable sewage pump up to 2 HP, 13 Phase, 6050 Hz. 10. Horizontal Submersible Hi Lifter Pumps to lift water from under ground tank, canal, Open well, fountain, Hi rise Building etc.

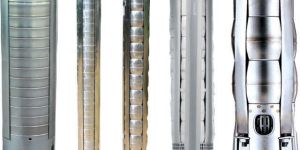

Ss pumps 46810inchpump with s.s.304 fabricated sheet metal technology lsp 1to 215 s.s.304 foundry casting 6 810inch pump with s.s.304 foundry casting bowl impeller and top bottom accessories, mix flow and radial flow.

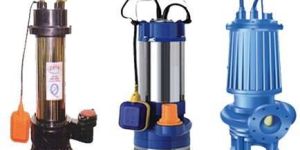

  LEADER High Speed Light Duty Sewage and effurent submersible pump is vertical single casing pump with free flow semi open two vane impeller to handle suspended solids. LEADER High Speed Light Duty Sewage and effurent submersible pump is vertical single casing pump with Non Clog S-channel impeller for handling of unscreen sludge & solids. Squirrel cage induction motor specially manufacture by AEPL with 'F' Class insulation, suitable upto 155 C (155 F) for 15 starts per hours. 'AS' pumps are also available with cooling jacket arrangment for dry pit as well as installation with different type of quick out installation. SERIES LP : Technical Specification Motor : Two pole squireel cag sub type induction motor. Speed : 3000 RPM Connection : DOL. Range : 1.0 HP to 10.0 HP. Temperature : 45C Voltage : 415 V, 3 Phase, 50 Hz215 V, 1 Phase, 50 Hz (Upto 3.0 HP)110 V, 3 Phase, 60 Hz110 V, 1 Phase, 60 Hz Class of insulation : F Class. Concentration : Upto 50 MM. Material of Construction Motor body : Stainless Steel of C.I. Cooling Jacket : Stainless Steel. Pump Casing : C.I. FG 260 Shaft : Stainless Steel. Impeller : C.I / S.S. Mech. Seal : Bidirectional twin Mechanical seal with various face combination Strainer : S.S. with 6 or 10 MM round holes. Hardware : S.S. Cable : PVC insulated double sheathed copper conductor flexible cable. Special material of construction available on request. Application Removes all shorts of industrial waste waters, suitable to handling screen sewage, Cleaning of Manholes / Treaches, Removal of kitchen wastes SERIES LS : Technical Specification Motor : Four / Six Pole continuous duty dry type squirrel cage induction motor. Speed : 1500 / 1000 RPM Connection : DOL, Star Delta ATS Range : 1.0 HP to 50.0 HP. Temperature : 45C (Also available for higher temperature on request) Voltage : 415 V, 3 Phase, 50 Hz110 V, 1 Phase, 60 Hz Class of insulation : F Class. Protection : IP 68. Concentration : Upto 125 MM. Concentration : Upto 40% Material of Construction Motor body : C.I. FG 260 Pump Casing : C.I. FG 260 Oil Chamber : C.I. FG 260 Quick Out coupling : C.I. FG 260 or S.S. Shaft : Stainless Steel Impeller : C.I / S.S. Mech. Seal : Bidirectional twin Mechanical seal with various face combination Hardware : S.S. Cable : PVC insulated double seathed copper conductor flexible cable. Special material of construction available on request. Application Remove of Unscreen sewage, Handling of treeted iffulated with slurries and solids, Transfer of suspended solids, Pumping of sludge, Pumping of waste and storm water

We are Offering Submersible Motors,Ss V 8 Pump.

Country of Origin : India

Type : Submersible Pump Motor Body

We are Offering Submersible Motors Pumps& Motor.

Country of Origin : India

Type : Submersible Pump Motor Body

Certification : CE Certified

Application : Deep Well Pumping

Introduction : AGHARIA ELECTRICALS PVT. LTD. is an ISO 9001:2008 Company founded in year 1985 is a synchrounous with manufacturing and exporting of Submersible pumps, sewage and drainage pumps under the brand name - LEADER.   Production & Manufacturing Capicity : Today AGHARIA ELECTRICALS PVT. LTD. stands as one of the reputed manufacturer in the country to have wide range of products to cater all the segments of the society in the india and abroad. Compromising of submersible pumps suitable for all sizes of borwell, opewell submersible pumpsets, sewage and drainage pumps. Exports : Presently company is focusing on manufacturing submersible motors and pumps with internation neema standards and STEEL FEBRICATED pump sets, and exporting to various African, Middle East and Asian countries. Presentation & Registration : Apart from meeting needs of the private sectors, LEADER brand is well presented in various Government Department, Local Government bodies, Irrigation Departments, etc...

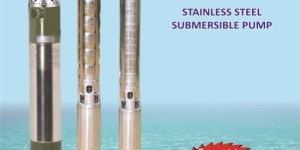

We are offering submersible pumps. Product advantages and specification suction, stage casing and discharge outlet in cast iron and also available in stainless steel on request. Impeller available in ss410 ss304 ss316 for radial and mixed flow. Sleeves are of ss410 reinforced with chromium to increase wear resistance against sand. Pump shaft in ss410. Bush for shaft guide in antifriction rubber for high antiwear resistance. Non return valve (nrv) of ss304. Cable guard and strainer in stainless steel. Pump-motor connection according to nema standard available minimum level of water on immersion is 1 metre. 6� and 8� motor connection available. Complete stainless steel pump available on request. Operating range: head range : 11 mtr to 282 mtr. Flow rate : 200 lpm to 3500 lpm. Immersion : 1 mtr. Minimum.li> minimum level sand content: 50gmm3. Application: these pumps are for domestic, agriculture & industrial usage

we are offering horizontal sub mono pumps. openwell submersible pumps operates under water, hence no foot valve - no priming - no suction problems- less possibility of burn-out of motor. long life due to, cast iron construction - water lubricated journal & thrust bearings - dynamically balanced all rotating parts - motor designed to withstand wide voltage fluctuation. applications for clean liquids without abrasives, which are non-aggressive for the pump materials. (solids content up to 0.2%) canals river belt irrigation. for water supply. fountains. for fire fighting applications. for civil and industrial applications. for heating, cooling, air - conditioning and circulation plants. motor 2-pole submersible motor canals river belt irrigation. single phase: 230v+5-15% three phase: 400v+5-15% protection ip 68 operating conditions liquid temperature up to 35°. ambient temperature up to 50°. minimum submergence depth 0.5mtr. continuous duty. performance range flow rate up to 950 lmin. (57 m3h) dynamic head up to 42 m.

Brand Name : LEADER

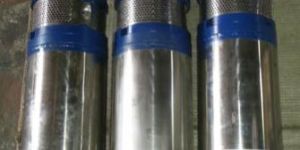

We are offering hi-lifter pumps. leader hi-lifter stainless steel body horizontal submersible pump sets are reliable and efficient the manufacturing standards is iso-9001 of highest quality. The special design and salient technical features ensures efficient operation even at the high heads in lower hp and low voltage suitable for lifting water from open well, underground tanks, canals and fountains. applications the leader hi-lifter horizontal submersible pump can supply water for high rise building water supply, fountains, irrigation, rural & urban drinking water supply industrial and commercial water supply. Farm houses, air conditioners, agriculture garden and drip irrigation uses. technical specification motor and pumps body of stainless steel to resist corrosion and for longer life. All rotating parts of motor and pump are dynamically balanced to ensure noiseless, vibration free operation and long bearing life. The rotor of motor is made with e.c. Grade copper for longer life and low consumption of power. The pump is specially designed for high head and high discharge as compared to other pumps. Light weight and hence easy to transport and install.

Brand Name : LEADER HI-LIFTER

LEADER HI-LIFTER Stainless Steel Body Horizontal Submersible Pump sets are reliable and efficient the manufacturing standards is ISO-9001 of highest quality. The special design and salient Technical features ensures efficient operation even at the High Heads in lower HP and low Voltage suitable for Lifting water from open well, Underground Tanks, Canals and Fountains. Applications The LEADER HI-LIFTER Horizontal Submersible Pump can supply water for High Rise building water supply, Fountains, Irrigation, Rural & Urban drinking water supply Industrial and commercial water supply. Farm Houses, Air Conditioners, Agriculture Garden and Drip Irrigation uses. Technical Specification Motor and Pumps body of Stainless Steel to resist corrosion and for longer life. All rotating parts of motor and pump are dynamically balanced to ensure noiseless, vibration free operation and long bearing life. The rotor of motor is made with E.C. grade copper for longer life and low consumption of power. The pump is specially Designed for High Head and High Discharge as compared to other pumps. Light weight and hence easy to transport and install.

We are offering cast iron pumps. Product advantages and specification suction, stage casing and discharge outlet in cast iron also available in s. Steel on request. Impeller in ss 410 or ss 304 for radial and mixed flow. Non return valve (nrv) of castiron. Cable guard and strainer in stainless steel. Pump-motor connection according to nema standard.available. Minimum level of water on immersion is 1 metre. 4’ and 6” motor connection available. Complete stainless steel pump available on request. Operating range: head range : 11 mtr. To 440 mtr. Flow rate : 35 1pm to 1500 1pm immersion : 1 mtr. Minimum minimum level sand content: 50gmm3. Application: these pumps are for domestic, agriculture & industrial usage.

Brand Name : leader

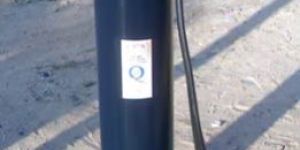

We are offering 8 " submersible motors, 8"leader water lubricated motors are rewindable upper & lower base are available in cast iron and ss 304 or ss 316. Stator shell is of ss202 ss 304 motor shaft is of ss 420 grade or above flange and shaft protrusion as per nema standard available degree of protection: ip 68 max water temperature: 50°c starth: max 30 allowable voltage variation: +6%-10% water lubricated radial and thrust bearing bearings: radial &thrust water lubricated max depth immersion: 350m mounting is vertical horizontal motor cable length 3 m3 core cooling flow: v 0.2 ms versions three phase 7.5 kw to 93 kw, 380-400 volt 50hz three phase 2.2 kw to 30 kw, 460 volt60 hz other voltage and frequencies are also available on demand

Brand Name : LEADER

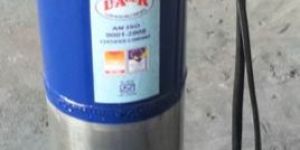

We are offering 8 " submersible motors. 8"leader water lubricated motors are rewindable upper & lower base are available in cast iron and ss 304 or ss 316. Stator shell is of ss202 ss 304 motor shaft is of ss 420 grade or above flange and shaft protrusion as per nema standard available degree of protection: ip 68 max water temperature: 50°c starth: max 30 allowable voltage variation: +6%-10% water lubricated radial and thrust bearing bearings: radial &thrust water lubricated max depth immersion: 350m mounting is vertical horizontal motor cable length 3 m3 core cooling flow: v 0.2 ms versions three phase 7.5 kw to 93 kw, 380-400 volt 50hz three phase 2.2 kw to 30 kw, 460 volt60 hz other voltage and frequencies are also available on demand

Brand Name : LEADER

we are offering 8 " Submersible Motors. 8"LEADER Water Lubricated Motors are rewindable Upper & Lower base are available in cast iron and SS 304 or SS 316. Stator shell is of SS202 SS 304 Motor shaft is of SS 420 grade or above Flange and shaft protrusion as per NEMA standard AVAILABLE Degree of protection: IP 68 Max water temperature: 50°C StartH: Max 30 Allowable voltage variation: +6%-10% Water lubricated radial and thrust bearing Bearings: Radial &Thrust water lubricated Max depth immersion: 350m Mounting is vertical horizontal Motor cable length 3 m3 core Cooling Flow: V 0.2 MS Versions Three phase 7.5 kW to 93 kW, 380-400 Volt 50Hz Three phase 2.2 kW to 30 kW, 460 Volt60 Hz Other voltage and frequencies are also available on demand

Brand Name : leader

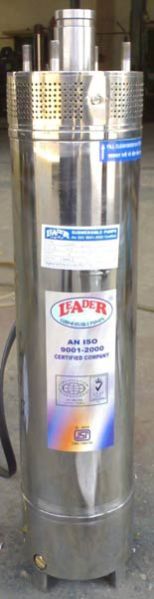

We are offering leader motor.6 " submersible motors (waterfield) 6”leader motor has high efficiency electrical design which ensures lower operating cost & high quality. Radial and thrust bearing allows these motors to operate in most critical condition with trouble free long life. 6"leader water lubricated motors are rewindable upper & lower base are available in cast iron and ss 304 or ss 316. Stator shell is of ss 202 motor shaft is of ss 420 grade or above flange and shaft protrusion as per nema standard available degree of protection: 1p 68 max water temperature: 50°c starth: max 30 allowable voltage variation: +6%-10% water lubricated radial and thrust bearing max depth immersion: 350m mounting is vertical horizontal motor cable length: 3m3 core cooling flow:v 0.2 ms versions three phase 2.2 kw to 30 kw, 380-400 volt50hz three phase 2.2 kw to 30 kw, 460 volt60 hz other voltage and frequencies are also available on demand

Brand Name : LEADER
