Accutech Industrial Metrology Private Limited Bangalore, Karnataka

We are offering x-ray spectrometer. technical specifications model: edx-pocket ⅲ handheld energy dispersive mineral analyzer detector: 13mm 1 electro-cooling si-pin detector excitation source: mini 40kv/50μa x-ray tube, ag anode end window detection time: 10-200 s (handheld or seat) forms: solid, liquid, powder measurable range: s-u 26 elements can be tested simultaneously detection limit: 0.001%～0.01% correction: ag safety: administrator model with in-built password, no operators can use it without authorization data usage: edited inside pda, and stored in pc for saving and printing. Massive storage card is supplied power: operating time of two fully-charged lithium batteries is no less than 8 hours weight: 1.35kg ambient temperature: -20℃－＋50℃； ambient humidity: not less than 85% standard configurations pda/si-pin semi-conductor detector/ amplifier circuit/ x-ray tube and high and low voltage power pda mineral sample analysis software/ lab test stand (optional) super-capacity sd memory card, sd card reader/ shock, pressure & water-proof, suitcase with lock application fields mineral exploration and survey in-situ inspection of rocks, soil, sediments and ores drawing of atlas of mineral resources analysis of crude ore, ore concentrates and tails in washing process determination of grade of ores during the purchase of crude ores and ore concentrate hydrological survey, archeology research and in-field detection

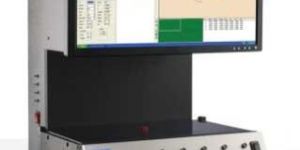

We are offering one touch vision inspection system. onetouch-lv large view digital metrology station for small part quick measurement 40 mm x 30 mm fov 2048 x 1536 image resolution push button to start measurement auto part matching for alignment and skew master part image comparison comparator type direct crosshair measurement all in one, small footprint main dmp-3000 features • support firewire, cameralink, usb2 and other digital camera interface or frame grab- ber for live image display, measurement and annotation. • up to three axes display and measurement. • stage mapping. • advanced edge detection for sub-pixel accu- rate measurement. • cad import and export. • easy dimensional measurement with cad- like graphics. • supports inch, millimeter, mil and micron units, cartesian and polar coordinates. • datum reference frame for alignment and tolerance. • user-defined measurement calculations and functions. • up to 32000 points per feature. • save, open, run and edit part program capa- bility. • group editing. • real-time linked to other applications, such as spreadsheets, spc and best-fit. • custom report. • flexible data format for post processing. • color or monochrome images acquisition, archiving and retrieval. • image annotation and comparison. • international language support. • on-line help. features and functions file • new • open • save • save as • properties • run • run step • run repeat • import • set origin • export • recent files • exit output • format • dde link • save results • print results • send results • edge points • result buffers help • help • about tool • find • teach • copy • test • update • edit • crosshair tool • edge tool • circle tool • arc tool • linewidth tool • ellipse tool • area tool • cross target • rectangle target feature • tool • relative tool • point • line • arc • circle • user feature • gauge ball • gauge diameter measure • edit • distance • circle • linewidth • angle • area • position • circularity • concentricity • straightness • angularity • parallelism • perpendicularity • size • statistics • create result buffer • add result buffer • clear result buffer auxiliary • comment • prompt • calibrate x • calibrate y • set calibration • camera video • live image • capture • open image • import image • histogram • pixel • enlarge • maximize • reference • overlay • subtract • blink • compare • copy image • save image • print setup • print preview • print setup • system setup • lock tool x • lock tool y • calibration • change password • restore password • home construction • zero • frame • offset • project • mirror • rotate • parallel • intersect • bisect • perpendicular • create variable • math view • zoom in • zoom out • zoom window • zoom all • zoom viev • show drawing bar • show annotation • shift graphics • rotate graphics edit • setup • modify • insert • delete • select all • remove last • rename • print • cancel • duplication • set break point • clear break point annotation • color • line width • text • line • arrow • circle • rectangle • ellipse • polygon • curve • ruler

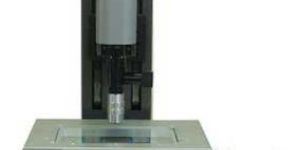

we are a prominent manufacturers, exporters, importers and suppliers of video measuring machine in bangalore (india). The video measuring machines are designed for high speed, high efficiency, high precision and powerful function. The video measuring machine series uses high precision class granite fixed bridged structure for the bracket, along with high precision work-table, in order to ensure the stability and precision of the machine body as long as the high precision of the measuring. working of video measuring machine in motorized/cnc versions, three axes adopt the panasonic ac servo motor system, recognized by the whole industry as the most reliable system. All the movement is controlled by a high speed 32bit dsp controller in order to ensure a reliable high-speed measurement. significant beneficiaries of video measuring machine sony ccd camera for best visual quality & prolonging life navitarusa made zooming device for flawless object magnificationled based high contrast surface illumination system to avoid heat generation on componentsthread less - friction bearing mechanism for linear traverse to avoid backlash troublequick release attachment to minimize table traverse timehigh precision linear guide ways for closer linear accuracy and smooth traverse of axessatin - chrome plated work table to avoid rustiness and esthetic appearance software the measure aid geometrical software has learning function, users just have to measure the work piece manually for once, the software records the measuring process, and this can be used for the repeated measuring. Users do not have to write any program and this largely simplifies the measuring process. It has auto edge detection system to avoid mankind error on measurements. No manual calculation anywhere over the whole measurements of your object. Few of major features of this software are : icon based measuring tools with live graphic window for easy usedirect measurements of elementsgeometrical measuring function via selecting dots directlyessential geometrical measurement & compose geometrical elements for measurementassess the tolerance of form and positionset up coordinates system2d graphics scanningmeasuring data can be guided into ms word, excel and cad file format value added support product accuracy certification by nabl accredited calibration laboratorylocalized service center for quick response on your service queries additional information payment terms : l/c, t/t, western unionpackaging details : export worthy packingdelivery time : 4 weeks

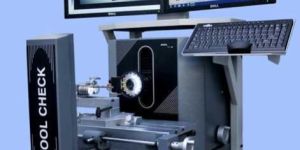

We are offering tool check. accutech horizontal video tool-check horizontal vision measuring machine is a precise high-efficient optical, mechanical and electrical integration measuring instrument, this machine can replace horizontal profile projector completely and widely used in the industries of machinery, module, meter, electronics, light industry etc, so it is one of indispensable measuring instruments in metrology room and workshop. Adopting functional yr-c measuring software, it can high-efficiently measure the profile and surface shape of all complicated work-pieces, such as templates, punching pieces, cams, forming cutters and other tools, cutting tools and parts, as well as terminals, watches, diamond etc. technical specifications: toolcheck -200 x.z axis travel 200*100mm y axis focusing travel 100mm x.z axis resolution 0.001mm accuracy (3+l250)um total magnification 20x�266x ccd 430,000 pixels high definition sony chip ccd measuring software special vision measuring software instrument base 00 grade stable granite base illumination surface and contour illumination both use brightness adjustable led shadowless lamp machine weight 150kgs

We are offering stereo microscope. sturdy stereo microscope with binocular tube, 45° inclined, 360° rotatable interpupillary distance adjustable from 50 - 75 mm magnification in nosepice 1x/3x total-magnification 10x/30 eyepieces swf 10x/23 with eyeshields incident light 12v3w led, variable intensity control. transmitted light 12v/4w led, variable intensity control incident and transmitted light can be used simultaneously. base with frosted glass plate, black/white plate and stage clips. delivery with dust cover and user manual.

the company is one of the prominent manufacturers, exporters, importers and suppliers of one touch vision inspection system in bangalore (india). The one touch vision inspection system, offered by the company, has a large view digital metrology station for small part quick measurement. The one touch vision inspection system is one of the widely used systems owing to its unsurpassed quality and numerous attractive features. features of one touch vision inspection system 40 mm x 30 mm fov2048 x 1536 image resolutionpush button to start measurementauto part matching for alignment and skewmaster part image comparisoncomparator type direct crosshair measurementall in one, small footprintsupport firewire, camera link, usb 2 and other digital camera interface or frame grabber for live image display, measurement and annotationup to three axes display and measurement stage mappingadvanced edge detection for sub-pixel accu- rate measurementcad import and exporteasy dimensional measurement with cad- like graphicssupports inch, millimeter, mil and micron units, cartesian and polar coordinatesdatum reference frame for alignment and toleranceuser-defined measurement calculations and functionsup to 32000 points per featuresave, open, run and edit part program capability. Group editingreal-time linked to other applications, such as spreadsheets, spc and best-fitcustom reportflexible data format for post processingcolor or monochrome images acquisition, archiving and retrievalimage annotation and comparisoninternational language supporton-line help

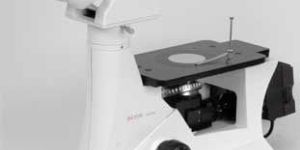

using the latest production techniques and the modern tools and equipment for manufacturing, the company has acquired the status of one of the emerging manufacturers, exporters, importers and suppliers of metallurgical microscope in bangalore (india). The metallurgical microscope, offered by the company, is studded with a large number of features and the company makes a conscious effort to offer the best quality metallurgical microscope to the clients. features of metallurgical microscope main body with 6v30w halogen for 220v/50hz or 110v/60hzquintuple ball-bearing nosepiecelow position coaxial course and calibrated fine focus controlincorporated tension adjustment and safety auto focus stop unitplain stage with glass insert platebuilt-in incident collector system with iris diaphragm, pre centeredpolarization attachment includedcompensation binocular head for infinitive optics, 30o inclined, 360o rotationinter pupillary distance 48 to 75 mmeyepieces high-eye point ewf10x/20 with diopter adjustment and eye shieldsinfinity corrected met ico plan objectivesmet ico² plan 5x/0.12, wd 15.40 mmmet ico² plan 10x/0.25, wd 11.0 mmmet ico² plan 20x/0.40, wd 6.0 mmmet ico² plan 50x/0.75, wd 0.32 mmdelivery with dust cover, filters blue, green, yellow and ground glass, 2 spare bulbs philips 30w and instruction manualoptions : ergo head for infinitive optics, variable inclination from 5o to 35o, 360o rotationinter pupillary distance 48-75 mm; photo/video port for ergo head; compensationtrinocular head; various eyepieces; attachable mechanical stage; auxiliary stages; photo/video adapters; digital cameras; aluminium carrying case; etc.

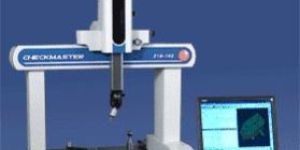

We are offering coordinate measuring machine. the best cmm value anywhere in the world designed for your shop. checkmaster reliability the compact checkmaster is a bench top cmm ideal for lab or production floor. Hardened stainless steel ways and steel scales on steel structures offer uniform linear expansion minimizing thermal errors. The low cost means you can put competent inspection capability in multiple locations throughout your plant. intrinsic accuracy manual cmms we test every cmm before it leaves the factory for repeatability and accuracy, that meets or exceeds the industry standards as defined in ansi b89.4.1a-1998. Our testing includes a repeatability test that exceed a minimum of 150 cycles, often recording a total range of 2.0 µm (0.00008") or better! these stringent targets are maintained without the need for expensive software compensation maps. Our goal is to build the cmm mechanically correct that will deliver the results you expect, year-after-year. every checkmaster is designed and packaged for fast and secure installation by the customer. All key components are protected during shipping by specially designed brackets, that when removed, ensures the cmm is ready for your first inspection. the ideal scanning system not every reverse engineering job requires expensive motorized cmms. The checkmaster using the geomet junior software provides tools such as geotracer which allows you to capture large data data point clouds using low cost hard probes. Ideal for outline tracing! geomet junior the software is preinstalled in the supplied windows xp computer system. One usb connection from the cmm interface is all that is required to complete the system. A user guide is provided with easy-to-follow tutorials including sample inspection programs. Geomet maintains a web site dedicated to geomet. Through this site, you will have the latest access to software upgrades and a full online manual that can be accessed directly through your cmm and geomet. would you like more information? please use our information request form. standard configuration •granite worktable •38"-16 clamping inserts (m10 optional) •locks on all three axes •usb procounter ii interface •zero-play fine adjustment on all axes •custom key labels •electronic touch probe interface •calibration sphere •geomet junior software •windows xp •pentium computer system •geomet junior user guide •geowidget training part •1-year cmm warranty •online access to software upgrades cmm specifications measuring range model number x y z 112-102 300mm (12") 300mm (12") 250mm (10") 216-142 400mm (16") 500mm (20") 350mm (14") overall size model number x y z 112-102 635mm (25") 685mm (27") 965mm (38") 216-142 735mm (29") 915mm (36") 1150mm (45") model number scale resolution repeatability volumetric accuracy 112-102 .5 µm (0.000020") 4 µm (0.00014") 8.6 µm (0.00034") 216-142 .5 µm (0.000020") 4 µm (0.00014") 9.6 µm (0.00038") linear accuracy : 0.00016" + 0.000005" per inch mpep : 4.5 µm mpee : 4.5 µm + l200, (l = measured length in mm) performance per ansi b89.4.1a-1998 : standard is based on dynamic measurements with electronic probe and 200mm or 300mm ball bar. mechanical accuracy is intrinsic without volumetrically compensating through software. tests are conducted at standard 68°f (20°c) and 50% humidity. weight : 112-102 : 69kg (153 lbs) 216-142 : 113 kg (250 lbs)

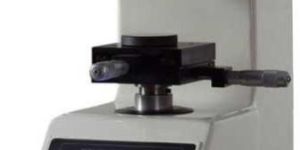

The company is counted among the reliable Manufacturers, Exporters, Importers and Suppliers of Hardness Testing Machine in Bangalore (India). The Hardness Testing Machines, offered by the company, are widely in demand owing to their numerous features as well as unsurpassed quality. The company offers the very best Hardness Testing Machines to the clients on a timely basis. Features Of Hardness Testing Machine Precision micro Vickers hardness testing machine integrated the technology of optics, mechanics and computerEquipped with a large LCD screen, the operation is more directly and clearlyCan display the measuring methods, testing force, indentation length, hardness value, dwell time of the testing force as well as the number of measurementCan save and revise the date, record the measuring results, compute the data, outputting the information with the printerHardness conversion among 17 hardness scales, and linking to pc in RS 232 interface and cable

We are offering hardness tester. ● hvd-2000 series is a precision micro vickers hardness testing machine integrated the technology of optics, mechanics and computer. ● hvd-2000 series equipped with a large lcd screen, the operation is more directly and clearly. ● hvd-2000 series can display the measuring methods, testing force, indentation length, hardness value, dwell time of the testing force as well as the number of measurement. ● hvd-2000 series can save and revise the date, record the measuring results, compute the data, outputting the information with the printer. ● hvd-2000 series hardness conversion among 17 hardness scales, and linking to pc in rs 232 interface and cable.

we are one of the major manufacturers, exporters, importers and suppliers of cutting tool inspection machine in bangalore (india). We continue to improve both our hardware and software. We have updated all our pc hardware with the most current usb components available. The 1000-400-c160 uses the qioptiq zoom 160 microscope with magnifications from 15x to 260. This microscope has exceptional resolution and image clarity with higher high end magnification. This microscope offers standard live image inspection. By changing camera we can optionally offer still image inspection with resolution down to .5 microns. We are adding a brand new suite of camera properties that will allow function calls for image quality, compression, image processing, filtering, color conversions light control, edge detection and more. This is our commitment to our customers to maintain the most current technology available. Better yet, we donate charge for software upgrades; they are available for free on the euro-tech web site. The complete gage includes; standard base features, pc and zoom microscope cutting tools inspection solution the euro tech pg 1000 evolution series represents the next step in cutting tool inspection technology. We added the new pc based pg 1000-200-sb software system as an affordable alternative between the pg 1000 enhanced with a swiss made monocular microscope and the pc based pg 1000-cmn and pg 1000-c160 software system we have updated all our pc hardware with the most current usb components available, software upgrades are available at no cost to any current pg 1000 user off the euro-tech web site. The new pg 1000 cmn software systems now automatically synchronizes microscope magnification with the software. Further enhancements allow increased field of view, high image resolutions and still image inspections capability at any magnification. In the last ten years accuracy requirements have been increased tenfold, we are up to the challenge. For cost, accuracy, and flexibility, the pg 1000 is truly the best cutting tool inspection system available today. All systems are sold ready to use with standard v-block assemblies, optional accessories available. All machined pg 1000 components are made in the united states to euro-tech specification. All software is written by euro-tech corporation. models available : (evolution series) pg 102 cutting edge height gage pg 1000 200-e pg 1000-vbs pg 1000-400 cmn pg 1000-400-c160 standard functions: precision inspection of various cutting tool geometry's on twist drills and step drills, form tools, reamers, taps and end mills standard base features (all models)½ 19" x 21" grade "a" black granite base½ 8.00" horizontal measuring length using high precision linear motion guide ways½ 3.00" vertical measuring length using high precision linear motion guide ways½ 1.50" focus distance using high precision linear motion guide ways½ 16 pitch precision acme lead screw with anti backlash nuts on both axis½ fully ground interchangeable swiveling v block mounted on base block with 360o of motion, carbide tipped length stop, top clamp, and v block insert for small diameter tools½ 3 to 60mm (118" to 2.362") work piece diameter range. All standard lengths½ variable intensity led work light. hardware specifications of cutting tool inspection machine microscope : * 00414-1a 12x optical systemmagnification : 15x, 25x, 40x, 55x, 70x, 80x, 90x, 120x, 150x, 175x, 210x and 260xfield of view : 15x = 17 mm, 25x = 11 mm, 40x = 8 mm, 55x = 6 mm, 70x = 4.5 mm, 80x = 4 mm, 90x = 3.5 mm, 120x = 2.5 mm, 150x = 2 mm, 175x = 1.5 mm, 210x = 1.2 mm and 260x = 1 mmcamera : *1.3 mega pixel format usb color cameracomputer : *dell mini-tower or desk topmonitor : 20" flat panel wide screenoperating system : *windows 7 32 bitscales : *rsf or fagorlanguage : englishsoftware : all software documentation is electronic and available for download from the screen resolutions low = .020 mm (.00078) high = .0017 mm (.000078)light : variable intensity led work light product information of cutting tool inspection machine software upgrades : free off of the euro-tech web sitewarranty : 1 year on all parts supplied by euro-tech at the time of purchase as an upgrade or full system

we are counted among the reputed manufacturers, exporters, importers and suppliers of coordinate measuring machines in bangalore (india). The coordinate measuring machines, offered by the company, are advanced and valued anywhere in the world. Properly designed for the various shops, these coordinate measuring machines are highly reliable and the company makes a conscious effort to deliver the best grade coordinate measuring machines. checkmaster reliability the compact checkmaster is a bench top coordinate measuring machine ideal for lab or production floor. Hardened stainless steel ways and steel scales on steel structures offer uniform linear expansion minimizing thermal errors. The low cost means you can put competent inspection capability in multiple locations throughout your plant. intrinsic accuracy manual coordinate measuring machines we test every coordinate measuring machine before it leaves the factory for repeatability and accuracy, that meets or exceeds the industry standards as defined in ansi b89.4.1a-1998. Our testing includes a repeatability test that exceed a minimum of 150 cycles, often recording a total range of 2.0 µm (0.00008") or better! these stringent targets are maintained without the need for expensive software compensation maps. Our goal is to build the coordinate measuring machine mechanically correct that will deliver the results you expect, year-after-year. every checkmaster is designed and packaged for fast and secure installation by the customer. All key components are protected during shipping by specially designed brackets, that when removed, ensures the coordinate measuring machine is ready for your first inspection. the ideal scanning system not every reverse engineering job requires expensive motorized coordinate measuring machine. The checkmaster using the geomet junior software provides tools such as geotracer which allows you to capture large data point clouds using low cost hard probes. Ideal for outline tracing! geomet junior the software is preinstalled in the supplied windows xp computer system. One usb connection from the coordinate measuring machine interface is all that is required to complete the system. A user guide is provided with easy-to-follow tutorials including sample inspection programs. Geomet maintains a web site dedicated to geomet. Through this site, you will have the latest access to software upgrades and a full online manual that can be accessed directly through your coordinate measuring machine and geomet. standard configuration granite worktable3/8"-16 clamping inserts (m10 optional)locks on all three axesusb procounter ii interfacezero-play fine adjustment on all axescustom key labelselectronic touch probe interfacecalibration spheregeomet junior softwarewindows xppentium computer systemgeomet junior user guidegeowidget training part1-year cmm warrantyonline access to software upgrades additional information payment terms : l/c, t/tpackaging details : sea worthy packingdelivery time : 8 weeks cmm specificationsmeasuring rangemodel numberxyz112-102300mm (12")300mm (12")250mm (10")216-142400mm (16")500mm (20")350mm (14")overall sizemodel numberxyz112-102635mm (25")685mm (27")965mm (38")216-142735mm (29")915mm (36")1150mm (45")model numberscale resolutionrepeatabilityvolumetric accuracy112-102.5 µm (0.000020")4 µm (0.00014")8.6 µm (0.00034")216-142.5 µm (0.000020")4 µm (0.00014")9.6 µm (0.00038") notes linear accuracy : 0.00016" + 0.000005" per inchmpep : 4.5 µmmpee : 4.5 µm + l/200, (l = measured length in mm)performance per ansi b89.4.1a-1998 : standard is based on dynamic measurements with electronic probe and 200mm or 300mm ball barmechanical accuracy is intrinsic without volumetrically compensating through softwaretests are conducted at standard 68°f (20°c) and 50% humidityweight112-102 : 69kg (153 lbs)216-142 : 113 kg (250 lbs)

we are offering high quality benchtop vision inspection system. the benchtop vision inspection system is specifically designed for non-contact measurement and inspection of small, delicate, or complex components. benchtop vision inspection system is the next generation of traditional measuring microscopes and optical comparators. the benchtop vision inspection system is ready to go out of the box for easy setup and use. the benchtop vision inspection system includes measurement machine, true measure software, and pc. highlights of benchtop vision inspection system compact desktop video cmmeconomical & cost effectiveeasy to use play and play systemhigh resolution digital colortouch screen all-in-one pc optioncomplete system features of benchtop vision inspection system quick release 200x100mm stage1 micron resolution optical encodershigh resolution large live image & geometric cad imagezoom lens with detents1.3 mega pixel color usb camera21.5" all-in-one touch screen pc optionimport & export cad dxf fileled top & back light2 axis measurement additional information payment terms : lc, tt, western union, packaging details : export worthy packingdelivery time : 2-4 weeks

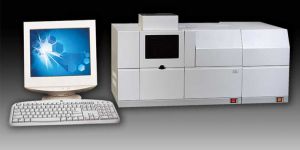

We are offering atomic absorption spectrophotometer. Characteristics ■ completely controlled by pc, can flexibly select the flame and graphite furnace atomizer (optional) ■ integrated floated optical platform design can obviously improve the optical system shock resistance and can keep stable though use the optical signal for a long term. ■ eight light stands can be changed automatically and preheat the eight element lights meantime as well as optimize the working condition of the hollow cathode lamp ■ position adjusting: the best height of the flame burner and can automatically set the front and rear positions ■ fully automated wavelength scanning and peak searching ■ complete safety chains protection equipment: the function of warning and automatic safety protection towards the wrong burner, leakage of the gas, under voltage of air and the abnormal flameout ■ deuterium lamp and self-absorption background regulation ■ data processing: super strong database, possesses more than 500 data self-storage and cut-off storage function, can store the analyzed result with the form of excel and the testing method and the result can be randomly called ■ measuring method: flame absorption method and emission method ■ result printing: parameter printing, data result printing and diagram printing complete automatic controlling system with the help of the software, the following can be easily achieved ■ selection of the element lamp ■ up-down-front-rear adjustment of the lifter ■ adjustment of the optical energy ■ selection of the slit ■ determination of wavelength scanning and peak searching ■ selection of the atomizer ■ setting of the background deduction method ■ controlling of the gas flow ■ automatic flaming and flaming out ■ setting of the graphite furnace testing method advanced graphite furnace temperature controlling technology ■ the bringing in of pid technology can effectively overcome the influence on the temperature rising process caused by the voltage fluctuation and the resistance change to make more accurate controlling process. The combination of the 3ms/time fast sampling technique can make more accurate and reliable testing data ■ the fast heating capacity can improve the flexibility of the elements further ■ use the ordinary power source of 220v without need of dynamic power of 380v ■ the maximum procedure heating capacity setting of 20 levels can make a more convenient and easier test of different samples ■ three grades adjustable gas flow can accustom to more application needs ■ can timely alarm when the gas and water is stopped and insufficient gas and water, can avoid the equipment damage and measuring error safe, reliable and convenient flame system ■ epc can control the flow of acetylene (c2h2) more accurately and it is a kind of system which also can operate easily ■ efficient atomization system enables a higher sensitivity ■ the whole operation system has a high security as the fire safety system can alarm whenever the electricity is cut off, abnormal flame occurs, a lack of pressure happens or the burner does not match well. And it will automatically turn off the gas, prohibit tempering. Thus it keeps the operation people and equipment from harm and damage. multi-functional software workstation ■ a workstation that is supported windows xp/2000/nt ■ the rich menu brings great convenience to the use of customer ■ convenient conversion between different menus makes the operation more easily ■ various analytical correction methods provide the users more choices ■ basic default parameter settings enable even the beginners can do the normal operation ■ flexible storage, editing and printing methods give the user largest support ■ instrument configuration: atomic absorption spectrophotometer 1pc air compressor without noise 1pc pc workstation: computer, hp inkjet, apparatus operating software (the object can be prevailed on the specific configuration) a set of accessories (including acetylene reducing valve, one copper and manganese element lamp and air filter)

We are offering coordinate measuring machine. checkmasterbenchtop model 112-102 manual coordinate measuring machine. Includes: • travels: 12" x 12" x 10" • machine weight: 230 lbs • overall size: 27" l x 25" w x 38" h • resolution: 0.000020" • repeatability: 0.00014" • linear accuracy: 0.00014 + 0.000005" inch • volumetric: 0.00034” • optical non-contact steel scales • locks & fine adjustment on x, y & z • bridge-style construction • precision bearings on hardened & ground ways • granite surface plate • 38-16 clamping inserts • computer system (windows xp) • geomet® junior plus software system wmanual • 3 axis counter card • 1"ø reference sphere wbase • geowidget training part • one year warranty

We are offering profile projector. Accutech VT 300 : 300mm screen diameter technical parameters screen diameter (mm) 300 mm laser marked glass rotating range 0o~360o with digital angular display magnifications- standard telecentric optics 10x & 20x, sill optics germany mounted on indexing turret for 3 optics co-ordinate worktable 380 x 280 mm with stroke of 220 mm x 170 mm with threadless ground shaft lead screws, with �quick release system� indicator scale 0.001mm workstage movement manual weight on workstage safely 10 kgs. contour illumination accuracy +/- 0.05% on screen surface illumination accuracy +/- 0.075% on screen illumination system dual beam split light source with light control intensifiers system to adjust bright surface illumination contrast for clear and sharp display on screen, all bulbs are individually fan cooled for minimum heat generation measuring systems measuring outsourced from u.k. Pc software measurement feature inspection system for geometrical measurement: automatic measurement routines powerful interactive graphics window automatic feature recognition 2d and 3d inspection geometric feature inspection free form curve inspection dxf data import feature construction intelligent feature projection gd&t dimensions and tolerances digital read out (dro) programtools teach & learn programming drag and drop program editor run programs from any point measure a subset of features simple object-based programming no complex programming language automated batch inspection password protect programs automatic safety moves feature replicator reportformats engineering drawing gd&t report simple pass/fail report form plots batch summary report tabulated reports graphical fly-out labels drag & drop reporting real-time spc combine multiple views export to excel export to dxf historical data reporting

We are offering horizontal profile projector within a short span of time, the company has carved a niche for itself as manufacturers, exporters, importers and suppliers of horizontal profile projector in bangalore (india). The horizontal profile projectors, offered by the company, is widely known for its advanced features and unsurpassed quality. these horizontal profile projectors have a 300mm screen diameter. details of horizontal profile projector screen diameter (mm) 400 mm multiple laser marked lapped glass rotating range 0~360 degreesoptional : 25x, 50x and 100x co-ordinate worktable 320mm x 150mm, with +/- 20 degree helix angle adjustment with threadless ground shaft lead screws, with quick release systemworkstage movement x axis manual y axis manual z axis manual optionalworkstage movement motorized all axes coupled with imported noiseless dc motor, joystick movement and with variable speed controlall bulbs are individually fan cooled for minimum heat generation standard measurement system digital read out standard supply with profile projector measuring system digital read out features of built-in dro : o zero setting; inch/ mm o ± direction choice o x, y, angle, radius o incremental / abs resolution o angle display in dd / dms additional optional accessories, please select as per need : measuring systems truemeasure pc based software measurement system for geometrical (software) measurement suitable for reverse engg & advance inspection consists of wipro / compaq duo core pc 17tft core, cdwr, 160gb hd, 512 mb ram(pc would be supplied with latest upgraded features at the time of supply). Specially designed for profile projector for quick alignment, measurement etc.measuring systems electronica 500 el geometrical data processor microprocessor based geometric data processor model el500, 1 micron least count with lcd screen, x, y and angle measurement, and all other geometrical functions, like optional automatic edge sensing system with computer interpolation for geometric measurements. Interface: rs 232 port with print out facility angular measurement: digital angular read out of 0.01 resolutionsdata processor el500, all other geometrical features technical parameters of horizontal profile projector screen diameter (mm) 300 mm laser marked glassrotating range : 0~360 degrees with digital angular displaymagnifications : standard tele centric optics 10x & 20x, sill optics germany mounted on indexing turret for 3 opticsso-ordinate worktable 380 x 280 mm with stroke of 220 mm x 170 mm with thread less ground shaft lead screws, with quick release systemindicator scale : 0.001mmwork stage movement manualweight on work stage safely 10 kgscontour illumination accuracy : +/- 0.05% on screensurface illumination accuracy : +/- 0.075% on screenillumination system dual beam split light source with light control intensifiers system to adjust bright surface illumination contrast for clear and sharp display on screen, all bulbs are individually fan cooled for minimum heat generationmeasuring systems measuring outsourced from ukpc software measurement feature inspection system for geometrical measurement: automatic measurement routines powerful interactive graphics windowautomatic feature recognition 2d and 3d inspectiongeometric feature inspection free form curve inspectiondxf data import feature constructionintelligent feature projection gd&t dimensions and tolerancesdigital read out (dro) program tools teach & learn programming drag and drop program editorrun programs from any point measure a subset of featuressimple object-based programming no complex programming languageautomated batch inspection password protect programsautomatic safety moves feature replicator report formats engineering drawing gd&t report simple pass/fail reportform plots batch summary reporttabulated reports graphical fly-out labelsdrag & drop reporting real-time spccombine multiple views export to excelexport to dxf historical data reporting additional information payment terms : l/cdelivery time : 8 weeks
