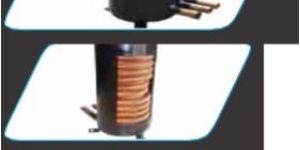

water heat exchanger
High working pressure : The copper pipe is of 0.8- 1.2 mm thickness, no welding inside with its extra ordinary pressure resistance property. The copper pipe is without any leakage under 5kg/sq.cm pressure test.
...more

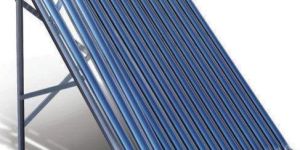

Solar Water Heating System
We are the leading manufacturers, exporters and supplier of this products.
Capacity : 300 lpd
...more

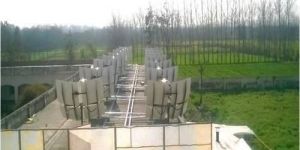

Solar Steam Cooking System
Type : Parabolic Type
Application : Hotel, School, etc

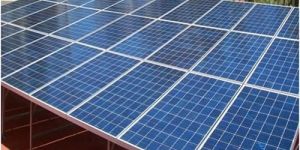

Solar Rooftop System
60,000 Per Piece
Application : Schools, Industries, Hotels and etc
Capacity : 100 kW
Brand Name : Avi Solar Tech
Weight : 25 kg / module
...more

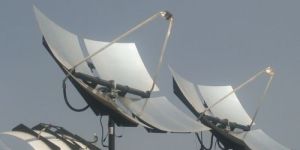

Solar Parabolic Concentrator
125,000 Per Piece
Material : Stretched Membranes
Temperature Range : -30 Degree C to 60 Degree C
Thickness : 5-15 mm
...more
Pump
Domestic range are supplied with built-in circulation pump, heat pump supply with German Willo pumps as a standard supply.
...more

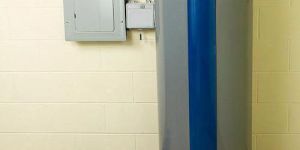

industrial water heating system
Type : Industrial Water Heating Element
Material : Aluminium, Copper, Stainless Steel
Application : Industry
Certification : CE Certified
Color : Brown, Light Grey, Silver
Voltage : 110V, 220V, 380V, 440V
Condition : New, Used
Power : 1kw, 2kw, 4kw, 5kw
Driven Type : Electric
Feature : Fast Heating, Perfect Body Structure, Rust Proof, Stable Performance
...more
Heat Pump
Air source Heat pump is a device which extracts heat from air and transfer heat to the water. Main components of heat pump are Evaporator Compressor Condenser Expansion valve Fan Function: Fan draws out side ambient air in to the heat pump and pass through the evaporator coil. In the evaporator coil, the refrigerant can turn liquid to gas at very low temperature. This gas compressed by compressor to elevate the temperature and pressure. Condenser is nothing but tube in tube or tube in shell heat exchanger is made of copper pipe with no welding inside. The internal spiral surface of copper tube ensure effectiveness of heat exchanger. Provision is made for gas as well as water connection. Heated gas pass through one tube while water passes through the shell. Water gets instantly heated from 15 deg.c to 55 deg.c. Refrigerant gas is condensed and goes to liquid from the same pressure as discharged by compressor. In expansion valve, causes sudden pressure drop in refrigerant, in turn refrigerant temperature drop to temperature below the ambient
...more
. Expansion Valve
Electrical expansion wall(EEV) is used for domestic range. Alco(Emerson) or Donfoss thermal expansion wall(TEV) is used for commercial range.
...more

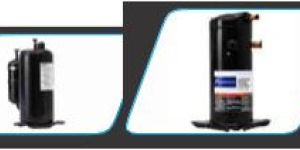

Compressor
Famous branded rotary compressor for domestic heat pumps. Copland or Donfoss scroll type compressor for commercial and industrial heat pump. Can work at -25deg.C,low noise, long life and long working time design.
...more

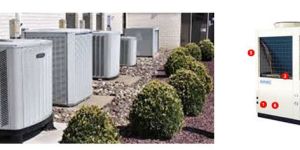

Commercial Heat Pump
Commercial and industrial Hot Water Heat Pumps are designed to offer hot water for commercial and (or) industrial application. In order to achieve the required water temperature, large heat pump units apply unique “V” style evaporator design, which enlarges the heat exchange surface and increases efficiency Features and Highlights High efficiency eco-friendly R134A, R417A or R407C refrigerant, without ozone depletion Intelligent control: micro processor based digital controller with LCD display Adjustable water temperature setting: 25℃ -60℃ Automatic defrosting function included Anti- legionella function on regular intervals Inner grooved copper tube for higher efficiency Water heat exchanger: tube-in- shell for cycle heating models, and tube-in-tube for direct heating models. Alco or Danfoss thermal expansion valve
...more
Domestic Heat Pump
Domestic Heat pump circulating model adopts high efficiency tube – in – shell water heat exchanger and incorporate a built in German Willo pump and for every installation. The unit is capable of producing hot water with a maximum temperature up to 55 deg.c It can retrofit to existing solar water heater tank or electrical geyser to replace electric water heater. save more than 2/3 energy. Features and High lights of Heat pump (Circulating Model) High Efficiency rotary & scroll compressor High efficiency eco-friendly R134A, R417A or R407C refrigerant without ozone depletion. Immediate hot water production. Built in German Willo circulation water pump. Intelligent microprocessor based controller with LCD display. Adjustable water temperature setting : 25 – 60 deg,c Tube – in – shell water heat exchanger with a maximum water pressure up to 2.5 kg/sq.cm. Electronic expansion valve (EVE) for expansion with reliability and high precession. Inner grooved copper tube for higher efficiency. Blue hydrophilic aluminium fin to resist the corrosion. Automatic defrosting function included Can be retrofit the existing geyser and used in conjunction with solar hot water system. Easy installation & maintenance. Heat pump work all through the year including monsoon and winter.
...more
Heat Pump Installation Service
